MOZA R16 Ultra – Direct Drive Wheel Base 16Nm
Vendor:
Moza Racing
SKU:
RS101
Barcode:
6973137271435
Availability:
Out Of Stock
Product type:
Simracing > Bases Direct Drive > 10 à 19 Nm
- Regular price
- 549,90€
- Regular price
- Sale price
- 549,90€
About VAT
Couldn't load pickup availability
Ships within 1–2 business days
Secured Payments
More than 10 Years of Expertise

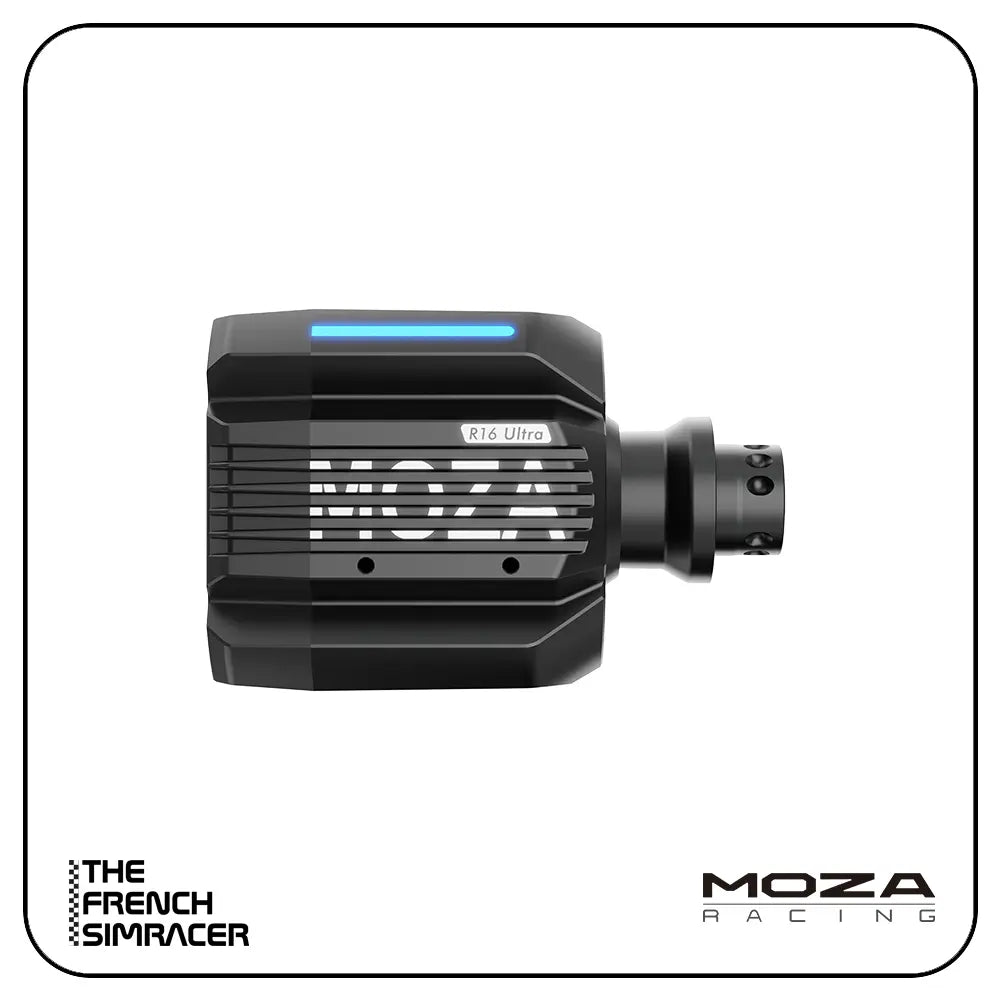

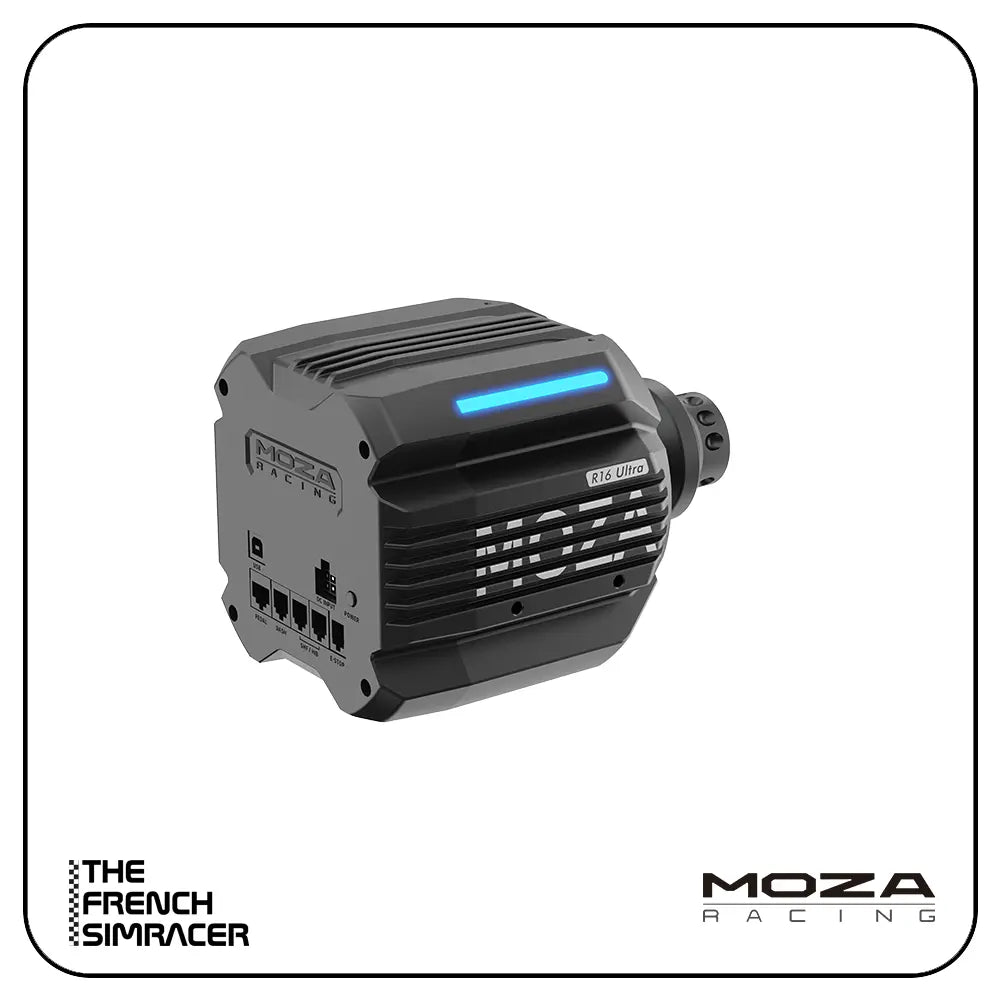

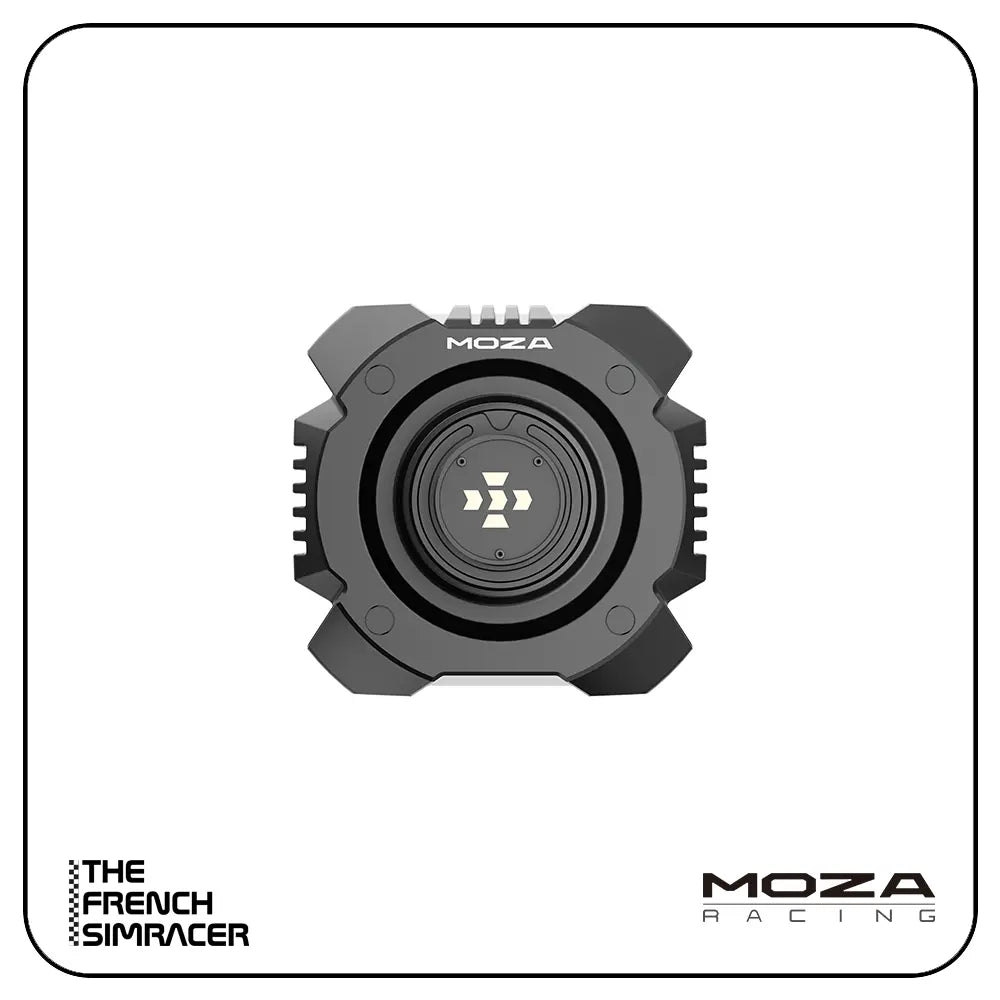

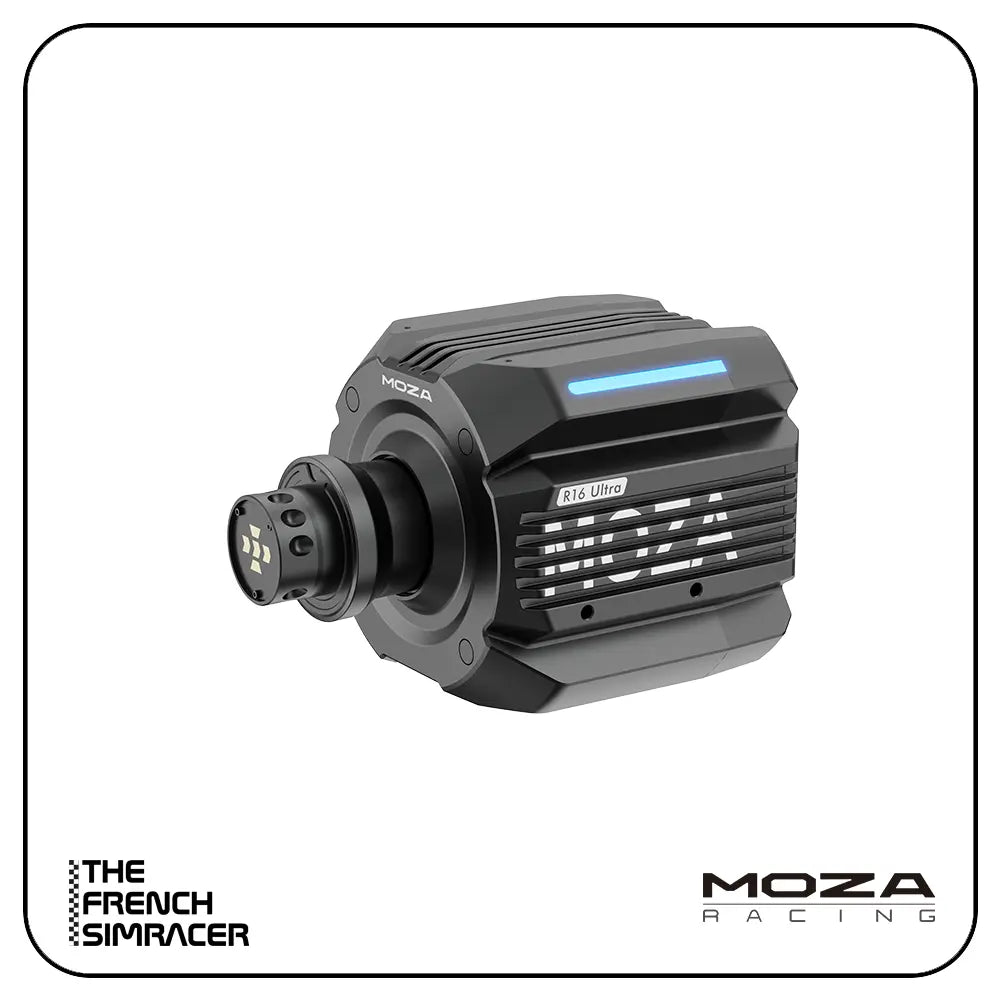

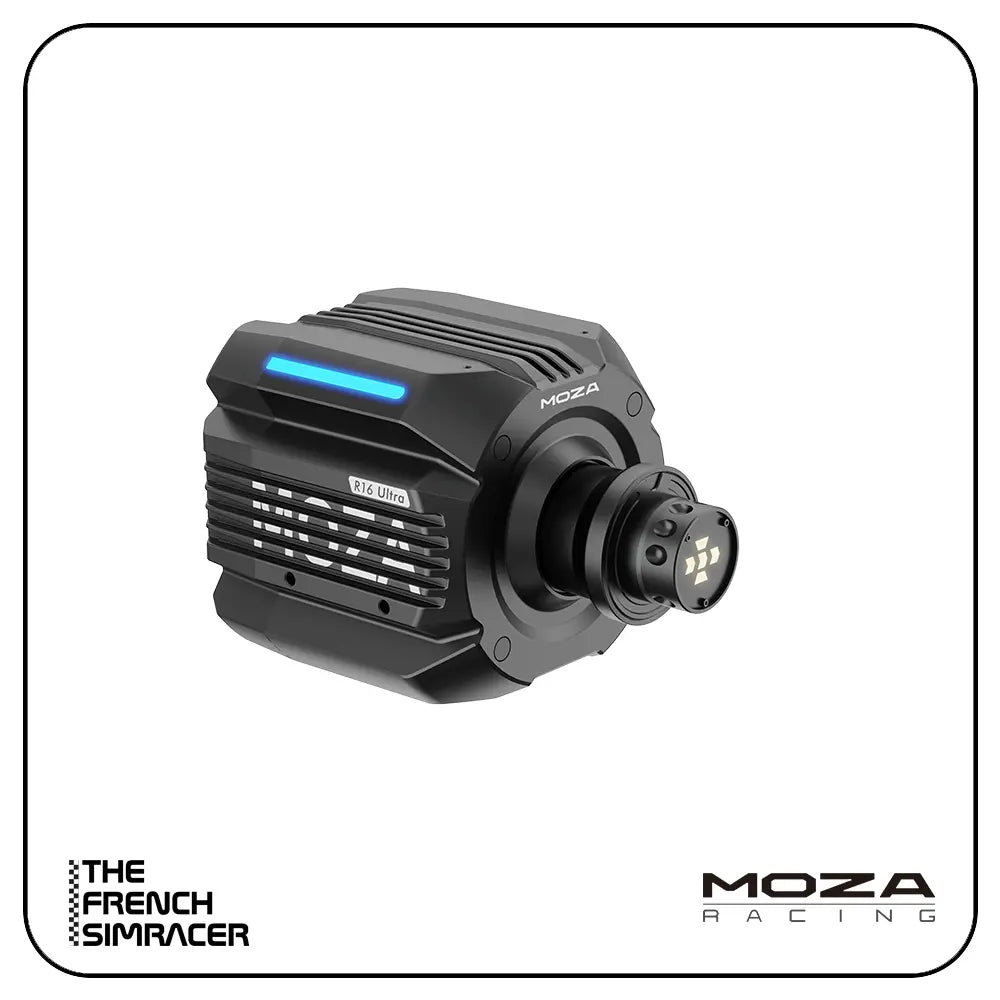

MOZA R16 Ultra Direct Drive Wheel Base
The MOZA R16 Ultra is a 16 Nm Direct Drive base built around MOZA's all-new zero-cogging flat-wire motor and a 21-bit magnetic encoder (2,097,152 PPR), developed to succeed the R16 with higher torque density, finer force feedback detail and greater steering precision. Housed in a compact motorsport-inspired aluminium body with dual customisable RGB light strips, it runs the NexGen force feedback algorithm with iRacing 360 Hz support and full tuning through MOZA Pit House.
Main Features
- All-new zero-cogging flat-wire motor: MOZA's next-generation custom motor offers 12% higher torque density than similarly sized competitors, with true zero cogging for ultra-smooth rotation that faithfully recreates the torque transitions of a real steering system.
- 16 Nm of constant torque: greater motor headroom delivers consistent, reliable force feedback performance throughout the session.
- 21-bit magnetic encoder: 2,097,152 points of resolution for exceptional precision and finer force feedback detail.
- NexGen force feedback algorithm: combines the new hardware with advanced software for more realistic force feedback and finer tuning control, with iRacing 360 Hz support.
- Refined design with RGB customisation: dual RGB light strips along the top edges offer 16.7 million colors and fully customisable effects, including real-time telemetry feedback for ABS, traction control, gear shifts and flag signals.
- Intelligent thermal management: a fully upgraded cooling system with real-time temperature monitoring and smart torque regulation keeps the base running cooler, even under sustained high torque.
- Fully customisable via MOZA Pit House: force feedback curves (presets or your own), force interpolation for finer surface detail, and independent tuning of spring, damper and friction without affecting vibration or game-based effects.
- Rigid aluminium housing: exceptional structural integrity and torsional rigidity to withstand high-torque output while keeping weight to a minimum.
- Versatile mounting: bottom, front and side mounting to suit a wide range of rigs.
- Native ecosystem integration: dedicated ports for pedals, shifter, dashboard, handbrake and emergency stop switch — no extra USB hubs or cables.
Technical Specifications
- FFB drive system: Direct Drive, zero-cogging flat-wire motor
- Torque: 16 Nm
- Encoder type: 21-bit magnetic encoder
- Encoder resolution: 2,097,152 PPR
- RGB light strips: 2 (16.7 million colors)
- Housing material: aluminium alloy
- Coupler material: aluminium alloy

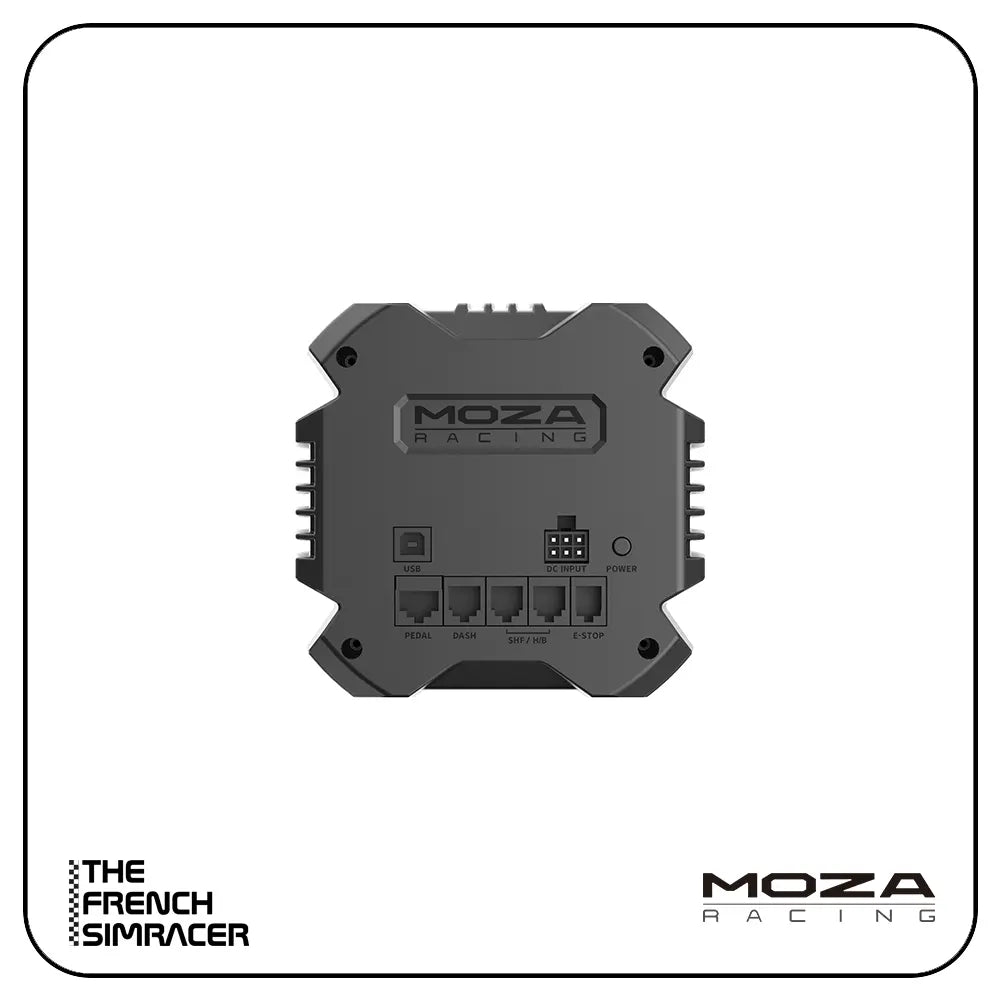

- Connection ports: Power, PC, Pedals, Dashboard, Shifter, Handbrake, Emergency Stop Switch
- Mounting options: bottom, front and side
- Quick Release: supported
- Mobile app functions: yes
- Platforms: PC; Xbox with the MOZA ESX Steering Wheel
- Dimensions: 135 x 140 x 206 mm
Compatibility
The R16 Ultra works natively on PC via USB and MOZA Pit House, with broad game compatibility and iRacing 360 Hz support. Xbox compatibility requires pairing the base with the MOZA ESX Steering Wheel (sold separately). Dedicated ports connect MOZA pedals, shifters, dashboards, handbrakes and an emergency stop switch directly to the base, and MOZA quick-release wheels attach without adapters. The MOZA mobile app allows real-time adjustments without leaving the game.
Which model to choose
Coming from an R9 or R12, the R16 Ultra brings a major step up in torque, smoothness and detail thanks to the zero-cogging flat-wire motor. Compared with the original R16, it succeeds it with higher torque density, the latest NexGen algorithm and upgraded thermal management — the flagship-grade choice for a premium MOZA setup.
FAQ
What is the difference between the R16 Ultra and the original R16?
The R16 Ultra is developed to succeed and replace the R16. It introduces MOZA's new zero-cogging flat-wire motor with 12% higher torque density, the latest NexGen force feedback algorithm, upgraded intelligent thermal management and dual customisable RGB light strips in a compact motorsport-inspired housing.
Does the R16 Ultra work on console?
It works on PC natively. Xbox support is available, but only when the base is paired with the MOZA ESX Steering Wheel, sold separately. PlayStation is not supported.
Is 16 Nm suitable for beginners?
Yes, with sensible settings. Force output is fully adjustable in MOZA Pit House, so you can start at lower strength and increase it as you progress, while an emergency stop switch can be connected via the dedicated port for extra safety.
What can I customise in MOZA Pit House?
Force feedback curves (preset or custom), force interpolation for finer surface detail, and independent adjustment of spring, damper and friction forces without affecting vibration or game-based effects. The mobile app also allows real-time tuning without leaving the game.
How can I mount the R16 Ultra?
The base supports bottom, front and side mounting, making it compatible with a wide range of rigs and mounting brackets.
