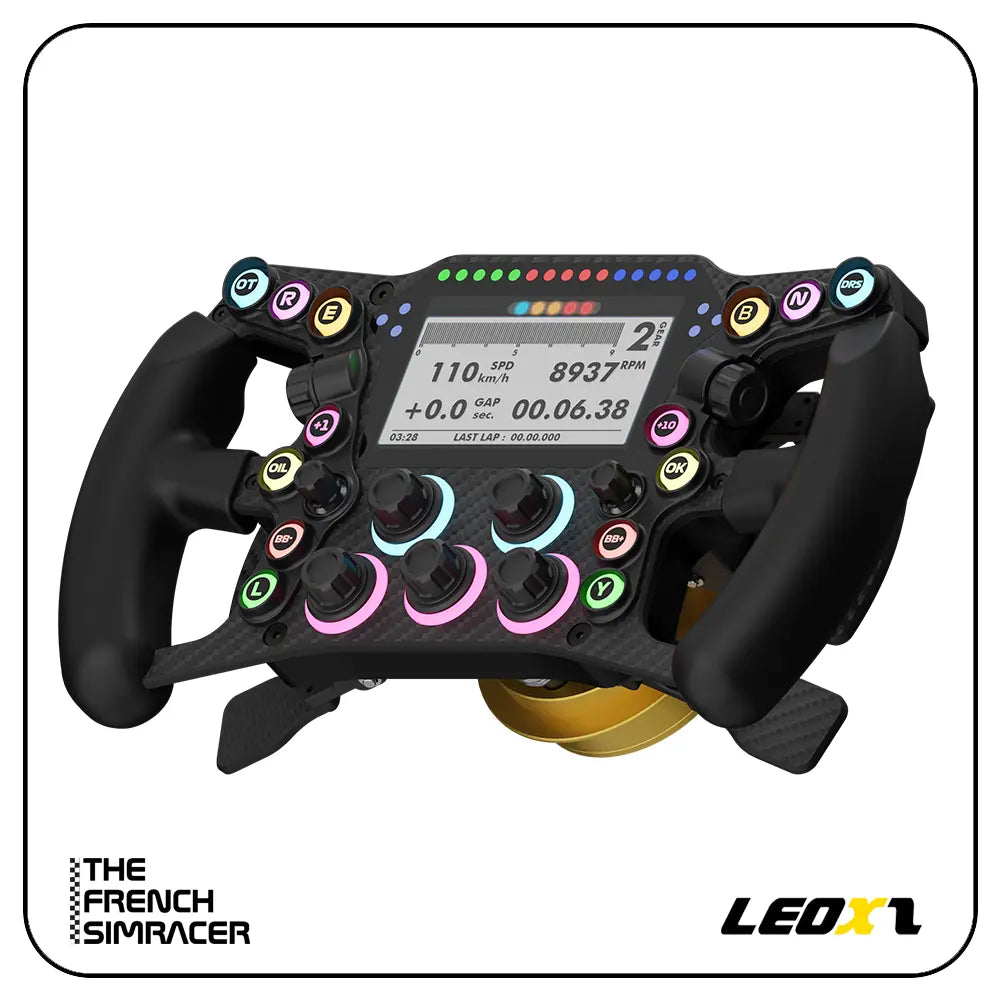

LeoXZ XGT Ultimate Wheel

LeoXZ XGT Ultimate Wheel

The Leoxz XGT Ultimate Wheel is a high-performance sim racing wheel designed for professional sim racers who demand top-tier quality and features. This wheel combines premium materials with state-of-the-art technology to deliver an immersive and precise racing experience.

Key Features:

• 4.3" Dashboard with 3+15+3 LED Bar:

  • The XGT Ultimate features a 4.3-inch IPS display with a resolution of 800x480 pixels and a refresh rate of 60 fps, delivering vibrant visuals with up to 500 cd/m² brightness. The screen is protected by 2mm thick scratch-resistant Gorilla Glass, making it one of the most durable and visually striking displays available on any racing wheel.
  • The 21 RGB LEDs are precisely timed for each gear shift, ensuring accurate and responsive feedback.

• 295mm Closed-Type 60A Grip:

  • The 295mm diameter is perfect for all types of racing, ensuring compatibility with a wide range of driving styles. The closed-type grip design provides a secure and robust feel.

• Shifter, Clutch, and Optional Paddles:

  • The XGT Ultimate offers various paddle configurations to suit different budgets and user preferences. Both the shifters and optional paddles use N52 magnets, ensuring a crisp and precise response with every press. The clutch paddles can be configured for single-axis or dual-clutch modes, providing versatility for different racing scenarios.

• Quick Settings Menu:

  • The wheel features a highly customizable menu interface, allowing for quick adjustments of settings such as wheel mode, screen and light brightness, clutch mode, screen sleep time, encoder width, and more.

• Optional Wireless Kit, Fully Compatible with SimHub:

  • The XGT Ultimate is the first truly wireless wheel, featuring a low-latency 2.4G wireless connection for both inputs and dashboard data. It is fully compatible with SimHub for customized dashboard displays. When connected to a 2.4G Wi-Fi network, the wireless kit also opens up compatibility with PS4/5 dashboards, enabling seamless integration with PlayStation systems.

• 70mm Quick Release Compatibility:

  • The XGT Ultimate comes with a universal 70mm QR mounting hole, making it compatible with almost any QR setup. With the Leoxz D1 or Fanatec QR, the wheel can receive power from Simagic, Moza, and Fanatec bases, enabling true wireless connectivity. The wheel is compatible with a wide range of bases, including Fanatec, Asetek, Simagic, Moza, VRS Direct Force, Accuforce, Leo Bodnar, and OSW.

• Durable and Shielded Spiral Cable with GX12 Connector:

  • The wheel uses a robust spiral cable with an industrial-grade GX12 threaded connector. The cable has undergone 100,000 bending tests, ensuring reliable and strong connections, even under the most intense driving conditions.

Compatible Hardware:

• Simucube: SC1, SC2
• Fanatec: DD1, DD2, CSW, CSL DD, DD Pro (base torque needs to be unlocked with Leoxz Fanatec QR)
• Simagic: Alpha Mini, Alpha, Alpha Ultimate
• Moza Racing: R12 (Note: V1 base does not support QR power supply, V2 base supports QR functionality)
• Asetek Direct Drive Wheelbase: Requires the installation of the Invicta Quick Release Adapter.

Software:

• SimHub: For telemetry data and customization.
• SimBridge: Used to receive SimHub data and send it to XGT.

Packaging:

• Dimensions: 33cm x 19cm x 14cm
• Weight: 1.5kg(QR version 2.0kg)

Included in the Box:

• XGT Ultimate Steering Wheel (Quick release not included)
• USB-GX12 Cable
• Custom Stickers
• Nylon Tweezers

• 6mm height paddle spacers/M3x14 bolts (You can choose whether to install it based on the size of your hand, x4 for Shifter Only and Shifter & Clutch versions, x8 for Shifter & Clutch & Option version)

Important Notes:

1. The steering wheel is for sim racing use only.
2. For USB power input, the maximum voltage is 5V. For QR power input, the maximum voltage is 12V. Exceeding these limits may damage the steering wheel.
3. The free version of SimHub outputs data at a 10 frame rate; an additional license is needed for 60 frame rate.
4. The SimHub dashboard is only effective when connected via USB. With a 2.4G wireless connection, only the built-in dashboard for gear and speed is available.
5. Place the wireless receiver within 1 meter of the steering wheel to avoid a decrease in wireless speed.
6. For bases with noticeable EMI issues (e.g., Fanatec DD1/2), connect the steering wheel using an externally powered USB hub and a USB isolator, and ensure the DD1/2 has an additional grounding cable.
7. Fanatec compatibility has been tested with driver and hardware versions prior to May 1st, 2024.

Downloads:

• Installation Manual
• SimHub
• SimBridge for SimHub

Review :

More details :
