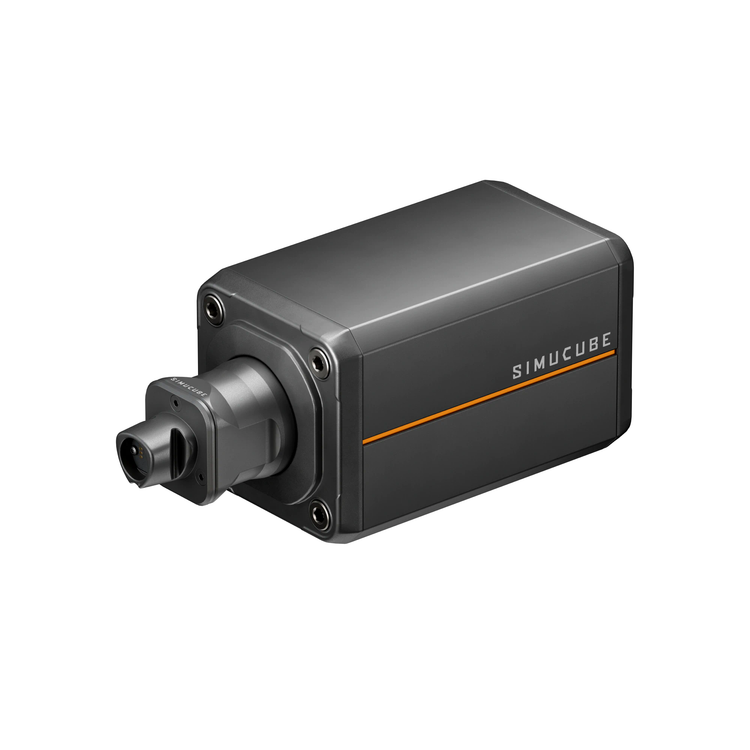

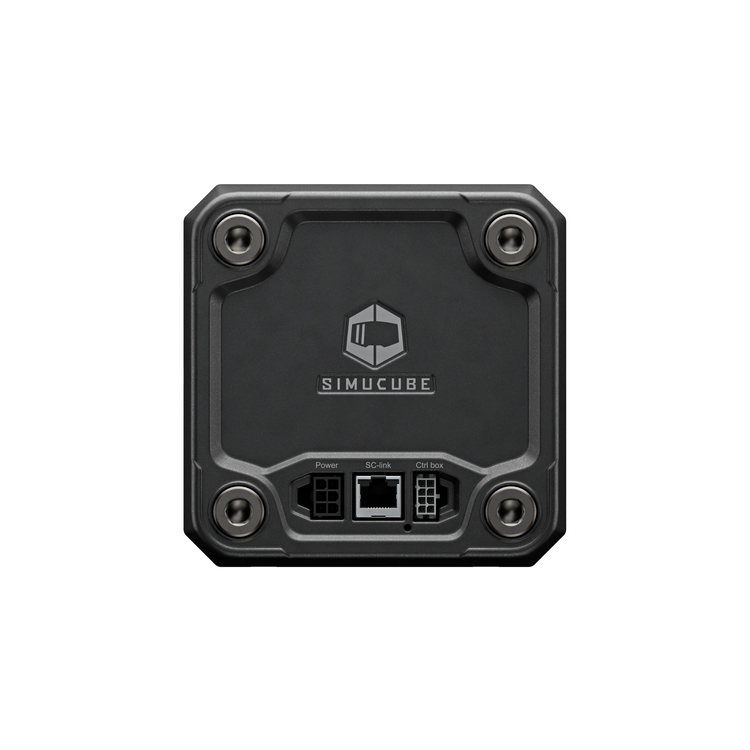

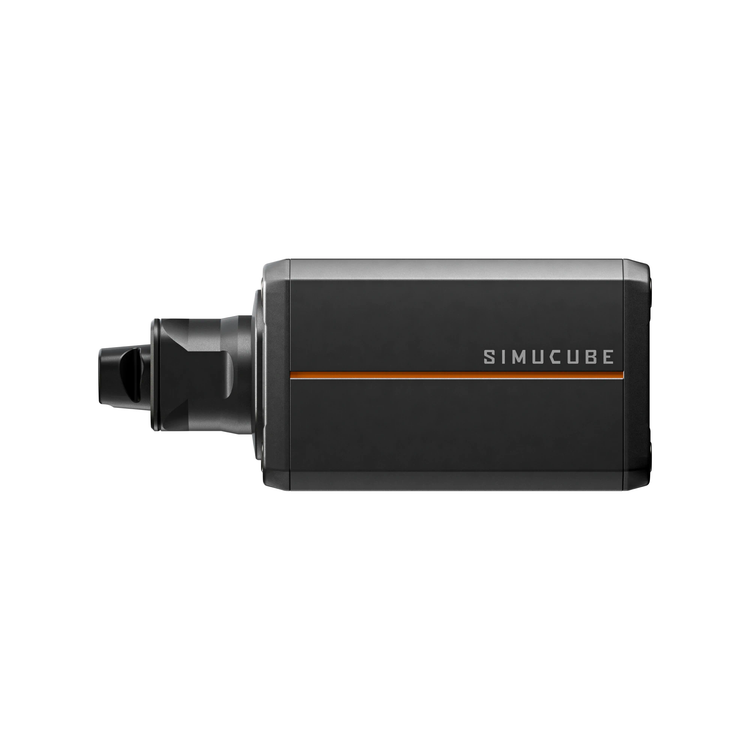

Simucube 3 Ultimate – 35 Nm IPM Direct Drive Wheelbase, Built for the Last 1%
The Simucube 3 Ultimate is the most advanced direct drive wheelbase Simucube has ever created — a force feedback wheelbase that raises performance to an entirely new level, with demands so high it required a completely new type of motor. Featuring an advanced direct drive optimized IPM (Interior Permanent Magnet) motor, it delivers 35 Nm of torque with maximum response speed, all while using less power and running cooler than the competition. With a completely re-engineered control algorithm for maximum accuracy and silent performance, telemetry-based effects, the wear-free Simucube LightBridge quick release and an included control box for on-the-fly tuning, the Simucube 3 Ultimate brings professional-grade performance to the next level. Designed in Finland, manufactured in the EU.
Note! One Simucube Link Hub is required to operate. If you do not own a Simucube Link Hub, please choose the option "with Link".
If you want to use more than one Simucube Link Hub device, such as Simucube 3 and ActivePedals, please purchase an Ethernet Switch.
Main Features
- Precise, smooth, industry-leading direct drive force feedback (35 Nm) — the benchmark for fidelity and control
- Direct drive optimized IPM motor — an Interior Permanent Magnet motor built exclusively for sim racing, with dense magnetic flux, low inertia and optimised thermal paths for the fastest response and the coolest run in the category
- Completely re-engineered control algorithm — redesigned from scratch for maximum accuracy and whisper-quiet performance, outperforming the benchmark Simucube 2
- Enhanced detail with telemetry-based effects — road texture, ABS feedback and RPM: everything the race car feels, you feel, allowing you to react instinctively
- Laser-scanned individual calibration — each wheelbase is laser-scanned to create a digital twin in the control code, for sharper, more detailed, more consistent feedback

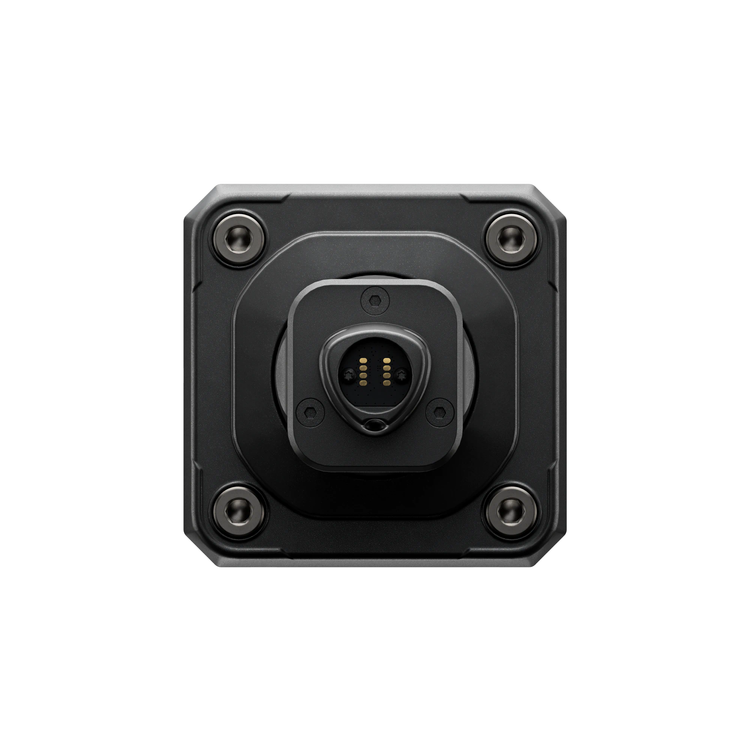

- Simucube LightBridge quick release — contactless, wear-free power and data transfer with zero wearing parts; no tangled cables, no degrading parts
- Lightning-fast response time — the Simucube Link Hub polls device status tens of thousands of times per second for ultra-responsive feedback, helping you catch slides the moment they start
- Included control box — tune torque, damping and other settings on the fly, mid-race, without leaving the sim, while managing all connected devices
- Frictionless setup — front and bottom mounting with versatile adapters
- Industrial-grade build quality — crafted from industrial materials designed to last a lifetime, running cool and silent even after hours of continuous use
- Simucube Tuner 3.0 software — pre-test how settings will feel, adjust effect curves and configure telemetry-based effects
- 5-Year Warranty
Technical Specifications
- Product: Simucube 3 Ultimate
- Motor Type: Direct drive optimized IPM motor (maximum response speed)
- Max Torque: 35 Nm
- Angle Sensor: 23-bit absolute (8,000,000 steps)
- Power Supply: 360 W (450 W peak)
- Wheelbase Dimensions: 135 × 135 × 323mm (incl. Link Quick Release)
- Package Dimensions: 190 × 300 × 390mm
- Mounting: Front and Bottom
- Mounting Hole Pattern DIA: 135mm and 78.4mm
- Flange Centering Feature DIA: 110mm
- Weight: 13 kg
- Software: Simucube Tuner 3.0
- Warranty: 5 years
- Designed in Finland, manufactured in the EU
What's in the Box
- 1x Simucube 3 Ultimate wheelbase
- 1x Power adapter
- 1x RJ45 Cable
- 1x AC power cord
- 1x Quick Start Guide
- 1x Control box
- Fasteners kit: 4x M8 washer, 4x M6 washer, 2x M5 washer, 4x M8×35 allen head bolt, 4x M8×30 allen head bolt, 2x M5×30 allen head bolt, 4x M6×16 allen head bolt, 2x M5 t-slot nut (8mm slot)
Does NOT include: Link Quick Release for Simucube 3, Simucube Link Hub.
Compatibility
- Link Quick Release for Simucube 3 (required for wheel mounting, sold separately)
- Simucube Link wheels — wear-free power and data via LightBridge (BavarianSimTec, Lovely Sim Racing and more)
- Simucube 2 Wireless Wheels — compatible (Simucube Link Hub required for data transfer)
- USB-cabled wheels — work as standard USB devices (mechanical connection via Link Quick Release; note: there is no USB passthrough through the LightBridge QR)
- 50.8mm bolt pattern wheels — require the Simucube 50.8mm to 70mm Adapter
- PC only
Optional Accessories
- Link Quick Release for Simucube 3
- Shaft Extension Kit for Simucube 3
- Teltonika Ethernet Switch (for multiple Link Hub devices)
- Simucube 50.8mm to 70mm Adapter
- Simucube 3 70mm Adapter
- Simucube 2 Quick Release Adapter for Simucube 3
