SimNet SP Evo Loadcell Pedals – 2 Pedals
Vendor:
SimNet
SKU:
SPE-H2P2
Barcode:
6978553430176
Availability:
In stock
Product type:
Simracing > Pédaliers > Load Cell
- Regular price
- 269,90€
- Regular price
- Sale price
- 269,90€
About VAT
Couldn't load pickup availability
Ships within 1–2 business days
Secured Payments
More than 10 Years of Expertise

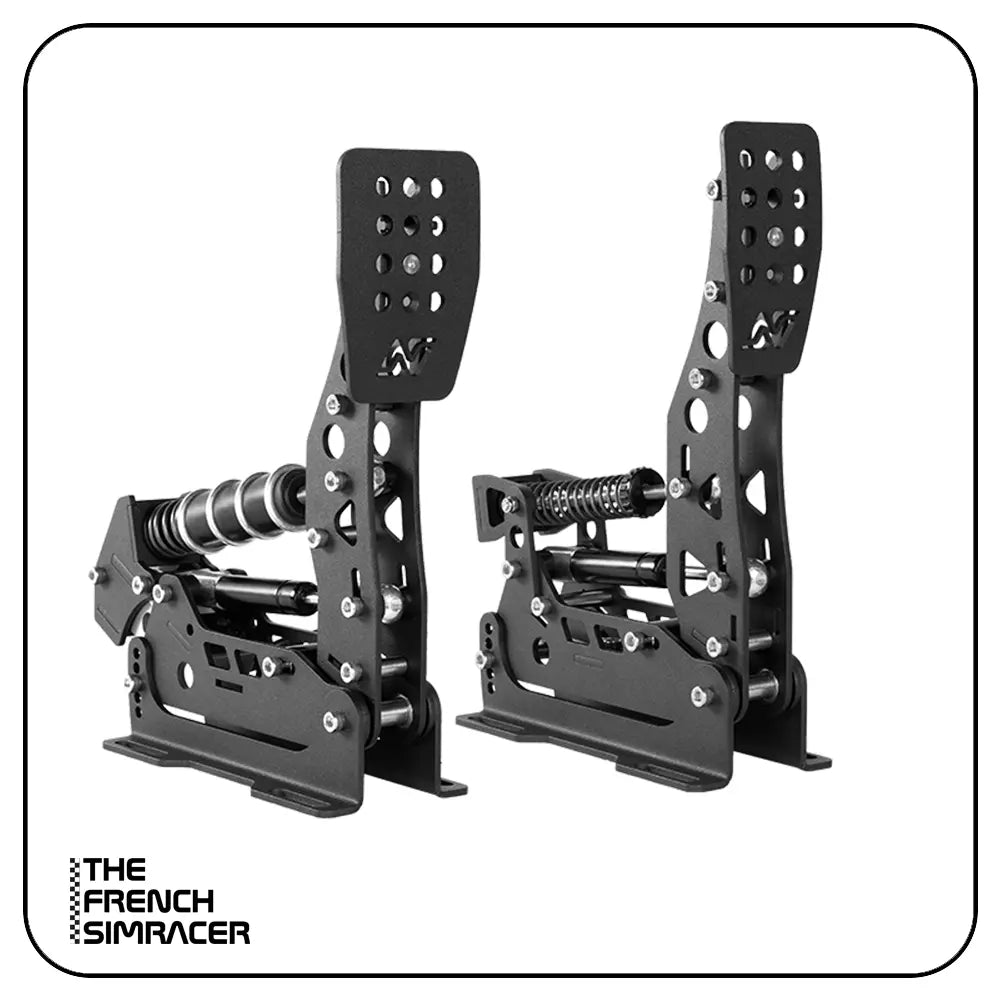

SimNet SP Evo Loadcell Pedals – 2 Pedals
The SimNet SP Evo Loadcell Pedals – 2 Pedals is a throttle and brake set in 3 mm+ stainless steel, with a 100 kg load cell brake read at 12-bit, designed for paddle-shift cars on PC. Brake feel is tuned with 9 included elastomers and a long spring, every pedal is fully adjustable, and the set accepts up to 3 SimNet haptic motors driven by SimHub.
Key features
- Brake with 100 kg load cell, read at 12-bit, with 3 sensitivity levels
- Brake feel tuning: 9 elastomers in 3 hardnesses (60A, 80A, 90A) plus a long spring for a softer, longer travel
- 3 mm+ stainless steel, precision-cut, electrostatic powder coating, precision bearings without play
- Full mechanical adjustment: pedal face height, angle, maximum travel, damper position
- Removable hydraulic damper on each pedal, sensors independent of the damper
- Haptic-ready: up to 3 SimNet motors (HPM-L, HPM-R, PTT) driven by SimHub
- SimNet SimConnect Manager: deadzones, filtering, output curves, real-time display, haptic settings
Technical specifications
- Pedal structure: stainless steel, 3 mm+ thick, electrostatic powder coating
- Brake sensor: load cell 0–100 kg, 12-bit, 3 sensitivity levels
- Brake configuration: elastomers 60A, 80A, 90A (3 of each) and 1 long spring; up to 343 combinations with the optional spring set (manufacturer figure)
- Adjustments: face height (seamless), angle, maximum travel, damper position; deadzones and curves in software
- Hydraulic damper: removable
- Control box: CNC anodised aluminium, 3 pedal ports, 3 haptic ports, RGB port, third-party port, USB, 24 V DC input
- Net weight: 4.1 kg (throttle and brake)
In the box
- Throttle pedal and brake pedal
- SimNet Multi-function Control Box and USB cable
- 9 elastomers (60A, 80A, 90A × 3) and 1 long spring
- Tools and nuts
Important notes
- Each haptic motor needs the SimNet Haptic Motor Mounting Bracket, and the SimNet power adaptor is required as soon as a motor is connected (one adaptor powers 1 to 3 motors).
- For console use, set the analog output once on PC in SimConnect Manager, then connect the pedals to the wheelbase with the RJ12 cable. Haptic effects are driven by SimHub on PC.
- Mount the pedals on a rigid cockpit, a pedal plate or the SimNet SP Pro & SP Evo Baseplate.
Compatibility
- PC: USB connection
- Fanatec wheelbases: with the optional SimNet RJ12 cable for Fanatec, console (PS5) through a compatible base
- Thrustmaster wheelbases: with the optional SimNet RJ12 cable for Thrustmaster, console (PS5) through a compatible base
- Software: SimNet SimConnect Manager, SimHub
- Haptic motors: SimNet HPM-L, HPM-R, PTT, up to 3 in any combination
- Accessories: SimNet RJ12 cable for Fanatec or Thrustmaster, SP Evo Clutch Pedal, SimNet springs set, Hydro-link Pro Kit, SP Pro & SP Evo Baseplate, A-PPS side supports
Which model to choose
- 2 Pedals: throttle and brake, for paddle-shift cars
- 3 Pedals: adds the three-stage clutch for H-pattern, rally and historic cars
- with Hydro Link Kit: hydraulic link on the brake pedal
- with Baseplate: all pedals on a 10 mm aluminium Baseplate with 3-axis heel support
- Clutch Pedal: to upgrade an SP Evo 2 Pedals set to 3 pedals
FAQ
How do I tune the brake feel?
Combine the 9 included elastomers (60A, 80A, 90A) or fit the long spring for a softer, longer travel. The optional SimNet springs set extends the tuning, and sensitivity has 3 levels in SimConnect Manager.
Are haptic motors included?
No, they are optional. The control box drives up to 3 SimNet motors, configured per pedal. Each motor needs the SimNet mounting bracket, and one SimNet power adaptor powers 1 to 3 motors.
Can I add a clutch later?
Yes. The SimNet SP Evo Clutch Pedal connects to the dedicated port of the supplied control box.
Does the SP Evo work on PS5?
Yes, through a compatible Fanatec or Thrustmaster wheelbase with the optional SimNet RJ12 cable for Fanatec or for Thrustmaster, after setting the analog output once on PC. Haptic effects are driven by SimHub on PC.
Who handles warranty and after-sales service?
The French Simracer handles after-sales service for the SimNet SP Evo Loadcell Pedals – 2 Pedals, as for every brand it sells, with a contact based in France. You never deal with the manufacturer directly. The product carries the 2-year legal warranty, or the manufacturer warranty if longer.
