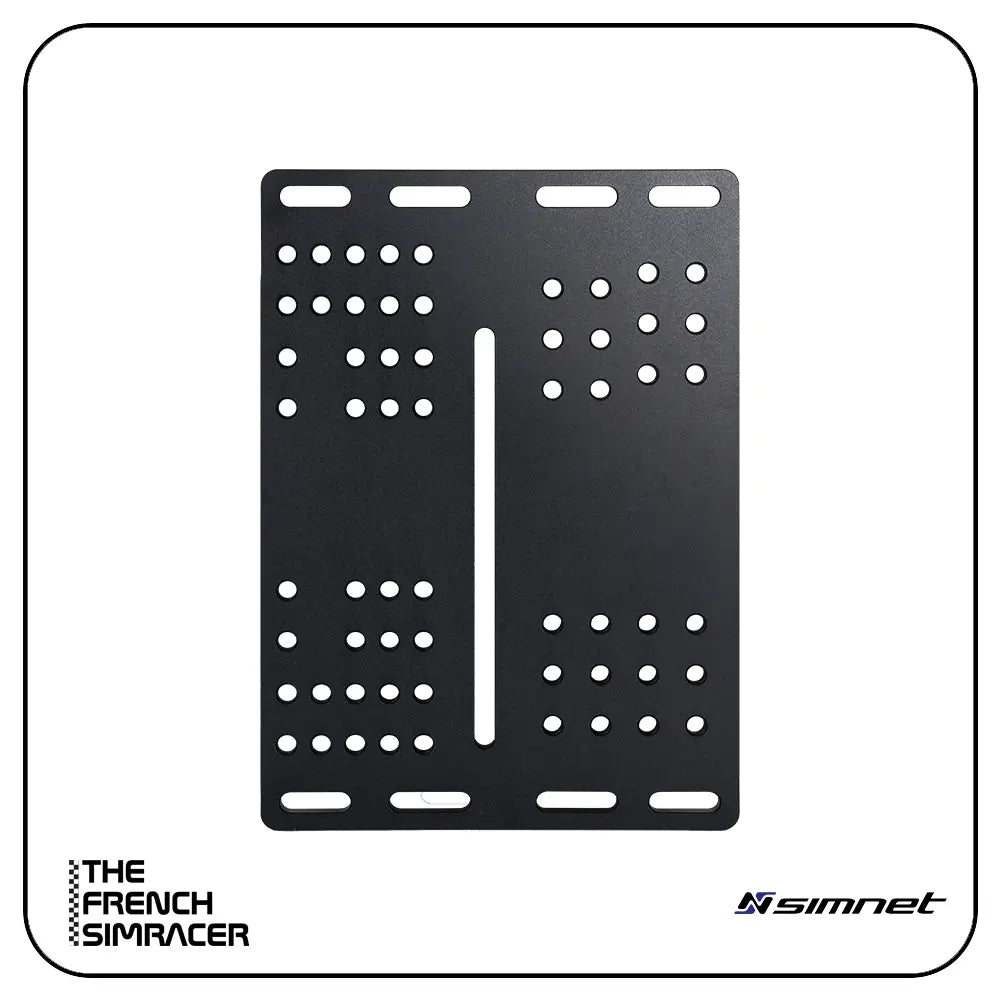

SimNet Plate for Shifters and Handbrake
The SimNet Plate for Shifters and Handbrake is the optional A-PHS mounting plate designed to combine a SimNet shifter and SimNet handbrake in one integrated sim racing assembly. It helps position both controls close to your natural hand position for rally, drift and other demanding driving setups.

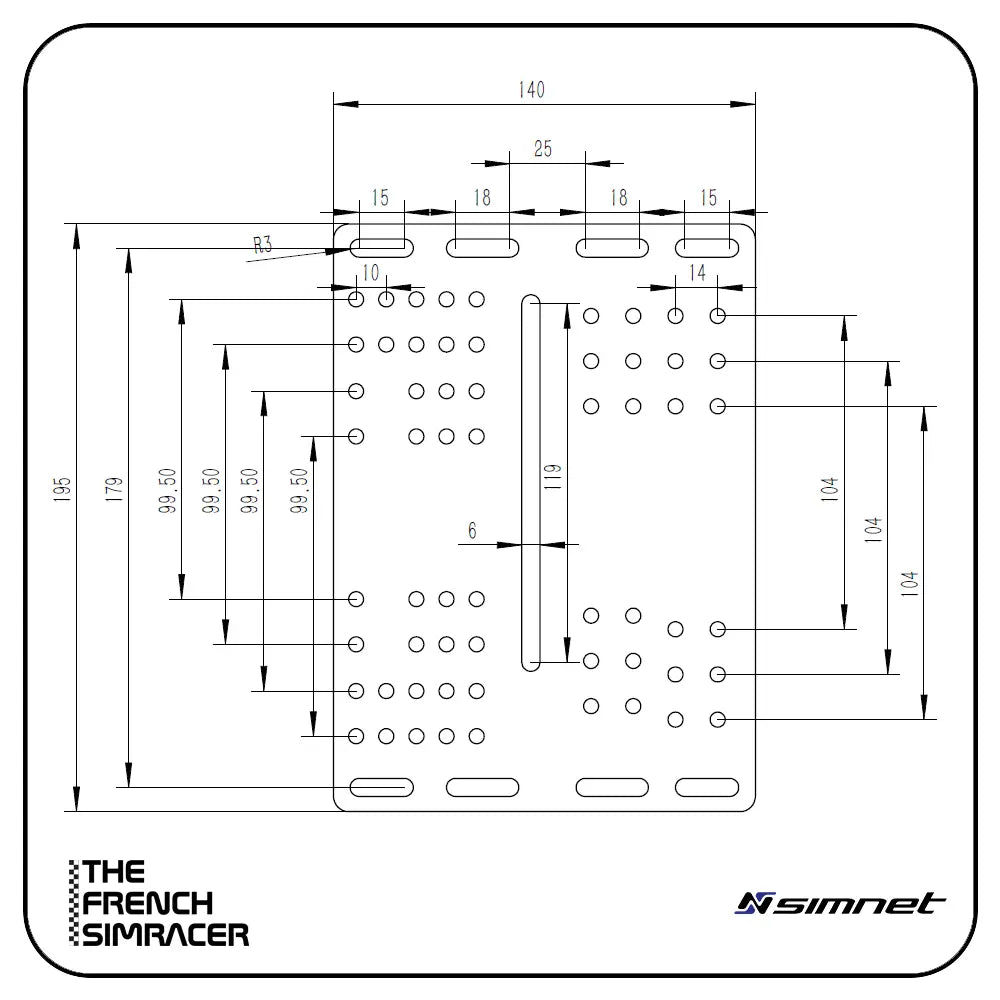

Plate Dimensions
- Overall width: 140 mm
- Overall height: 195 mm
- Plate thickness: 6 mm
- Rounded corner radius shown on the drawing: R3
- Central vertical slot: 6 mm wide × 119 mm long
- Additional internal vertical dimension shown: 179 mm
The drawing also shows multiple circular holes and upper and lower horizontal slots. Dimensions of 15 mm, 18 mm, 18 mm, 15 mm and 25 mm appear in the upper dimension chain. Values of 10 mm on the left and 14 mm on the right, together with repeated vertical dimensions of 99.50 mm and 104 mm, are also visible. The drawing does not make the exact reference of every one of these values sufficiently clear to identify them all as hole centres, slot lengths or edge distances.
Combined Shifter and Handbrake Mount
The A-PHS plate is designed to hold the SimNet SSQ-1 Sequential Shifter and the SimNet SHB-100 Handbrake together. This creates a compact combined control unit while keeping each device independently adjustable.
Independent Position Adjustment
- Horizontal adjustment for each device
- Vertical adjustment for each device
- Defined rotational adjustment range for each device
- Positioning designed to improve reach, comfort and control efficiency
- Multiple mounting openings are shown on the plate in the official guide
Left-Hand-Drive and Right-Hand-Drive Layouts
The plate can be flipped to adapt the installation to different cockpit layouts. The guide illustrates configurations for LHD left-hand-drive and RHD right-hand-drive setups.
- LHD: left-hand-drive cockpit layout
- RHD: right-hand-drive cockpit layout
- Flip the A-PHS plate to change the orientation shown in the guide
Installation Concept
Install the SSQ-1 shifter and SHB-100 handbrake on the A-PHS plate, then adjust each unit independently to achieve the preferred horizontal, vertical and rotational position. The plate is a mechanical mounting accessory; it does not replace the USB or TRANSIT connections of the connected devices.
Designed for Rally and Drift Setups
By grouping the sequential shifter and handbrake, the A-PHS plate makes both controls available in the same operating area. The arrangement is particularly suited to rally and drift configurations where rapid movement between the shifter and handbrake is required.
Compatibility
- SimNet SSQ-1 Sequential Shifter
- SimNet SHB-100 Handbrake
- LHD and RHD cockpit orientations
- The guide does not confirm compatibility with other shifter or handbrake brands
- The guide does not specify a particular cockpit brand or mounting standard
Mounting and Hardware Information
The official guide and supplied dimension drawing show the A-PHS as a 6 mm thick perforated mounting plate with multiple holes and elongated openings for positioning. The drawing identifies the overall size as 140 × 195 mm and the central slot as 6 × 119 mm. It does not clearly identify every hole diameter, every horizontal slot length or the exact reference of all secondary dimensions. The drawing and guide do not provide a complete screw list or torque value.
What Is Included
The A-PHS is documented as an optional mounting plate. The supplied guide does not confirm the complete retail box contents, mounting screws, tools or whether hardware is supplied with the plate. Confirm the contents of the specific product reference before ordering.
Frequently Asked Questions
What is the SimNet A-PHS plate used for?
It is used to mount a SimNet SSQ-1 Sequential Shifter and the SimNet SHB-100 Handbrake together in one adjustable assembly.
Can the plate be used for LHD and RHD setups?
Yes. The official guide shows that the plate can be flipped for left-hand-drive and right-hand-drive cockpit layouts.
Can the shifter and handbrake be adjusted independently?
Yes. Each unit can be adjusted horizontally, vertically and through a defined range of rotation.
Is the A-PHS compatible with other brands?
The supplied guide confirms the SSQ-1 and SHB-100 combination. Compatibility with other shifter or handbrake models is not confirmed.
