Simagic P2000-S200-R

Simagic P2000-S200-R

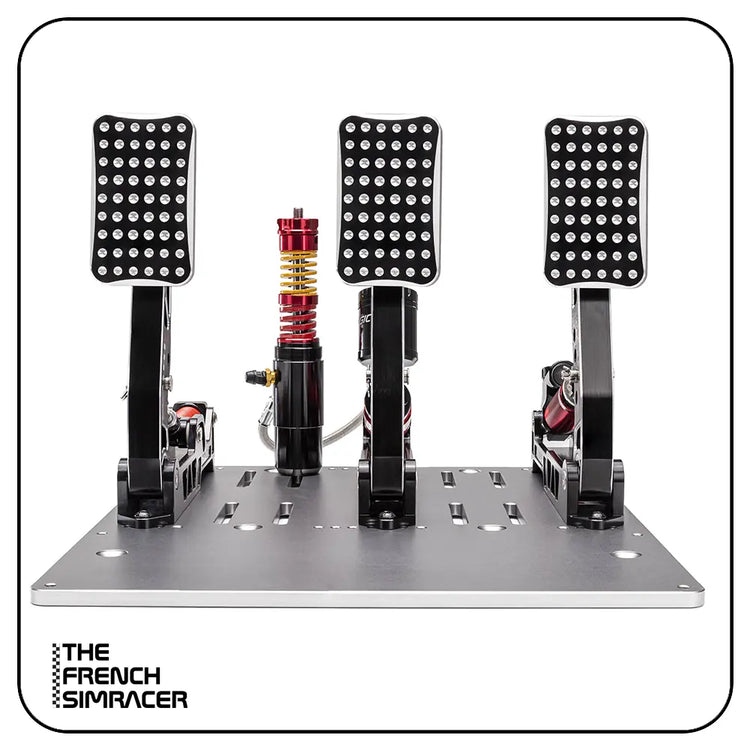

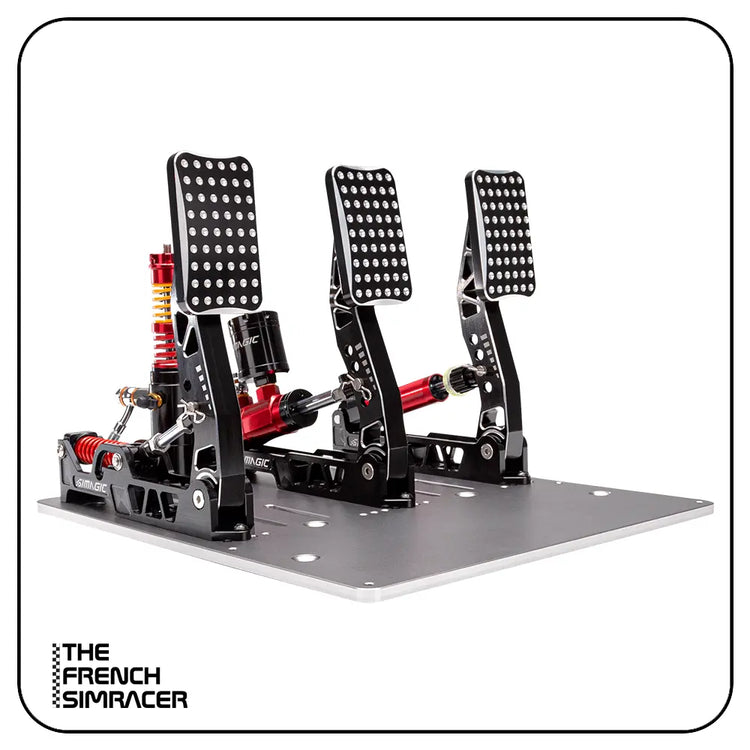

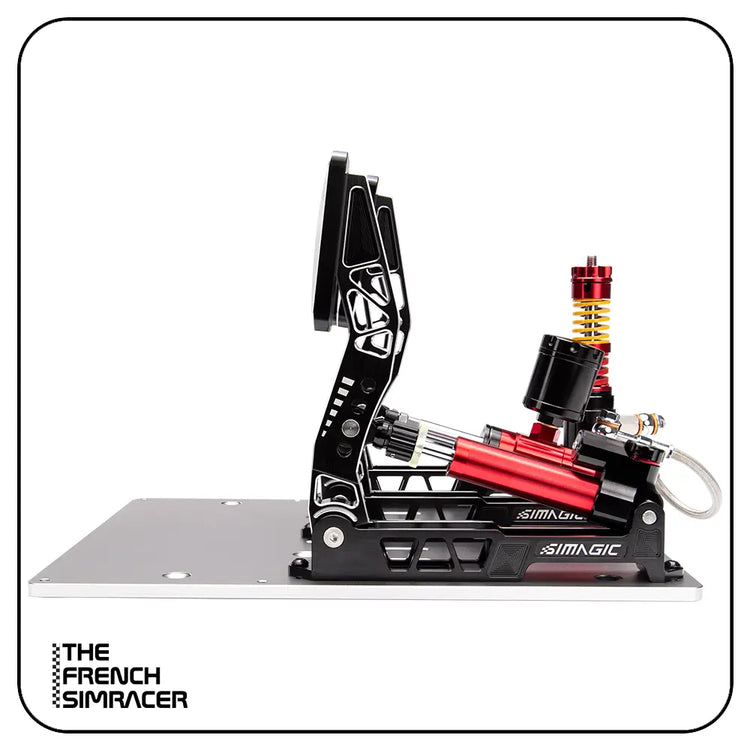

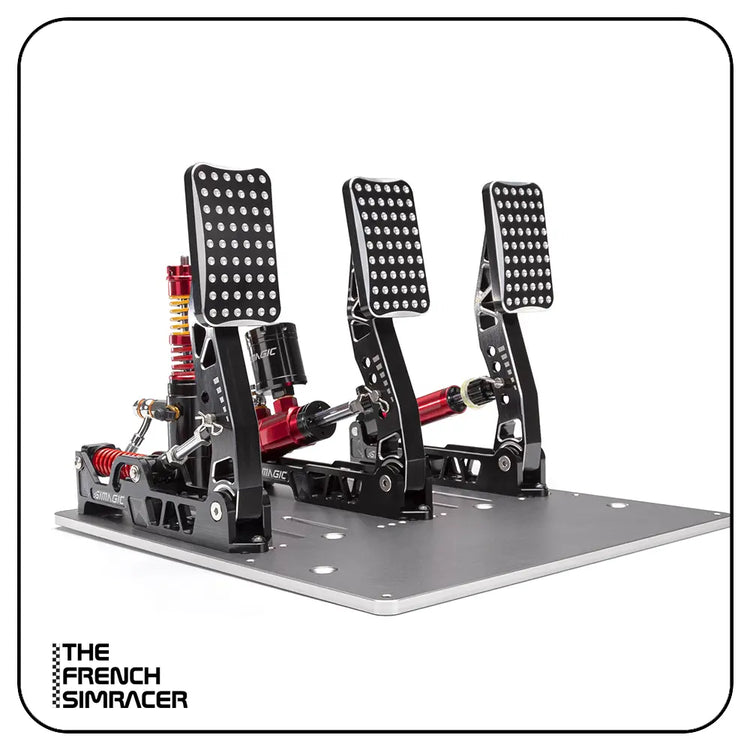

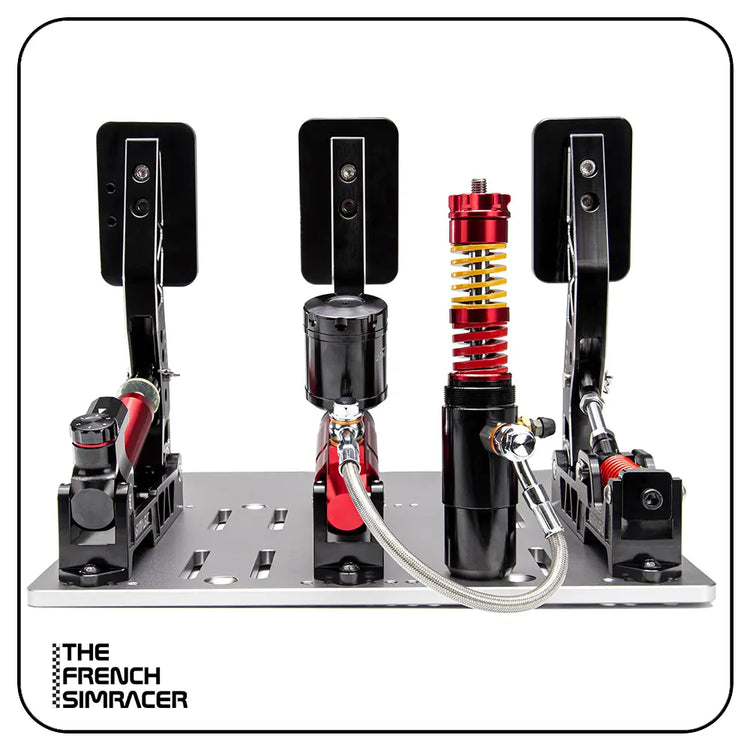

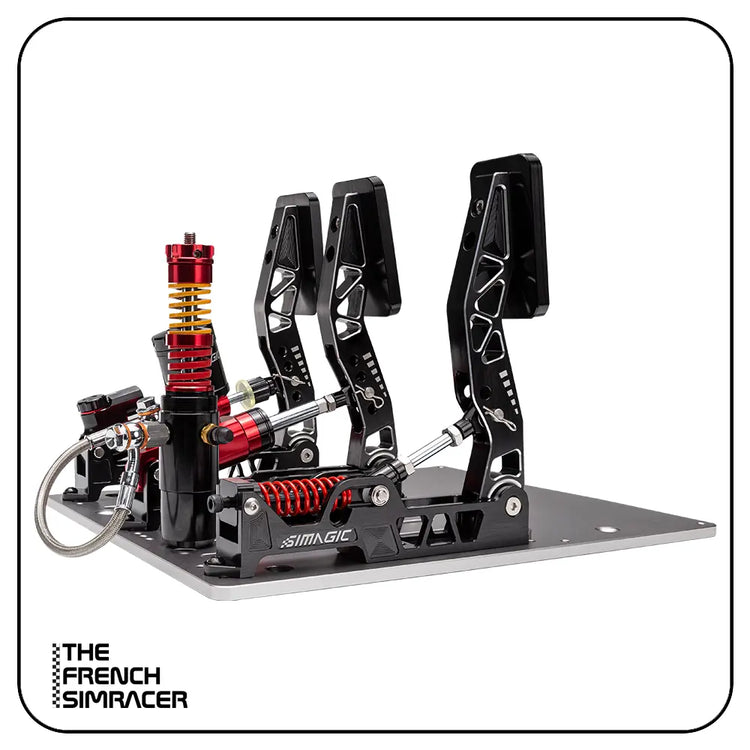

The Simagic P2000-S200-R is the flagship motorsport-grade three-pedal set from Simagic's hydraulic pedal line, on PC only. Its hydraulic brake with split structure delivers a 1:1 real brake-lever feel, combined with a high-precision 200 kg Load Cell sensor for the ultimate in precision and realism under heavy braking. Built from anodized aluminium alloy and supplied with the P2000-HCB Haptic Control Box, with deep adjustability and SimPro Manager calibration.

Main Features

• Three-pedal set: throttle, brake and clutch included.
• Hydraulic brake: split structure with 1:1 real brake-lever feel, reproducing the pressure build-up of a genuine race car brake.
• 200 kg Load Cell sensor: the top sensor of the range, for high-precision, pressure-based braking with no compromise on the hardest inputs.
• P2000-HCB Haptic Control Box included: haptic feedback ready out of the box.
• Anodized aluminium alloy: motorsport-grade build throughout.
• Full adjustability: pedal force, angle, throttle travel and damping.
• SimPro Manager: advanced calibration, output curves and dead zones.

Technical Specifications

• Type: three-pedal set (throttle, brake, clutch)
• Brake: hydraulic cylinder with Load Cell sensor, P-S200 200 kg included
• Throttle / clutch: adjustable spring force
• Material: anodized aluminium alloy
• Adjustability: pedal force, angle, throttle travel, damping
• Net weight: 6.1 kg
• Connectivity: USB via Pedal Control Box
• Software: SimPro Manager
• Platform: PC only
• Warranty: 2 years

What's in the Box

• Simagic P2000-S200-R three-pedal set (throttle, hydraulic brake, clutch)
• P2000-HCB Haptic Control Box (x1)
• Pedal base plate (x1)
• Clutch springs, long (x2) and brake springs, short (x4)
• USB cable
• Installation kit: countersunk screws M8x16 (x6), button-head screws M6x14 (x8), T-slot nuts M8x40 (x4), socket-head cap screws M6x16 (x6), ground wire (x1), adapter bracket (x1), 3M double-sided tape (x2), Allen keys 2 / 3 / 4 / 5 mm

Compatibility

PC only. The P2000-S200-R connects over USB via its Pedal Control Box, directly to your PC, and is configured through SimPro Manager for calibration, output curves and dead zones.

Optional Accessories

• P-L200 long throttle plate and P-L201 side throttle plate
• P-C200 carbon fibre heel riser
• P-F268 heel stop
• P-HPR / P-HPR GT haptic pedal reactor — note that the P-HPR requires the P-APS Accessories Power Supply, sold separately.

Which model to choose

The P2000 is offered with two Load Cell sensors. The P2000-S200-R carries the 200 kg sensor, the top of the range, for drivers who brake hard and want full resolution across the entire pressure range. The P2000-S100-R uses the 100 kg sensor, which suits lighter braking styles and can be upgraded to 200 kg later. Everything else — hydraulic brake, aluminium construction, Haptic Control Box, adjustability and software — is identical.

Support and Downloads

Drivers, firmware and manuals are available on our downloads page: The French Simracer — Software & Manuals.
SimPro Manager and the latest firmware are available from the Simagic download center.

FAQ

What does a hydraulic brake actually change?

Resistance builds through fluid pressure, exactly as on a real race car brake, rather than through a spring and elastomer stack alone. Combined with the 200 kg Load Cell, braking becomes a matter of pressure rather than travel — which makes threshold braking far more repeatable lap after lap.

Should I choose the 100 kg or the 200 kg sensor?

The 200 kg sensor suits drivers who brake hard and want the full resolution of the range right up to maximum effort. The 100 kg version fits lighter braking styles and remains upgradeable later. If in doubt, the 200 kg gives you headroom you will never outgrow.

Is the Haptic Control Box included?

Yes. The P2000-HCB Haptic Control Box is supplied with the set, so the pedals are haptic ready from the start. The P-HPR and P-HPR GT reactors themselves are sold separately, and the P-HPR requires the P-APS power supply.

Does it work on console?

No. The P2000-S200-R is PC only, and connects over USB through its Pedal Control Box.

What can I adjust?

Mechanically: pedal force, pedal angle, throttle travel and damping, using the supplied springs and Allen keys. In software: calibration, output curves and dead zones through SimPro Manager.
