Simagic P-Active Active Pedals – 2-Pedal Set

Simagic P-Active – 2-Pedal Set

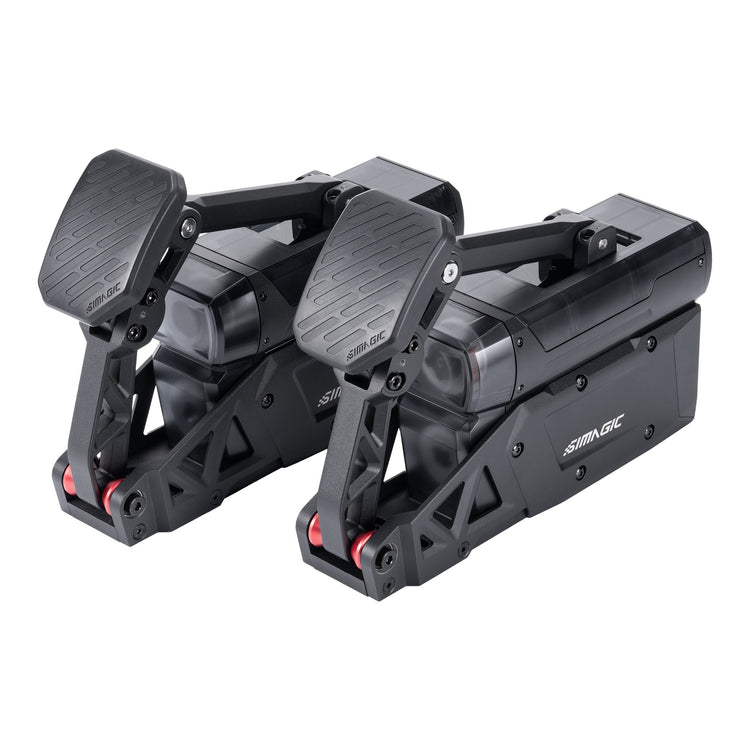

The Simagic P-Active 2-pedal set brings together 2 P-Active active pedals for a fully active pedal set (for example throttle and brake). Each pedal has its own 250 kg pressure sensor with 16-bit resolution and is tuned in SimPro Manager: force, travel, damping, friction, end stops and telemetry vibration. CNC-machined aluminium construction.

Main Features

• 2 active pedals: for example throttle and brake, each pedal assignable as throttle, brake or clutch.
• Programmable feel: pedal response is tuned in SimPro Manager, with no springs or elastomers to swap.
• One pedal, three roles: each P-Active can be assigned as throttle, brake or clutch, with official presets for each function.
• Response curves: 4 base curves (Linear, Exponent, Logarithm, S-Curve) plus a custom editor with 8 control points.
• Feel parameters: compression and rebound damping (0–100%), friction (0–100%), front and back stops in 3 modes (Soft, Standard, Firm).
• Telemetry vibration: ABS, wheel lock, wheel spin, gear shift and engine RPM, across around 20 supported titles.
• 250 kg sensor, 16-bit: dual-bridge pressure sensor and 16-bit conversion for precise, repeatable braking.
• A single USB cable: pedals are linked with Ethernet (RJ45) cables; each pedal has its own power supply.

Technical Specifications (per pedal)

• Type: active pedal, patented design
• Sensor: 250 kg dual-bridge pressure sensor — 180 kg maximum software-detectable force, 250 kg maximum load capacity
• Resolution: 16-bit external ADC
• Stated response time: 129 ms
• Power supply: DC 48 V / 8.3 A, 398 W max
• Pedal surface: CNC-machined aluminium alloy and rubber, adjustable angle, removable cover
• Materials: CNC-machined aluminium alloy, PC, rubber
• Adjustments: travel, angle / position, linearity, pedal force, dead zone
• Maximum travel: 72.4 mm
• Pedal Control Box: included
• Connectivity: USB Type-B (PC), 2 x RJ45 CAN FD ports, DC input
• Software: SimPro Manager
• Single pedal dimensions: 335.9 x 87 x 241.5 mm (L x W x H)
• Single pedal net weight: 6.12 kg
• Set weight: without baseplate 12.24 kg net (2 × P-Active 6.12 kg); with baseplate 15.34 kg net (+ P-Active Baseplate 3.1 kg). Dimensions: P-Active 335.9 x 87 x 241.5 mm per pedal; P-Active Baseplate 415.5 x 395.2 x 44.4 mm (assembled set dimensions not published by Simagic)
• Warranty: 24 months

What's in the Box

• "Without baseplate" version: 2 x Simagic P-Active Active Pedal

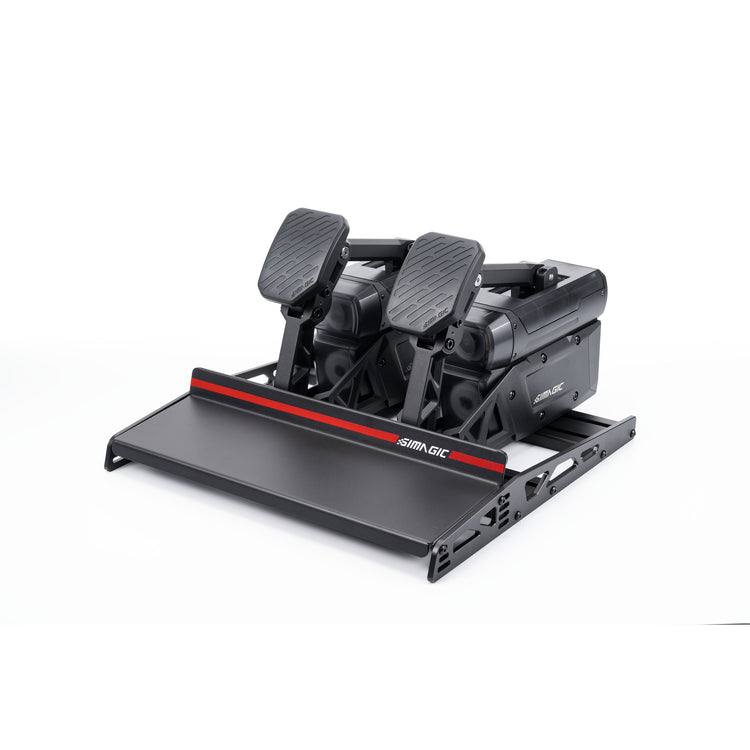

• "With baseplate" version: 2 x Simagic P-Active Active Pedal + 1 x Simagic P-Active Baseplate
• Accessories supplied with each pedal (Simagic P-Active user manual, total for 2 pedals):
  • P1000 Adapter (x2)
  • P2000 / Extrusion Profile Adapter (x2)
  • Power cable + power adapter (x2): each pedal requires its own power supply
  • Cable kit: USB Type-B data cable (x2), Ethernet cable (x2)
  • Screw kit: M6-12 countersunk (x6), M5-14 pan head (x8), M6-14 cap head (x6), M6-22 combined cap head (x10), M6-12 pan head (x14), M6-40 extrusion slide T-nuts (x10), 3 mm, 4 mm and H5/H6 Allen keys (x2 each)
  • Quick guide (x2)
• "With baseplate" version, in addition: P-Active Baseplate with heel rest, side bracket, 2 aluminium profile base beams, 3 screw kits, hex keys, 12x13 open-end wrench and quick guide (see the Simagic P-Active Baseplate page)

Important notes

• PC only: the P-Active is not compatible with consoles.
• Not compatible with P1000i / P1000i-RS (inverted P1000).
• On a P1000, the P1000 Adapter is first fixed to the P1000 baseplate with two M6-12 countersunk screws, then the P-Active is secured to the adapter.
• On a P2000, the P2000 / Extrusion Profile Adapter is fixed with six M6-12 pan head screws, then the P-Active is mounted on top.

Compatibility

• Connection: PC over USB, or Simagic wheelbase.
• Simagic pedals: mounts on the P1000 and P2000 base plates with the supplied adapters. Not compatible with P1000i / P1000i-RS.
• Aluminium profiles: mounts directly on two profiles with the P2000 / profile adapter.
• P-Active Baseplate: included in the "With baseplate" version only — Simagic P-Active Baseplate.
• Platform: PC only (not compatible with consoles).

Wiring

Connect one pedal to the PC with USB Type-B, then daisy-chain the pedals with Ethernet (RJ45) cables. Each pedal must be connected to its own power supply.

Support and Downloads

SimPro Manager and the latest firmware are available from the Simagic download center. Drivers and manuals are also listed on our page The French Simracer — Software & Manuals.

FAQ

How do I mount the pedals on a P1000 or P2000?

The adapters are included. On a P1000, fix the P1000 Adapter to the baseplate with two M6-12 countersunk screws, then secure each P-Active to it. On a P2000, fix the P2000 / Extrusion Profile Adapter with six M6-12 pan head screws, then mount each P-Active on top. The P1000i and P1000i-RS are not compatible.

Do I need one USB cable per pedal?

No, only one USB port is needed: the other pedals connect over Ethernet. Each pedal does need its own power supply.

Can I choose the role of each pedal?

Yes, each P-Active can be assigned as throttle, brake or clutch in SimPro Manager.
