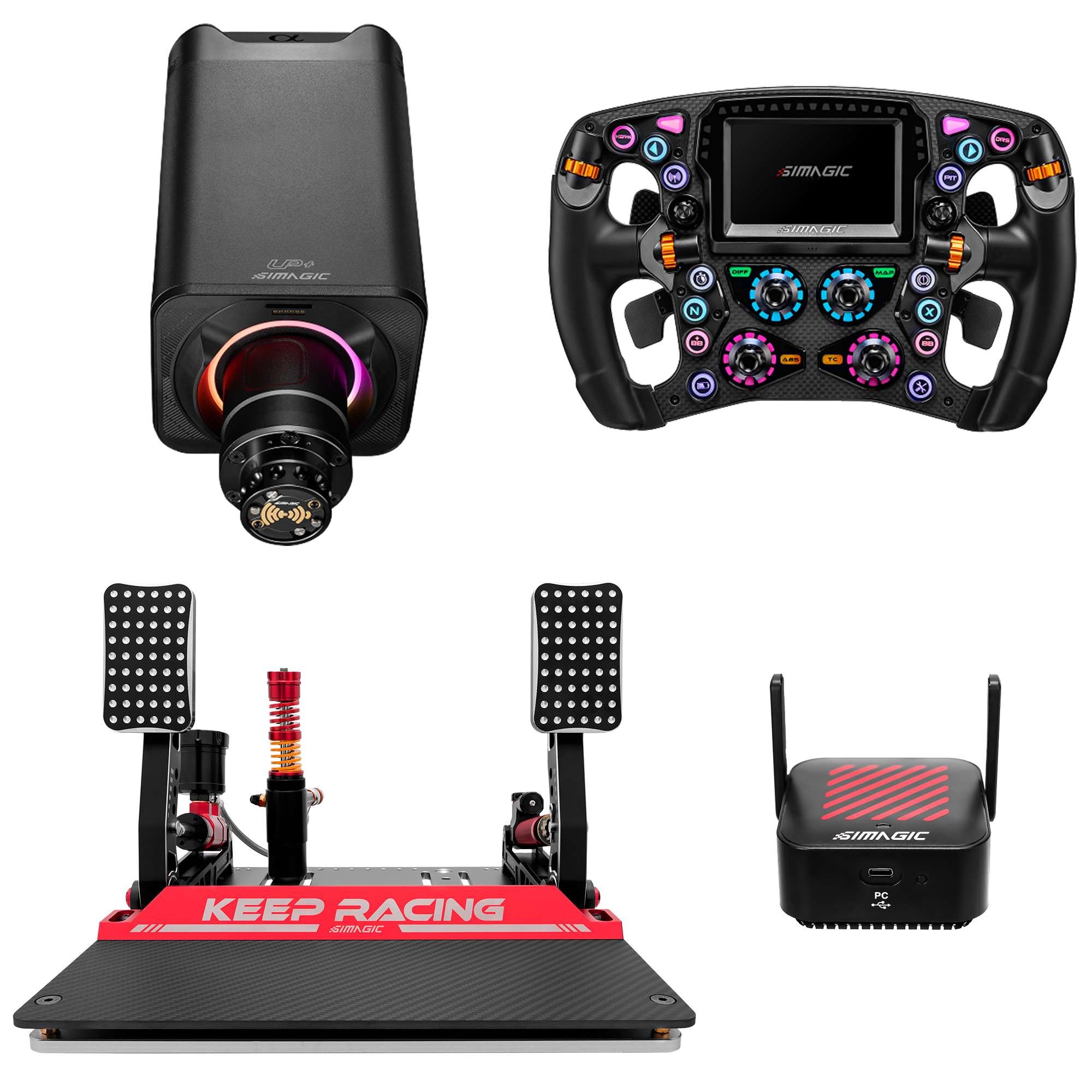

Simagic 28Nm Ultimate Bundle

Simagic Ultimate Bundle

The Simagic Ultimate Bundle is the most complete Direct Drive setup Simagic can build, combining the Alpha EVO Ultra 28Nm wheelbase, the Zeus Formula 280 mm steering wheel, the MagicDash 4 modular display with its SIMAGIC Air Link module included and the P2000-S200RF hydraulic pedals with a 200 kg Load Cell brake. Nothing held back and nothing missing: 28 Nm of zero-cogging torque driven by a 20 kHz control loop, Simagic's flagship Formula wheel with up to 92 physical inputs, a fully operational magnetic dashboard out of the box, and a genuine hydraulic pedal set — all tuned from a single software, SimPro Manager V3.

What's in the Bundle

• Simagic Alpha EVO Ultra 28Nm: the most powerful wheelbase of the EVO series, with ultra-low inertia servo motor, zero-cogging technology, 21-bit encoder and Hyper Cool active cooling.
• Simagic Zeus Formula: 280 mm F1-standard steering wheel with 5 mm solid carbon fibre front plate, CNC aluminium back cover and HALL paddle module included.
• Simagic MagicDash 4: modular magnetic display with built-in touchpad and official dashboard presets.
• SIMAGIC Air Link: the connection module required to run the MagicDash 4 — included, so your dashboard works from the very first session.
• Simagic P2000-S200RF: fully hydraulic two-pedal set with a 200 kg Load Cell brake and CNC anodised aluminium chassis.

Why This Bundle

• The absolute top of the Simagic range, fully matched: base, wheel, display and pedals selected to work together — no compatibility guesswork, no adapter to source, nothing left to buy.
• 28 Nm of headroom: high-torque bases deliver stronger acceleration performance and richer dynamic response, even when run at lower torque settings. You are never limited by the hardware.
• Power without the harshness: Simagic pairs that torque with ultra-low inertia and zero-cogging technology, so the Ultra stays fast, smooth and detailed rather than simply strong.
• Simagic's flagship wheel: the Zeus Formula tops the entire lineup, with the highest input count, the richest accessory ecosystem and construction built to FIA Formula standards.
• A real dashboard, ready to run: MagicDash 4 attaches magnetically and comes with its Air Link connection module — no separate order, no dashboard sitting idle waiting for an accessory.
• True hydraulic braking: the P2000 uses a CNC-machined master and slave cylinder combined with a 200 kg Load Cell, delivering the feel of a real race car brake with the precision of a sensor-based system.

Simagic Alpha EVO Ultra - 28Nm Wheelbase

• 28 Nm peak torque from a custom 5-pole-pair industrial servo motor — Simagic's strongest and most authentic force feedback to date.
• Ultra-low inertia technology: a lightweight, small-diameter rotor reduces inertia for tighter, faster and more responsive control, capturing every kerb, tire slip and grip change.
• Zero-cogging technology: near-zero torque ripple for ultra-smooth, continuous force output with no mechanical stepping, even at high load.
• 21-bit encoder with more than 2 million steps per rotation for exceptional precision.
• 20 kHz control frequency and 180 MHz processor: extremely low latency between the simulator and the wheel.
• 550 W maximum power with the Hyper Cool active cooling system, delivering 100% of the torque consistently through long sessions.
• Dynamic Force Domain Filter (DFDF) algorithm in SimPro Manager V3.
• Cast aluminium CNC-machined chassis for a rigid, stable structure under intense driving.
• 11 integrated connection ports with CAN, CAN FD and USB connectivity — an open, expandable ecosystem for Simagic and third-party peripherals.
• Patented slip ring technology and a telemetry-reactive circular RGB ring.

Simagic Zeus Formula - 280 mm Steering Wheel

• 280 mm built to FIA standards: the diameter of most real-world F1 wheels, for a compact, highly responsive steering feel closest to a genuine Formula car.
• Up to 92 physical inputs and 91 RGB lighting zones (including MagicDash 4 LEDs) — the highest input count in the Simagic lineup.
• Complete control layout: 16 customisable RGB buttons, 4 rotary encoders, 4 thumb rotary encoders and 2 seven-way multi-position rotary switches, with all-aluminium CNC-machined knobs and switches.
• Professional-grade construction: 5 mm solid 3K Toray carbon fibre front plate over a one-piece die-cast aluminium frame with CNC-machined rear housing.
• Three-layer grip: steel core for stability, injection-moulded layer for firmness and silicone outer for anti-slip comfort and wear protection.
• HALL paddle module included, with dual clutch paddles that pair with bite point settings in SimPro for precise launch control.
• 50 mm Zeus Quick Release and CAN FD / USB connectivity.
• Certified FCC, RCM, VCCI, EAC, RoHS, CE, REACH and UKCA.

Simagic MagicDash 4 with Air Link

• Modular magnetic screen system: attaches magnetically to Zeus wheels and to Alpha EVO wheelbases, so you can reposition the display to suit different car types and driving styles.
• Official dashboard presets: a wide range of tailor-made dashboards ready to use.
• Built-in touchpad for instant control without reaching for a mouse.
• Fully detachable: one display can serve several Zeus-series wheels, with no need to buy a second screen.
• SimHub supported: display and LED lighting information are fully configurable through SimHub as well as SimPro Manager.
• Air Link included: the dedicated connection module needed for the display to communicate with your setup is supplied with this bundle.

Simagic P2000-S200RF - Hydraulic Pedals

• 200 kg Load Cell brake combined with a fully hydraulic system — the feel of a real race car brake with the precision and consistency of a sensor-based input.
• CNC-machined master and slave cylinders: a dual master-slave hydraulic pump for smooth, balanced and consistent response under heavy braking.
• Two-pedal set (throttle and brake), the reference configuration for GT, endurance and Formula racing.
• CNC anodised aluminium chassis for competition-grade rigidity and long-term durability.
• Fully adjustable: damping, travel, force, pedal position and angle, with interchangeable springs on the throttle.
• SimPro Manager tuning: deadzones, linearity, output curves and brake force, all configurable in software.
• Baseplate included, with plug-and-play USB connection.
• Upgrade path: P-HPR haptic reactors and the carbon fibre heel plate can be added later.

Compatibility

PC only. The whole bundle is configured through SimPro Manager V3, with deep SimHub integration on the Zeus Formula and MagicDash 4 — all buttons, LEDs and rotary encoders can be controlled from either. The Zeus Formula connects directly to the Alpha EVO Ultra through the 50 mm Zeus Quick Release, and the P2000 connects by USB. With 11 integrated ports and CAN, CAN FD and USB connectivity, the Alpha EVO Ultra accepts a wide range of Simagic and third-party peripherals, along with QR50, QR70 and QR-A quick releases.

Important Notes

• The MagicDash 4 requires the SIMAGIC Air Link connection module to operate — and it is included in this bundle. Bought separately, a MagicDash 4 will not function at all without it, whether you use SimPro Manager or SimHub. Here, everything is supplied and ready to run.
• The P2000-S200RF is supplied as a two-pedal set. The carbon fibre heel plate, heel stop and P-HPR haptic reactors are optional and sold separately.
• A rig and a PC are required, and are not included. At 28 Nm, a rigid cockpit with front or side mounting is strongly recommended.

Optional Accessories

• P-HPR / P-HPR GT haptic reactors: add ABS and traction control vibration to the pedals. Note that the P-HPR requires the P-APS Accessories Power Supply, sold separately.
• P-C200 carbon fibre heel plate and heel stop for the P2000.
• Additional paddle modules: single paddle, 3-paddle shifter module or push-pull paddle shifters for the Zeus Formula.
• Maglink Pro / Maglink Pro Xtend: to use the Zeus Formula on Alpha series, M10 or third-party wheelbases.
• EVO mounting brackets and extension for your rig configuration.

FAQ

Who is this bundle for?

For drivers who want the very best of the Simagic ecosystem in a single purchase, with nothing left to add: 28 Nm of torque, the flagship Zeus Formula wheel, a real dashboard with its connection module, and a genuine hydraulic pedal set. It suits professional-level Formula, GT and endurance racing, and remains a platform you can grow into thanks to its broad ecosystem compatibility.

Is 28 Nm usable in practice?

Yes, and that is the point of a high-torque base. Force output is fully adjustable in SimPro Manager, so you can run it wherever you are comfortable. What a 28 Nm base gives you even at lower settings is greater motor headroom and stronger acceleration performance, which means a richer dynamic response than a lower-rated base run at the same level. A rigid cockpit is essential at this torque.

Do I need anything else to use the MagicDash 4?

No. The MagicDash 4 requires the SIMAGIC Air Link connection module to communicate with your setup, and it is included in this bundle. Bought on its own, a MagicDash 4 will not operate without it — here everything is supplied and ready to run, on both SimPro Manager and SimHub.

What does a fully hydraulic pedal set change?

The P2000 uses CNC-machined master and slave cylinders, so brake resistance builds through fluid pressure exactly as it does in a real race car, rather than through a spring and elastomer stack. Combined with the 200 kg Load Cell, braking becomes a matter of pressure rather than travel, which makes threshold braking far more repeatable lap after lap.

Why a 280 mm wheel rather than 300 mm?

280 mm matches the diameter of most real F1 wheels and is built to FIA racing safety standards, while 300 mm is the typical modern GT size. Formula cars have a more compact cockpit and demand higher steering responsiveness, so a smaller wheel gives more direct force feedback and the closest possible experience to a real Formula car.

How does this compare with the 18Nm Pro bundle?

The Pro bundle pairs the 18 Nm Alpha EVO Pro with the same Zeus Formula, MagicDash 4 and Air Link, and the P1000-FRS pedals — already an exceptional setup. This Ultimate bundle goes further on the two components that define the ceiling: the Alpha EVO Ultra with 28 Nm, a 20 kHz control loop and 550 W of power, and the fully hydraulic P2000 with its 200 kg Load Cell brake.
