Simagic 18Nm Pro Bundle

Simagic 18Nm Pro Bundle

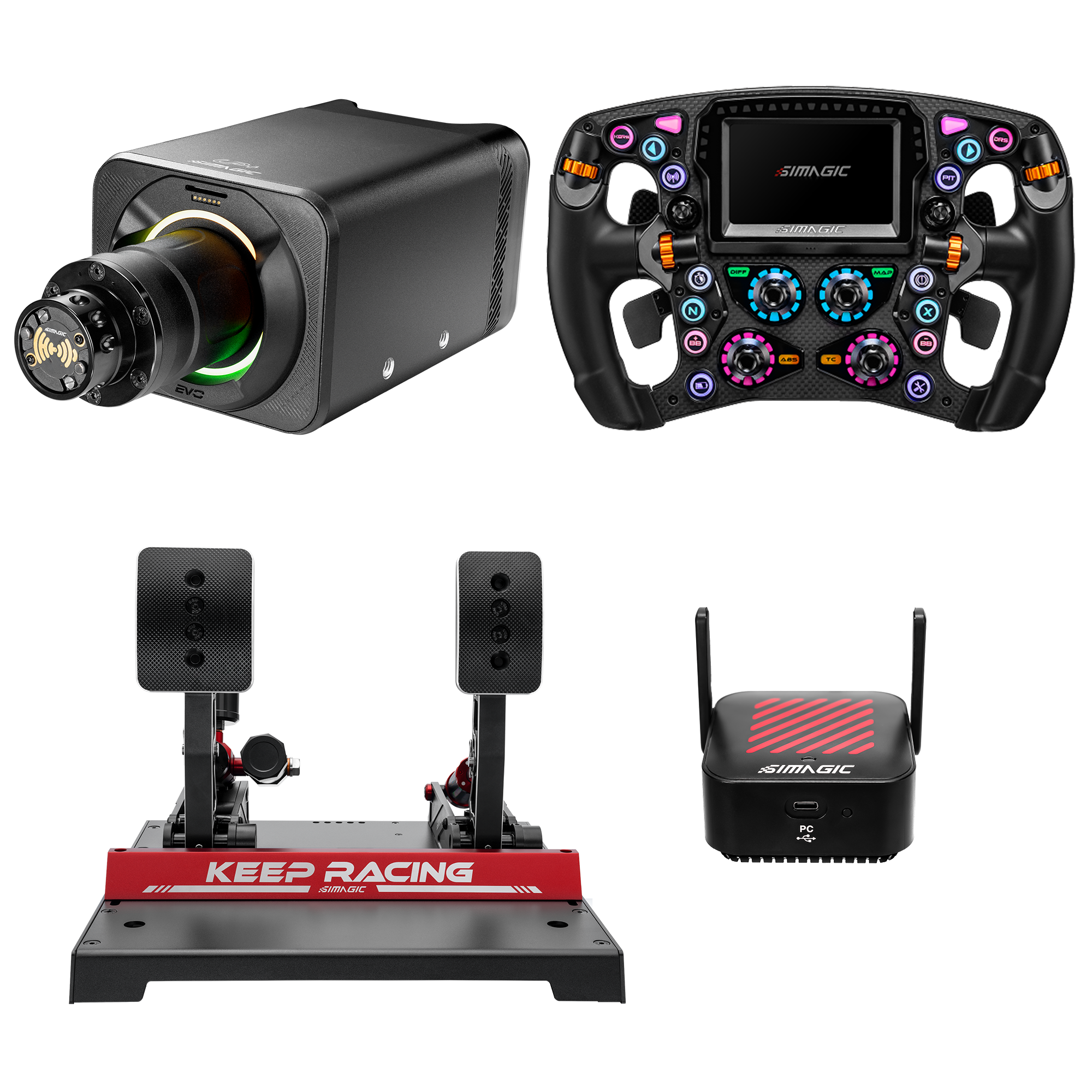

The Simagic 18Nm Pro Bundle is the flagship Direct Drive setup, combining the Alpha EVO Pro 18Nm wheelbase, the Zeus Formula 280 mm steering wheel, the MagicDash 4 modular display with its SIMAGIC Air Link module included and the P1000-FRS hydraulic pedals. No compromise anywhere: 18Nm of zero-cogging torque, Simagic's most advanced Formula wheel with its 5 mm carbon front plate and up to 92 physical inputs, a fully operational magnetic dashboard out of the box, and CNC aluminium pedals with a hydraulic brake — all tuned from a single software, SimPro Manager V3.

What's in the Bundle

• Simagic Alpha EVO Pro 18Nm: flagship Direct Drive wheelbase with custom 5-pole servo motor, zero-cogging technology, 21-bit encoder and active cooling.
• Simagic Zeus Formula: 280 mm F1-standard steering wheel with 5 mm solid carbon fibre front plate, CNC aluminium back cover and HALL paddle module included.
• Simagic MagicDash 4: modular magnetic display with built-in touchpad and official dashboard presets.
• SIMAGIC Air Link: the connection module required to run the MagicDash 4 — included, so your dashboard works from the very first session.
• Simagic P1000-FRS: formula-style CNC aluminium pedal set with hydraulic brake system.

Why This Bundle

• The top of the range, fully matched: base, wheel, display and pedals selected to work together — no compatibility guesswork, no adapter to source.
• 18Nm without compromise: the torque headroom to render every kerb, slide and weight transfer at full amplitude, with the same zero-cogging refinement as the rest of the EVO range.
• Simagic's flagship wheel: the Zeus Formula tops the entire Simagic lineup, with the highest input count, the richest accessory ecosystem and construction built to FIA Formula standards.
• A real dashboard, ready to run: MagicDash 4 attaches magnetically and comes with its Air Link connection module, so nothing is missing — no separate order, no dashboard sitting idle waiting for an accessory. It can be moved between Zeus wheels or onto an Alpha EVO base, so one display serves your whole setup.
• Hydraulic braking as standard: the P1000-FRS delivers the firm, progressive pressure-based feel that separates a competitive brake from a good one.
• Modular by design: UP+ ecosystem grips, paddle modules and quick release components — the setup evolves without being replaced.

Simagic Alpha EVO Pro - 18Nm Wheelbase

• 18Nm of torque from a custom 5-pole servo motor with ultra-low inertia — the highest output of the Alpha EVO series below the Ultra.
• Zero-cogging technology: torque ripple eliminated for smooth, continuous and linear force feedback, even at high output.
• 21-bit encoder for high-fidelity road feel and ultra-accurate detection of surface and grip changes.
• Active cooling system: stable torque through long stints, with no thermal throttling.
• Dynamic Force Domain Filter (DFDF) algorithm in SimPro Manager, optimised for low-inertia motors.
• Patented slip ring technology and telemetry-based RGB lighting.
• Flexible mounting: front, side or bottom, with dual-mode connectivity.
• Open ecosystem: QR50, QR70 and QR-A quick release compatibility, with support for Simagic and selected third-party peripherals.

Simagic Zeus Formula - 280 mm Steering Wheel

• 280 mm built to FIA standards: the diameter of most real-world F1 wheels, for a compact, highly responsive steering feel closest to a genuine Formula car.
• Up to 92 physical inputs and 91 RGB lighting zones (including MagicDash 4 LEDs) — the highest input count in the Simagic lineup.
• Complete control layout: 16 customisable RGB buttons, 4 rotary encoders, 4 thumb rotary encoders and 2 seven-way multi-position rotary switches, with all-aluminium CNC-machined knobs and switches.
• Professional-grade construction: 5 mm solid 3K Toray carbon fibre front plate over a one-piece die-cast aluminium frame with CNC-machined rear housing.
• Three-layer grip: steel core for stability, injection-moulded layer for firmness and silicone outer for anti-slip comfort and wear protection.
• HALL paddle module included, with dual clutch paddles that pair with bite point settings in SimPro for precise launch control.
• 50 mm Zeus Quick Release and CAN FD / USB connectivity.
• Certified FCC, RCM, VCCI, EAC, RoHS, CE, REACH and UKCA.

Simagic MagicDash 4 with Air Link

• Modular magnetic screen system: attaches magnetically to Zeus wheels and to Alpha EVO wheelbases, so you can reposition the display to suit different car types and driving styles.
• Official dashboard presets: a wide range of tailor-made dashboards ready to use.
• Built-in touchpad for instant control without reaching for a mouse.
• Fully detachable: one display can serve several Zeus-series wheels, with no need to buy a second screen.
• SimHub supported: display and LED lighting information are fully configurable through SimHub as well as SimPro Manager.
• Air Link included: the dedicated connection module needed for the display to communicate with your setup is supplied with this bundle.

Simagic P1000-FRS - Hydraulic Formula Pedals

• Hydraulic brake system included: a firmer, more realistic pedal feel under pressure, with progressive damping and rebound reproduced like a genuine car brake.
• Formula-style two-pedal layout (throttle and brake), compact and clean, designed for a low, stretched-out driving position.
• Dual sensor braking: Hall angle sensor for long travel and road-car feel, or Load Cell for short travel and true motorsport response.
• 12-bit resolution (4096 steps) high-accuracy sensors.
• Full CNC aluminium construction, machined, polished and anodised, tested to withstand over 200,000 inputs.
• Deeply adjustable: travel, spring force level, brake force, linearity, deadzones and pedal angle or position.
• Pedal control box included, with USB connection to PC or direct connection to a Simagic wheelbase through the CAN-Bus port.
• Upgrade path: P-HPR haptic reactors, RGB telemetry lighting or a clutch module can be added later.

Compatibility

PC only. The whole bundle is configured through SimPro Manager V3, with deep SimHub integration on the Zeus Formula and MagicDash 4 — all buttons, LEDs and rotary encoders can be controlled from either. The Zeus Formula connects directly to the Alpha EVO Pro through the 50 mm Zeus Quick Release, and the P1000-FRS connects via USB to your PC or directly to the base through its CAN-Bus port. The Alpha EVO Pro supports QR50, QR70 and QR-A quick releases along with third-party wheels.

Important Notes

• The MagicDash 4 requires the SIMAGIC Air Link connection module to operate — and it is included in this bundle. Bought separately, a MagicDash 4 will not function at all without it, whether you use SimPro Manager or SimHub. Here, everything is supplied and ready to run.
• The P1000-FRS is supplied as a two-pedal set. The clutch module is optional and sold separately.
• A rig and a PC are required, and are not included. At 18Nm, a rigid cockpit is strongly recommended.

Optional Accessories

• C-P1000 clutch module: expands the pedal set to a full three-pedal layout.
• P-HPR / P-HPR GT haptic reactors: add ABS and traction control vibration to the pedals. Note that the P-HPR requires the P-APS Accessories Power Supply, sold separately.
• Additional paddle modules: single paddle, 3-paddle shifter module or push-pull paddle shifters for the Zeus Formula.
• Maglink Pro / Maglink Pro Xtend: to use the Zeus Formula on Alpha series, M10 or third-party wheelbases.
• EVO mounting brackets and extension for your rig configuration.

FAQ

Who is this bundle for?

For drivers who want the top of the Simagic range without assembling it piece by piece: 18Nm of torque, the flagship Zeus Formula wheel, a real dashboard with its connection module, and hydraulic braking. It suits Formula racing above all, but the 280 mm wheel is equally at home in LMP and GT, and the whole setup is built for competitive and endurance use.

Do I need anything else to use the MagicDash 4?

No. The MagicDash 4 requires the SIMAGIC Air Link connection module to communicate with your setup, and it is included in this bundle. Bought on its own, a MagicDash 4 will not operate without it — here everything is supplied and ready to run, on both SimPro Manager and SimHub.

Why a 280 mm wheel rather than 300 mm?

280 mm matches the diameter of most real F1 wheels and is built to FIA racing safety standards, while 300 mm is the typical modern GT size. Formula cars have a more compact cockpit and demand higher steering responsiveness, so a smaller wheel gives more direct force feedback and the closest possible experience to a real Formula car.

Is 18Nm too much?

Not if your rig is up to it. Force output is fully adjustable in SimPro Manager, so you can start lower and build up as you adapt. What 18Nm buys you is headroom: full amplitude on the big events without clipping, while the zero-cogging motor keeps the fine detail intact. A rigid cockpit is strongly recommended at this level.

Can I move the MagicDash 4 to another wheel?

Yes. The display is fully detachable and attaches magnetically, so it can be moved between Zeus-series wheels or onto an Alpha EVO wheelbase depending on the car you are driving. One screen covers your whole setup.

What does the hydraulic brake change?

It reproduces the damping and rebound of a genuine car brake, giving a firmer, more progressive feel under pressure than a spring and elastomer stack alone. In practice, braking becomes a matter of pressure rather than travel, which makes threshold braking far more repeatable lap after lap.

How does this compare with the 12Nm Performance bundle?

The Performance bundle pairs the 12Nm Alpha EVO with the Zeus GT and P1000-F pedals — a superb setup for GT and endurance. This Pro bundle steps up on every front: 18Nm instead of 12Nm, the Zeus Formula flagship instead of the Zeus GT, the MagicDash 4 display with its Air Link module included, and hydraulic braking rather than the standard brake system.
