Sim-Lab P1X Ultimate Cockpit

Name: Sim-Lab P1X Ultimate Cockpit
Brand: Sim-Lab
Price: 899.9 EUR
Availability: BackOrder

Description
Return
Downloads

Sim-Lab P1X Ultimate Sim Racing Cockpit

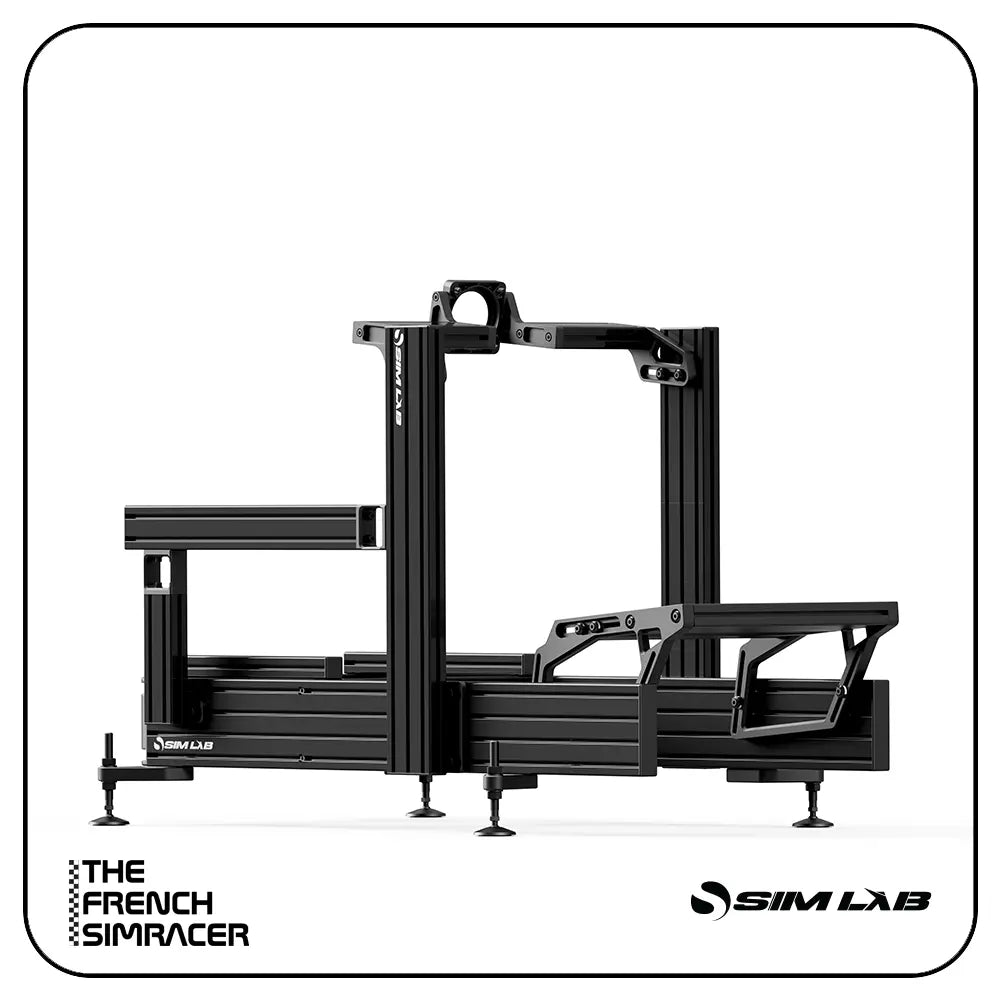

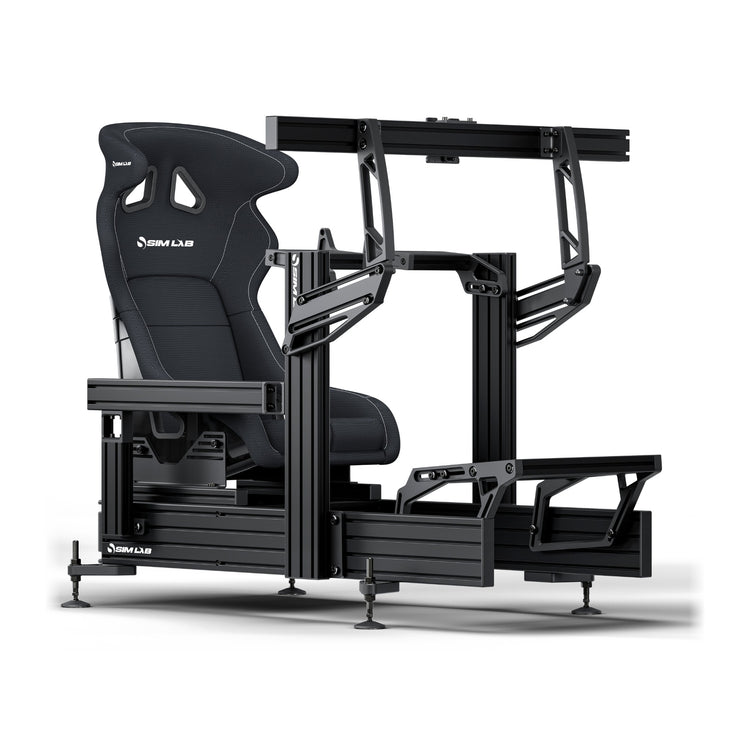

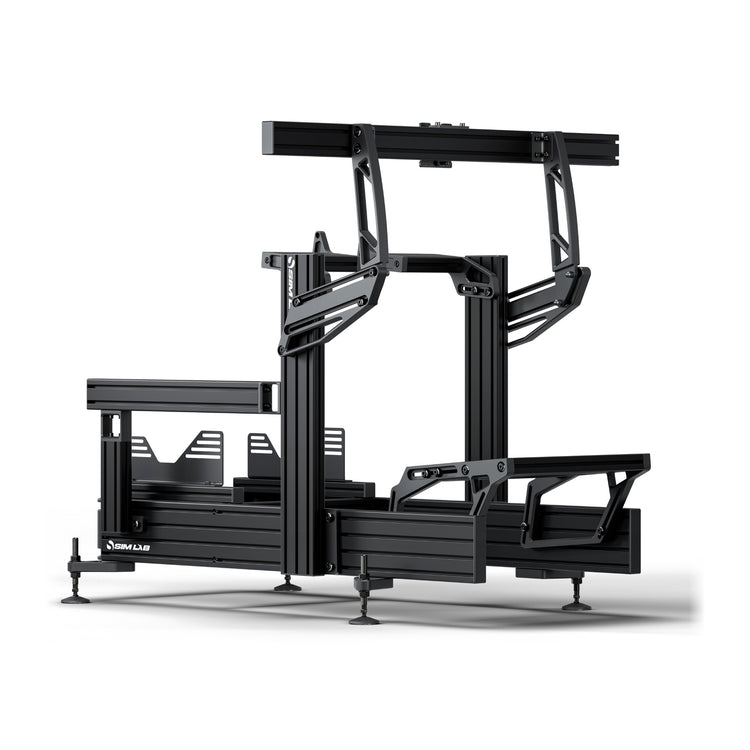

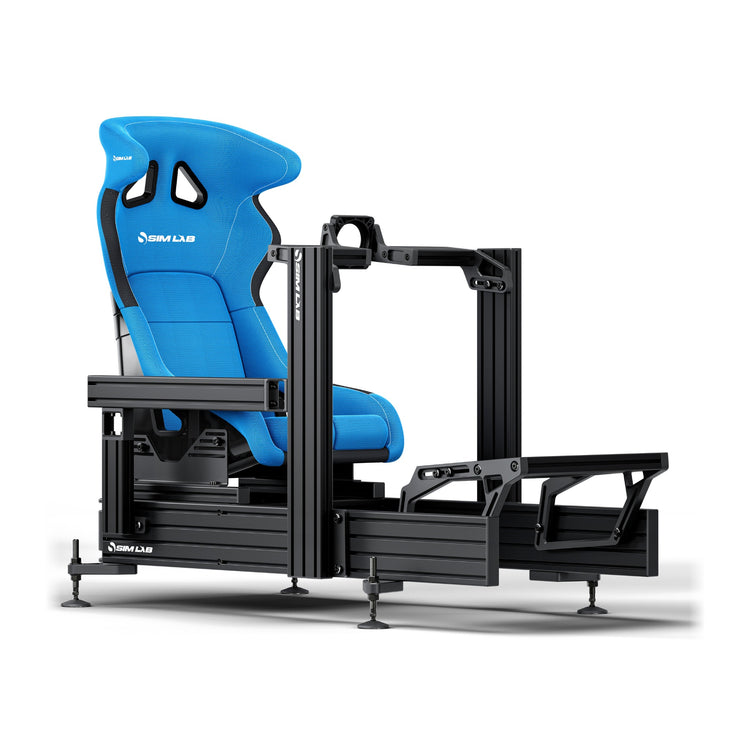

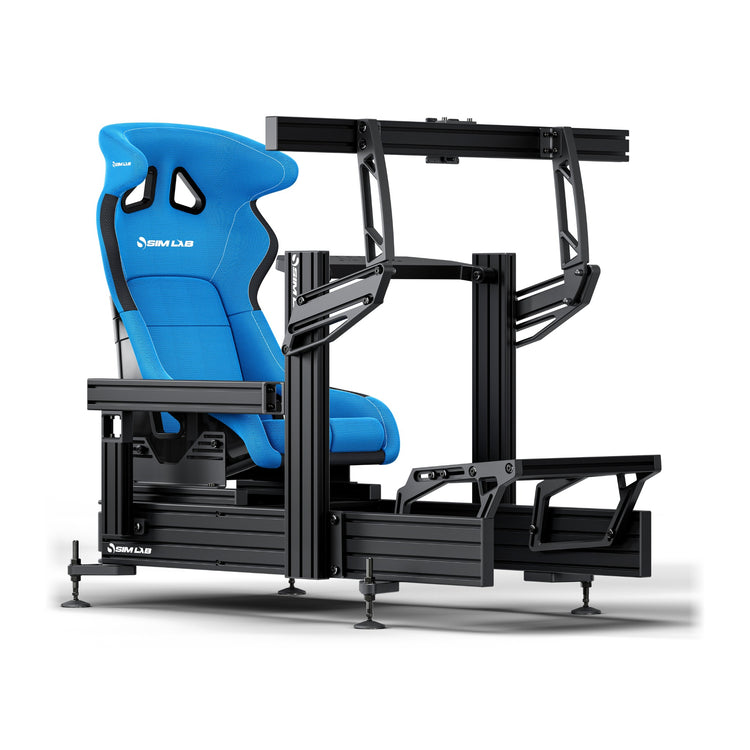

The Sim-Lab P1X Ultimate is the latest evolution of the P1 cockpit that helped redefine sim racing: an aluminium profile chassis built around quad-slot proprietary profiles and the return of the straight uprights the community asked for. Available with a front mount, wheeldeck or Fanatec DD mount, it accepts virtually every Direct Drive base and pedal set on the market, is made in Europe and comes with a 3-year warranty.

Main Features

Proven best-quality cockpit: for over a decade Sim-Lab cockpits have set the benchmark, with rigid aluminium profiles and precision-machined parts throughout.
Community-driven design: the P1X Pro was refined into the Ultimate on the back of direct community feedback — fully slotted profiles and upright profiles make attaching accessories far simpler.
Quad-slot proprietary profiles: four slots on each side give unrestricted mounting freedom, in a newly developed profile that is both lightweight and highly practical.
Straight uprights: the iconic layout returns by popular demand, improving accessory compatibility and making wheel, dashboard or button box alignment more intuitive.
Easy to assemble: pre-drilled holes, sandwich plates and optimised bracket designs deliver a rock-solid build with fewer tools and less guesswork.
Three wheel mounting options: front mount, wheeldeck or dedicated Fanatec DD mount, chosen at purchase.
Integrated Vario monitor mounts available: single or triple screen, mounted directly on the chassis.
Made in Europe with a 3-year warranty.

Technical Specifications

Type: aluminium profile sim racing cockpit
Profiles: proprietary quad-slot aluminium, straight uprights
Wheel mounting: front mount, wheeldeck or Fanatec DD mount
Colour: black
Dimensions: 1350 x 580 x 770 mm (L x W x H), 680 mm at the widest point
Monitor mounting: optional Integrated Vario Single or Triple
Warranty: 3 years
Origin: made in Europe

What's in the Box

Aluminium profiles and mounting materials
Wheeldeck mount or front / side mount, depending on the version chosen
Brackets for the front mount wheels
Pedal deck
Side mount for accessories
Bolts for mounting seats
Adjustable feet set

Options

P1X Integrated Single Monitor Mount or Integrated Triple Monitor Mount
Seat: S1 Enduro GT (black or blue), Sparco Grid Q or Sparco Circuit II
Seat brackets and seat slider

Important Notes

The S1 Enduro GT seat already includes its seat brackets — no separate purchase needed. The seat slider is not included.
Seat brackets and the optional seat slider are not included with the Sparco Grid Q and Sparco Circuit II seats.
Wheelbase, pedals, steering wheel and screens are not included.

Compatibility

The P1X Ultimate accepts the vast majority of Direct Drive bases and pedal sets on the market. Compatibility depends on the wheel mounting version you choose — front mount, wheeldeck or Fanatec DD mount. Use the table below to check your hardware before ordering.

Mounting	Compatible hardware
Wheelbases Front mount version	Sim-Lab DDS26 TorqueSync, Sim-Lab DDS39 TorqueSync, Bodnar 50 series, Lenze MCS12 series, MiGe 130ST (small and big), Simagic Alpha Mini DD and Ultimate, Simucube 2, Simucube 3 Sport / Pro / Ultimate, VNM wheelbases, VRS DFP15, VRS DFP20 and uDFP20
Wheelbases Wheeldeck version	Sim-Lab DDS26 TorqueSync, Sim-Lab DDS39 TorqueSync, Asetek Forte / Prima / Invicta, AccuForce V1 and V2, Conspit ARES (including Platinum), Fanatec CSL, CSW, CSL DD, GT DD Pro, ClubSport DD, ClubSport DD+, DD1, DD2 and Podium DD, Logitech G25, G27, G29, G920/G923, G Pro and RS50, Moza R3, R5, R9 V3, R12 V2, R21 Ultra and R25 Ultra, Thrustmaster T248, T300/TX, T500RS, T-818, TC-PS, TS-XW, TG-T, TG-T II and T598, Simagic M10, Alpha Mini DD (mounts directly to the wheeldeck) and Ultimate, Simagic Alpha EVO Sport / Pro, Simucube 3 Sport / Pro / Ultimate, VNM wheelbases
Wheelbases Fanatec DD mount version	Fanatec DD1, DD2, CSL DD, DD Pro, ClubSport DD, ClubSport DD+ and Podium DD
Pedals All versions	Sim-Lab XP1, Asetek Invicta / Forte / La Prima, BJ Steel F1 and GT, Cammus, Conspit CPP EVO V2 and CPP Lite, Cube Controls SP-01, Fanatec ClubSport V3 and Inverted V3, CSL and CSL Elite LC, CSL Pedals V2, Elite Pedals and Podium Pedals, Heusinkveld Pro / Sprint / Ultimate / Ultimate+, Insim Talento, Logitech G25, G27, G29, G920, Pro Pedals and G RS, Meca Cup, Moza CRP, CRP2, SR-P, SR-P Lite and mBooster, PurrPRO, Simagic P1000 and P2000 (with baseplate), SimCoaches P1-3, Simjack UT, SIMSONN, Simtag Iris and Hydraulica, SRP Formula-R V5, Simtrecs ProPedal GT, Simucube ActivePedal and ActivePedal Ultimate, SimWorkx Pro, Simgrade R7 and VX-PRO, Thrustmaster T300/TX, T-LCM and T3PA, VNM / Venym, VRS DirectForce Pro

Support and Downloads

Assembly manuals for the P1X Ultimate and the Integrated Vario monitor mount are available from Sim-Lab: sim-lab.eu downloads.
You can also find software and manuals on our downloads page: The French Simracer — Software & Manuals.

FAQ

Which wheel mounting version should I choose?

The front mount suits high-torque industrial and Direct Drive bases bolted at the front of the chassis. The wheeldeck is the most universal option and covers nearly every consumer base, from Logitech and Thrustmaster to Moza, Fanatec, Simagic and Simucube. The Fanatec DD mount is a dedicated solution for the Fanatec Podium and ClubSport DD range. Check the compatibility table above against your base.

Is my wheelbase compatible?

The P1X Ultimate covers the vast majority of the market — Sim-Lab, Simucube, Simagic, Moza, Fanatec, Asetek, Thrustmaster, Logitech, VRS, VNM, Bodnar and more — but compatibility depends on the mounting version selected. If your base is not listed, contact us and we will check it for you before you order.

Does the cockpit come with a seat?

The seat is an option chosen at purchase. The S1 Enduro GT comes with its brackets included (slider not included); the Sparco Grid Q and Circuit II are supplied without brackets or slider, which must be added separately.

What is the difference with the P1X Pro?

The Ultimate is the evolution of the Pro, reworked after community feedback: fully slotted quad-slot profiles and the return of the straight uprights, making accessory mounting and alignment considerably easier, while keeping the assembly improvements introduced with the Pro.

Can I add screens later?

Yes. The Integrated Vario Single and Triple monitor mounts fix directly to the chassis and can be ordered with the cockpit or added afterwards.
