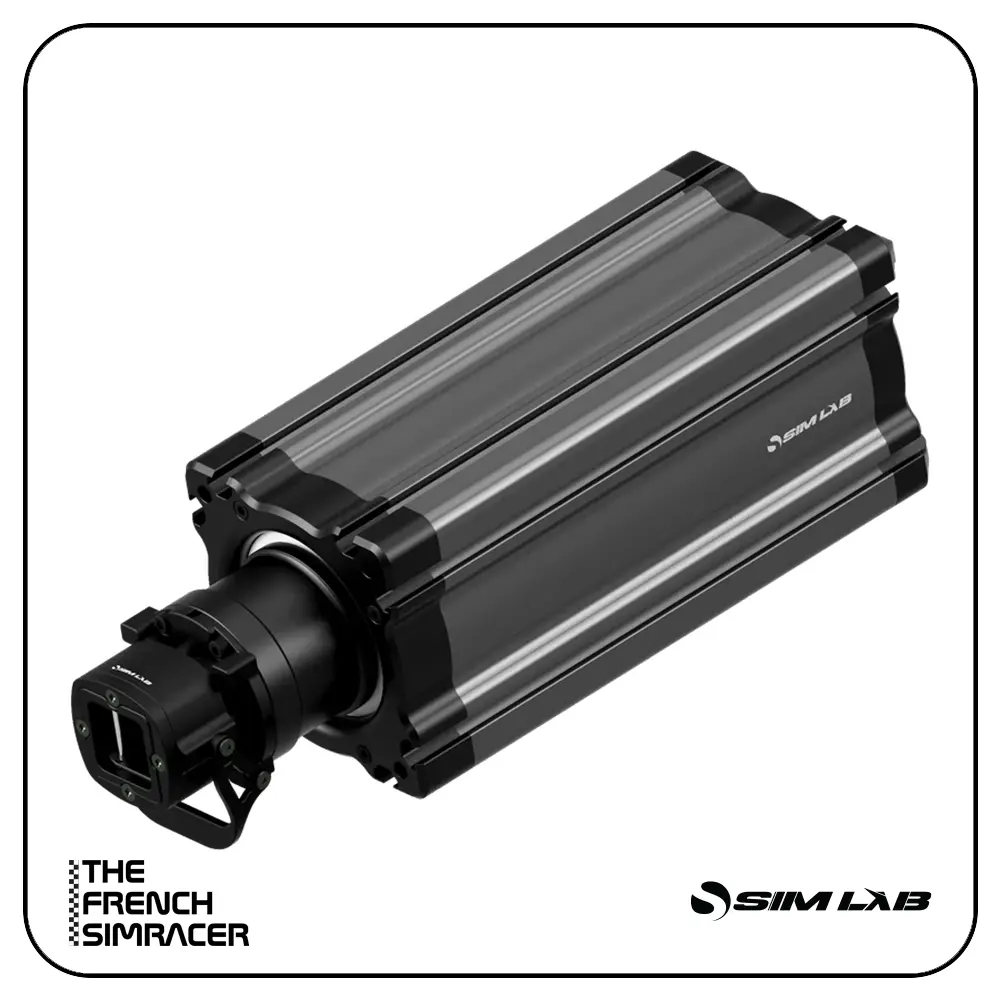

Sim-Lab DDS26 TorqueSync Founders Edition

Sim-Lab DDS26 TorqueSync Founders Edition

The Sim-Lab DDS26 TorqueSync is a no-compromise 26 Nm Direct Drive wheelbase built on industrial motorsport technology. Developed with SOLO Motorcontrollers, it combines a 350 VDC servo architecture, a 100 kHz multithreaded control loop and patented TorqueSync signal processing to deliver torque response that is faster, cleaner and more precise than conventional 48V systems. Manufactured in Italy in an ISO-certified facility, TÜV SÜD approved and backed by a 4-year international warranty.

Main Features

• Voltage makes the difference: an SPMSM industrial AC brushless motor, hand-built with harmonised magnet pairs and distributed-wound stator cores, paired with a 350 VDC internal bus. The result virtually eliminates torque ripple and cogging, and provides the headroom to overcome back-EMF — torque stays available at speed, with far faster slew rates.
• Patented TorqueSync technology: a signal translation layer running at over 100,000 updates per second, aligning every force command from the simulator with motor torque at minimal latency. Tire slip, road texture and load transitions come through cleanly instead of being lost in processing.
• 26 Nm without fade: tested over thousands of simulated driving hours at sustained maximum torque, with an optimised active heat-sink design. Force feedback stays identical from lap one to lap three hundred.
• 24-bit encoder with 16 million steps for micro-detail resolution and ultra-accurate motion control.
• No brick, no clutter: a high-efficiency 1,500 W peak-rated power supply is integrated into the housing. One mains cable, no bulky external box, fewer failure points.
• Future-proof data passthrough: full USB 2.0 runs directly through the base to your PC, with a dedicated 5V line at 2,500 mA for high-draw displays and button boxes — five times the standard USB allowance — through an industrial replaceable slipring rated for 200 million cycles.
• Open ecosystem: Ø70 mm M5 bolt pattern, compatible with any wheel supporting standard USB, with no proprietary lock-in, licences or special adapters.
• Designed to adapt: precision mounting rails on all four sides plus dedicated front-mount points, for wheeldeck, side-mount or front-mount installation on virtually any rig. Slots on top also take a DDU or light monitor mount.
• RaceDirector software: torque curves, damping and slew rate with precision controls, plus a Telemetry FFB mode showing the incoming simulator signal alongside actual motor output — tune by data, not guesswork. Upload and download community setups.
• Safe Torque Off (STO) included, with active fan cooling.
• Founders Edition: dedicated engraving with a unique serial number, the new Xero-Play Quick Release V2 and a premium collector's booklet.

Technical Specifications

• Peak torque: 26 Nm
• Encoder: 24-bit (16 million steps)
• Servo motor: SPMSM, AC brushless, industrial type
• Control loop: DSP chip, 100+ kHz multithreaded
• Internal power supply: integrated, 1,500 W peak-rated
• Internal servo power storage: 350 VDC at 25 A
• Power input: 110 / 240 VAC
• I/O: USB 3.0 + 12 V
• STO: included
• Data passthrough: USB 2.0 with 2,500 mA on the USB power line
• Power delivery passthrough: 5 V / 2,500 mA (standard USB is 500 mA)
• Slipring: industrial type, replaceable, easy front access, rated 200 million cycles
• Wheel mounting interface: Ø70 mm, M5 bolt pattern
• Mounting: wheeldeck, front-mount and side-mount compatible
• Cooling: active fan cooling
• Dimensions (without QR): 380 x 130 x 130 mm (L x W x H)
• Mass: 11.1 kg
• Software: RaceDirector
• Manufacturing: Italy, ISO-certified facility, TÜV SÜD approval mark
• Warranty: 4 years, international

What's in the Box

• DDS26 TorqueSync wheelbase (Founders Edition, engraved with unique serial number)
• Xero-Play Quick Release V2
• Hardware kit for mounting
• Premium collector's booklet

Compatibility

PC. The DDS26 supports iRacing and all popular racing titles on PC, and is configured through RaceDirector. It accepts Sim-Lab and GRID Engineering wheels as well as any third-party wheel using the Ø70 mm M5 bolt pattern, with data passthrough for wheels equipped with USB-C, USB-A or an internal connector. Mounting covers wheeldeck, side-mount and front-mount, including direct fitment on the Sim-Lab P1X Ultimate and P1X Pro front-mount versions without adapters.

Which model to choose

The DDS26 is Sim-Lab's core model and hits the sweet spot for real-world power: 26 Nm of clean, controllable torque covering everything from GT to open wheel, in a shorter 380 mm housing at 11.1 kg. The DDS39 shares the identical architecture, encoder, processing, connectivity and software, adding 39 Nm and a 2,500 W stage for maximum headroom. Your wheels, rig and quick release carry over between the two.

FAQ

Is 26 Nm enough?

More than enough for most drivers. Sim-Lab positions the DDS26 as the sweet spot for real-world power, with 26 Nm of clean, controllable torque covering GT through open wheel. What matters as much as peak figures is that torque is sustained without fade, and that transitions are fast — both areas where the 350 VDC architecture excels.

Why a 350 V architecture rather than 48 V?

Voltage defines speed capability and response, current defines torque. As the motor turns faster it generates back-EMF, and a controller can only push current if its bus voltage sits above it. A 48 V system runs out of headroom sooner, so torque falls off at speed and transitions slow down. The 350 VDC bus keeps torque available across a wider speed range and delivers a higher slew rate — sharper, more lifelike feedback exactly when you catch a slide or clip a kerb.

Does it work with my existing wheels?

Yes, provided they use the Ø70 mm M5 bolt pattern. The ecosystem is fully open: any wheel supporting standard USB connects without adapters or licences, and the quick release slipring carries full data and power, so displays, LEDs and telemetry modules keep working normally.

Does it support iRacing 360 Hz?

The DDS26 ships fully compatible with iRacing using the standard force feedback path. The optional 360 Hz mode is not in the day-one build: the control stack already handles high-rate torque processing, so it will be enabled through a firmware and software update once the integration is finalised. No hardware change needed.

Do I need an external power brick?

No. The 1,500 W peak-rated power supply is integrated into the housing — a single mains cable powers the base. At this power level no suitable consumer external unit exists, so integration also means shorter power paths, better thermal management and a cleaner setup.

How long does installation take?

Most users go from unboxing to their first lap in under 15 minutes. The base bolts directly onto Sim-Lab rigs such as the P1X Ultimate and P1X Pro without adapters, with dual mounting rails on all four sides and a front-mount interface.

Who handles warranty and after-sales service?

The French Simracer handles after-sales service for Sim-Lab products, as for every brand it distributes, with a France-based contact: you never have to deal with the manufacturer. You benefit from the 2-year legal warranty, or the manufacturer warranty if longer.
