Sector17 WindSim V2 SimHub Wind Simulator
Vendor:
Sector17
Availability:
Out Of Stock
Product type:
Simracing > Motion & haptique > Accessoires motion
- Regular price
- 279,90€
- Regular price
- Sale price
- 279,90€
About VAT
Couldn't load pickup availability
Ships within 1–2 business days
Secured Payments
More than 10 Years of Expertise
Sector17 WindSim V2
The Sector17 WindSim V2 is a wind simulator for PC sim racing, driven by SimHub over USB. Two fans with direct 25 kHz PWM control and two independent left/right channels blow air towards the driver according to your speed and the SimHub wind effects. Three fan versions are available (Silent, Sport, Performance), each in a Standard version with hoses and nozzles or a Compact version mounted directly on the chassis. Designed, assembled and tested by Sector17.
Key features
- 25 kHz PWM control: 4-wire PWM fans driven directly at 25 kHz, replacing the Motor Shield of the V1, for more precise and responsive airflow.
- Two independent channels: left and right fans react separately to SimHub data for cornering and aerodynamic effects.

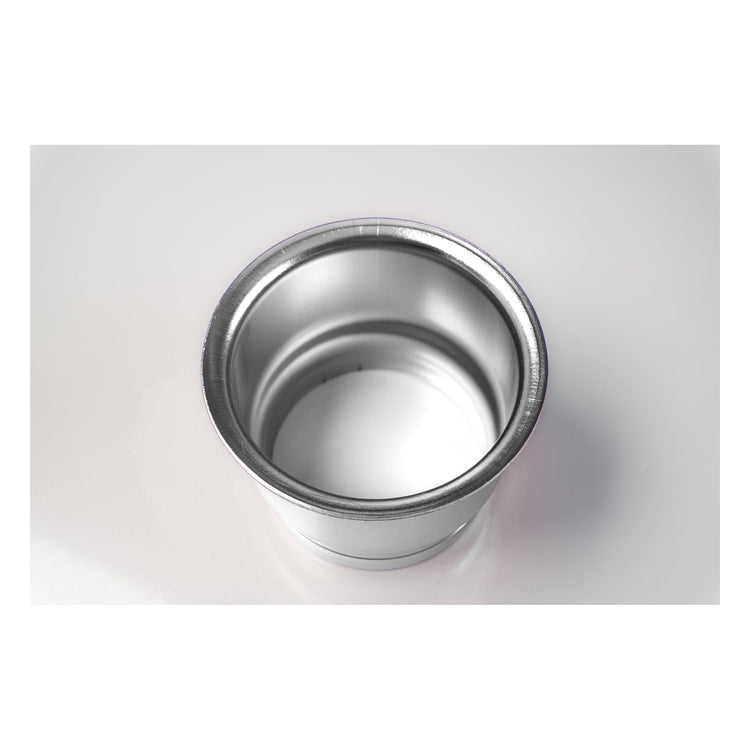

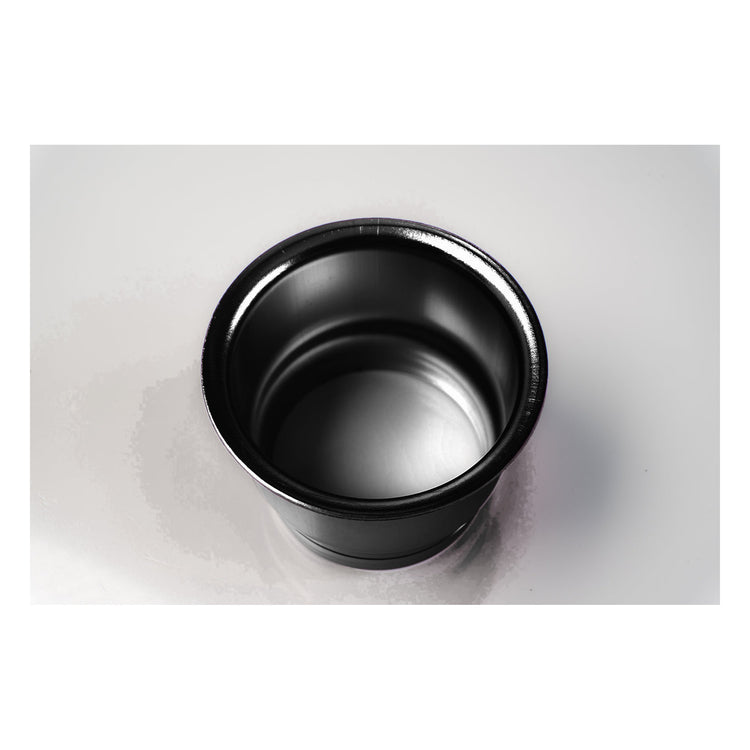

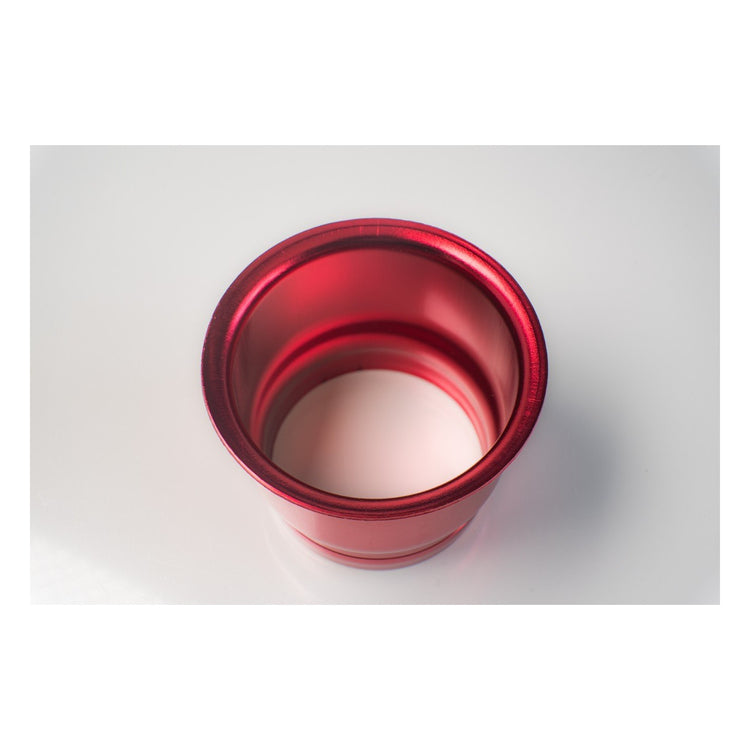

- New V2 nozzles: angled outlet that follows the natural airflow, with less flow break-up, turbulence and noise than the straight V1 outlet (Standard version).
- Flexible 76 mm hoses: extendable up to 100 cm to place both air outlets freely around the cockpit (Standard version).
- Three fan versions: Silent for low noise, Sport for balance, Performance for maximum airflow and the fastest response.
- Four finishes: red, black, blue or grey control box, nozzles and trim.
Technical specifications
- Brand: Sector17
- Control: 25 kHz PWM, 4-wire fans, 2 independent channels (left / right)
- Connection: USB to PC
- Software: SimHub (free)
- V2 Silent: Wakefield Silent fans, 135.9 CFM, 3,200 RPM, 6.6 W, 0.55 A max, full power in ≈ 5 s, 34 / 50 / 58 / 62 dB at 25 / 50 / 75 / 100 % (1 m)
- V2 Sport: Wakefield Sport fans, 197.5 CFM, 5,500 RPM, 25.2 W, 2.10 A max, full power in ≈ 3.5 s, 56 / 64 / 69 / 73 dB at 25 / 50 / 75 / 100 % (1 m)
- V2 Performance: Sanyo Denki fans, 224 CFM, 6,400 RPM, 36 W, 3.0 A max, full power in ≈ 1.5 s, 58 / 68 / 72 / 76 dB at 25 / 50 / 75 / 100 % (1 m)
- Hoses (Standard): 76 mm diameter, extendable up to 100 cm
In the box

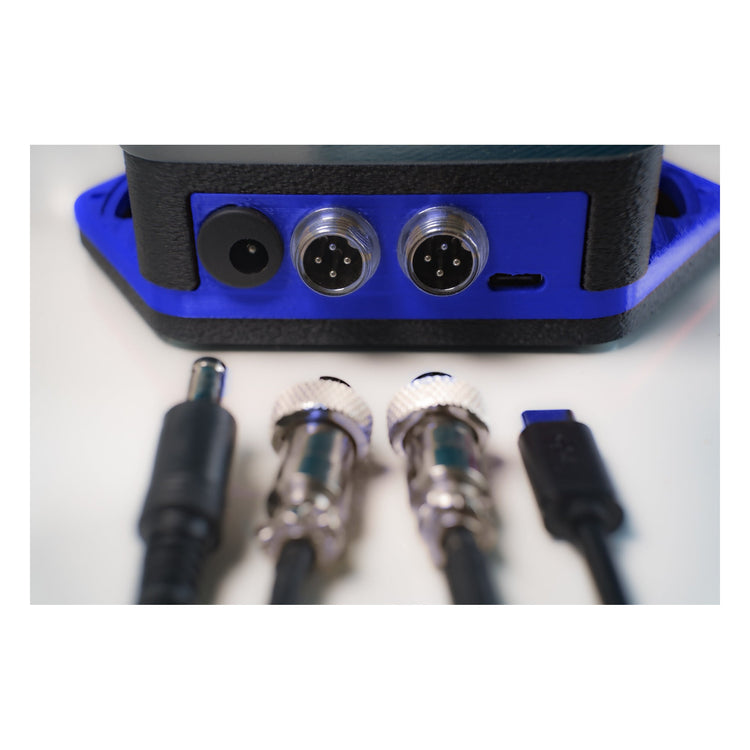

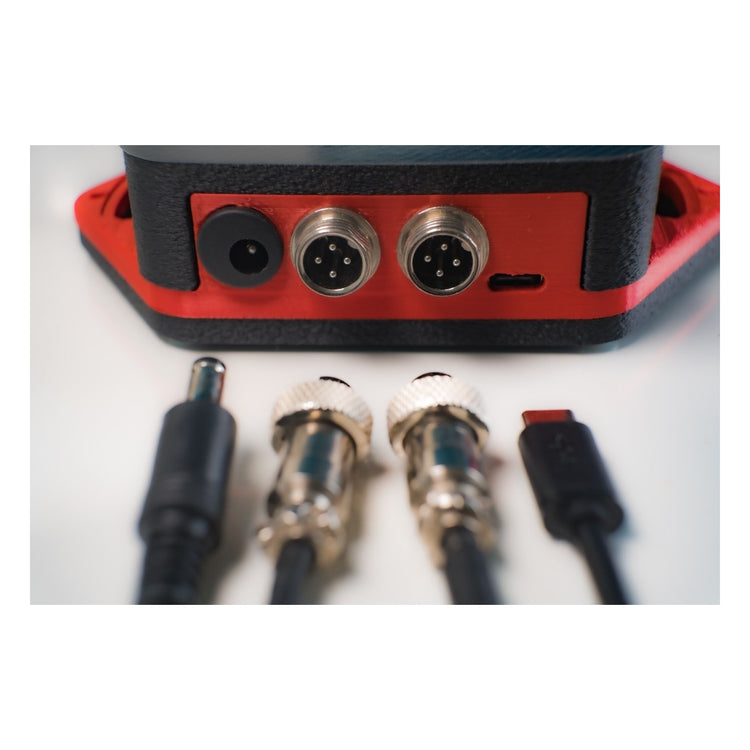

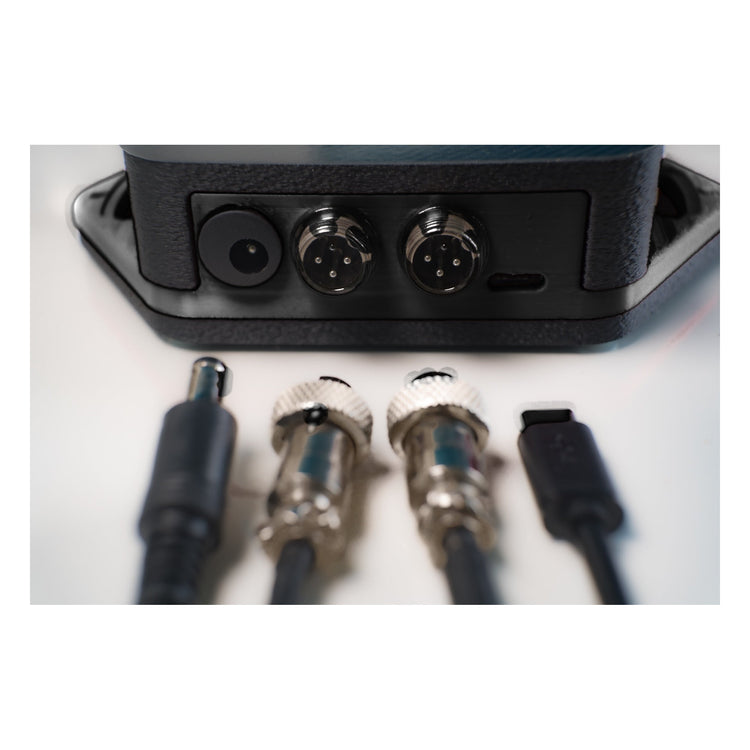

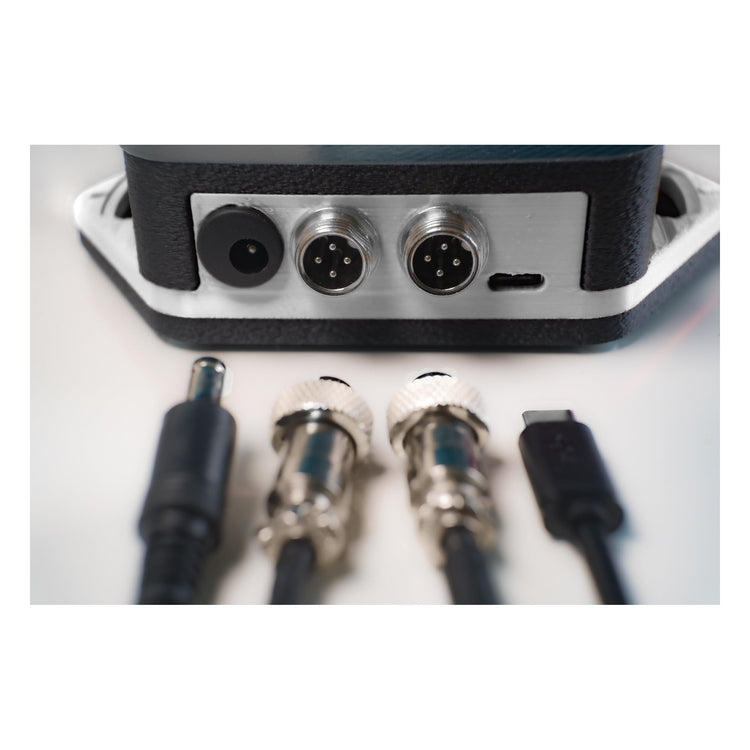

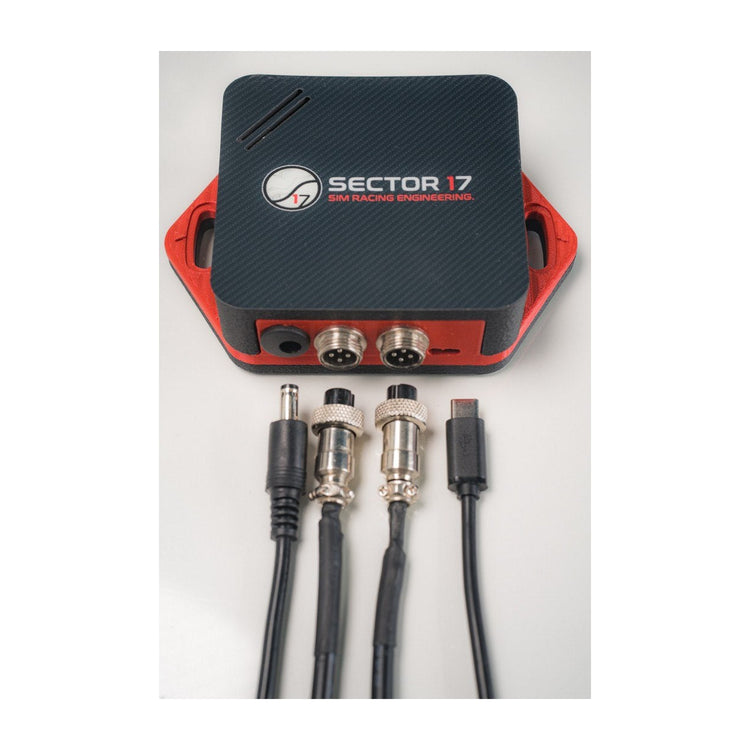

- WindSim V2 control box in the chosen colour
- 2 fans of the chosen version (Silent, Sport or Performance)

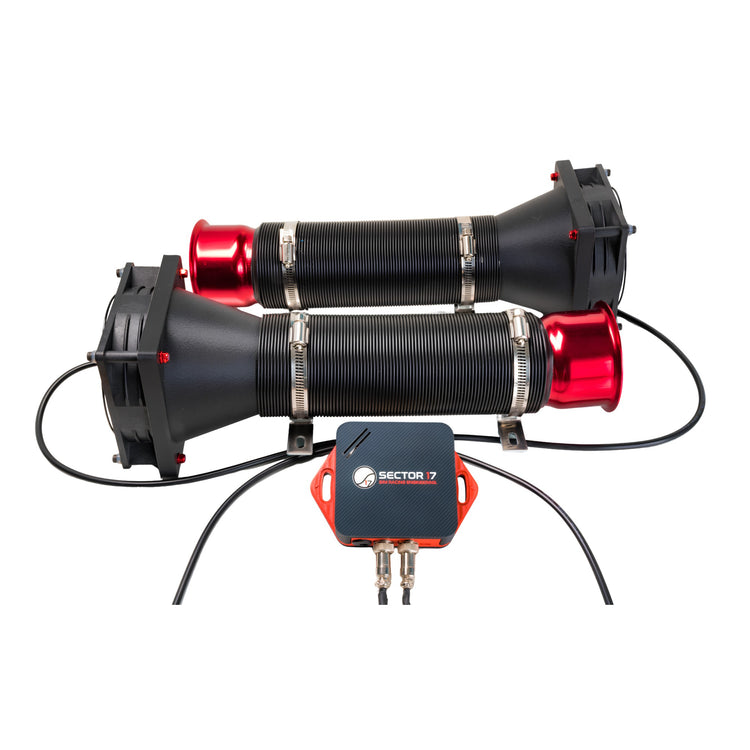

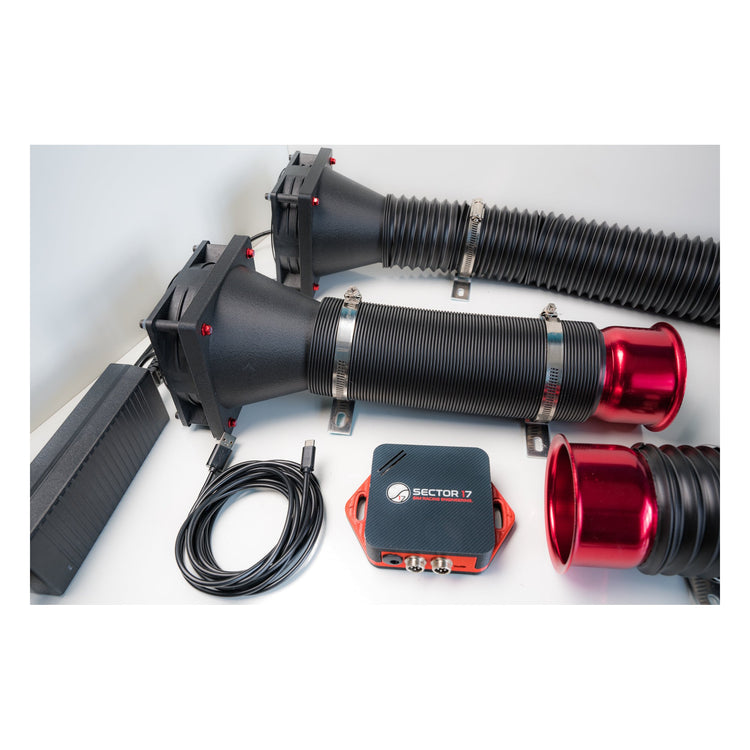

- Standard version: 2 V2 nozzles and 2 flexible 76 mm hoses

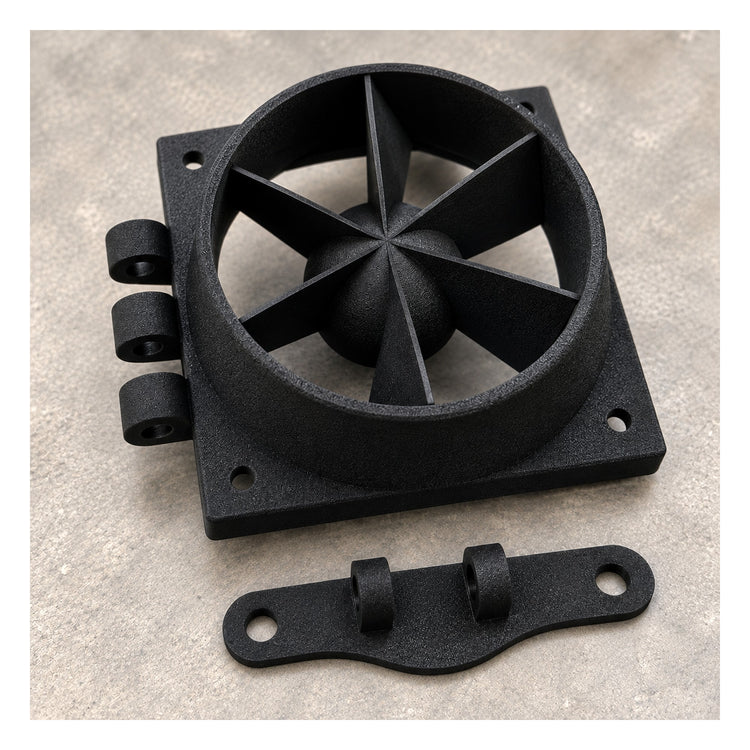

- Compact version: fan mounts for direct chassis mounting (always black), no nozzles or hoses
Important notes

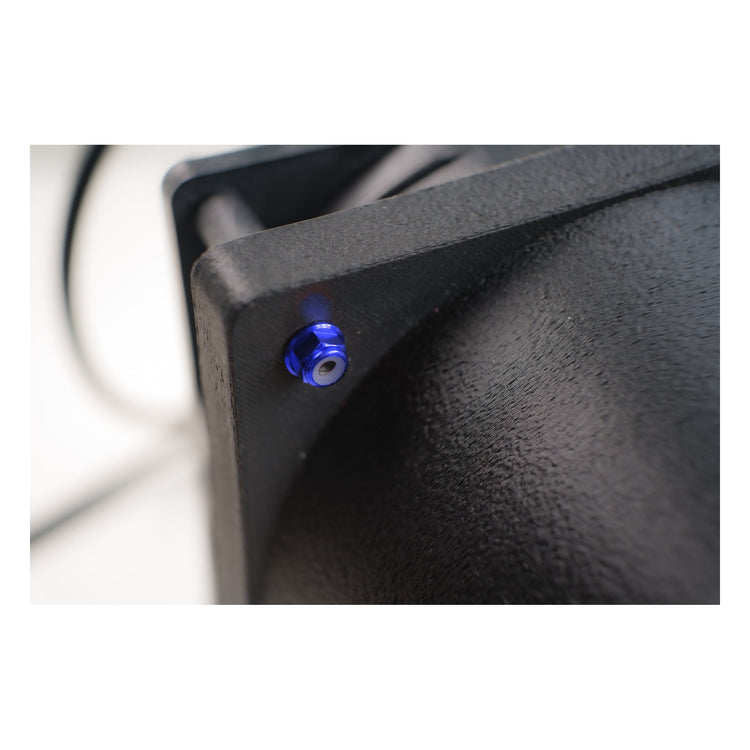

- On the Compact version, the chosen colour applies to the control box and trim parts only. The Compact fan mounts are always supplied in black.
- Sound levels are the manufacturer's figures, measured at 1 metre.
- The drafting effect only works in games that send the required data to SimHub.
Compatibility
PC only, through SimHub. In SimHub you can set the wind strength according to vehicle speed, the left and right fans independently, the Left/Right Wind Curving effects, the drafting effect, a minimum cockpit ventilation and the minimum and maximum power of the system. The Standard version fits any cockpit thanks to its flexible hoses; the Compact version is designed to be fixed directly on the simulator chassis. Not compatible with consoles.
Which model to choose
- V2 Silent: comfort first, the quietest version (62 dB at full power).
- V2 Sport: the balance between airflow and responsiveness for all-round use.
- V2 Performance: the strongest airflow (224 CFM) and the fastest response (≈ 1.5 s), but also the loudest.
- Standard or Compact: choose Standard to aim the air precisely at the driver with nozzles and hoses, Compact for a simpler installation with the fans fixed on the chassis.
FAQ
Does the WindSim V2 work on console?
No. It is controlled by SimHub, which runs on Windows PC only.
Which software do I need?
SimHub, available for free. Once configured, the WindSim runs automatically during your sim racing sessions.
What is the difference with the WindSim V1?
The V2 replaces the Motor Shield control with direct 25 kHz PWM control of the fans, adds new angled nozzles and redesigned electronics, wiring and finishes.
Who handles warranty and after-sales service?
The French Simracer handles after-sales service for this product, with a France-based contact. You benefit from the 2-year legal warranty, or the manufacturer warranty if longer.
