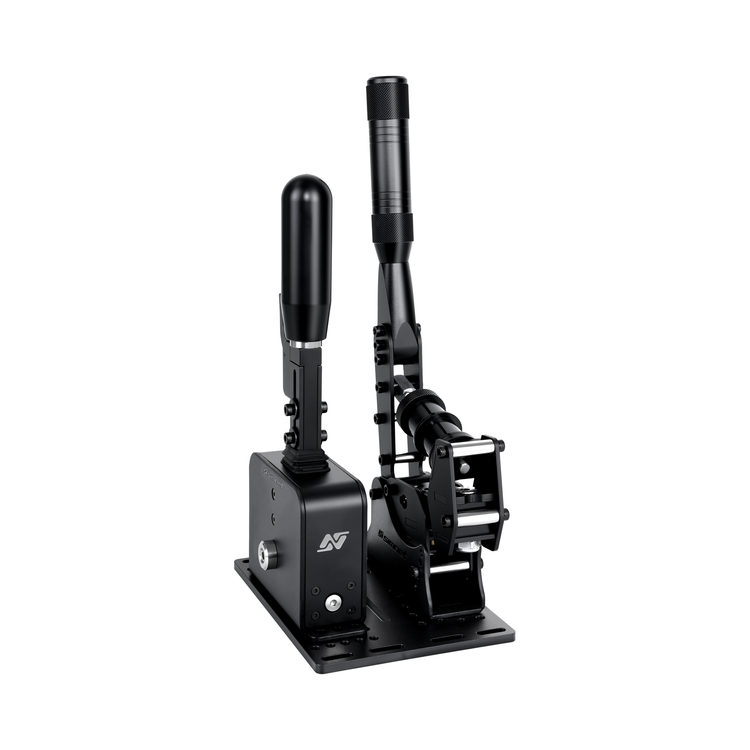

SimNet SSQ-1 & SHB-100 Bundle with A-PHS Plate

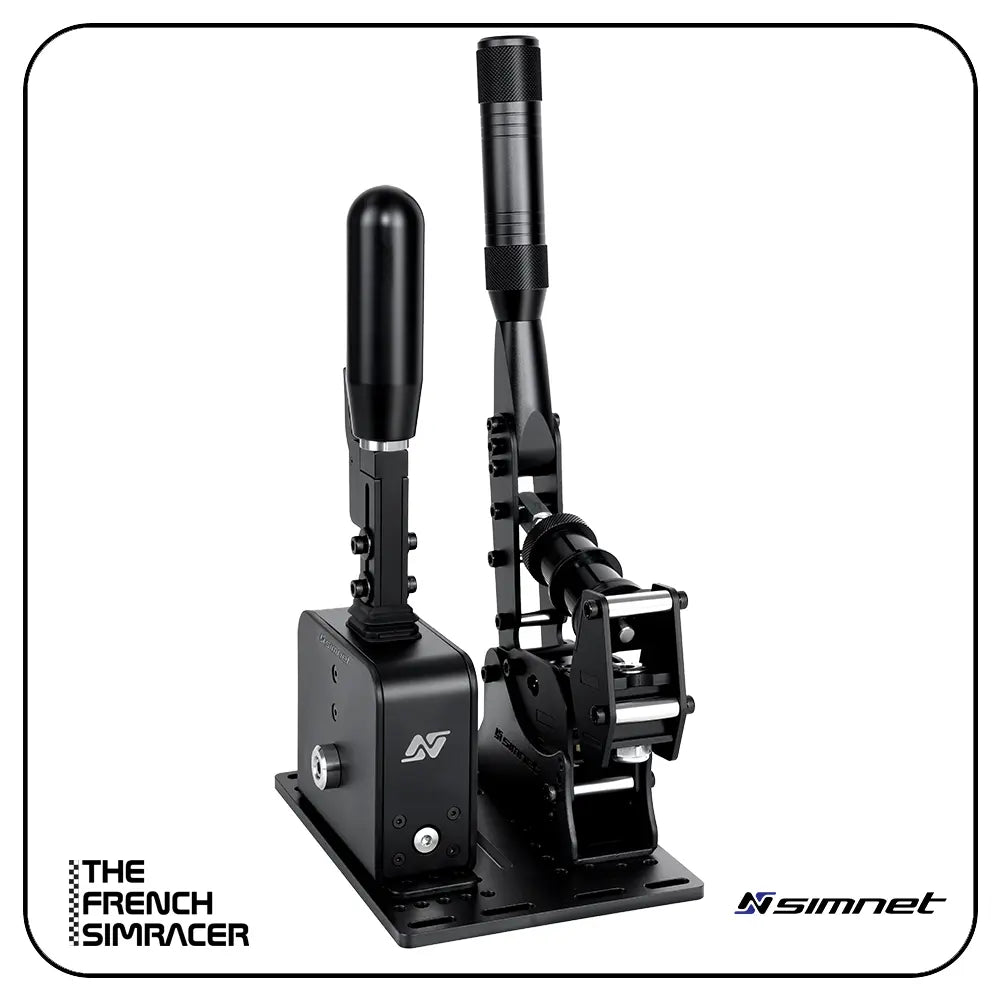

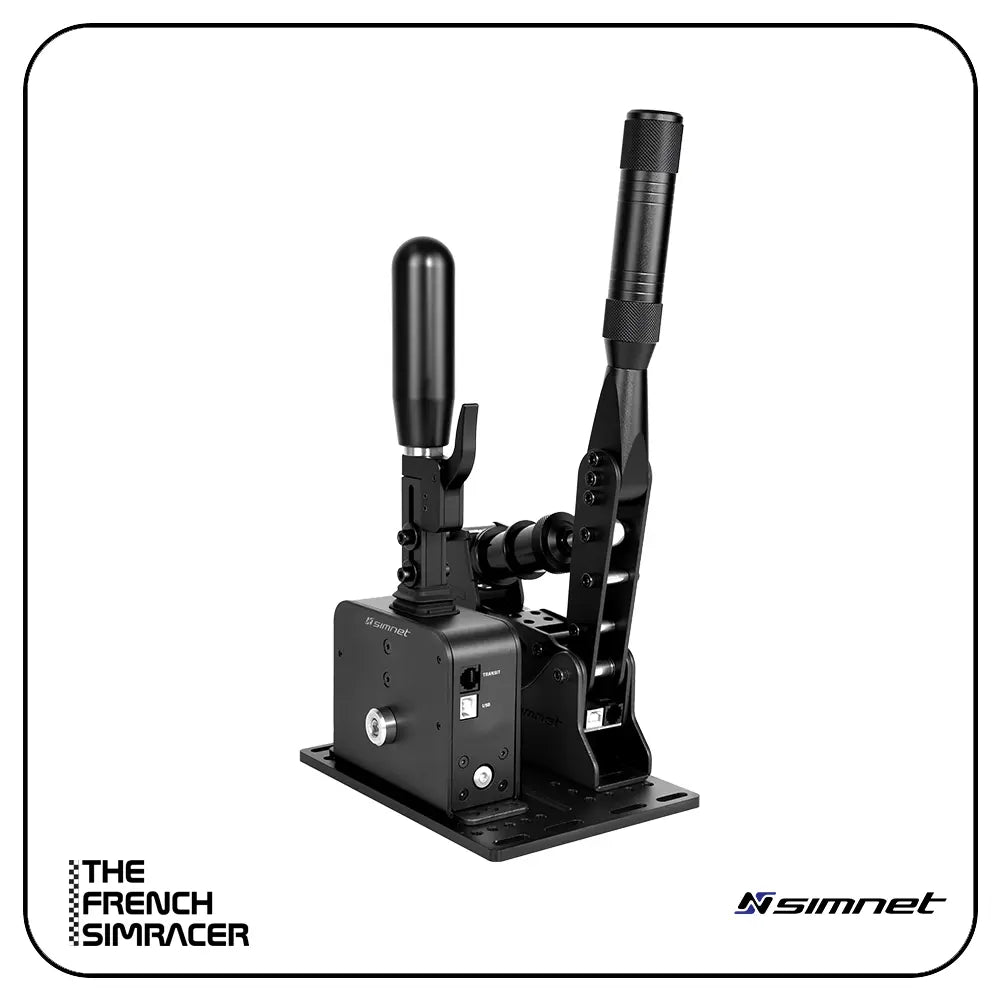

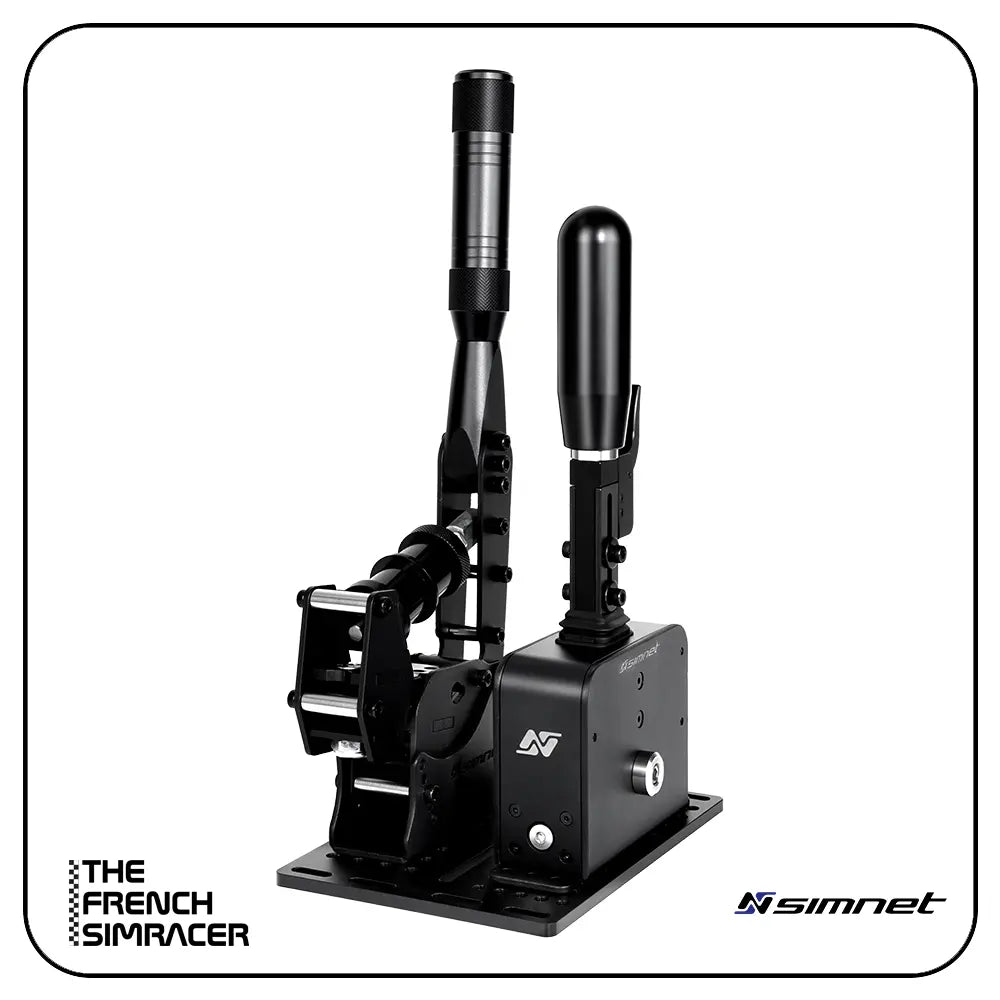

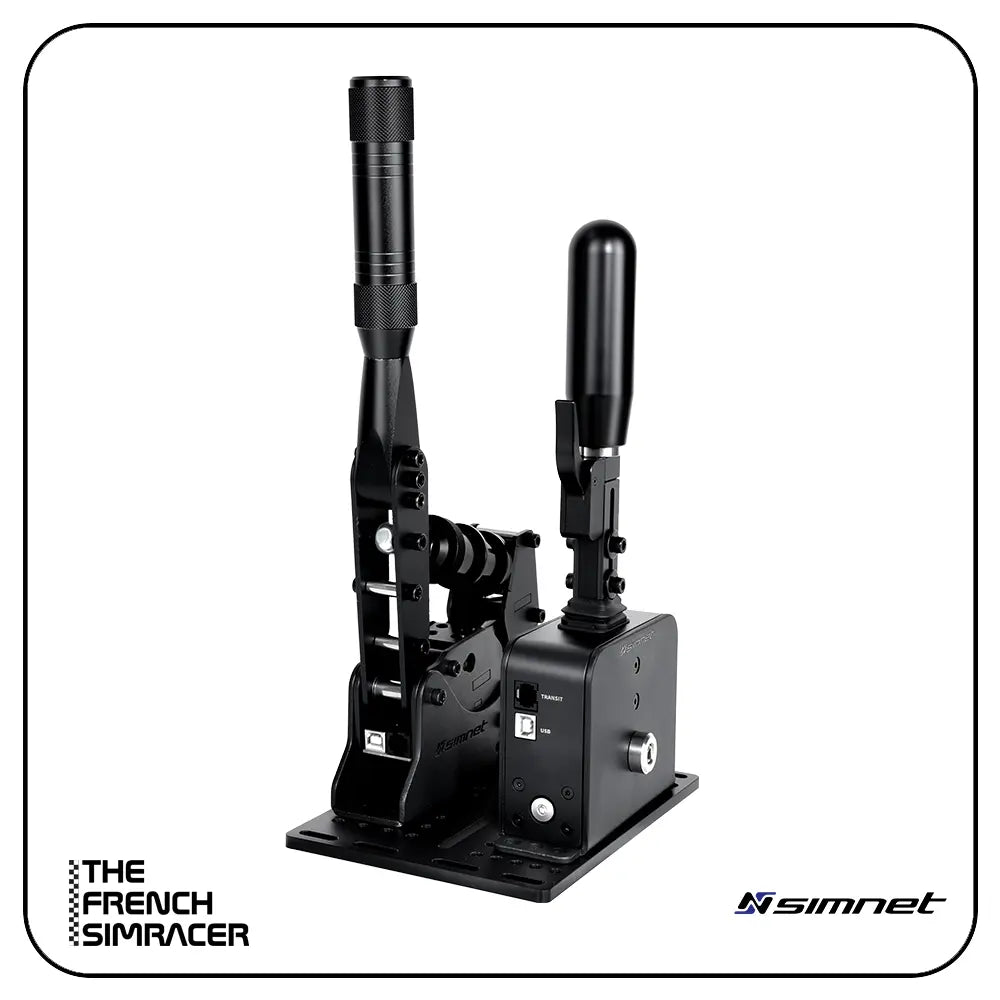

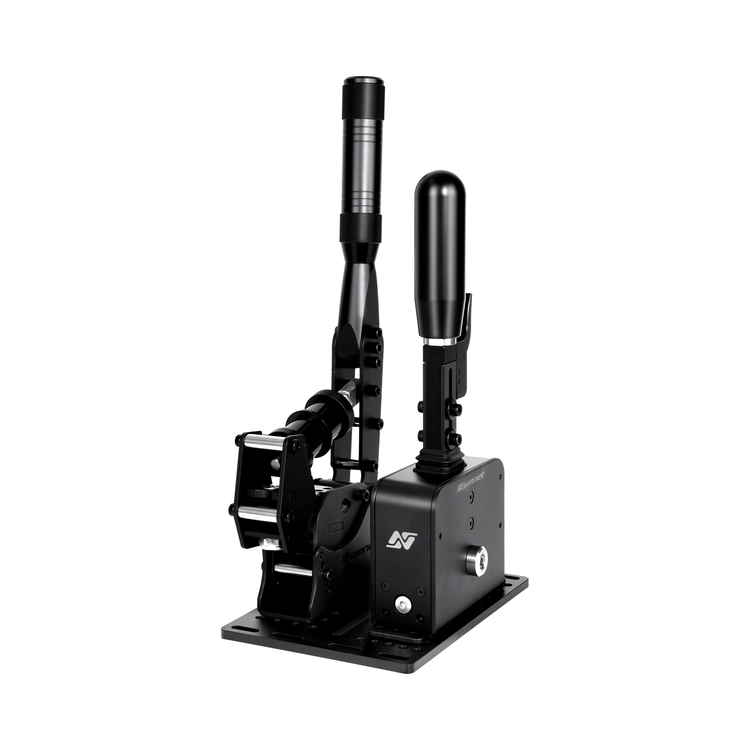

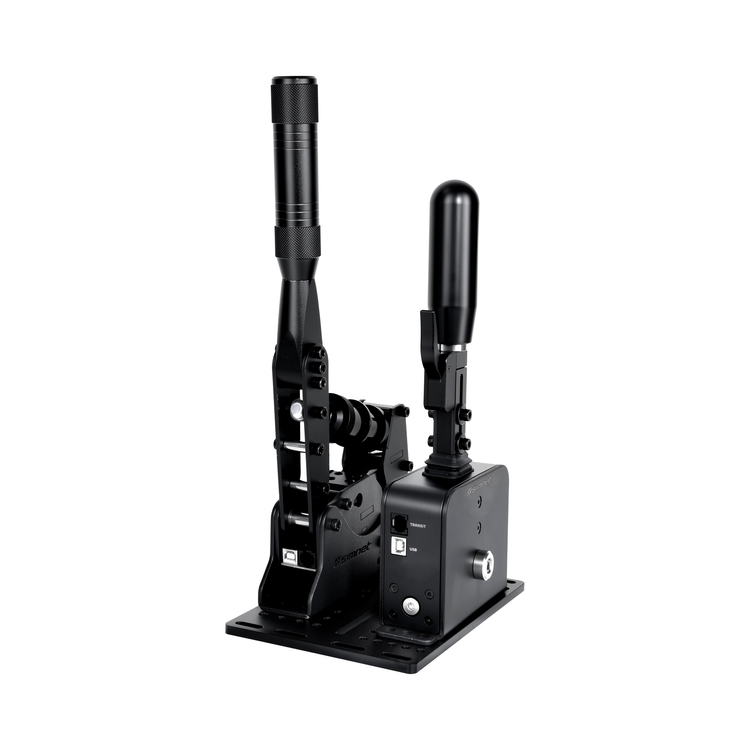

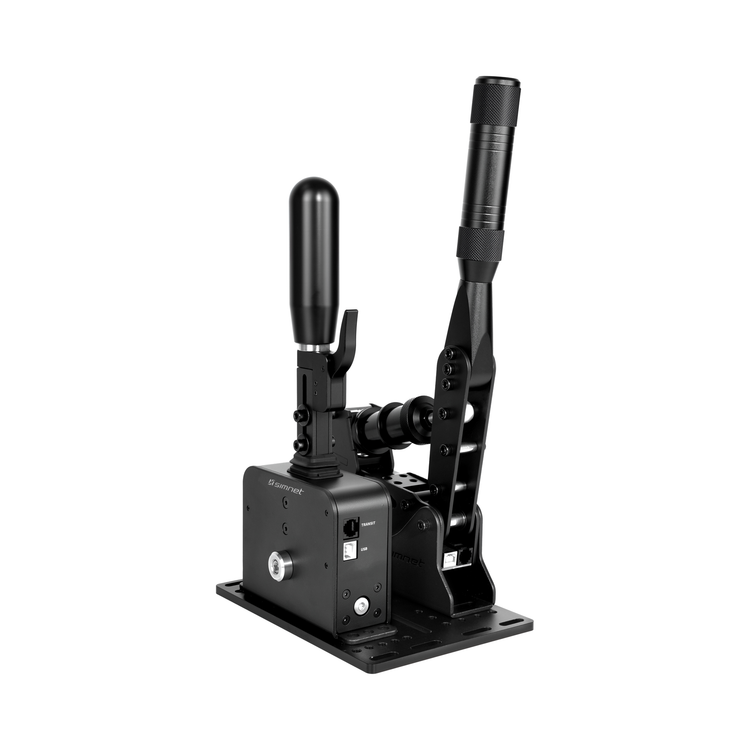

The SimNet SSQ-1 & SHB-100 Bundle with A-PHS Plate combines a sequential shifter, a Load Cell handbrake and the dedicated mounting plate for a complete rally and drift control assembly. The A-PHS plate brings the SimNet SSQ-1 Sequential Shifter and SimNet SHB-100 Loadcell Handbrake together while allowing independent positioning of both controls.
Complete SimNet Control Bundle
- SimNet SSQ-1 Sequential Shifter
- SimNet SHB-100 Loadcell Handbrake
- SimNet A-PHS Plate for Shifters and Handbrake
- Integrated solution for rally, drift and demanding sim racing cockpits

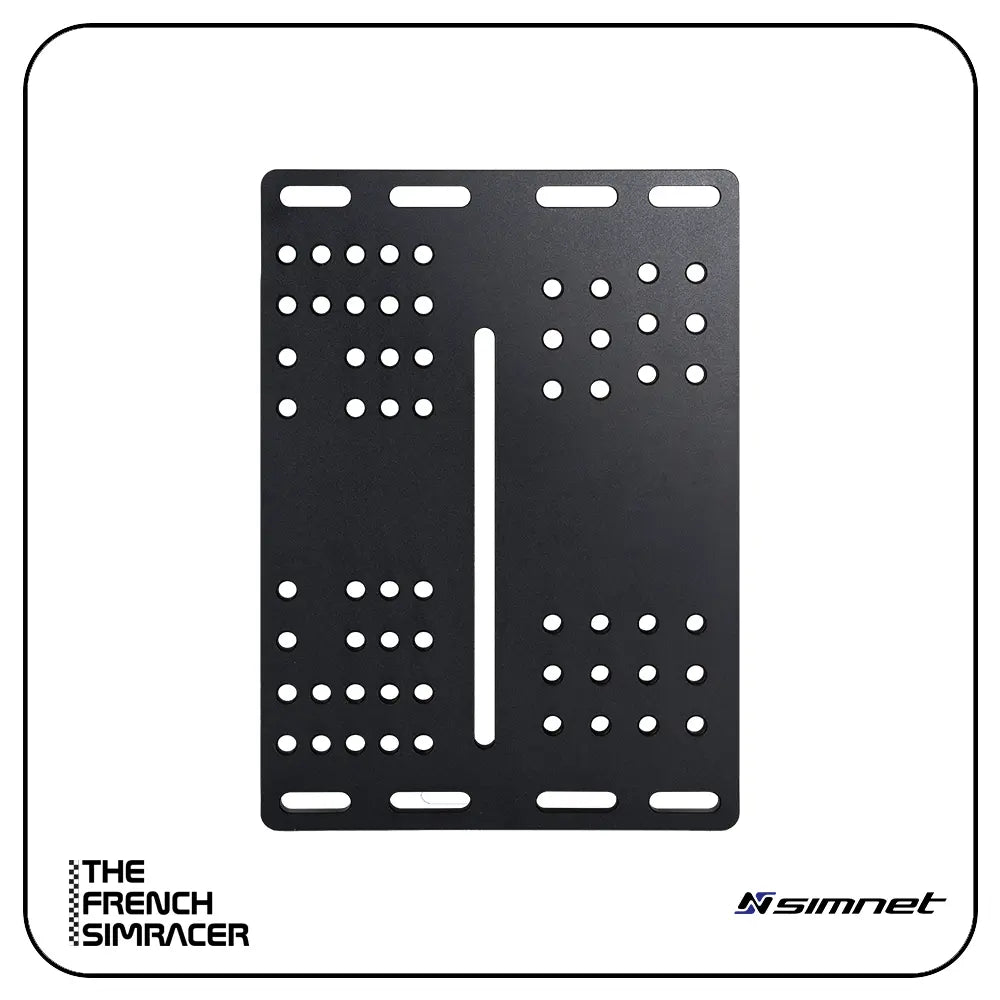

A-PHS Combined Mounting Plate
The A-PHS plate holds the SSQ-1 and SHB-100 together in one compact assembly. Each device can be adjusted independently horizontally, vertically and through a defined range of rotation. The plate can be flipped to adapt the layout to LHD and RHD cockpit configurations.
- Dedicated mounting solution for the SSQ-1 and SHB-100 combination
- Independent horizontal, vertical and rotational adjustment
- Reversible plate for left-hand-drive and right-hand-drive layouts
- Designed for rapid access between shifter and handbrake
SSQ-1 Sequential Shifter
- Stainless-steel and CNC-machined aluminium construction
- Powder-coated finish designed to resist corrosion
- Net weight: 1.5 kg
- Adjustable resistance and mechanical notch feel
- Five interchangeable detent-ball types and sizes
- Continuously adjustable handle height across a 25 mm range
- Programmable multi-command handle for neutral, reverse and additional inputs
- USB connection and TRANSIT port for selected third-party wheelbases
- Simconnetor Manager software with basic and advanced input settings
SSQ-1 Detent Ball Tuning
- Nylon PA66, 7.5 mm: pre-installed, balanced notch and quieter click
- POM, 8.0 mm: quieter and less notchy response
- Zirconia ceramic ZrO2, 8.0 mm: self-lubricating, between nylon and steel in sound
- Steel, 7.5 mm: strongest notch and loudest click
- Steel, 7.92 mm: balanced notch and clear click, quieter than 7.5 mm steel
- Use matching balls of the same type and size on both sides
- Adjust the detent preload only a few degrees at a time
SSQ-1 Installation and Adjustments
The SSQ-1 can be installed on a T-slot aluminium profile rig using two M6 spring nuts and two M6 × 12 socket-head screws. It can also be mounted on a cockpit plate using the threaded positions shown in the technical drawing.
- Overall SSQ-1 height: 295 mm
- SSQ-1 base width: 145 mm
- Lower body width: 62 mm
- Knob diameter: 35 mm
- Use a 3 mm hex wrench for handle-height adjustment
- Use a 5 mm hex wrench for detent-ball replacement and preload adjustment
SHB-100 100 kg Load Cell Handbrake
- 100 kg Load Cell sensor for accurate braking-force measurement
- Full-metal CNC-machined aluminium body with stainless-steel reinforcements
- Adjustable dual-spring system for stiffness and travel tuning
- Interchangeable elastomers for different rally, drift and GT feels
- Precision bearings for smooth and consistent operation
- Vertical or horizontal lever configuration
- Approximate net weight: 3 kg
SHB-100 Connectivity and Compatibility
- PC: USB plug-and-play connection on Windows
- Fanatec wheelbases: RJ12 connection with the appropriate SimNet cable
- PlayStation: compatibility when used with a PlayStation-compatible Fanatec wheelbase
- Compatible with aluminium-profile cockpits and SimNet mounting solutions
- Vertical or horizontal installation depending on the cockpit layout
Complete Box Contents
- SimNet SSQ-1 Sequential Shifter
- SimNet SHB-100 Loadcell Handbrake
- SimNet A-PHS Plate for Shifters and Handbrake
- SSQ-1 ergonomic hand grip
- SSQ-1 USB cable
- SSQ-1 interchangeable detent balls
- SSQ-1 mounting hardware and adjustment tools
- SHB-100 dual-spring and elastomer resistance system
- SHB-100 USB cable and mounting hardware
- SHB-100 user manual and software download guide
Software and Configuration
Use the SimNet software to configure the SHB-100 pressure curve, response and dead zones. The SSQ-1 software settings allow you to monitor gear-up and gear-down inputs, invert the push/pull mapping and define separate activation points for upshifts and downshifts. Firmware updates for connected devices are managed through Simconnetor Manager.
Frequently Asked Questions
What is included in this SimNet bundle?
The bundle includes the SSQ-1 sequential shifter, the SHB-100 100 kg Load Cell handbrake and the A-PHS plate that mounts both devices together.
Can the bundle be used for rally and drift?
Yes. The combined shifter and handbrake layout is designed for rapid access in rally and drift configurations, while the adjustable controls allow you to tune the feel to your driving style.
Can the A-PHS plate be used with LHD and RHD cockpits?
Yes. The plate can be flipped for left-hand-drive and right-hand-drive layouts, and both devices can be positioned independently.
How can the controls be connected?
The SSQ-1 uses USB or its TRANSIT connection with selected third-party wheelbases. The SHB-100 connects to a Windows PC by USB or to compatible Fanatec wheelbases through RJ12.
