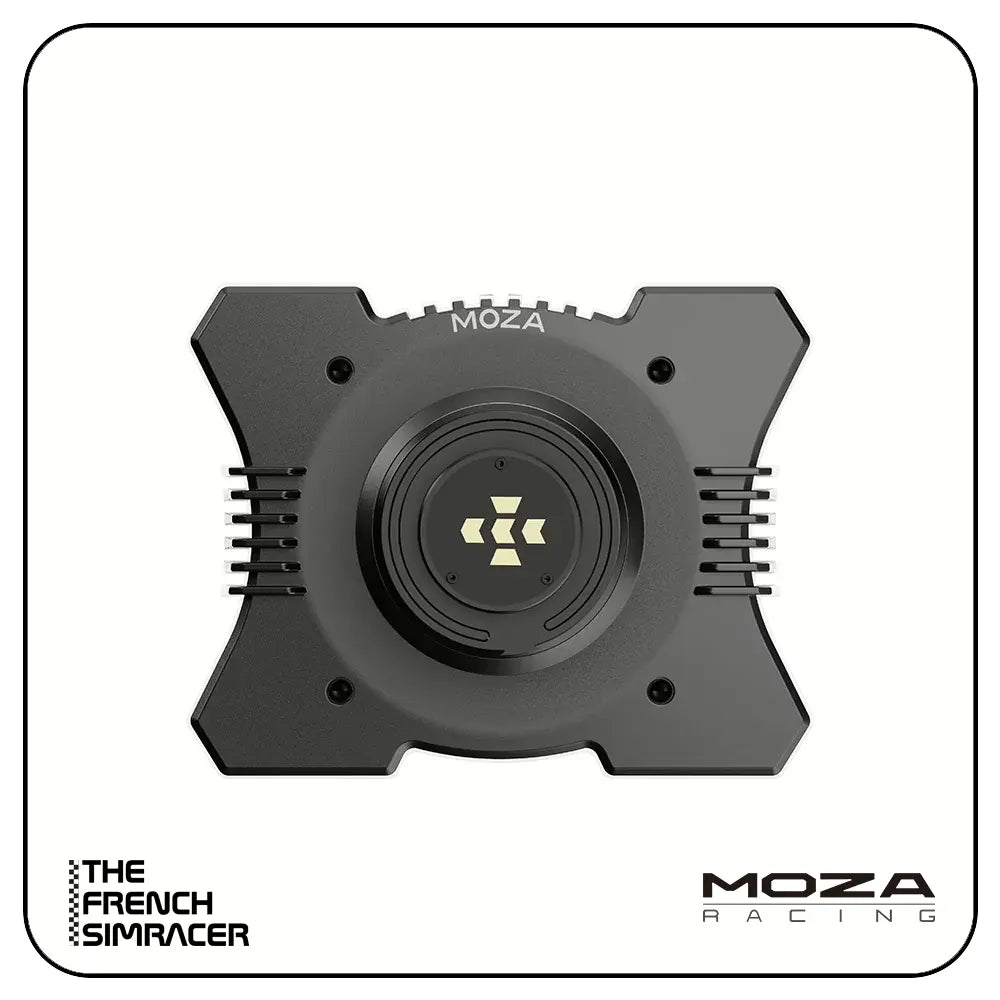

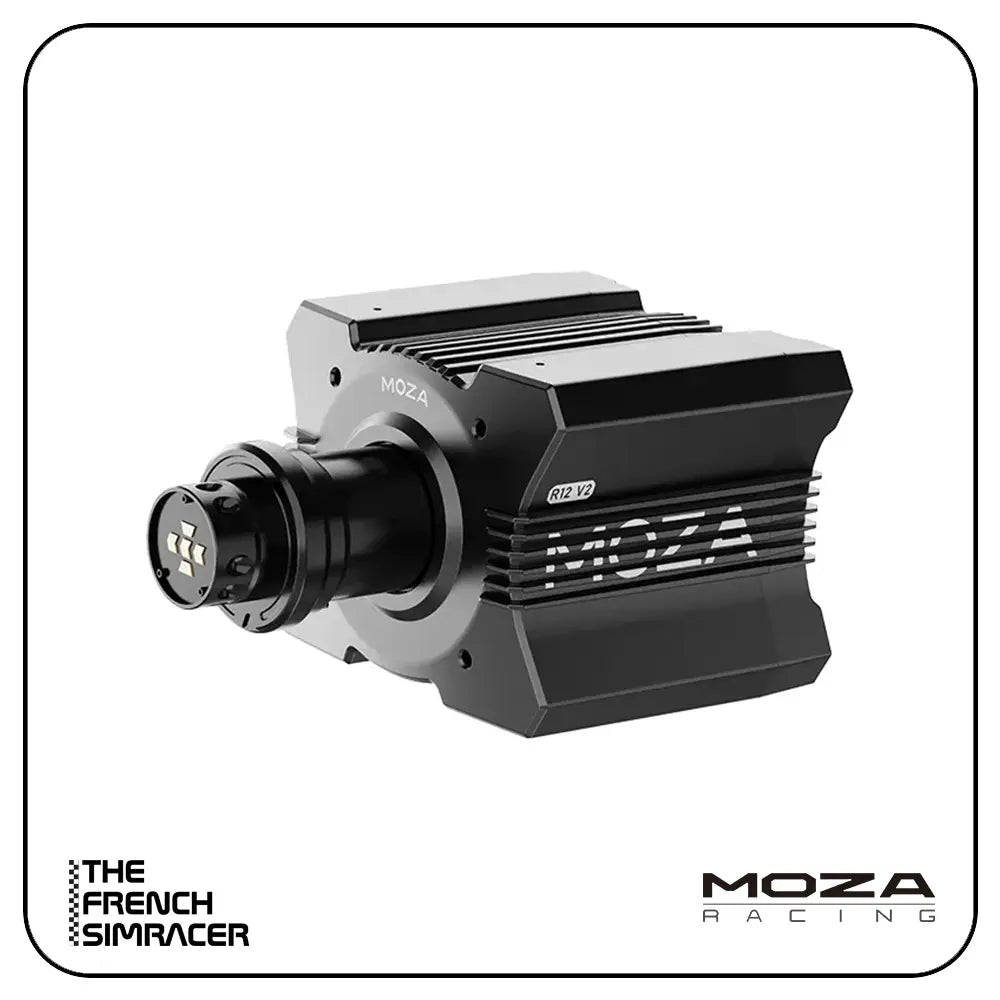

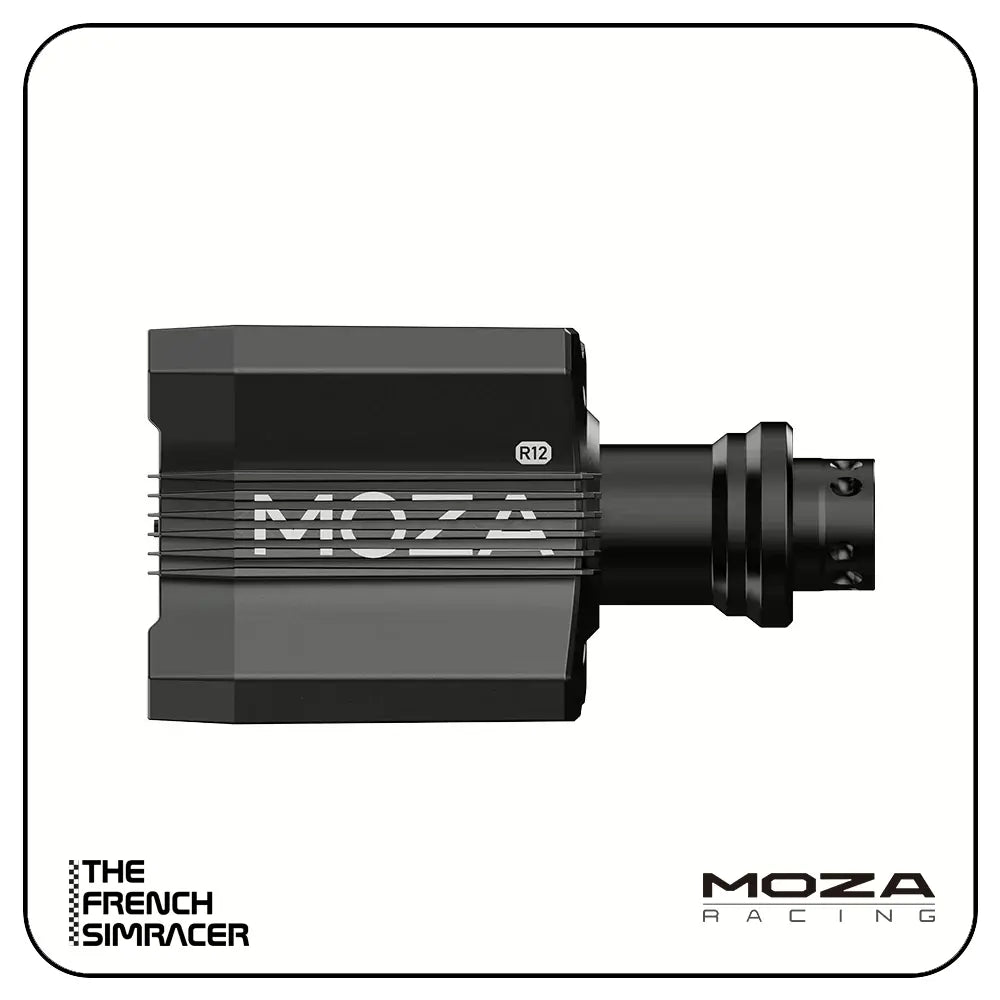

MOZA R12 V2 Direct Drive Wheel Base
The MOZA R12 V2 is a 12 Nm Direct Drive base built around a slanted-pole servo motor, a 21-bit magnetic encoder and a carbon-fibre-wrapped rotor, delivering precise and consistent force feedback with NexGen 4.0 and iRacing 360 Hz support. Housed in aviation-grade aluminium with a compact integrated design, it keeps a standard 4-hole bottom mount and is fully tuned through the MOZA Pit House app.
Main Features
- 12 Nm Direct Drive: slanted-pole servo motor delivering strong, responsive and consistent force feedback for sim racing.
- 21-bit magnetic encoder: 2,097,152 steps per revolution and 0.00017° resolution for ultra-smooth steering and highly detailed feedback.
- Carbon fibre wrapped rotor: minimises eddy-current losses and improves thermal efficiency for long, stable sessions.
- NexGen 4.0 & 360 Hz: advanced force feedback algorithm with iRacing 360 Hz support and a 1000 Hz USB refresh rate.
- Aviation-grade aluminium body: automotive-grade paint and laser-etched finish built for durability.
- Compact integrated design: standard 4-hole bottom mount for easy installation on rigs, floor stands or an optional desk clamp.
- Hand-off Protection: stops oscillation and safely centres the wheel, with a Mode 2 that keeps drifting and high-dynamic maneuvers uninterrupted.
- MOZA Pit House app: real-time tuning with 19-point force feedback customisation, smart road-feel equaliser, dynamic FFB curves and preloaded game profiles.
Technical Specifications
- Platform: PC
- FFB drive system: Direct Drive
- Peak torque: 12 Nm
- Peak power: 216 W
- Encoder resolution: 21-bit (2,097,152 PPR)
- Max wheel rotation: 90° to 2700°
- USB refresh rate: 1000 Hz
- Input voltage: 110V–220V AC to 36V DC
- Housing material: aviation-grade aluminium alloy
- Housing colour: black

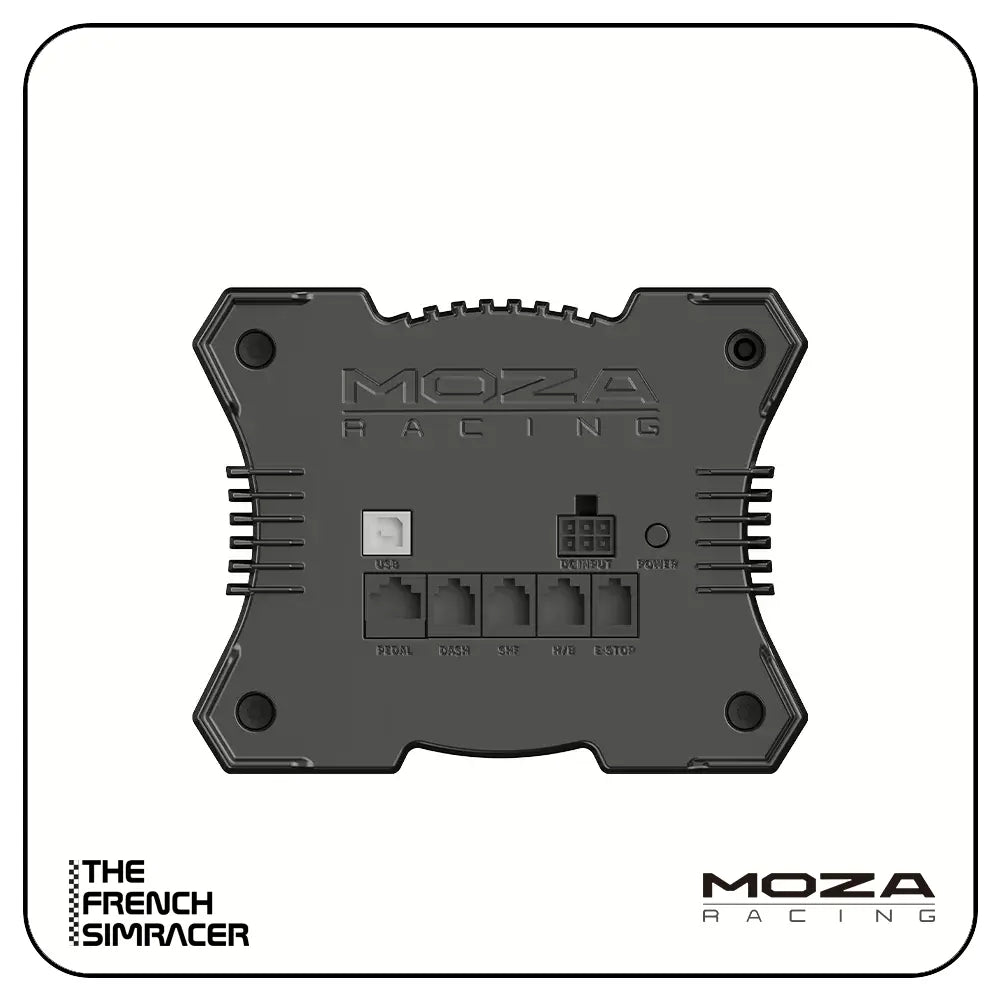

- Connection ports: Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop
- Fixing method: 4-hole bottom mount
- Desk clamp: optional
- E-stop: optional
- Quick Release: supported
- Online firmware update: supported
- Weight: 7.5 kg
- Dimensions: 225.87 x 156.68 x 123.99 mm
What's in the Box
- MOZA R12 V2 Direct Drive Wheel Base
- Power adapter
- Data cable
- Tool kit
- User manual
- Warranty card
Compatibility
PC only. The R12 V2 connects over USB and is configured through the MOZA Pit House software. It works across the MOZA ecosystem — steering wheels, pedals, shifters, handbrakes and dashes — via its dedicated connection ports, and pairs with MOZA quick-release wheels. Dedicated MOZA connectors let compatible steering wheels connect directly to the base.
Required & Optional Accessories
- Mounting: standard 4-hole bottom mount for rigs and floor stands; optional desk clamp for desktop setups.
- E-stop (optional): external emergency-stop switch for added safety at high force levels.
- MOZA steering wheels: connect via the MOZA quick release; third-party wheels require the appropriate MOZA adapter.
FAQ
What is the difference between the R12 V2 and the R16?
Both share the NexGen 4.0 algorithm, the 21-bit encoder and MOZA servo motor technology. The R12 V2 is the more compact package at 12 Nm, enough for most sim racing, while the R16 targets those wanting higher force output and maximum realism under extreme conditions.
Does the R12 V2 work on console?
No. The R12 V2 is a PC-only Direct Drive base and connects over USB.
Is the R12 V2 suitable for beginners?
Yes. Beginners can use preloaded game profiles and plug-and-play setup through MOZA Pit House, while advanced users get 19-point force feedback customisation, a smart road-feel equaliser and dynamic FFB curves.
Can I adjust force feedback during a race?
Yes. The MOZA mobile app lets you fine-tune force feedback, pedal settings and more on the fly without leaving the game, and supports one-click profile transfers across devices.
Is the R12 V2 safe at high force levels?
Yes. Hand-off Protection detects when your hands leave the wheel, quickly stopping oscillations and centring the wheel. An advanced Mode 2 keeps you safe without interrupting drifting or high-dynamic maneuvers.
