Leoxz XGT Pro Sim Racing Wheel

Leoxz XGT Pro Sim Racing Wheel

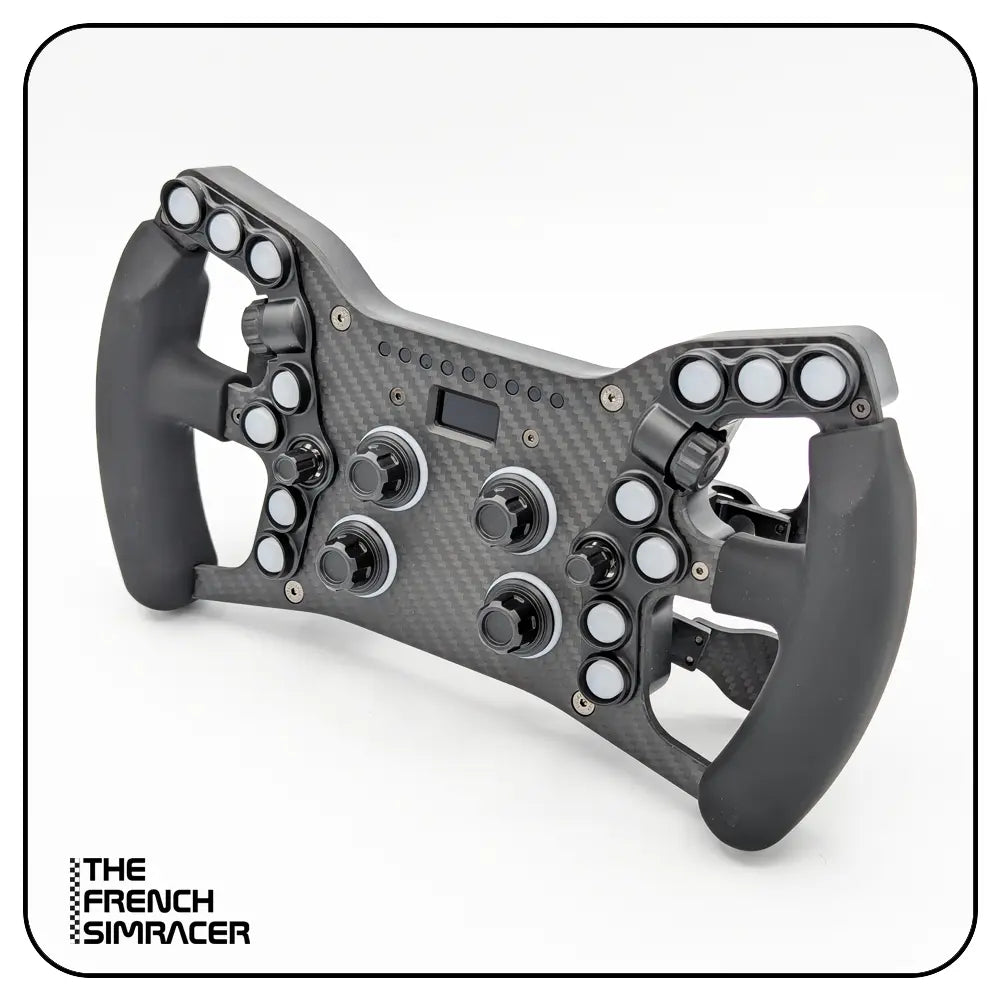

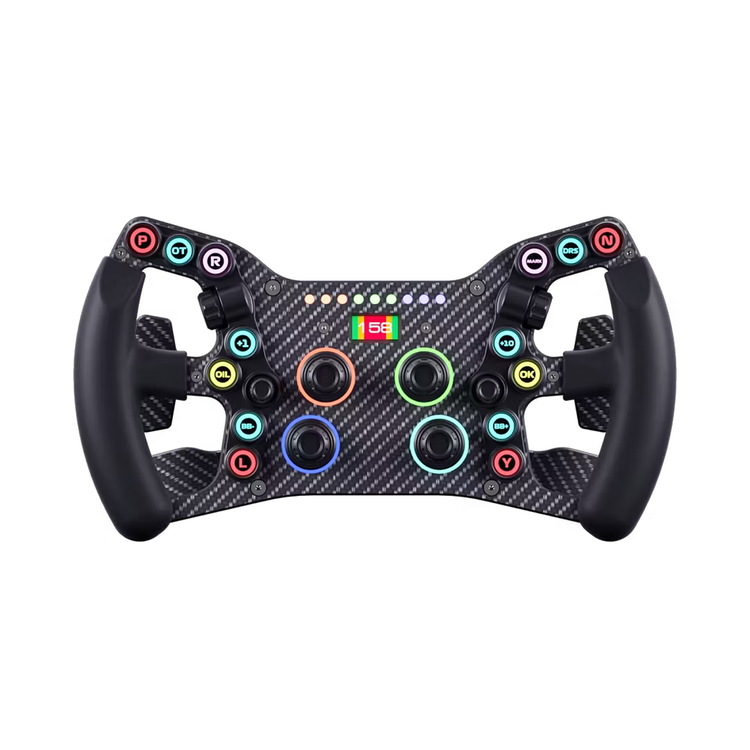

The Leoxz XGT Pro is a 295 mm sim racing wheel combining a 4 mm 3K carbon fibre front panel, a CNC-machined anodised back cover and a polyurethane grip produced from high-precision moulds. It carries a 0.96-inch IPS screen, 27 RGB LEDs and a comprehensive control layout with 14 RGB buttons and magnetic Hall-sensor paddles. Its 70 mm QR mounting fits the main Direct Drive bases, with optional 2.4G wireless and a Fanatec mode for PS4/PS5.

Main Features

• High-precision polyurethane grip: the 295 mm grip is produced by high-precision moulds with a special coating, its refined texture suiting a wide range of driving needs.

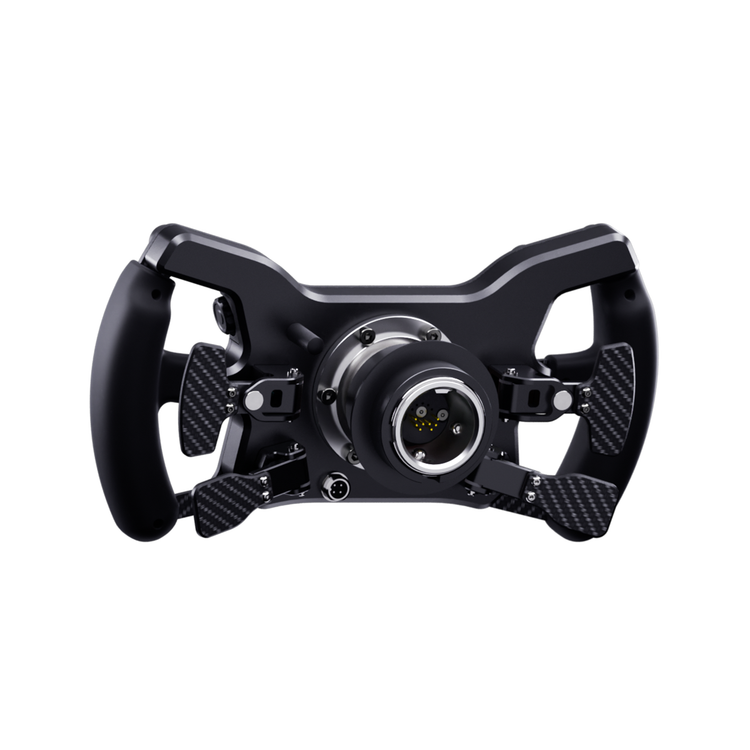

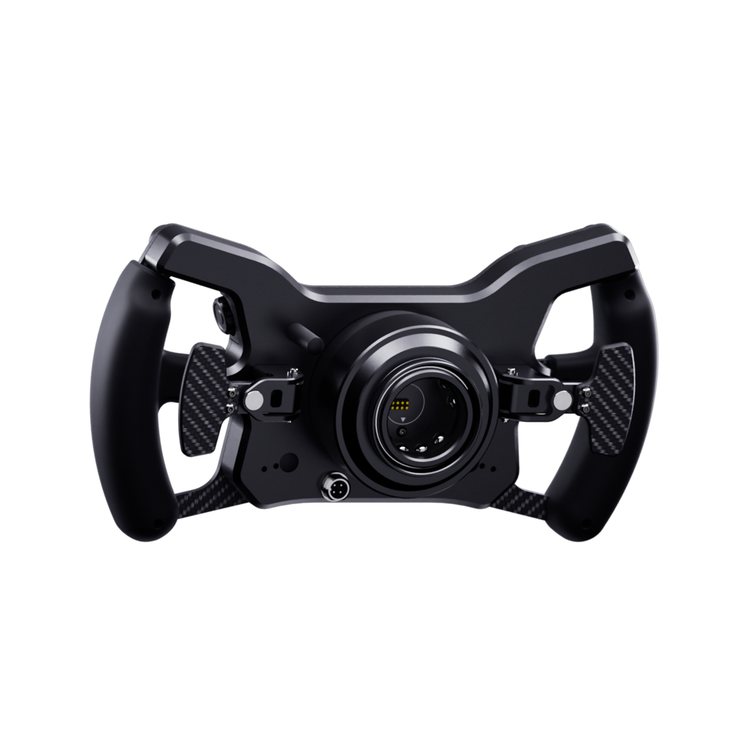

• Durable construction: back cover and paddles CNC-machined and black anodised for optimal appearance and lasting durability.
• Premium materials: front panel and paddles in 4 mm 3K carbon fibre with a high-end textured coating.
• Integrated 0.96-inch IPS display: 160x80 resolution at 60 fps, customisable through SimHub.

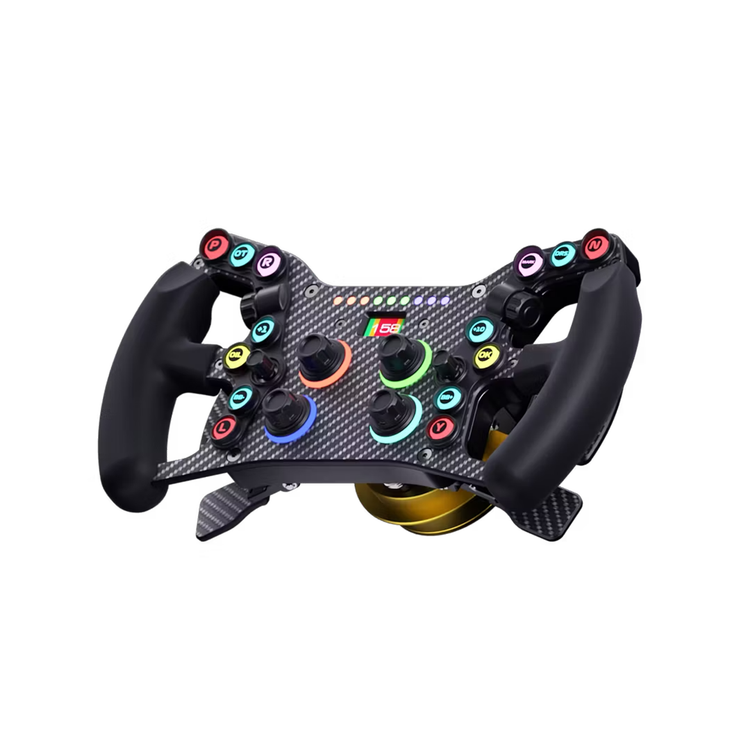

• 27 customisable RGB LEDs in a 9+14+4 layout, all configurable through SimHub.

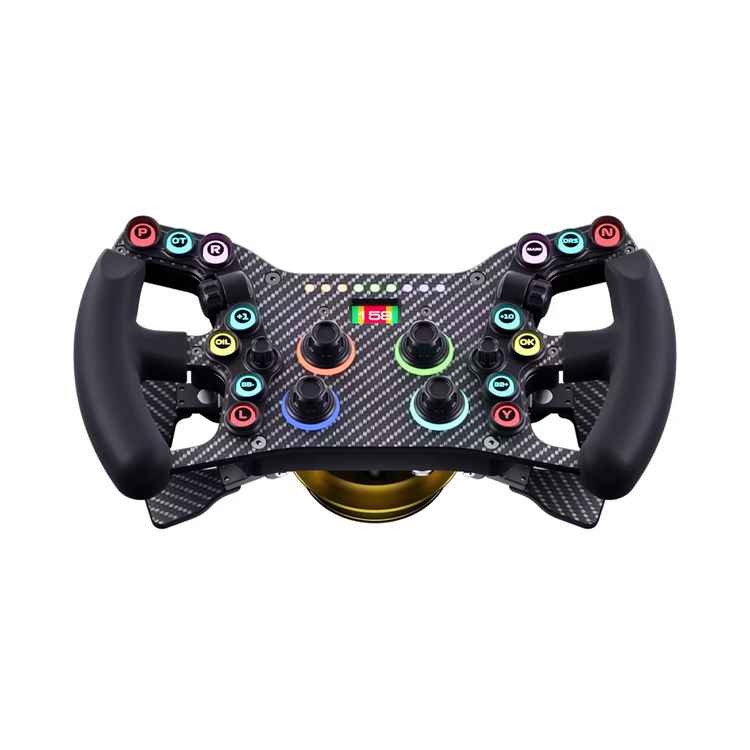

• Comprehensive controls: 14 RGB buttons with 500 g actuation force, 2 multi-directional joysticks with integrated encoders, 4 push-button encoders and 2 thumb knobs.

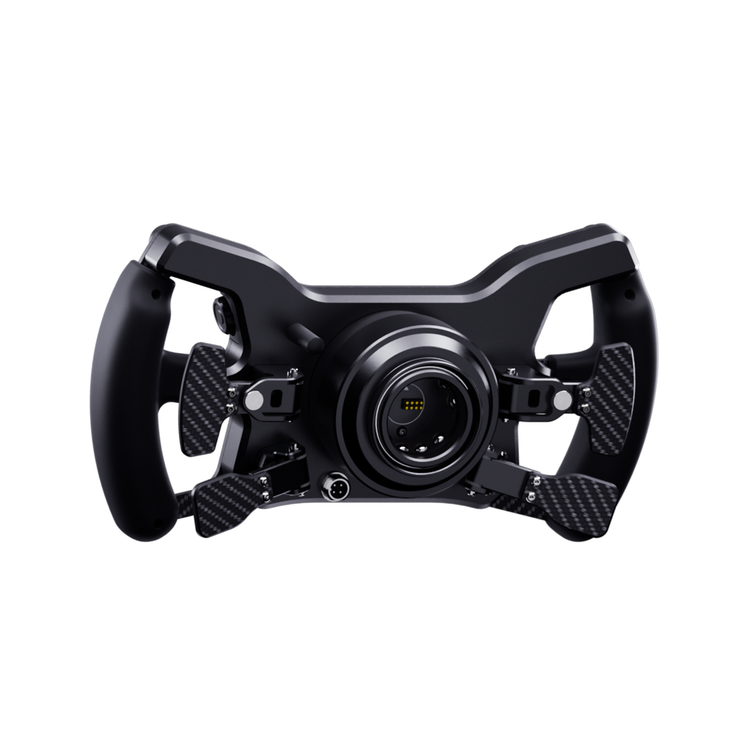

• Magnetic shifter paddles as standard, with optional clutch paddles configurable in bite point mode or axis mode.
• Non-contact Hall sensors on all paddles for long-lasting durability.
• Fanatec mode: with the Leoxz Fanatec QR, it unlocks full base torque and gives access to the Fanatec Tuning Menu.
• Optional 2.4G wireless with the XGT 2.4G Link USB receiver, sold separately.
• Robust connection: industrial-grade GX12 threaded USB interface with a durable double-twisted USB cable.

Technical Specifications

• Diameter: 295 mm
• Grip: polyurethane, moulded with a special coating
• Front panel and paddles: 4 mm 3K carbon fibre
• Back cover: CNC-machined, black anodised
• Screen: 0.96-inch IPS, 160x80, 60 fps
• RGB LEDs: 27 (9+14+4), SimHub customisable
• Buttons: 14 RGB, 500 g actuation force
• Joysticks: 2 multi-directional with integrated encoders
• Push-button encoders: 4
• Thumb knobs: 2
• Paddles: magnetic shifters as standard, non-contact Hall sensors
• QR mounting: 70 mm diameter
• Connection: GX12 threaded USB interface, double-twisted USB cable
• Power input: 5 V maximum via USB, 12 V maximum via QR
• Software: SimHub and SimBridge
• Weight: 1.5 kg
• Packaging: 33 x 19 x 14 cm

What's in the Box

• XGT Pro steering wheel (quick release not included)
• USB-GX12 cable
• Custom stickers
• Nylon tweezers

Compatibility

The XGT Pro uses a 70 mm QR mounting and is driven on PC through SimHub and SimBridge — SimHub collects telemetry, SimBridge relays it to the wheel. Console use is possible in Fanatec mode. Check the table before ordering.

Optional Accessories

• XGT 2.4G Link: the USB receiver enabling 2.4G wireless operation.

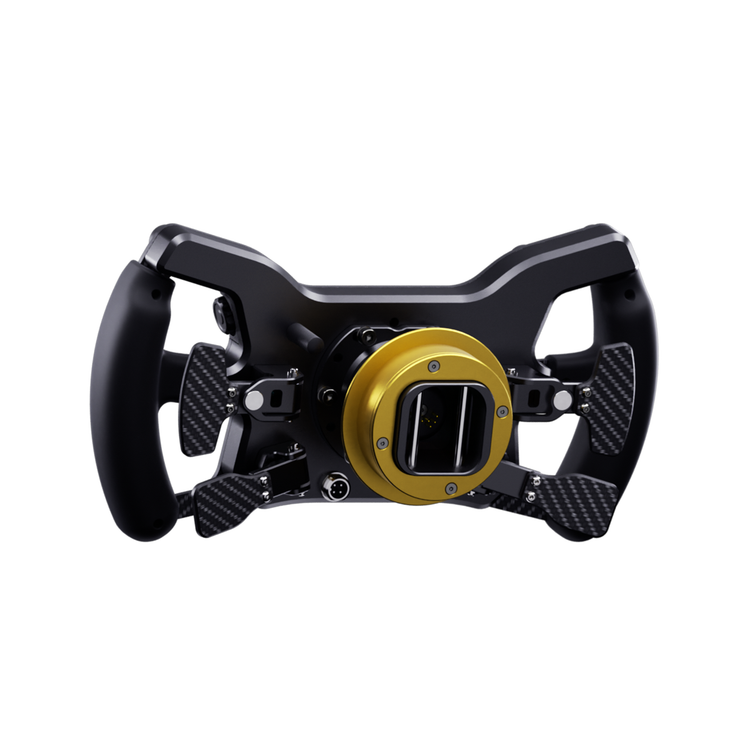

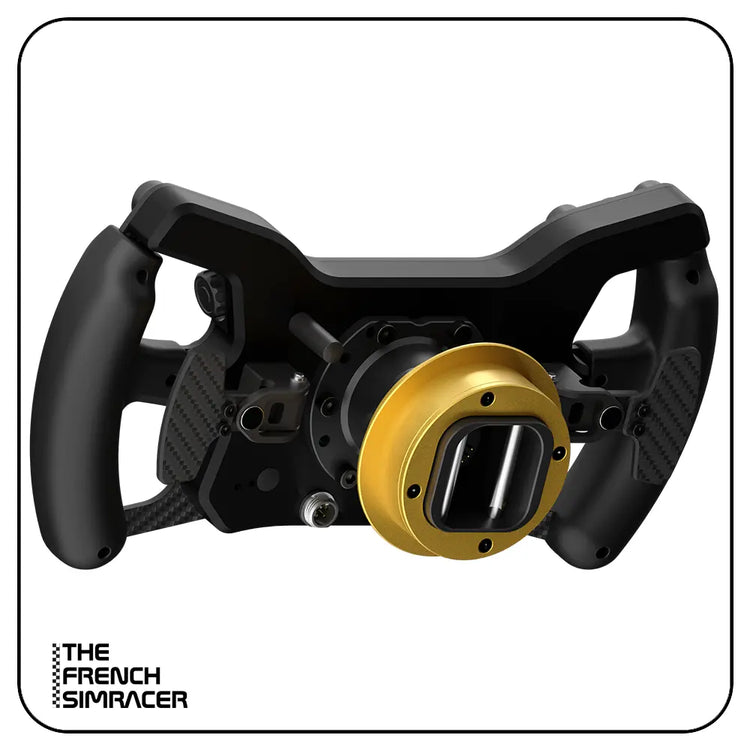

• Powered QR: available for Fanatec, Simagic and Moza bases.
• Leoxz Fanatec QR: required to unlock Fanatec base torque, as the official Fanatec QR is not compatible with third-party wheels.
• Clutch paddles: optional, configurable in bite point or axis mode.

Important Notes

• Wireless limits the dashboard. The SimHub dashboard is only available over USB. On a 2.4G wireless connection, only the built-in dashboard showing gear and speed is displayed.
• Maximum voltage: 5 V via USB, 12 V via QR. Exceeding these limits may damage the wheel.
• SimHub licence: the free version of SimHub outputs data at 10 fps only. A licence is required to reach 60 fps.
• Wireless receiver placement: keep it within 1 metre of the wheel to avoid a drop in wireless speed.
• EMI-prone bases such as the Fanatec DD1 and DD2: use a powered USB hub with a USB isolator, and ensure the base has an additional grounding cable.
• Fanatec compatibility has only been tested with driver and hardware versions prior to 1 May 2024.
• This wheel is designed for sim racing use only.

Support and Downloads

The installation manual and SimBridge are available from Leoxz: leoxz.com downloads. SimHub is available from simhubdash.com.
You can also find software and manuals on our downloads page: The French Simracer — Software & Manuals.

FAQ

What is the difference with the XGT Ultimate?

Both share the 295 mm polyurethane grip, the 4 mm 3K carbon front panel, the 70 mm QR mounting and the same software. The Ultimate steps up to a 4.3-inch IPS screen against 0.96 inch here, 40 RGB LEDs against 27, and keeps full SimHub dashboards in wireless mode. The XGT Pro delivers the same construction and control layout in a more accessible package.

Does the screen still work in wireless mode?

Partially. SimHub dashboards require a USB connection. Over 2.4G wireless, the screen falls back to the built-in dashboard showing gear and speed only. If a full telemetry dashboard matters to you, plan on a USB connection — or look at the XGT Ultimate, which keeps SimHub dashboards wirelessly.

Is a quick release included?

No. The quick release is not supplied with the wheel. Leoxz offers powered QRs for Fanatec, Simagic and Moza bases, and the Leoxz Fanatec QR is specifically required to unlock the torque of a Fanatec base.

Which software do I need?

SimHub and SimBridge, both on PC. SimHub collects the telemetry and drives the screen and LEDs, while SimBridge receives SimHub's data and sends it to the wheel. Bear in mind that the free SimHub version is limited to 10 fps — a licence is needed for 60 fps.

Does it work on console?

Yes, in Fanatec mode on a Fanatec base, with access to the Fanatec Tuning Menu from the wheel. Contact us to confirm the setup matching your base before ordering.
