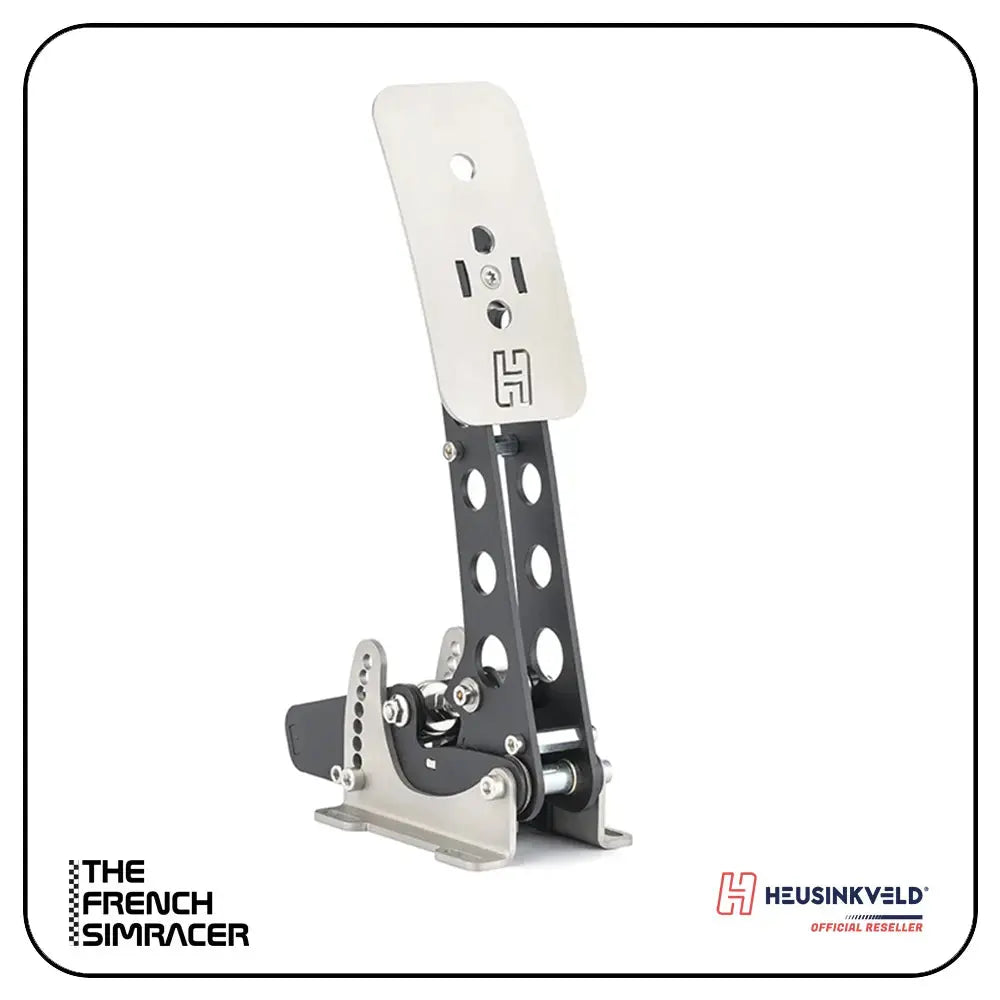

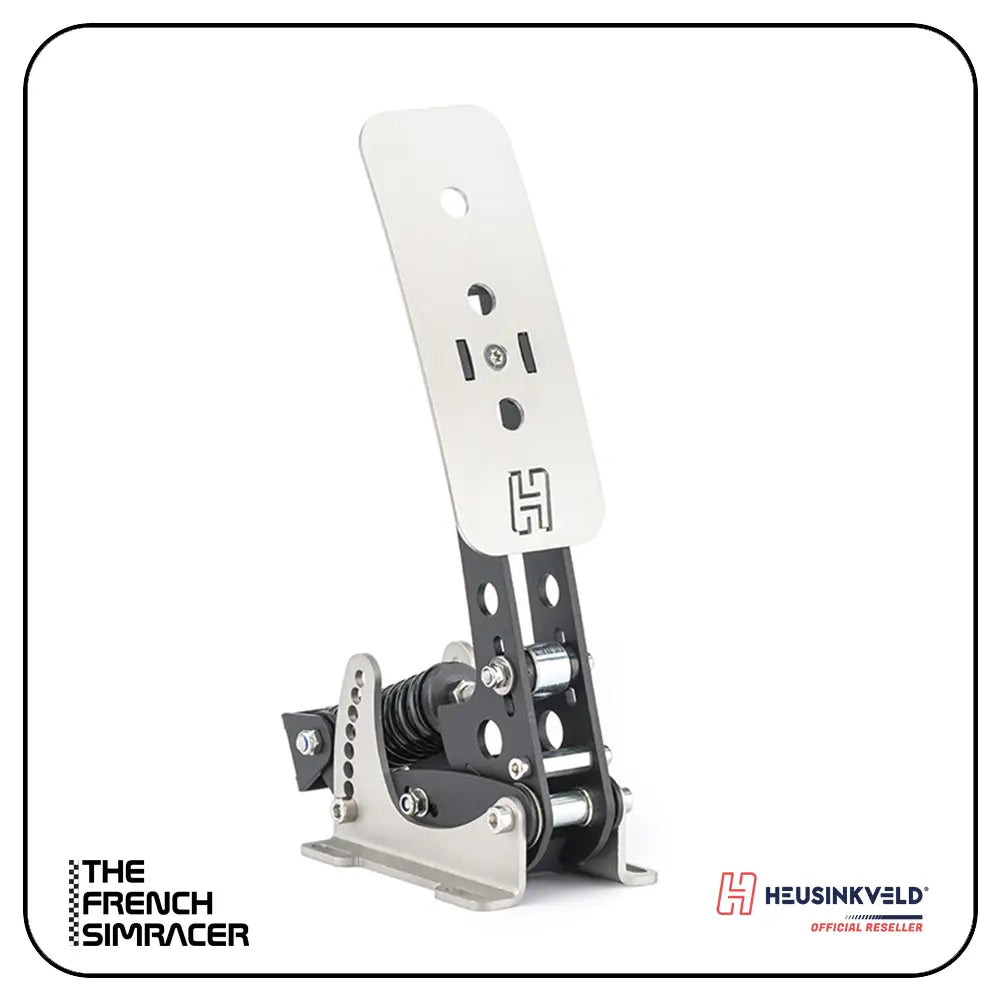

Heusinkveld Sprint Pedals

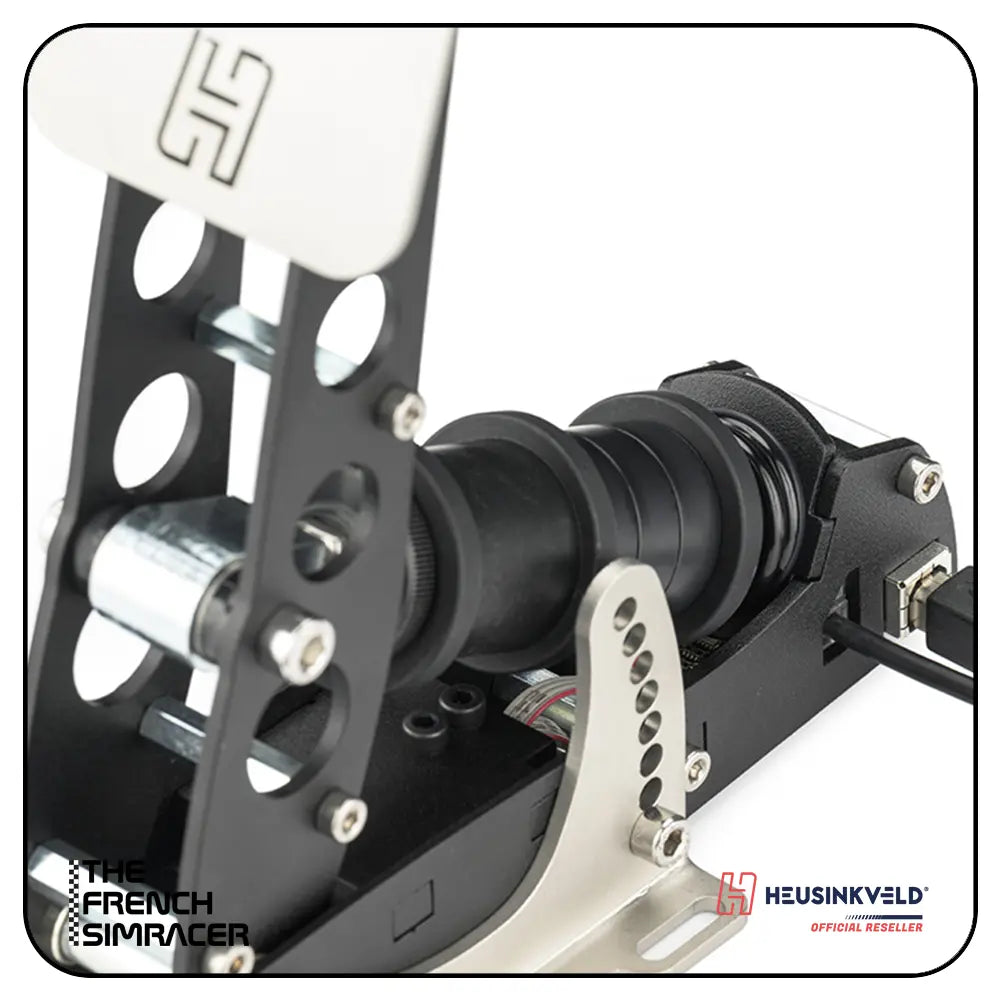

The Heusinkveld Sprint Pedals are load cell pedals in powder-coated stainless steel, available as a 2 or 3-pedal set. The brake uses a 120 kg load cell and handles up to 65 kg of real braking force, with a dual-stage feel and 6 firmness settings. The controller is built into the brake pedal and connects by USB, plug and play, with tuning in Heusinkveld SmartControl.
Key features

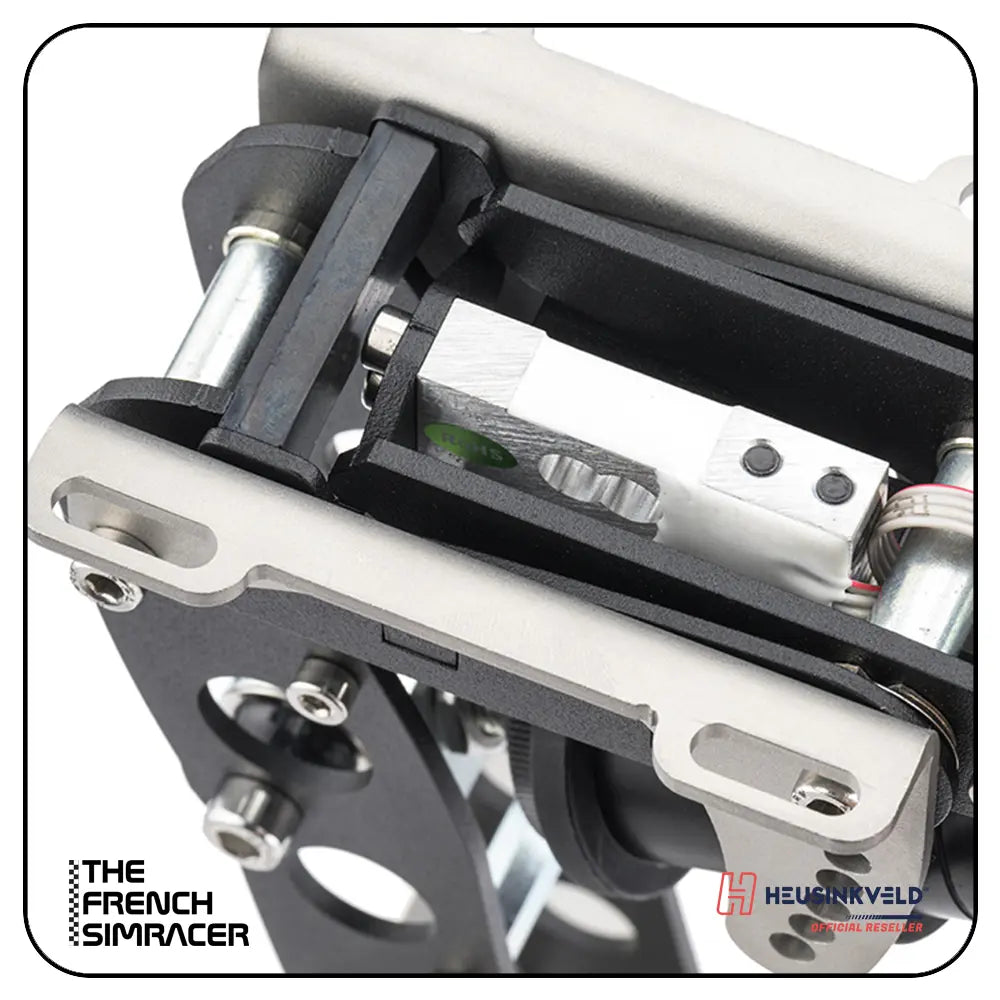

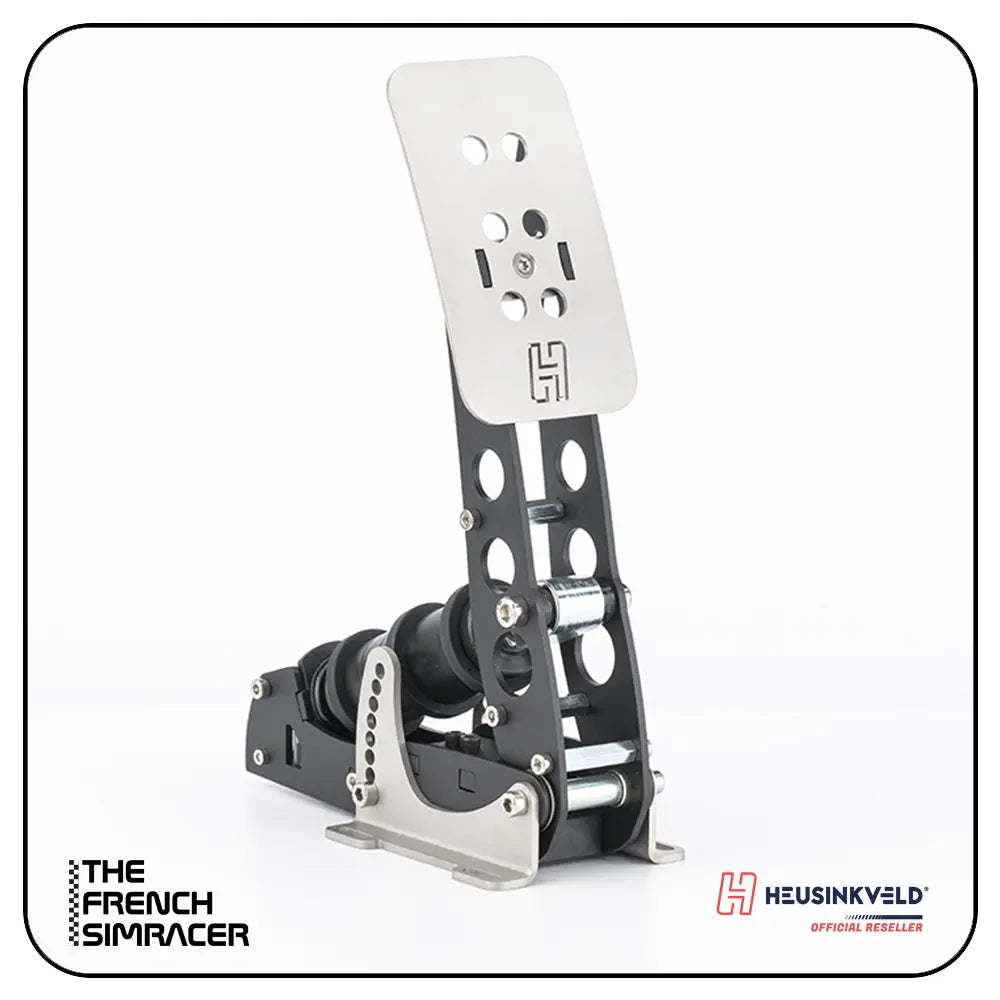

- Brake with 120 kg load cell, up to 65 kg of braking force

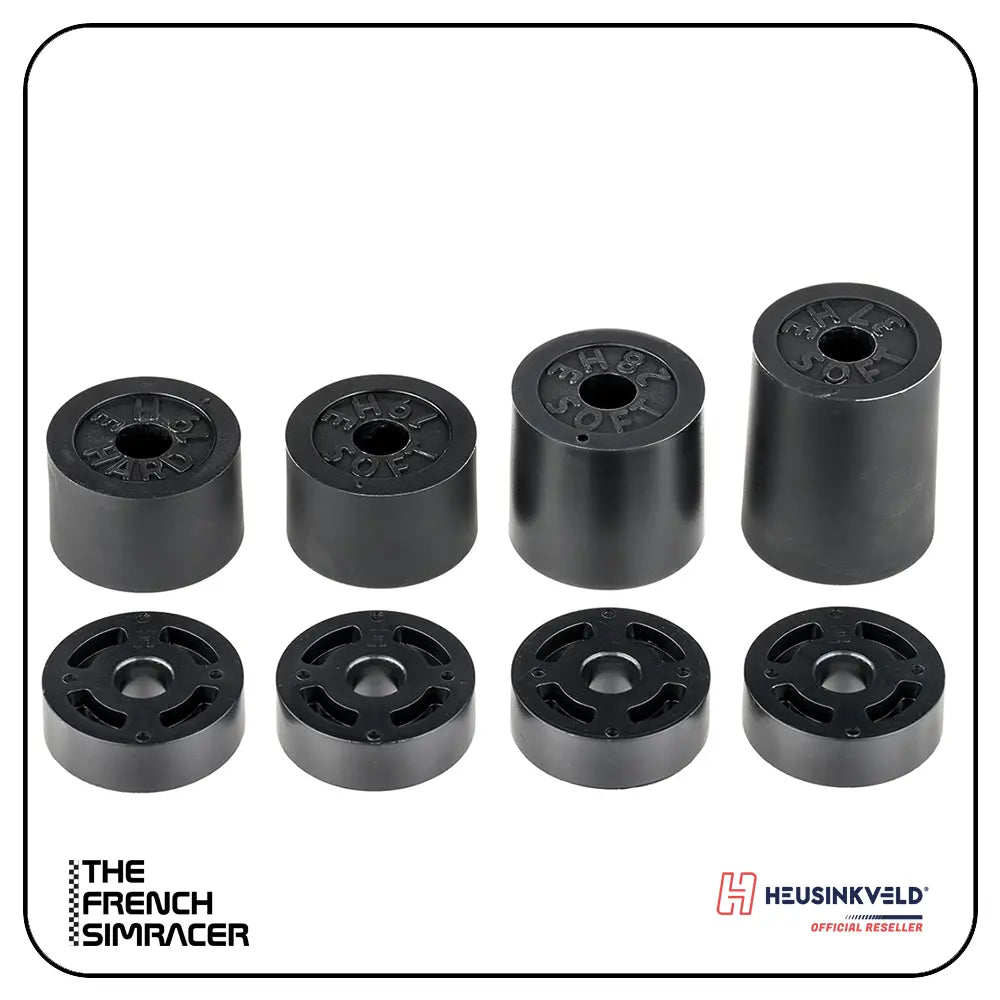

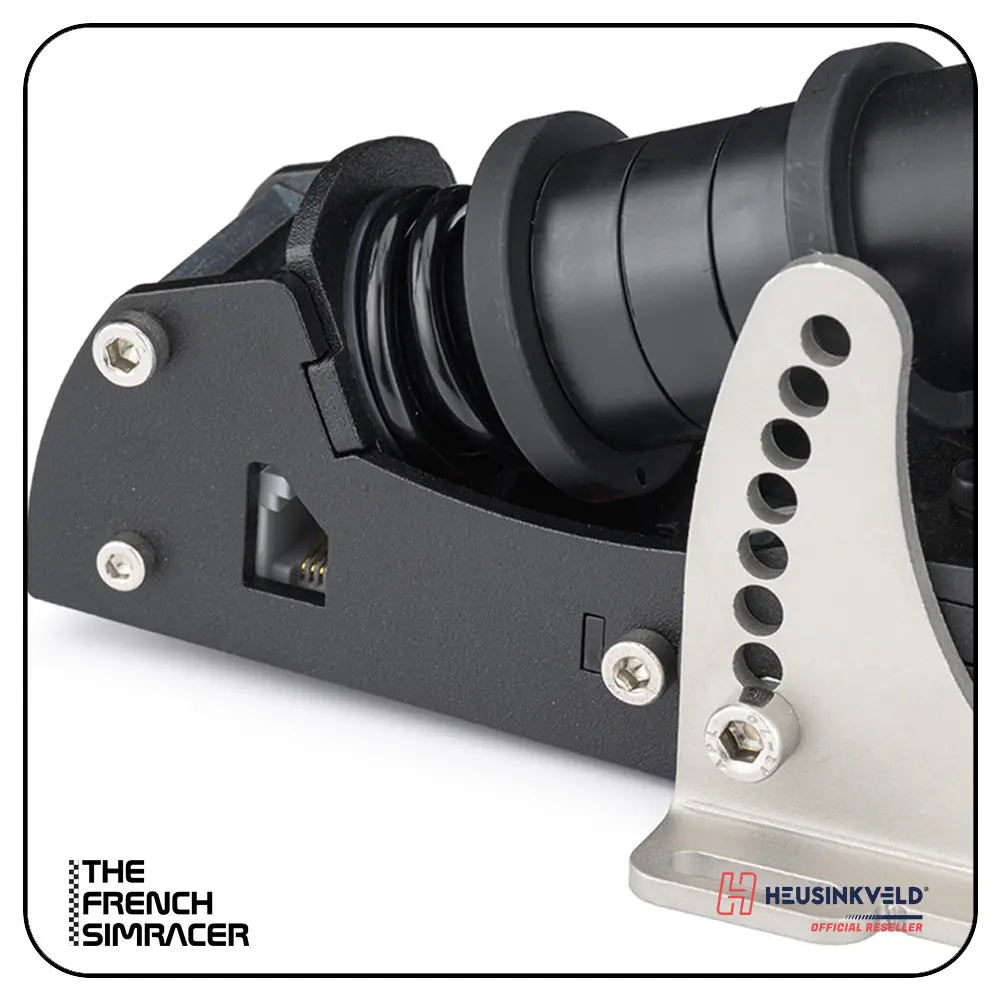

- Dual-stage brake with 6 firmness settings and spring preload
- Throttle with 5 travel settings, adjustable force and preload

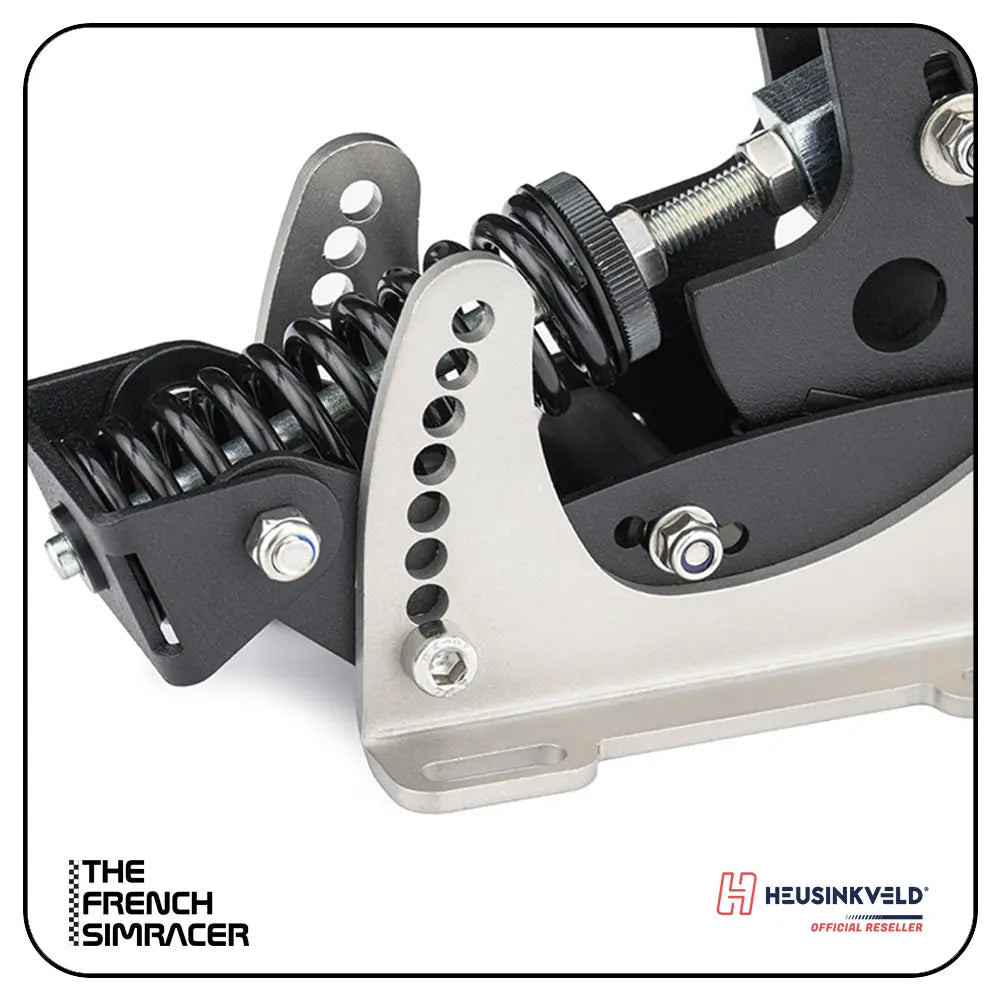

- Clutch (3-pedal set) with regressive mechanism and 3 force-curve settings

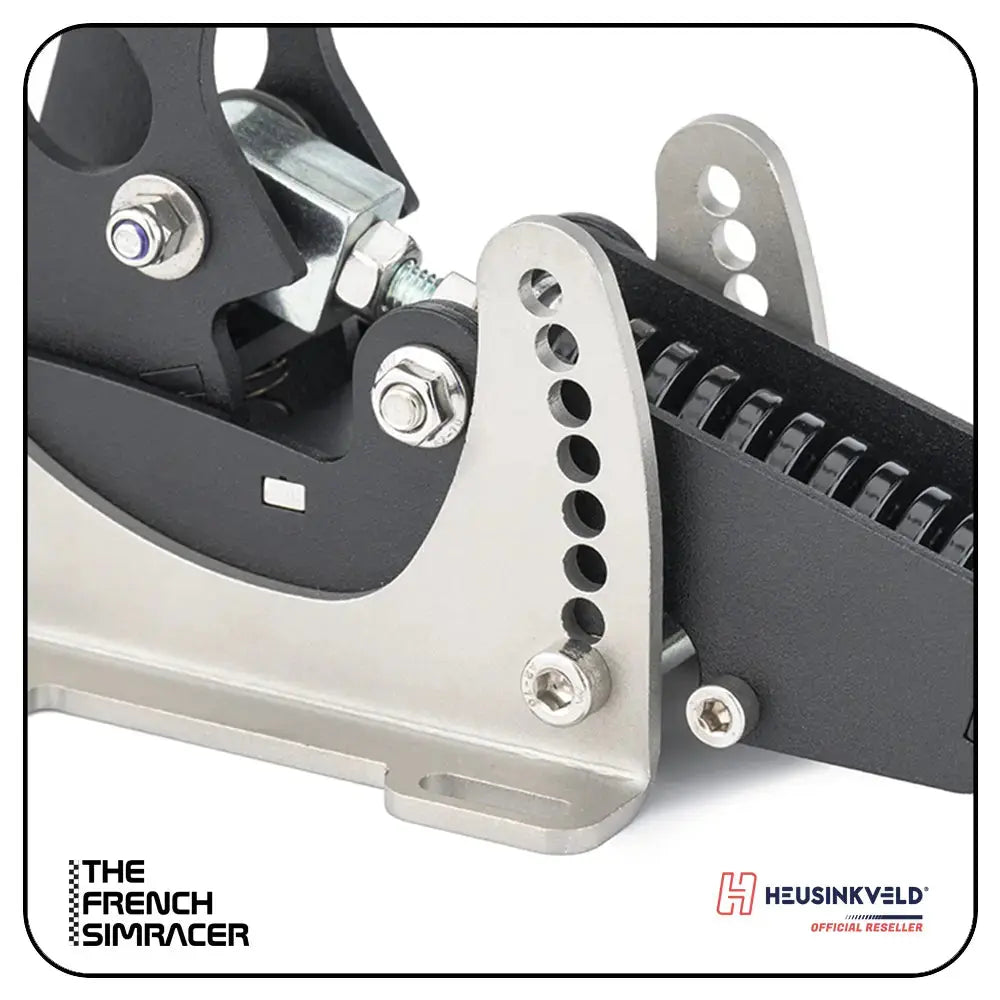

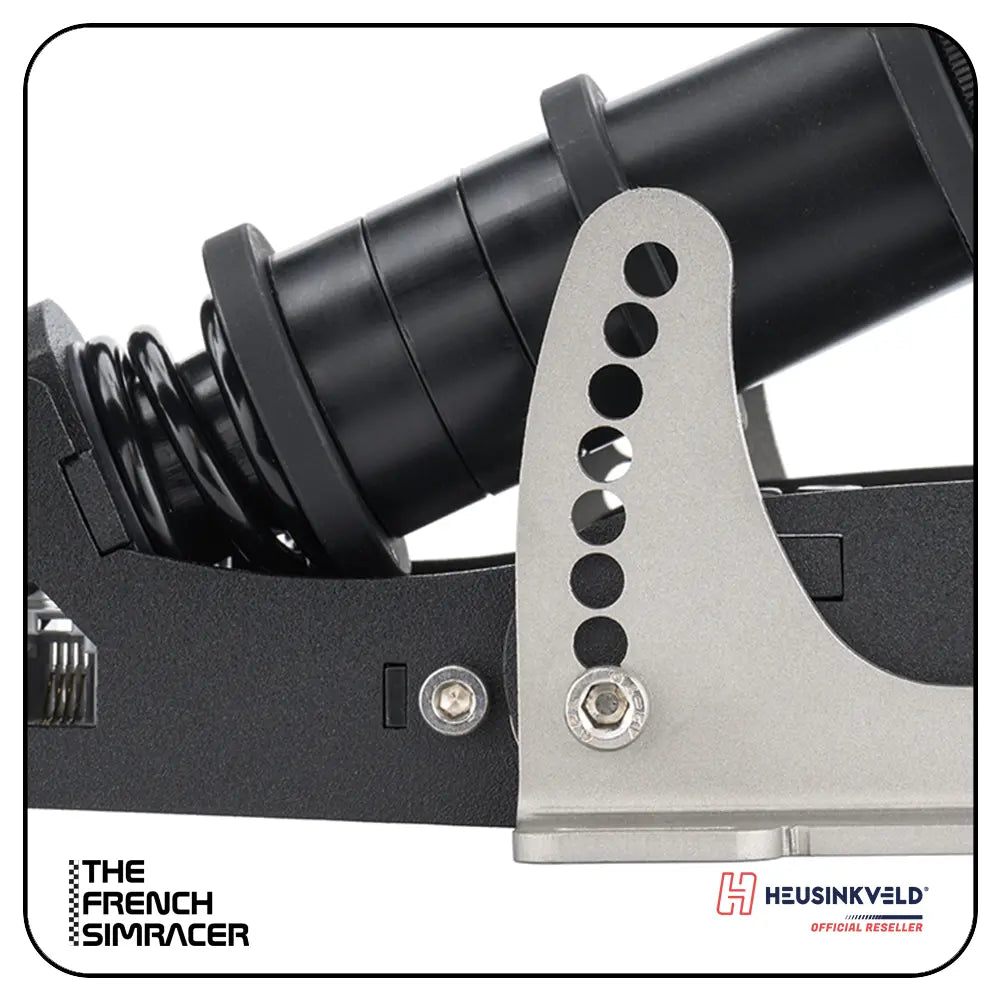

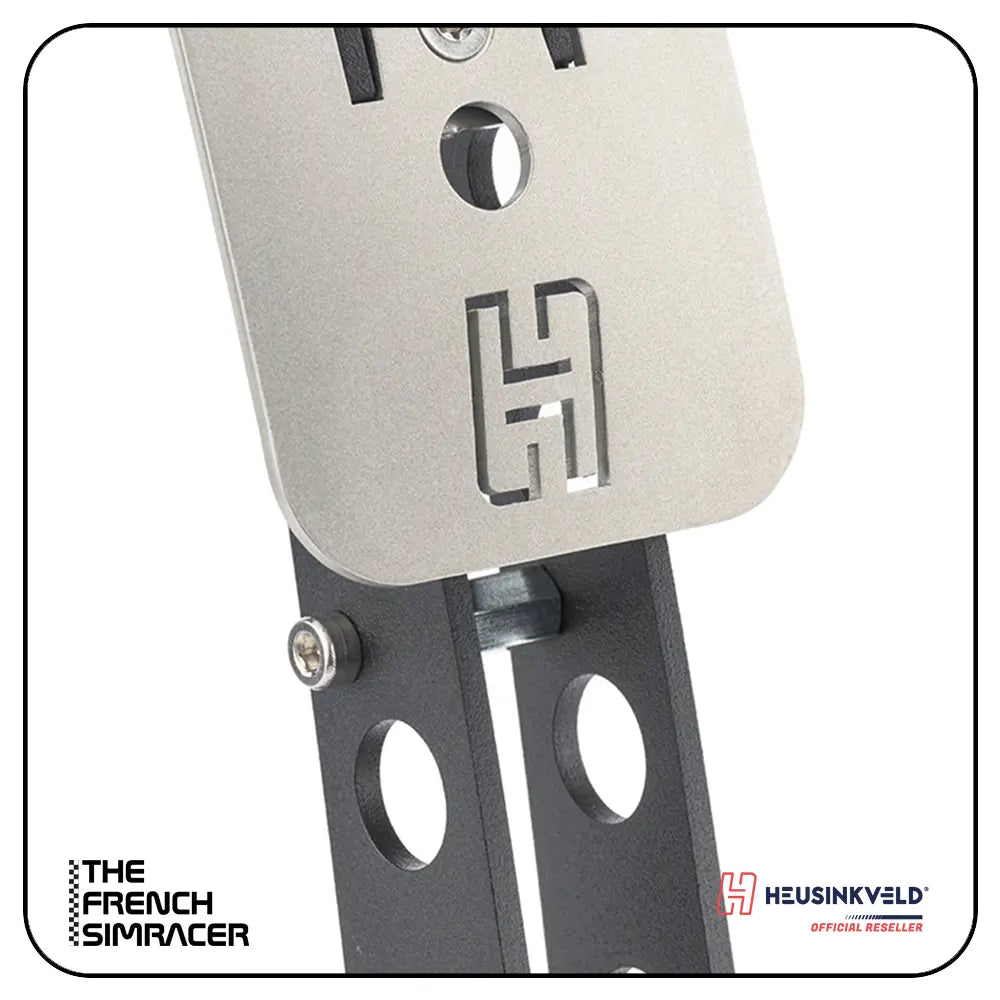

- Angle and plate height adjustable on every pedal, 4 slots for fore/aft position

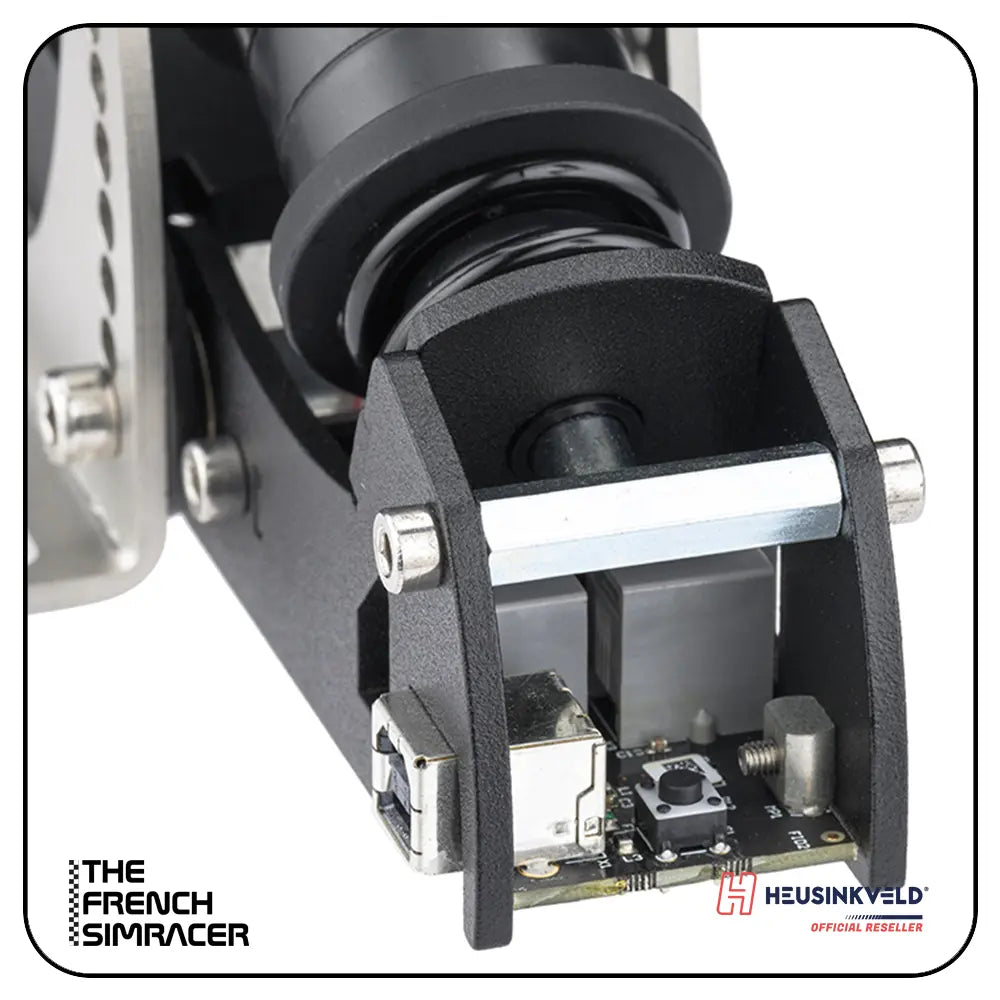

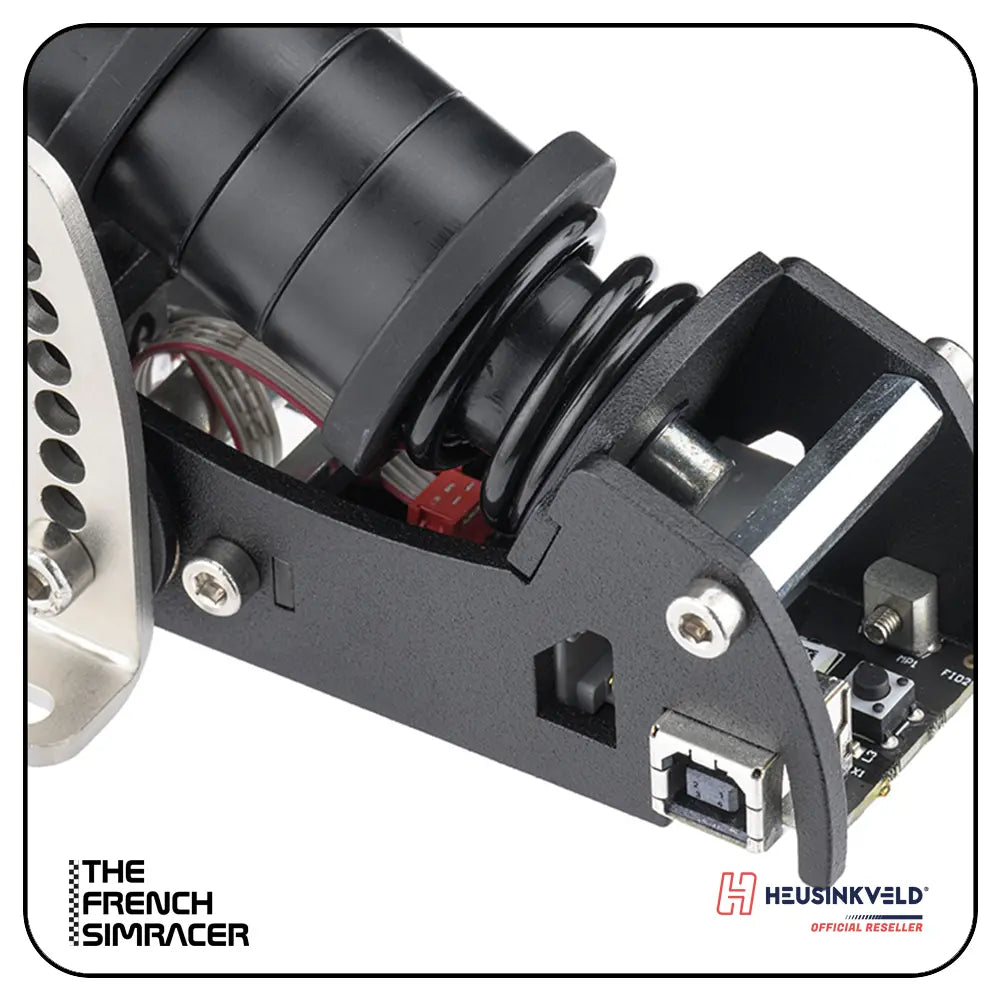

- Controller built into the brake pedal, USB plug and play
- SmartControl: curves, deadzones, brake force and profiles without recalibration
Technical specifications
- Dimensions: 363 × 222 × 90 mm
- Weight: 3.19 kg (2 pedals), 4.05 kg (3 pedals)
- Material: powder-coated, glass-bead-blasted stainless steel, laser-cut steel
- Brake sensor: 120 kg load cell, up to 65 kg of real force
- Throttle and clutch sensors: position-sensitive load cells
- Connection: USB, controller built into the brake pedal
- Manufacturer warranty: 2 years
In the box
- Pedals (2 or 3 depending on version)
- USB cable
- Mounting hardware (M5 bolts, washers, flange nuts)
- Tools
- Manual
Important notes
- A full frame rig is required: floor mounting or a wheel stand without a rigid link to the seat is not suitable.
- For a rigid mounting, use aluminium profiles, a thick plate or the Heusinkveld Sprint Baseplate.
- Heusinkveld positions the Sprint for home use and esports; for professional or commercial use it recommends the Ultimate+.
Compatibility
- Mounting: full frame rig, aluminium profiles or Heusinkveld Sprint Baseplate
- Software: Heusinkveld SmartControl and SmartControl Live (profile switching while driving)
- PC only (Windows 10 or newer). Not compatible with Xbox or PlayStation.
Which model to choose

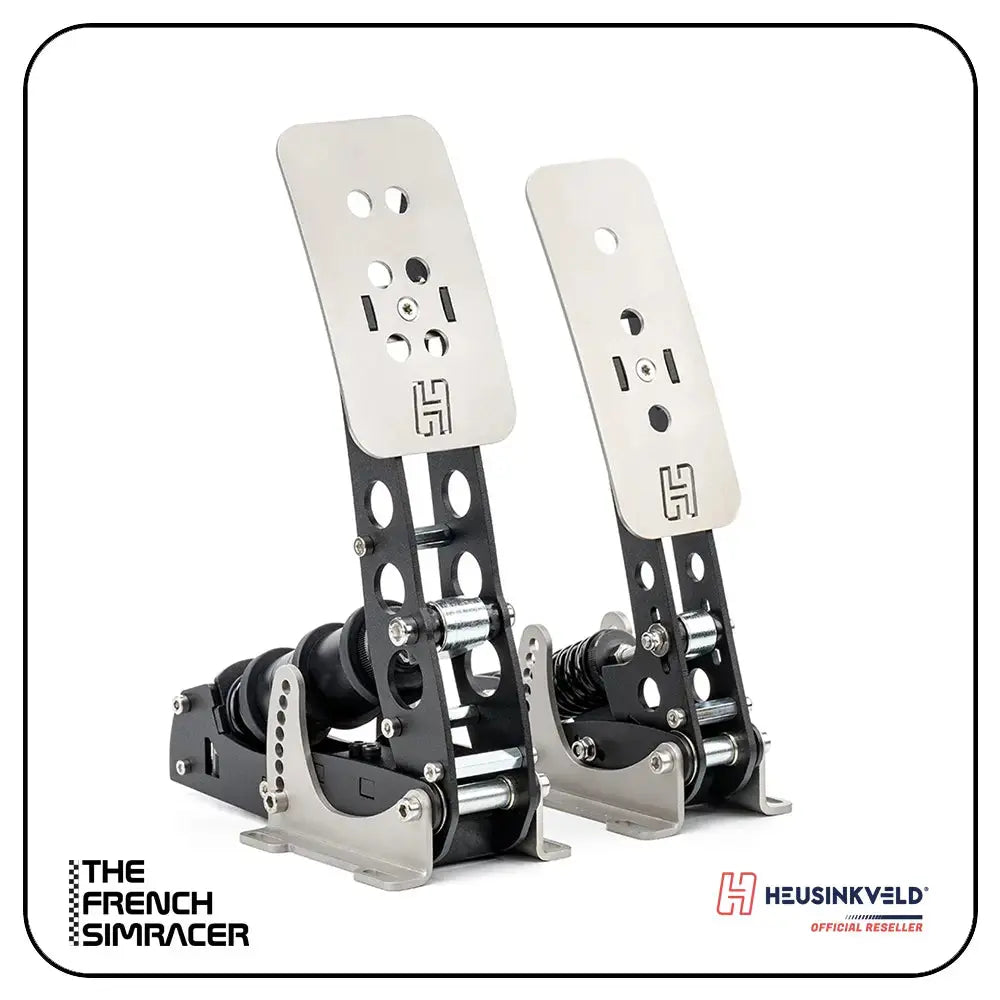

- 2 Pedals: throttle and brake, for paddle-shift cars

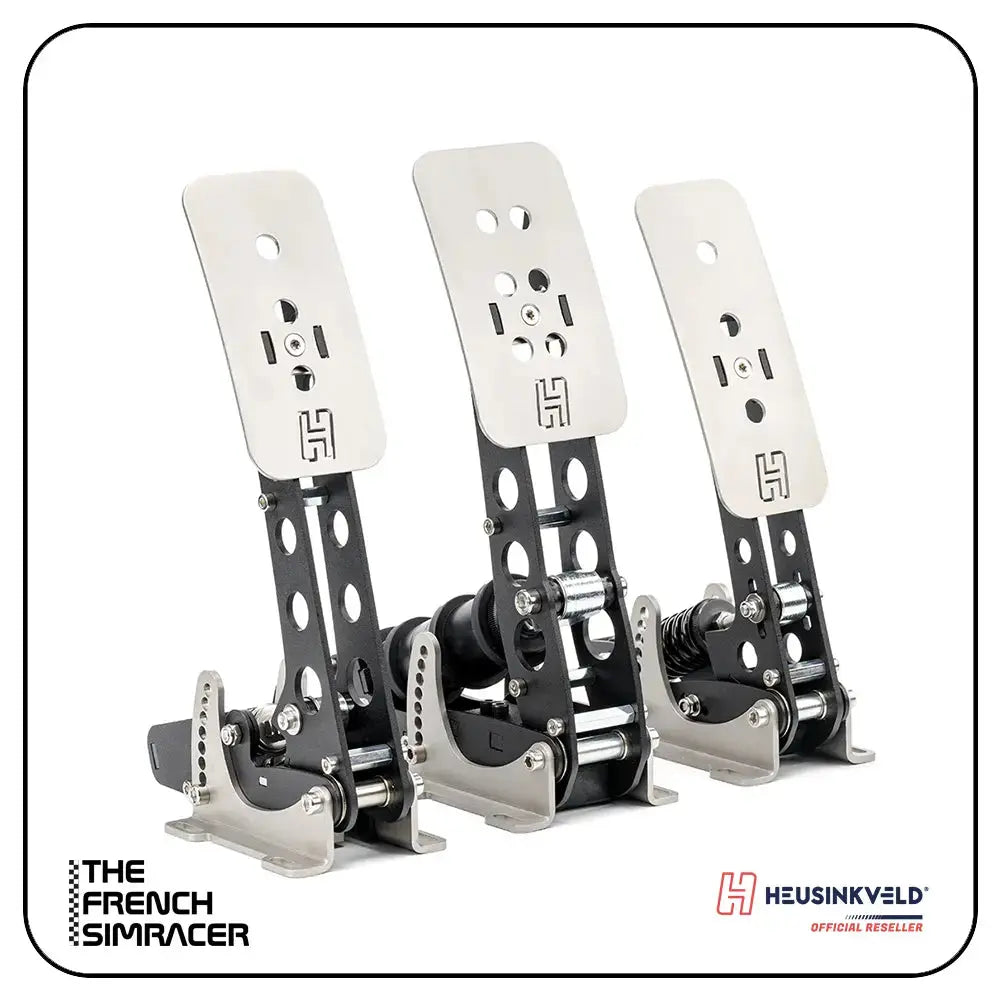

- 3 Pedals: adds the clutch (+0.86 kg) for H-pattern shifting, rally and historic cars
- Ultimate+ Pedals: 200 kg load cell, up to 140 kg of braking force, hydraulic damping, external 12-bit controller, for professional and commercial use. Black or Silver finish.
FAQ
What braking force do the Sprint Pedals handle?
The Heusinkveld Sprint brake uses a 120 kg load cell and handles up to 65 kg of real braking force.
Do I need a baseplate?
The Heusinkveld Sprint Pedals need a rigid mounting on a full frame rig. The Heusinkveld Sprint Baseplate is the dedicated solution, but aluminium profiles or a thick plate also work.
Sprint or Ultimate+: which should I choose?
The Sprint handles up to 65 kg on the brake and suits home use and esports. The Ultimate+ handles up to 140 kg, adds hydraulic damping and targets professional use.
Do the Sprint Pedals work on a console?
No. The Heusinkveld Sprint Pedals work on PC with Windows 10 or newer only.
Who handles warranty and after-sales service?
The French Simracer handles after-sales service for the Heusinkveld Sprint Pedals, as for every brand it sells, with a contact based in France. You never deal with the manufacturer directly. The product carries the 2-year legal warranty, or the manufacturer warranty if longer.
