Heusinkveld DisplayDash Mount
Vendor:
Heusinkveld
SKU:
HE-DD-M1
Barcode:
8719689204716
Availability:
Out Of Stock
Product type:
Simracing > Accessoires volant & base > Dashboards & affichage
- Regular price
- 59,90€
- Regular price
- Sale price
- 59,90€
About VAT
Couldn't load pickup availability
Ships within 1–2 business days
Secured Payments
More than 10 Years of Expertise
Heusinkveld DisplayDash Mount

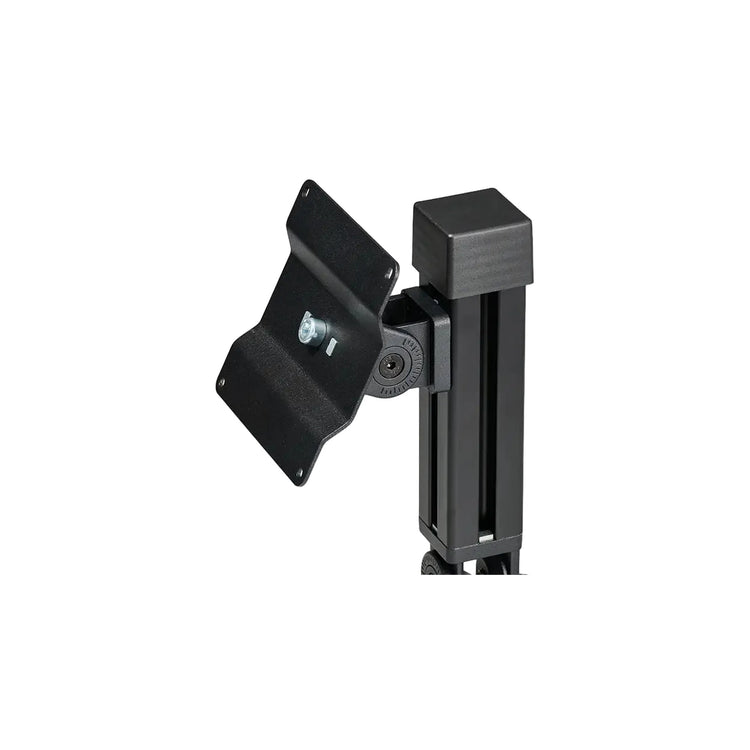

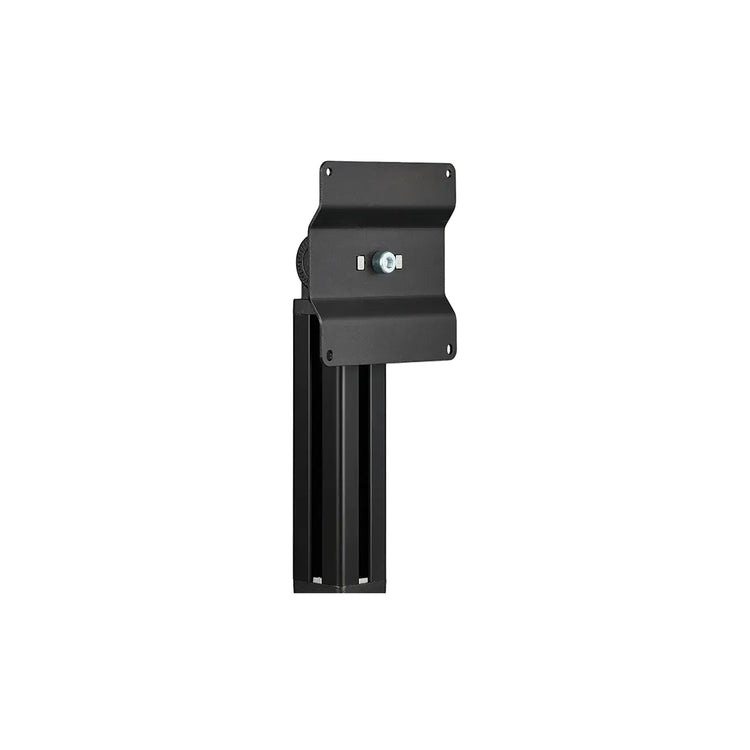

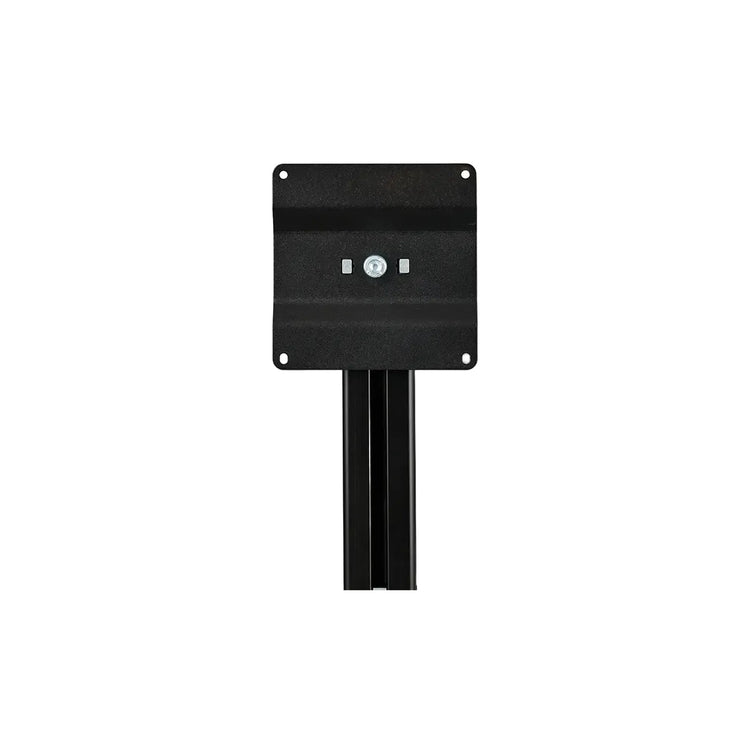

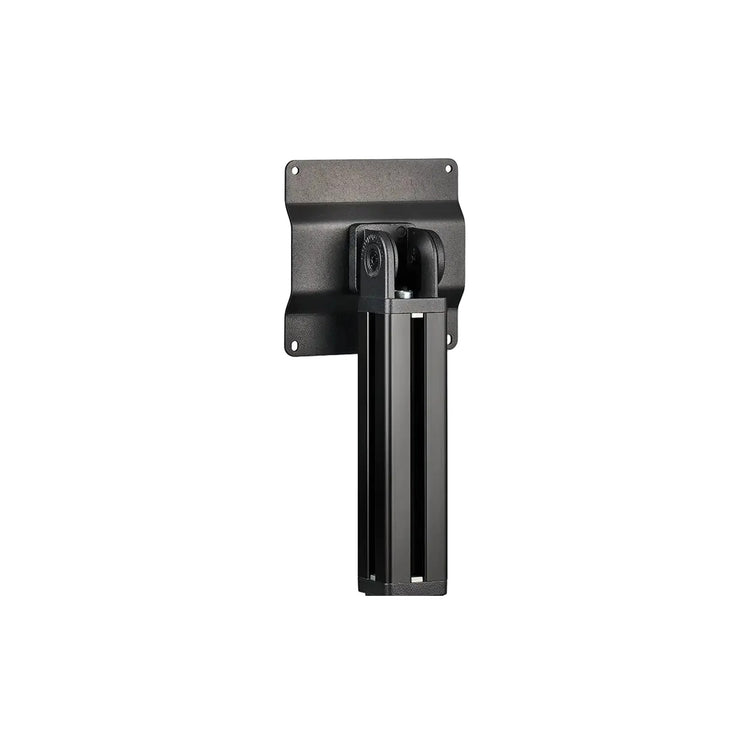

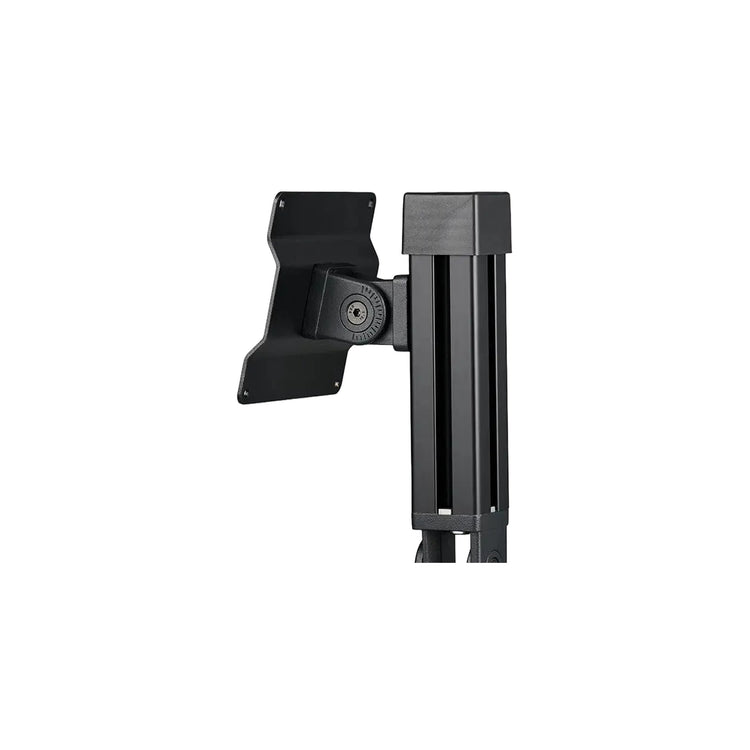

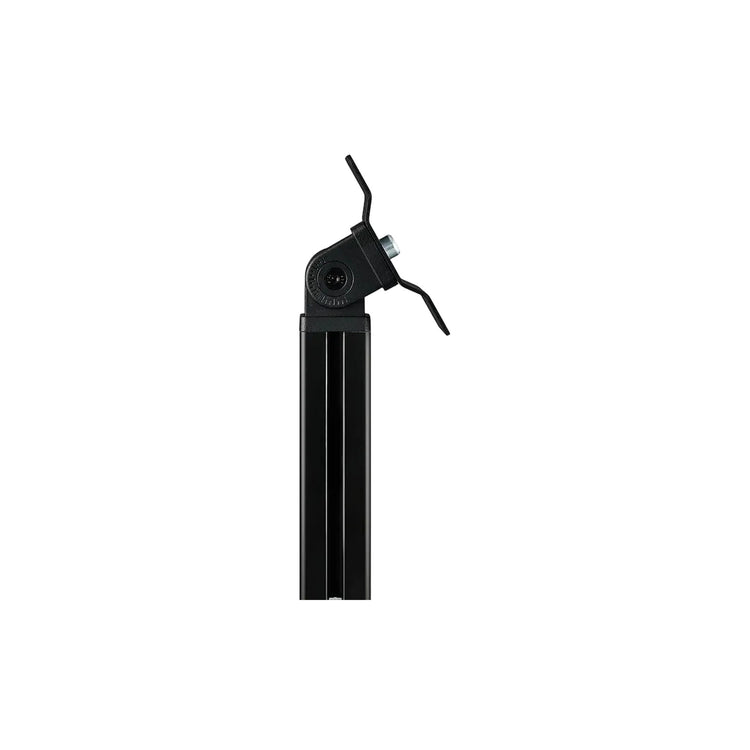

The Heusinkveld DisplayDash Mount (HE-DD-M1) is the mounting system designed for the Heusinkveld DisplayDash. It fixes onto an aluminium profile sim rig and combines a 150 mm aluminium profile arm, two joints and a VESA 100 × 100 plate, so you can place and angle the DisplayDash to match your driving position.
Key features
- Designed for the Heusinkveld DisplayDash: VESA 100 × 100 plate matching the rear of the DisplayDash
- 150 mm aluminium profile arm with an M8 thread on both ends
- Two joints to adjust the position and the angle of the screen
- Angle adjustment: loosen the joint with a 5 mm Allen key, set the angle, then tighten it again
- For aluminium profile sim rigs (8020 profile, according to Heusinkveld)
- Mounting hardware included
Technical specifications
- Manufacturer reference: HE-DD-M1
- EAN: 8719689204716
- Arm: aluminium profile, 150 mm long, M8 thread on both ends
- Joints: 2
- Display interface: VESA 100 × 100
- Angle adjustment: 5 mm Allen key

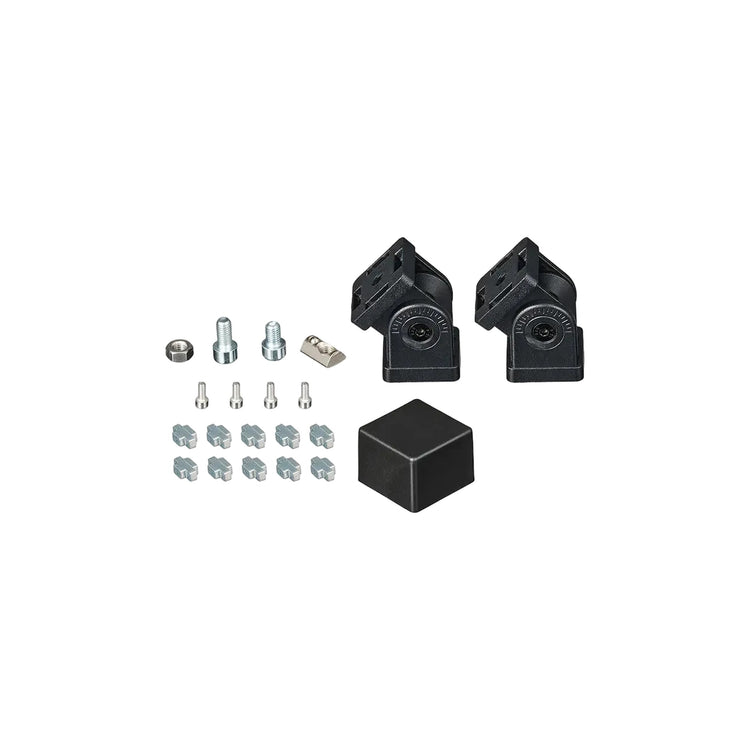

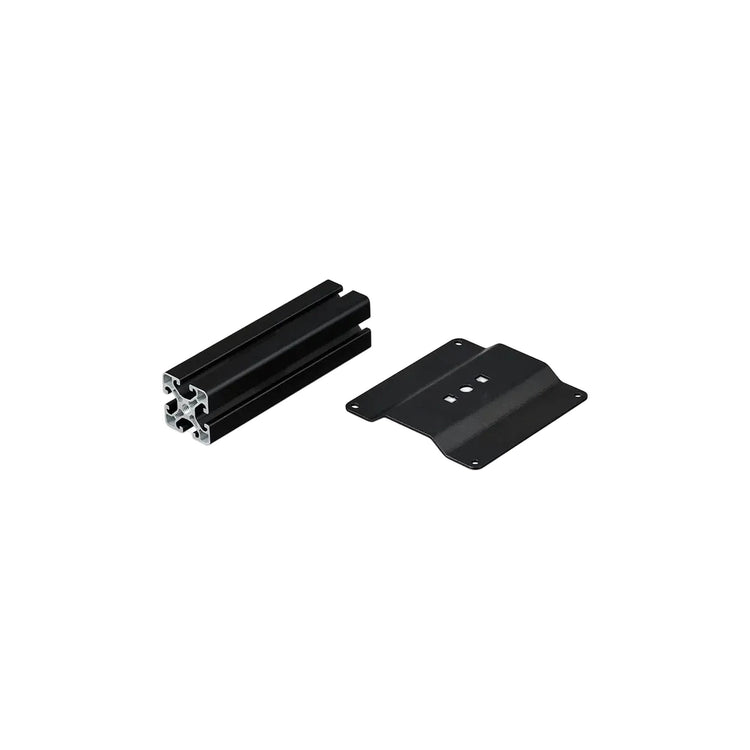

In the box
- Aluminium profile arm, 150 mm
- 2 joints
- VESA 100 × 100 plate
- End cap
- Assorted mounting hardware (screws and slot nuts)
Important notes
- The DisplayDash is not included.
- The M4 screws used to fix the DisplayDash to the VESA plate are supplied with the DisplayDash.
- The VESA holes of the DisplayDash have a thread depth of 10 mm: never use longer bolts, as this may damage the product.
- The end cap covers the sharp edges and the M8 thread of the profile when no joint is mounted on that end.
- The Heusinkveld installation schematic shows 5 mm and 6 mm Allen keys. We have no confirmation that they are included.
Compatibility
- Display: Heusinkveld DisplayDash (VESA 100 × 100)
- Cockpit: aluminium profile sim rig (8020 profile, according to Heusinkveld)
Downloads
FAQ
Is the DisplayDash Mount required to use the DisplayDash?
No. The DisplayDash has a standard 100 × 100 VESA mount, so you can also use another VESA bracket. The Heusinkveld DisplayDash Mount is the mounting system designed for it.
Can I adjust the position of the screen?
Yes. The two joints let you set the position and the angle of the DisplayDash to suit your seating position.
Which screws should I use for the VESA mount?
Use the M4 screws supplied with the DisplayDash. The thread depth of its VESA holes is 10 mm: do not use longer bolts.
Who handles warranty and after-sales service?
The French Simracer handles after-sales service for the Heusinkveld DisplayDash Mount, as for every brand it sells, with a contact based in France. You never deal with the manufacturer directly. The product carries the 2-year legal warranty, or the manufacturer warranty if longer.
