GSI - AH100 Hub Extension
Vendor:
GSI - Gomez Sim Industries
SKU:
AH100-Black
Availability:
In stock
Product type:
Simracing > Accessoires volant & base > Quick release & adaptateurs
- Regular price
- 169,90€
- Regular price
- Sale price
- 169,90€
About VAT
Couldn't load pickup availability
Ships within 1–2 business days
Secured Payments
More than 10 Years of Expertise
GSI AH100 Hub

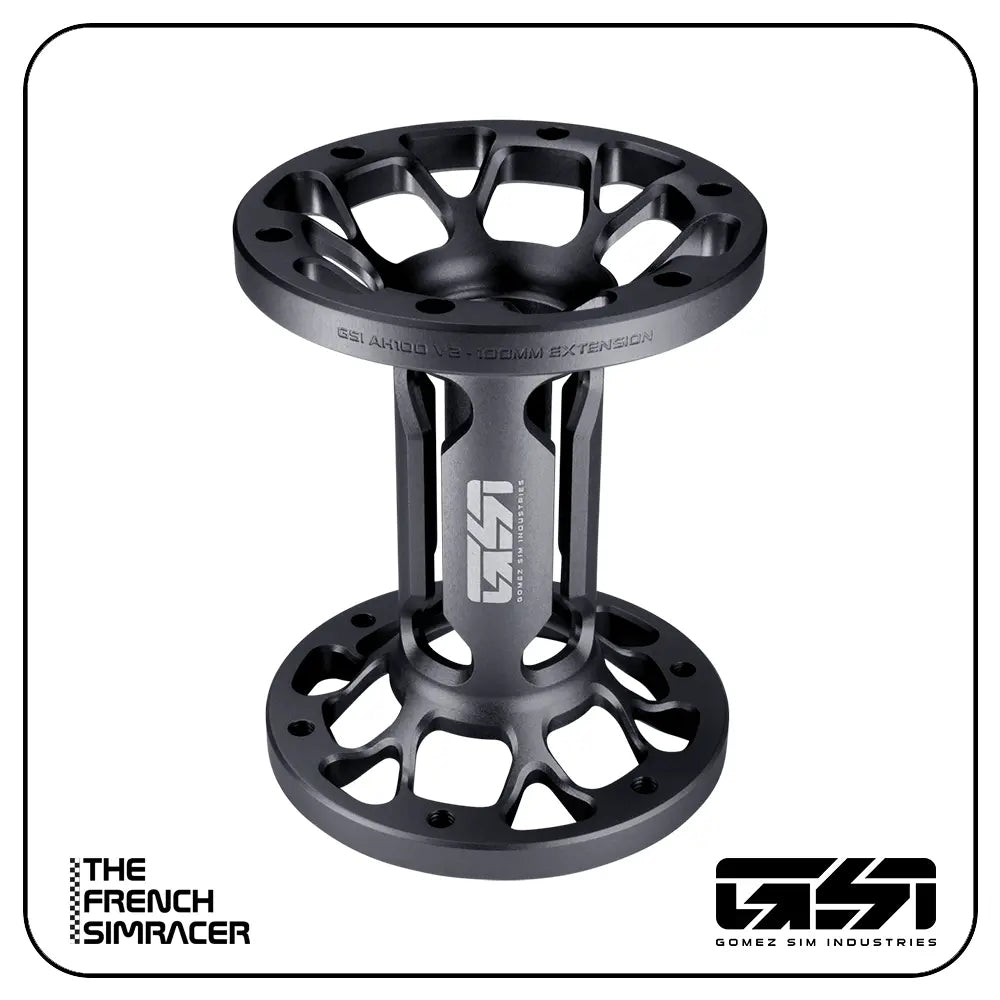

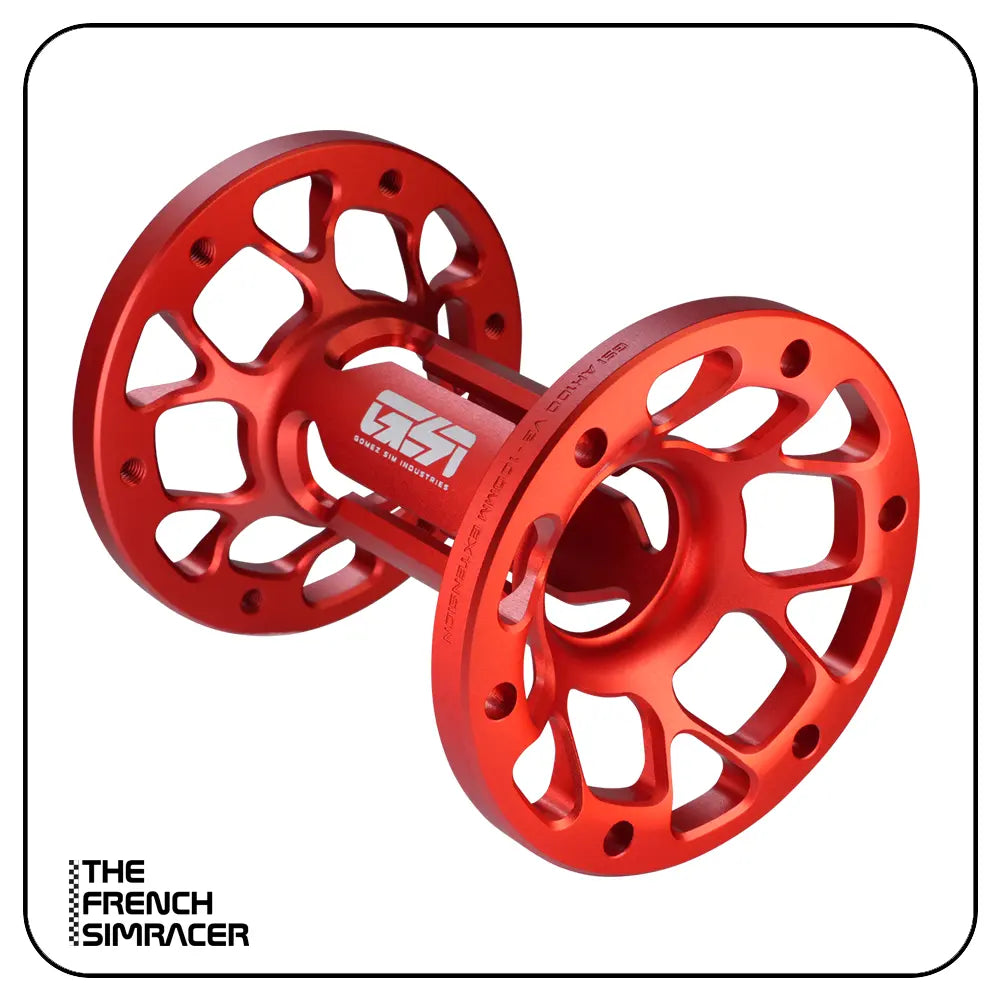

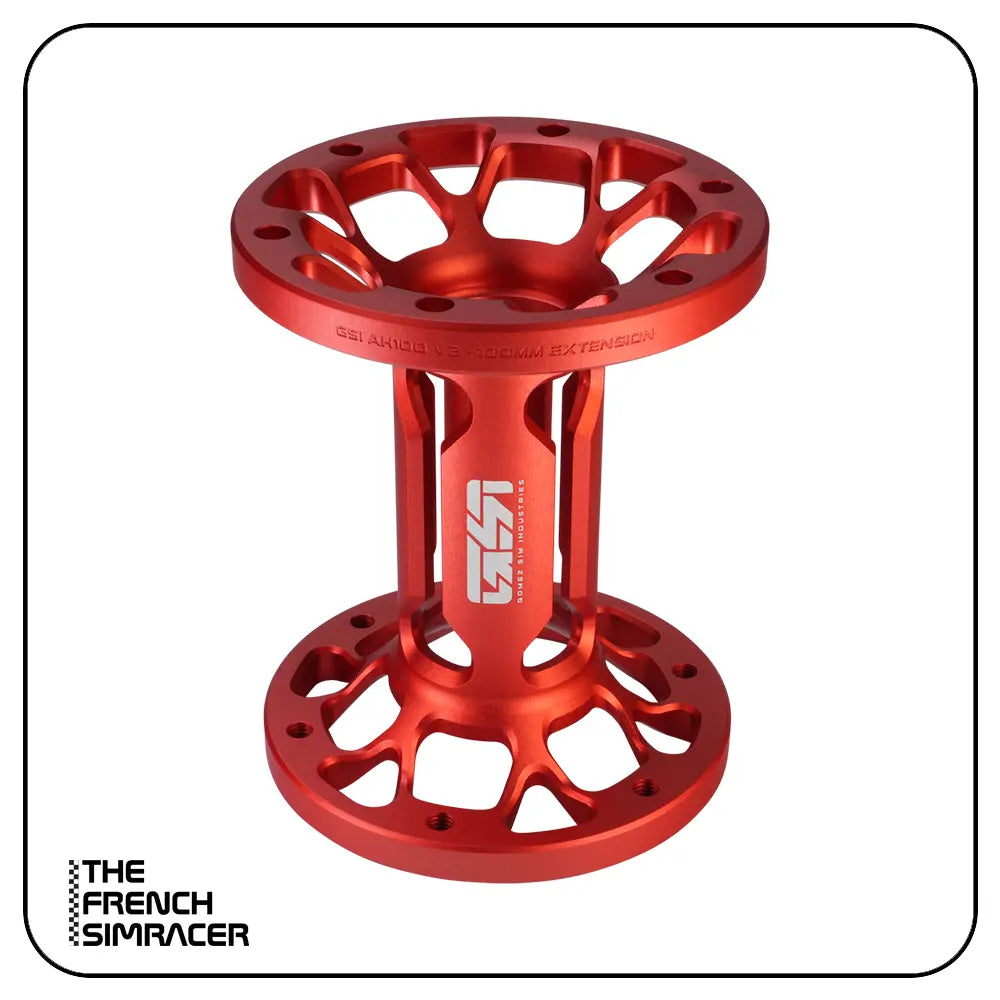

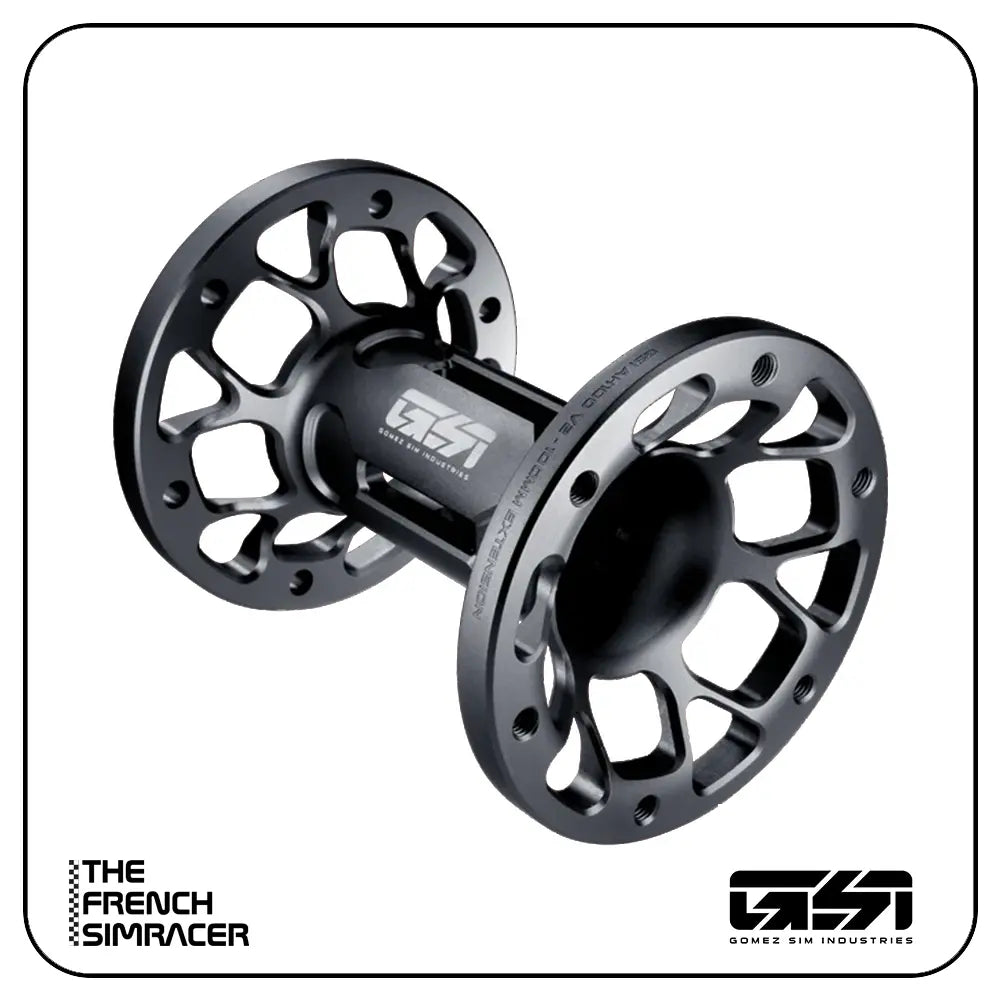

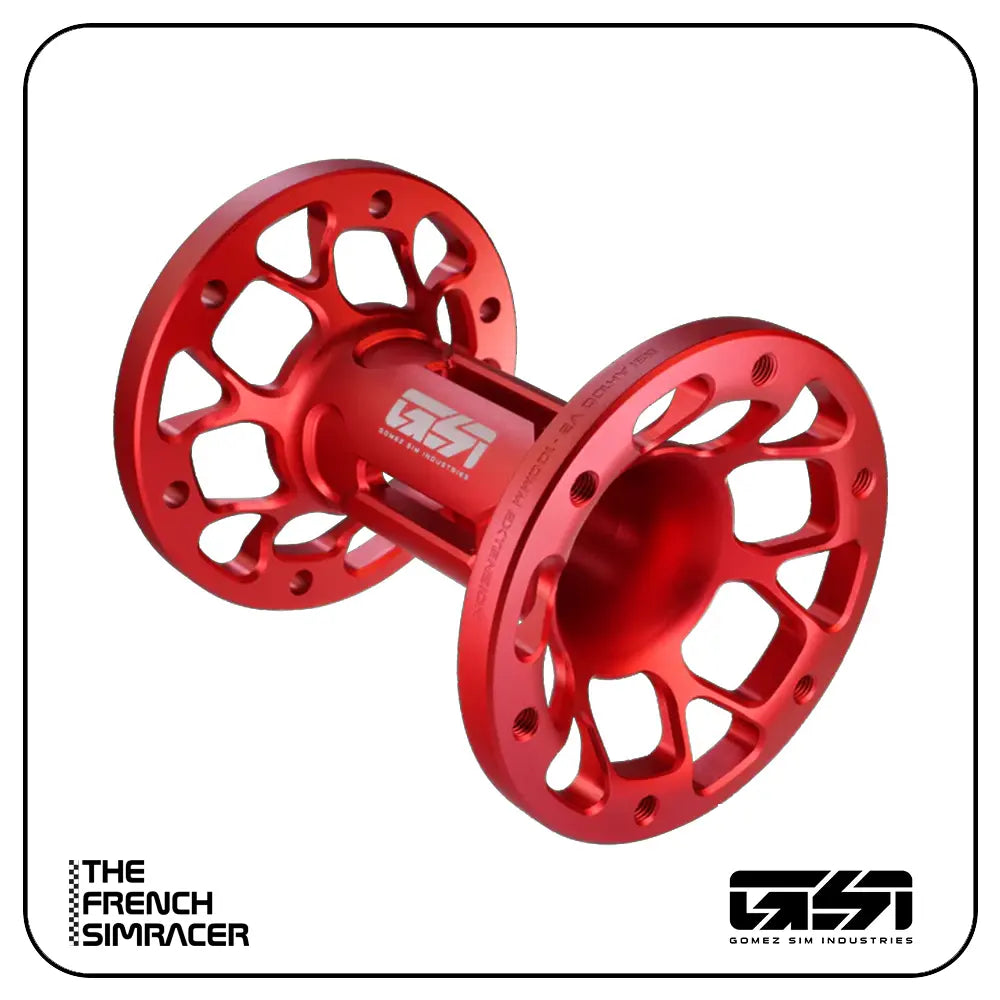

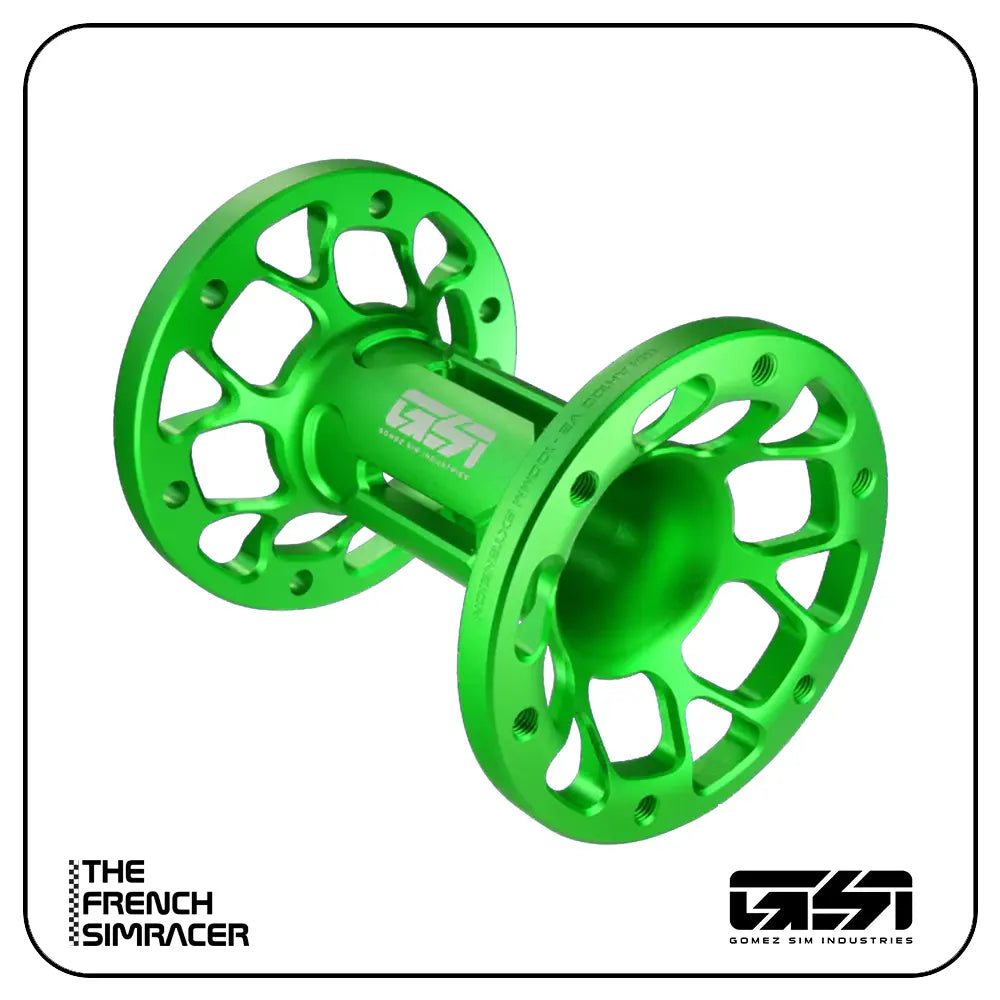

The GSI AH100 Hub is a 100 mm shaft extension machined from billet 6061 aluminium for maximum strength and reliability. Each side uses a 70 mm PCD bolt pattern — one with fully threaded holes, the other with non-threaded holes — allowing a wide range of wheel and base connections. Supplied with six M5 x 12 mm screws and available in six anodised colours, it brings your wheel decisively closer without touching your seating position.
Main Features
- 100 mm extension: the long-reach option, for when your base sits well back behind a wheeldeck or a monitor and you need to bring the wheel properly into your hands.
- Billet 6061 aluminium: machined from solid for maximum strength and reliability — it looks the business and handles it even better.
- 70 mm PCD on both sides: the industry standard, compatible with a wide range of wheels and Direct Drive bases.
- Versatile mounting: one side with fully threaded holes, the other with non-threaded holes, for the widest possible range of wheel and base connections.
- Mounting hardware included: six M5 x 12 mm screws supplied with every hub.
- Six anodised colours: black, red, blue, green, gold and purple, to match your wheel and your rig.
Technical Specifications
- Type: shaft extension hub for sim racing wheels
- Extension length: 100 mm
- Bolt pattern (PCD): 70 mm, on both sides
- Material: billet 6061 aluminium, anodised
- Mounting holes: fully threaded on one side, non-threaded on the other
- Weight: 0.16 kg
- Colours: black, red, blue, green, gold, purple
What's in the Box
- AH100 Hub
- Six M5 x 12 mm mounting screws
Compatibility
The AH100 Hub uses the industry-standard 70 mm PCD bolt pattern on both faces, making it compatible with a wide range of wheels and Direct Drive bases. It pairs naturally with GSI wheels and works equally well with wheels from other manufacturers. Wheel and wheel base are not included.
Which model to choose
The AH100 is the long-reach option at 100 mm — the choice when your base is set well back behind a wheeldeck or a monitor, or when a shorter extension simply does not close the gap. If you only need a moderate adjustment to refine your driving position, the AH50 offers the same construction and the same 70 mm double-sided pattern in a 50 mm format.
FAQ
Why choose the 100 mm rather than the 50 mm?
It comes down to how far your base sits from your hands. 100 mm is the answer when the base is mounted well back — behind a wheeldeck or a monitor — or when your cockpit is already adjusted to its limit and the wheel is still too far away. For a moderate correction, the AH50 is enough.
Are screws included?
Yes. Every AH100 Hub comes with six M5 x 12 mm screws for mounting.
What is the difference between the two sides?
One side has fully threaded holes and the other non-threaded holes. That combination lets you mount the hub in either direction depending on the hardware supplied with your wheel and base, covering the widest possible range of connections.
Does an extension affect force feedback?
The AH100 is machined from billet 6061 aluminium precisely to transmit the shaft's motion without flex. As with any extension, bear in mind that lengthening the shaft increases the lever arm on your base, so a rigid rig mounting and correctly tightened fasteners matter more than ever — particularly on a high-torque Direct Drive base.
Can I use it with a non-GSI wheel?
Yes. The AH100 is designed for GSI wheels but uses the universal 70 mm PCD pattern, so it works with any wheel and any base sharing that standard.
