Fanatec Podium Pedals Formula + GT Pedal Plates

Fanatec Podium Pedals Formula + GT Pedal Plates Bundle – 2-Pedal Load Cell Set with Formula and GT Plates

The Fanatec Podium Pedals Formula + GT Pedal Plates Bundle is a high-end 2-pedal Load Cell set (throttle and brake) that combines the formula-style Podium Pedals Formula with two aluminium GT pedal plates — letting you switch between an open-wheel and a GT-style foot position. Built around a forged aluminium brake pedal arm and a custom Load Cell sensor rated over 200 kg (calibrated for 150 kg at the pedal plate), the brake uses Fanatec's patented Compression Control System for tool-free, granular adjustment of travel, resistance and mechanical progression. Developed from the ground up by Fanatec in Germany with input from professional drivers, every component is engineered for consistent, repeatable performance lap after lap. The clutch pedal is sold separately (coming soon).

Bundle Contents

• 1x Podium Pedals Formula (2 pedal modules: throttle and brake)
• 1x Podium Pedals Small GT Face Plate
• 1x Podium Pedals Large GT Face Plate

Main Features

• 2-pedal Load Cell set — throttle and brake, designed around two-pedal driving in open-wheel, endurance and high-downforce racing
• Forged aluminium brake — forged aluminium pedal arm and mid arm for exceptional strength under heavy load, with a custom Load Cell sensor rated over 200 kg, calibrated for 150 kg at the pedal plate

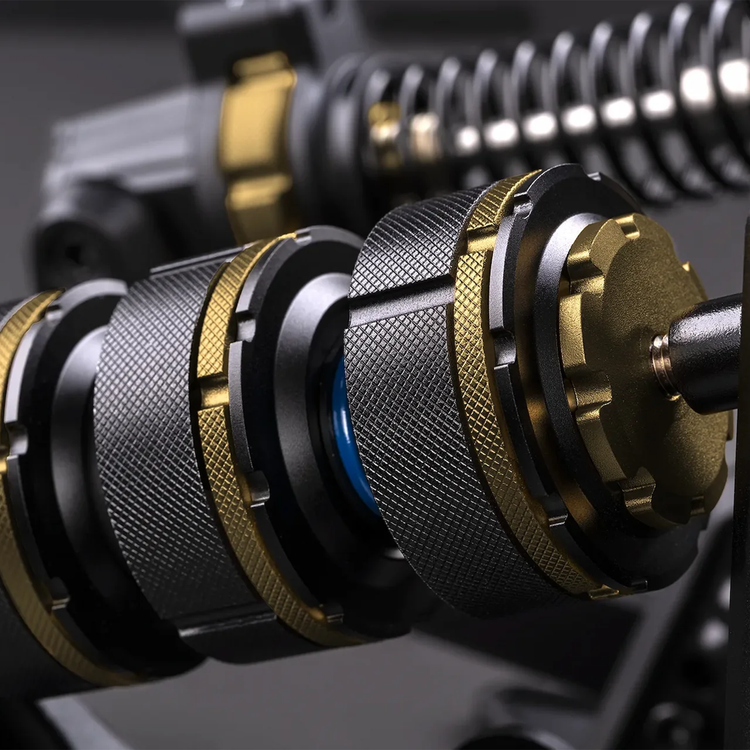

• Patented Compression Control System — tool-free adjustment of travel and resistance; threaded cups can be fully closed to eliminate travel for a firm "brick wall" feel, while preventing over-compression to preserve feel and durability
• Mechanically progressive response — staggered cup positions make each spring reach its limit at a different point in the stroke, letting you tune the response from linear to a progressive ramp in stiffness toward maximum braking force
• Included spring sets for different brake characteristics — two blue springs (softer) and two green springs (softest), plus elastomers
• Refined throttle — diecast and CNC-machined aluminium with independent preload and travel adjustment (approx. 20 mm), an industrial-grade pivot bearing and a precision-calibrated Hall sensor for smooth, high-resolution input; intentionally firm resistance for better control

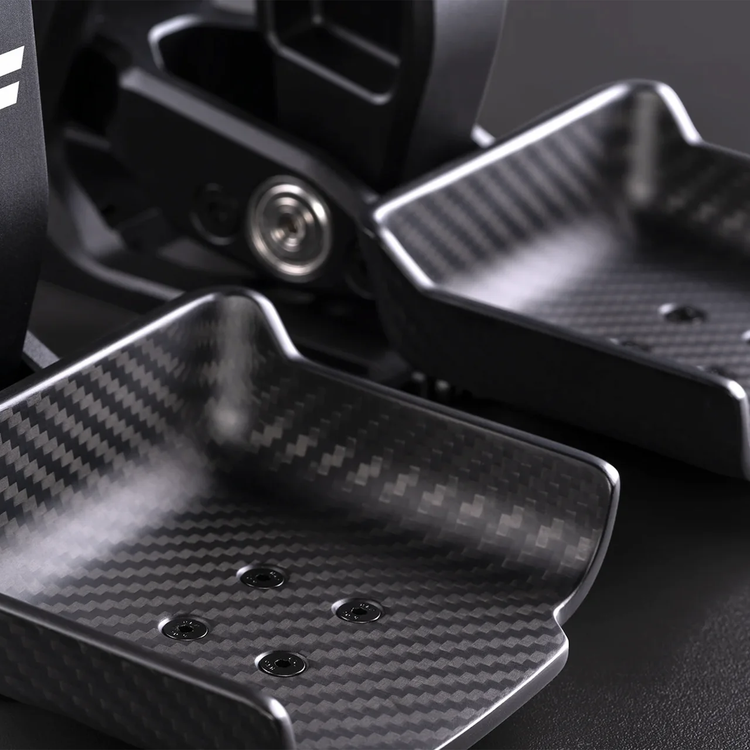

• Formula carbon fiber plates and heel cups + GT plates — formula-style carbon fiber pedal plates and heel cups with integrated side supports and curved heel cups for secure foot positioning; two additional aluminium GT face plates (Small and Large) included to switch to a GT-style position
• Fully tool-free adjustment — every travel and resistance adjustment across both pedals is tool-free for quick changes between sessions
• Adjustable pedal output curves and dead zones — via the Fanatec App, saved to internal memory so custom curves work on consoles too, with presets and custom slots in the Tuning Menu
• Compact control box — tidy cable management, with RJ12 and USB Type-C usable at the same time; haptic mounts included for future expansion
• Industrial-grade ball bearings — smooth movement and long-term reliability
• Flexible mounting — wide range of angles including inverted mounting; individual pedal mounting points follow the industry standard

Technical Specifications

• Product: Fanatec Podium Pedals Formula + GT Pedal Plates Bundle
• SKU: PPF_GTP_BNDL
• Configuration: 2-pedal (throttle, brake); clutch sold separately (coming soon)
• Brake Sensor: Custom Load Cell, rated >200 kg, calibrated for 150 kg at the pedal plate
• Brake Arm: Forged aluminium pedal arm and mid arm
• Brake System: Patented Compression Control System (staggered cups, progressive response, anti over-compression)
• Throttle: Diecast and CNC-machined aluminium, Hall sensor, ~20 mm travel adjustment, independent preload and travel
• Plates: Formula-style carbon fiber plates + heel cups, plus Small and Large aluminium GT face plates
• Bearings: Industrial-grade ball bearings
• Connection: Control box with RJ12 and USB Type-C (usable simultaneously)
• Software: Fanatec App (curves and dead zones saved to internal memory)
• Expansion: Haptic mounts for future expansion; clutch module compatible
• Mounting: Industry-standard pedal mounting points; inverted mounting supported; optional Mounting Plate and Heel Rest (sold separately)

What's in the Box

• Podium Pedals Formula (2 pedal modules)
• Podium Pedals Small GT Face Plate
• Podium Pedals Large GT Face Plate
• Connection box
• RJ12 cable
• USB cable
• 4x Brake elastomer
• 4x Brake spring (2 blue softer, 2 green softest)
• 2x Grip stickers
• 3x Allen key
• 2x Cup assist tool
• 2x M3 bolt, 8x M6 bolt, 8x M6 washer, 8x M6 flange nut

Compatibility

• Compatible Fanatec Bases: CSL DD, Gran Turismo DD Pro, ClubSport DD, ClubSport DD+, Podium DD1, Podium DD1 PS4, Podium DD2, Podium DD (2026)
• PC — on supported Fanatec Bases via RJ12, or as a standalone device via USB
• PlayStation 4 / 5 — when connected to a supported PlayStation-licensed Fanatec Base
• Xbox One / Series X|S — when connected to a supported Fanatec Base with an Xbox-licensed steering wheel
• Compatible accessories: Podium Pedals Mounting Plate and Heel Rest, Podium Pedals clutch module, Podium Pedals GT-style pedal plates

Special Notes

• The carbon fiber heel cups included with the Podium Pedals Formula cannot be used together with the heel rest supplied with the Podium Pedals Mounting Plate and Heel Rest (sold separately). You choose between the carbon fiber heel cups and the steel heel rest.
• The clutch pedal (sold separately, coming soon) is fully compatible with the Podium Pedals Formula.
• Full functionality depends on game developer support.

Frequently Asked Questions

What does the GT Pedal Plates bundle add over the standard Podium Pedals Formula?
This bundle adds two aluminium GT face plates (Small and Large) to the Podium Pedals Formula, letting you switch from the formula-style carbon fiber plates and heel cups to a GT-style foot position. You get both setups in one package.

How strong is the brake on the Podium Pedals Formula?
The brake uses a custom Load Cell sensor rated over 200 kg, calibrated for 150 kg at the pedal plate, on a forged aluminium pedal arm. The patented Compression Control System lets you tune travel, resistance and mechanical progression tool-free.

Can I make the brake feel softer or firmer?
Yes. The bundle includes two blue (softer) and two green (softest) springs plus elastomers. Closing the threaded cups eliminates travel for a firm "brick wall" feel, while staggered cup positions create a progressive ramp in stiffness toward maximum braking.

Can I add a clutch to this set?
Yes. The Podium Pedals clutch module (sold separately, coming soon) is fully compatible with the Podium Pedals Formula.

Which platforms and bases are compatible?
The pedals work on PC via RJ12 on supported Fanatec Bases or standalone via USB, and on PlayStation 4/5 and Xbox One/Series X|S through a supported licensed Fanatec Base. Compatible bases include CSL DD, GT DD Pro, ClubSport DD, ClubSport DD+, Podium DD1, DD1 PS4, DD2 and Podium DD (2026).
