CORSAIR XENEON EDGE 14.5" LCD Touchscreen
Vendor:
Corsair
SKU:
CC-9011306-WW
Barcode:
0840440489887
Availability:
In stock
Product type:
Simracing > Accessoires volant & base > Dashboards & affichage
- Regular price
- 259,90€
- Regular price
- Sale price
- 259,90€
About VAT
Couldn't load pickup availability
Ships within 1–2 business days
Secured Payments
More than 10 Years of Expertise

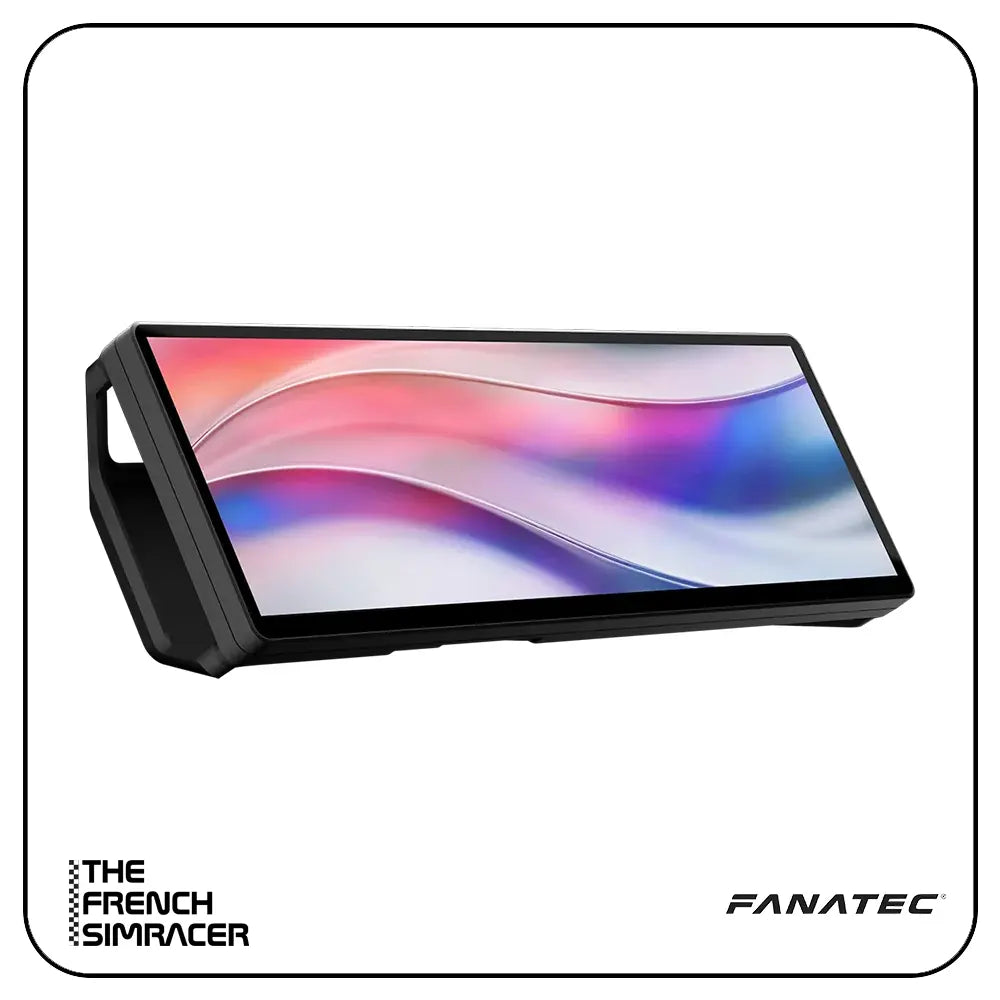

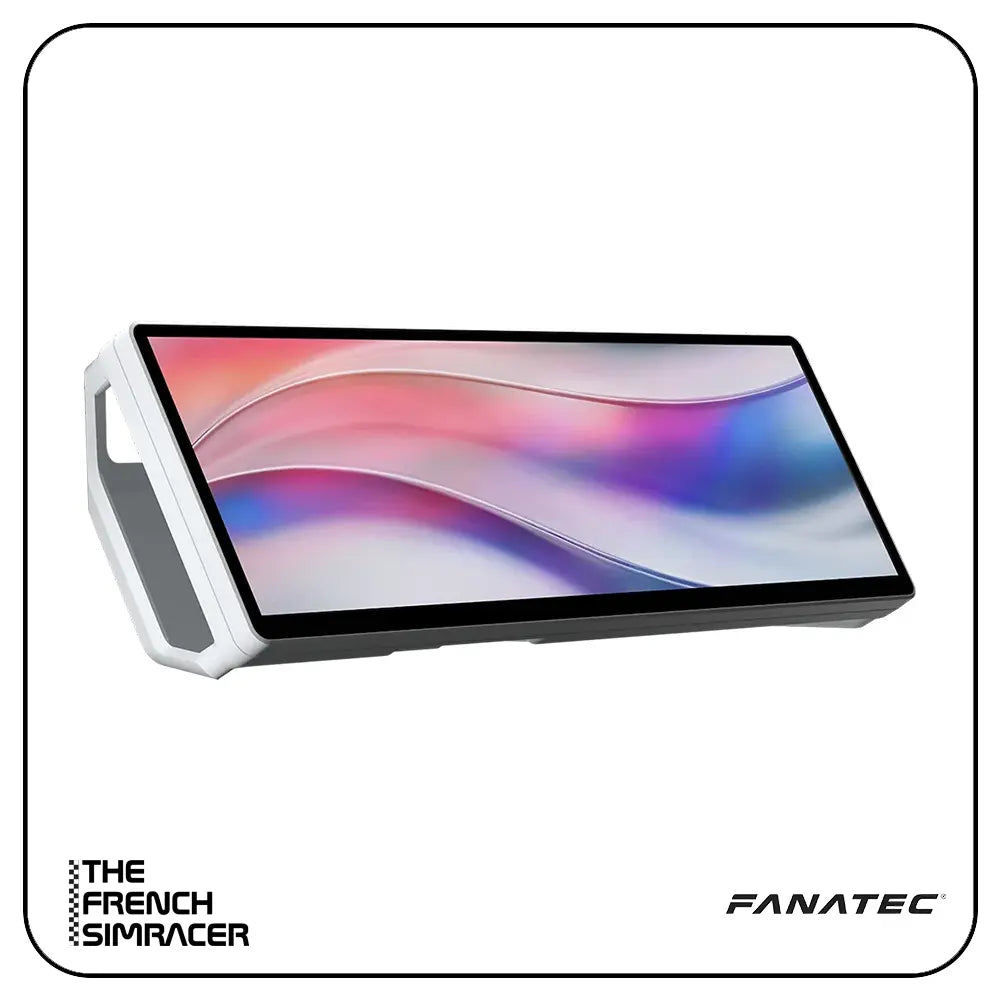

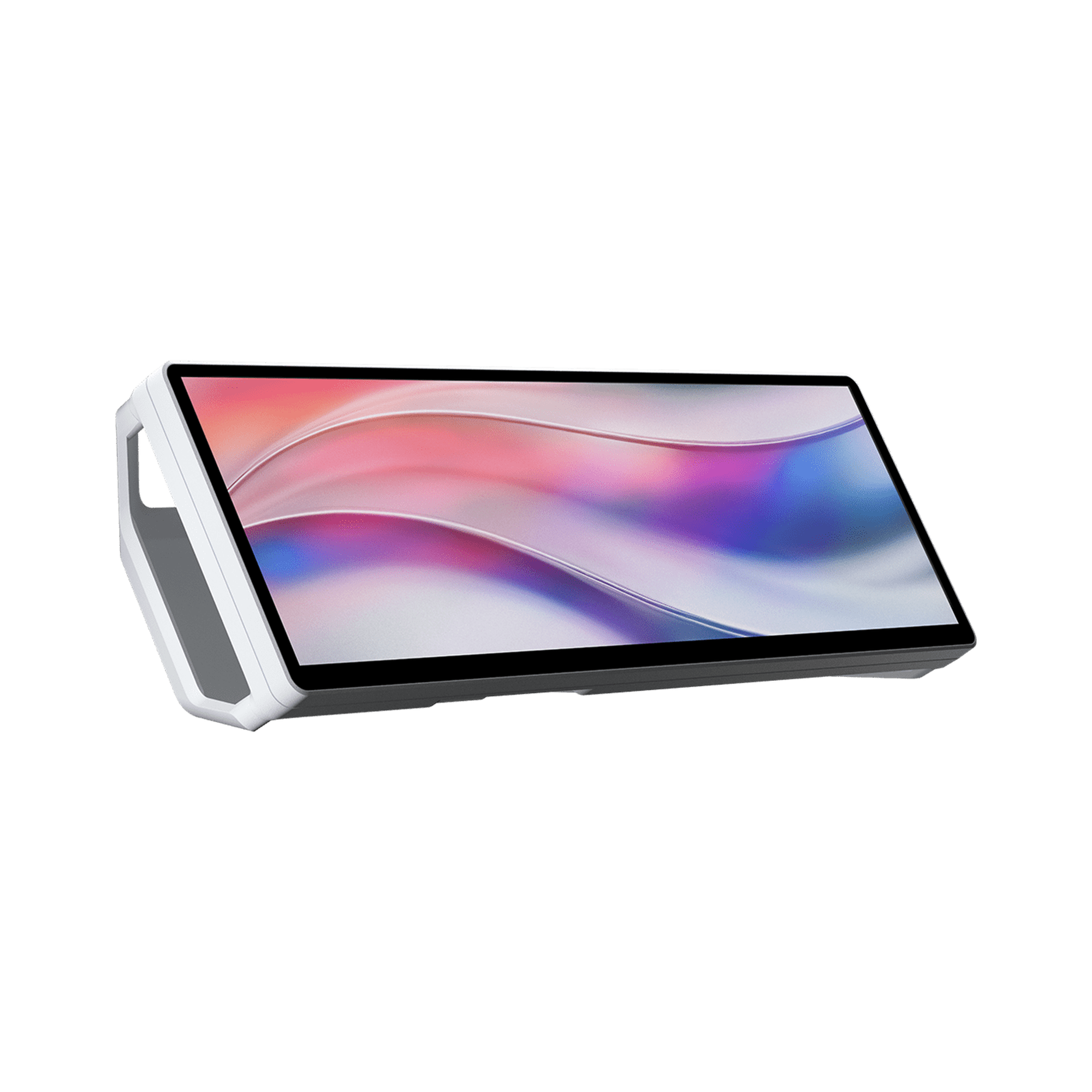

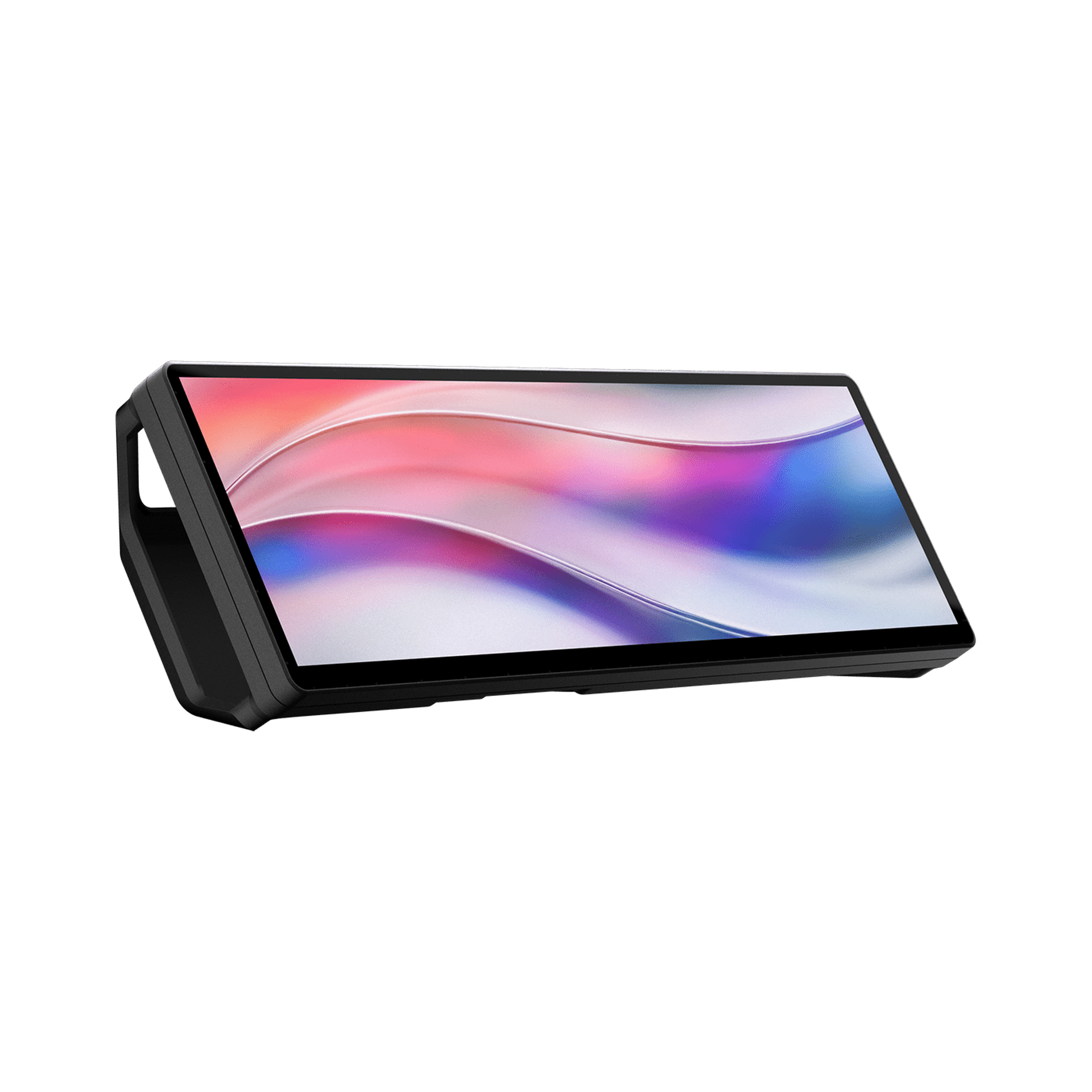

CORSAIR XENEON EDGE 14.5" LCD Touchscreen – Vibrant Ultrawide Multi-Touch Display for Sim Rigs and Desktop
The CORSAIR XENEON EDGE is a vibrant, high-resolution 14.5" ultrawide multi-touch display designed to adapt to virtually any sim racing setup or desktop scenario. With a wide 2560 × 720 resolution in a 32:9 aspect ratio, a 60Hz refresh rate, a 350 cd/m² AHVA panel (IPS-equivalent) and 16.7 million colors, it makes a stunning telemetry dashboard, secondary monitor or widget matrix. Set it up seamlessly through CORSAIR iCUE software's dedicated SimHub widget, or run it as an independent secondary display for maximum customization and control. With 14 built-in magnets, a built-in accelerometer for auto-rotation and an exceptional range of mounting options, the XENEON EDGE fits wherever you need it — on your rig, on your desk, inside your case or on a tripod.
Main Features
- 14.5" ultrawide touchscreen — 2560 × 720 native resolution (32:9 aspect ratio) at 60Hz, 183 PPI for crisp, vibrant telemetry and dashboards
- AHVA panel (IPS-equivalent) — wide viewing angles, vibrant colors, 16.7M colors (8-bit RGB) and 350 cd/m² peak brightness
- 6H glass lens — durable tempered glass surface protecting the display
- 5-point multi-touch capacitive screen — interact with widgets, apps and games using multiple fingers simultaneously, no mouse or keyboard required

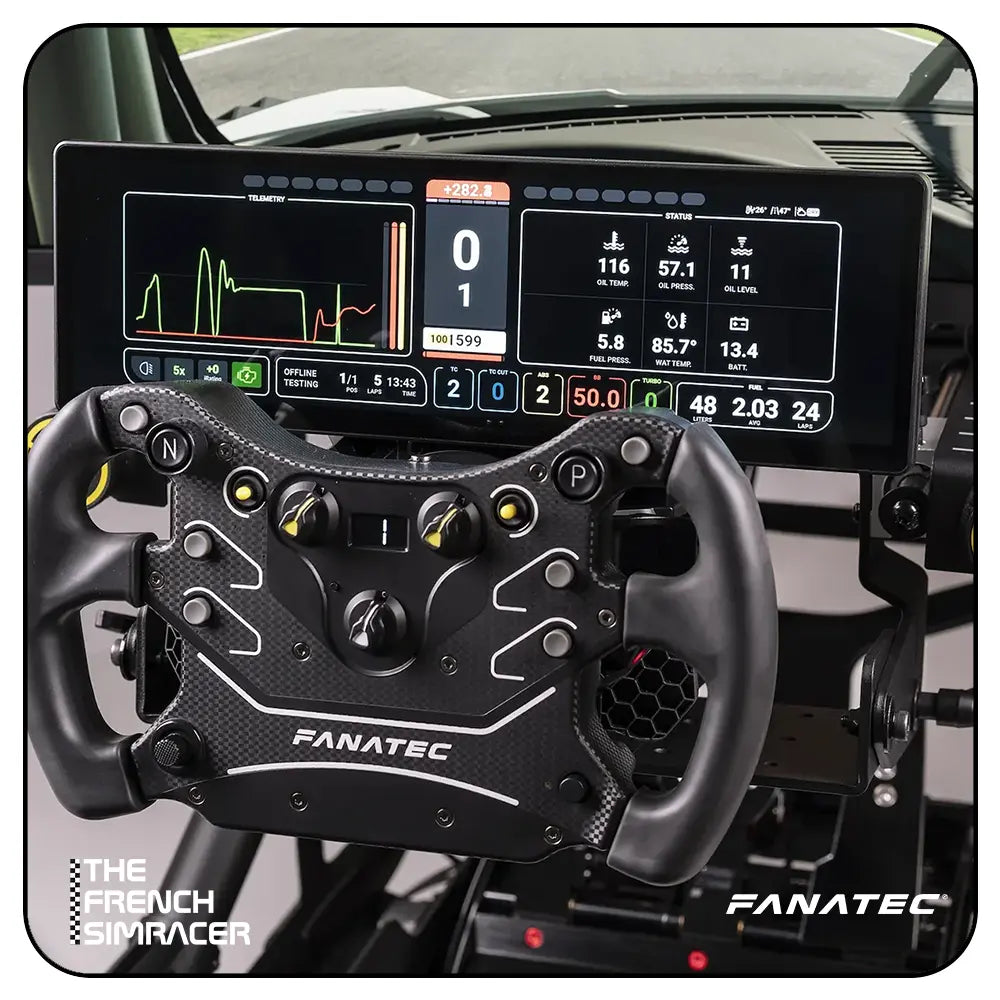

- SimHub-ready — set up as a sim racing dashboard through iCUE's dedicated SimHub widget, or use SimHub directly
- Automatic rotation — built-in accelerometer auto-rotates the display; supports both vertical and horizontal orientation
- Magnetic mounting — place it almost anywhere — 14 built-in magnets attach it to any metal surface, inside your case or on a PSU shroud
- Exceptional mounting versatility — included magnetic desk stand, 360mm radiator/fan mount, 2× ¼-20" camera/tripod/AV-arm mounting points

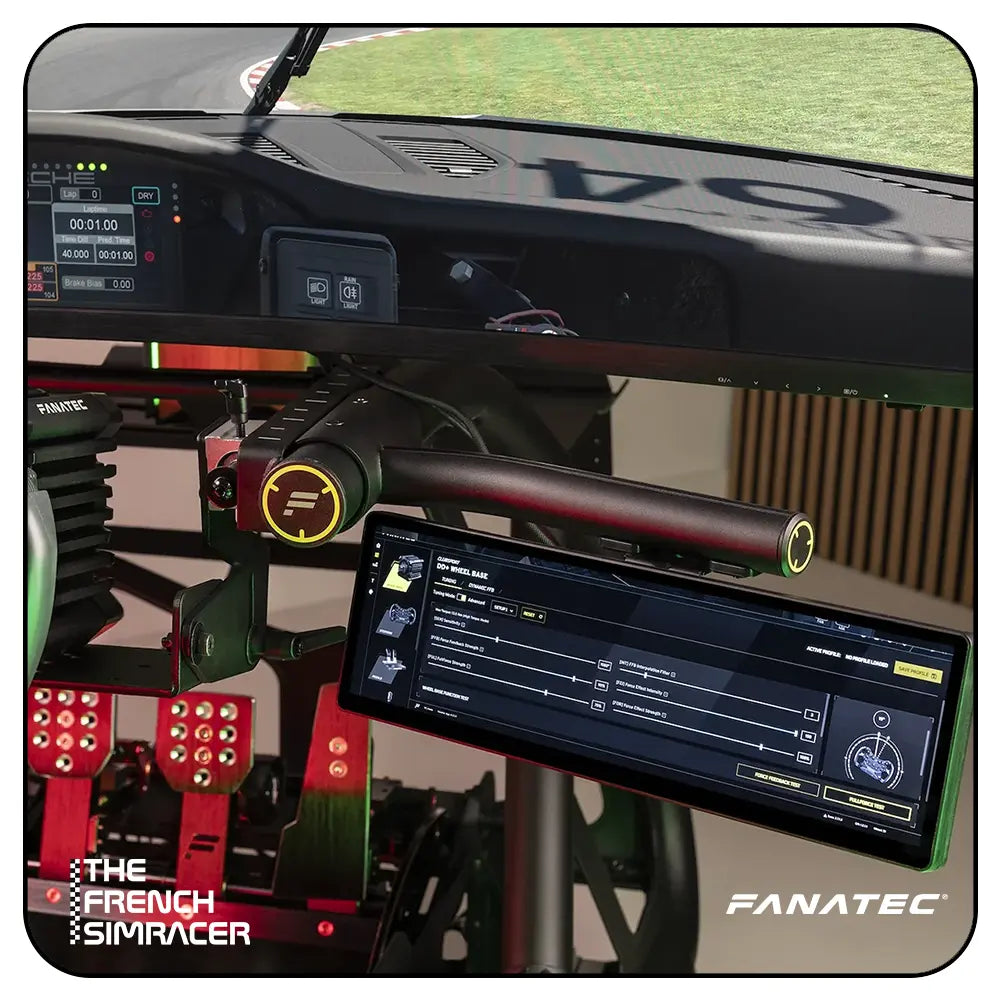

- Optimized for sim racing rigs — works with the ClubSport GT Cockpit Accessory Mount and most aluminium profile rigs (Xeneon Edge Mounting Bracket Set sold separately)
- HDMI 2.0 and USB-C DP-Alt Mode support — versatile connectivity, single-cable USB-C operation for video and power
- Use as a Windows secondary monitor — or create custom layouts and a personalized widget matrix via CORSAIR iCUE
- Zero Dead Pixel guarantee — backed by a 3-year warranty and CORSAIR global technical support
Technical Specifications
- Product: CORSAIR XENEON EDGE 14.5" LCD Touchscreen
- Screen Size: 14.5 inches (diagonal)
- Aspect Ratio: 32:9 ultrawide
- Resolution: 2560 × 720
- Pixel Density: 183 PPI
- Refresh Rate: 60Hz
- Panel Type: AHVA (IPS-equivalent), wide viewing angles
- Brightness: 350 cd/m² peak
- Colors: 16.7 million (8-bit RGB)
- Display Range: SDR (no HDR)
- Screen Lens: 6H glass lens
- Touch: 5-point multi-touch capacitive
- Auto-Rotation: Yes (built-in accelerometer)
- Orientation: Vertical and horizontal
- Video Connectivity: HDMI 2.0, USB-C DP-Alt Mode
- Power Connectivity: USB-C
- Mounting Options: Magnetic desk stand, 360mm fan/radiator mount, 2× ¼-20" camera mount, 14× embedded case magnets
- Housing Material: Glass, plastic, rubber
- Dimensions: 372 × 120 × 22mm (L × W × H)
- Weight: 1.674 kg
- Software: CORSAIR iCUE (with dedicated SimHub widget), SimHub compatible
- Editions: Black / White
- Warranty: 3 years / Zero Dead Pixels guarantee
What's in the Box
- CORSAIR XENEON EDGE 14.5" touchscreen
- Magnetic desk stand
- HDMI-to-DisplayPort cable, 6 ft (1.8m)
- USB-C cable (20 Gbps), 6 ft (1.8m)
- Internal USB-C cable, 700mm (for use inside cases)
- Microfiber cloth
- Quick start guide
Note: the Xeneon Edge Mounting Bracket Set for sim racing rigs and the screen protector are sold separately.
Compatibility
- PC (Windows) — secondary display via HDMI 2.0 or USB-C DP-Alt Mode
- SimHub — full sim racing dashboard support
- CORSAIR iCUE — custom layouts and widget matrix
- Sim racing rigs — ClubSport GT Cockpit Accessory Mount and most aluminium profile rigs (bracket set sold separately)
- PC cases — 360mm fan/radiator mount and internal USB-C cable for in-case installation
- Tripods / AV arms — via the 2× ¼-20" mounting points
- Any metal surface — via the 14 built-in magnets
