Conspit CDR Quick Release, NRG Style (wheel side)

Conspit CDR Quick Release

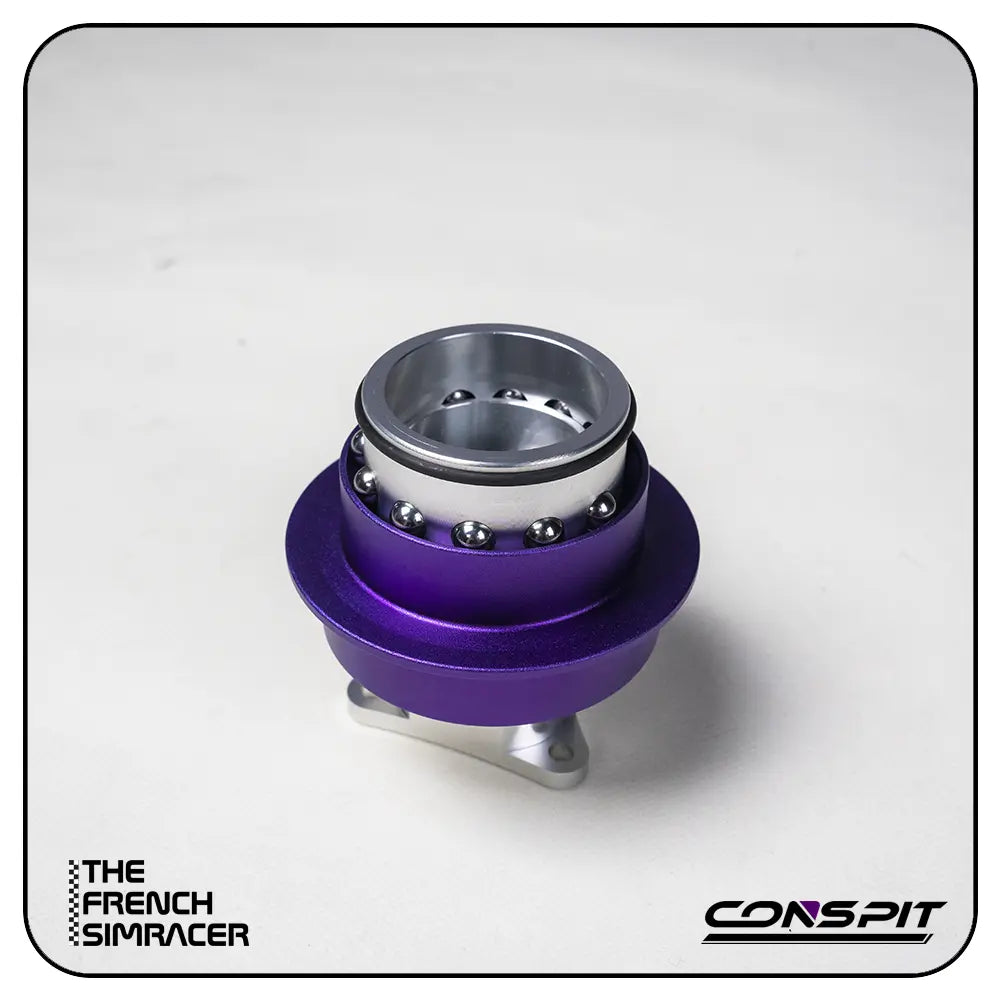

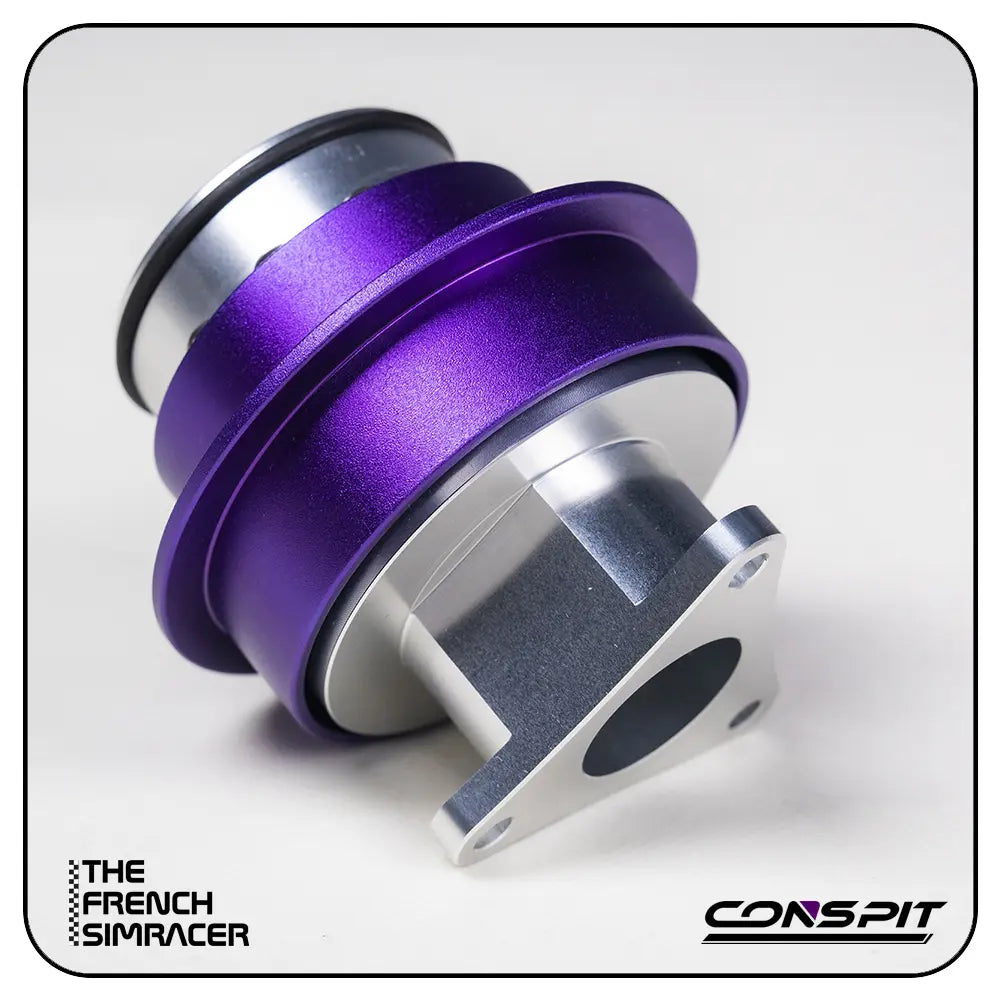

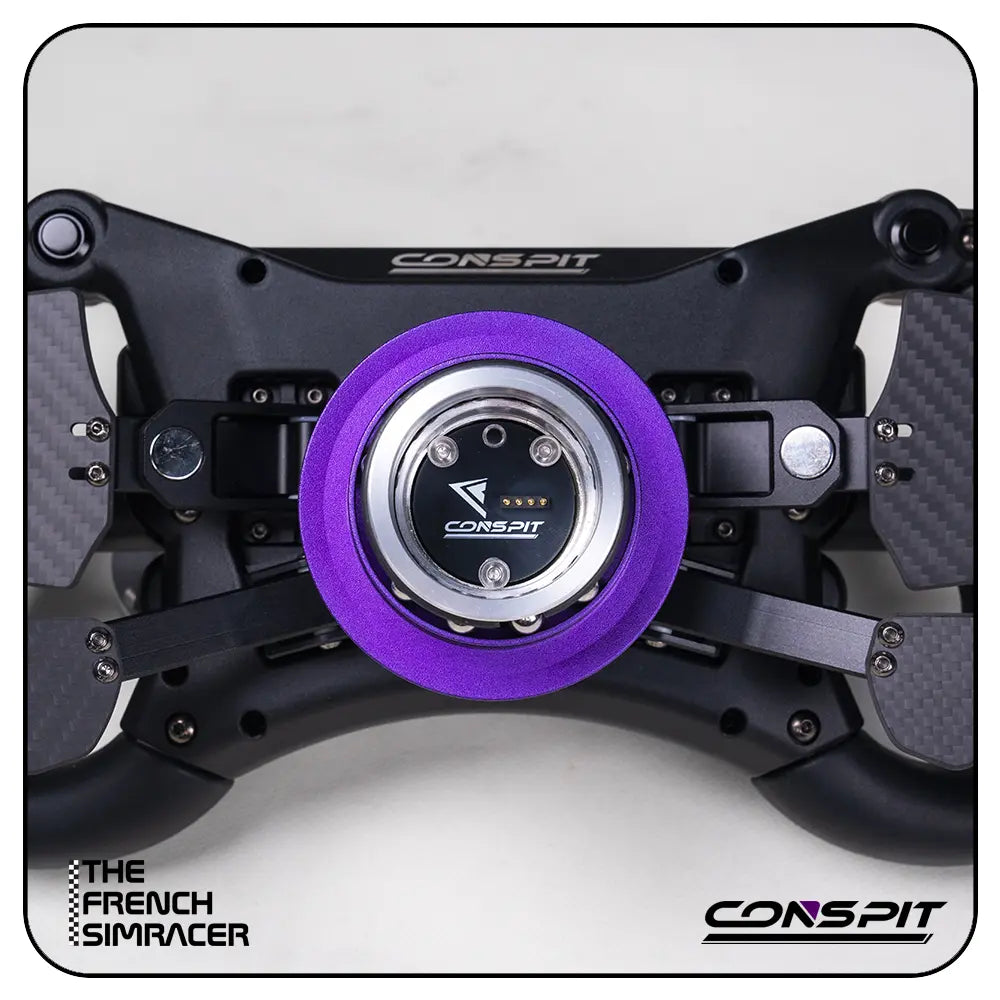

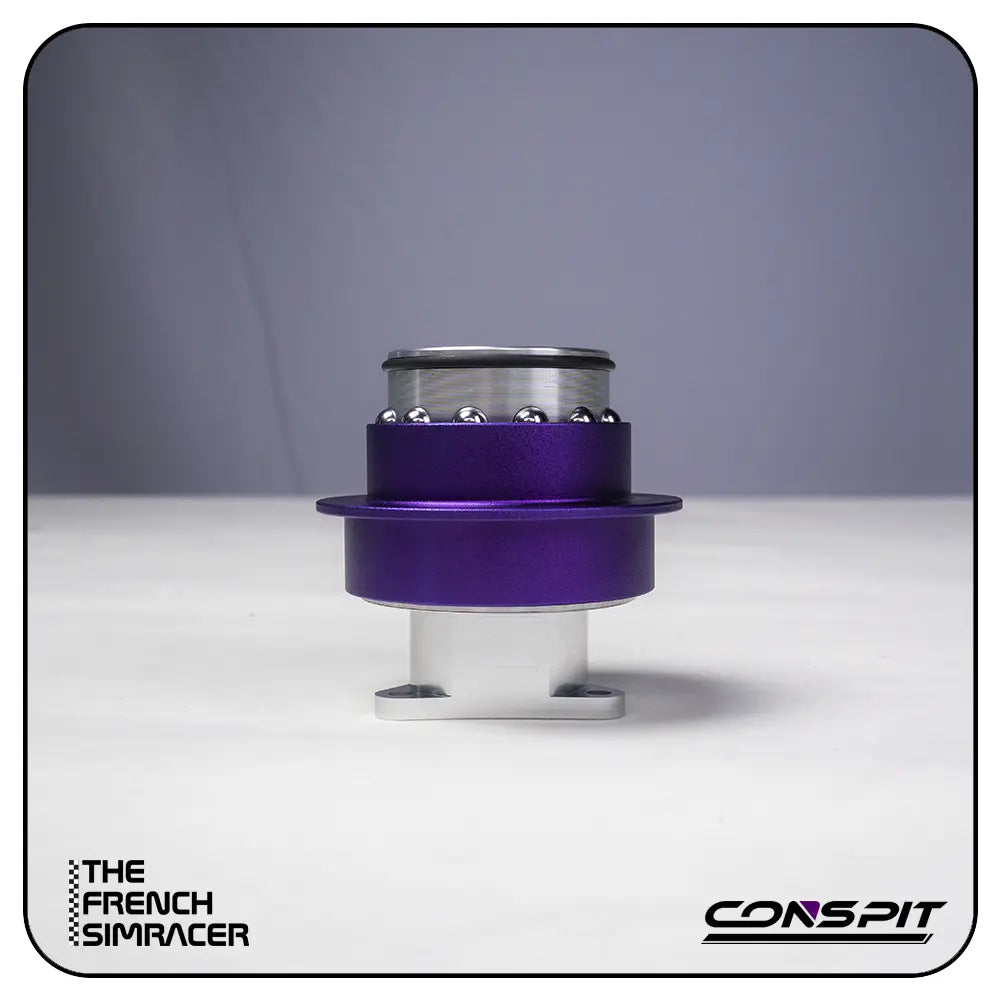

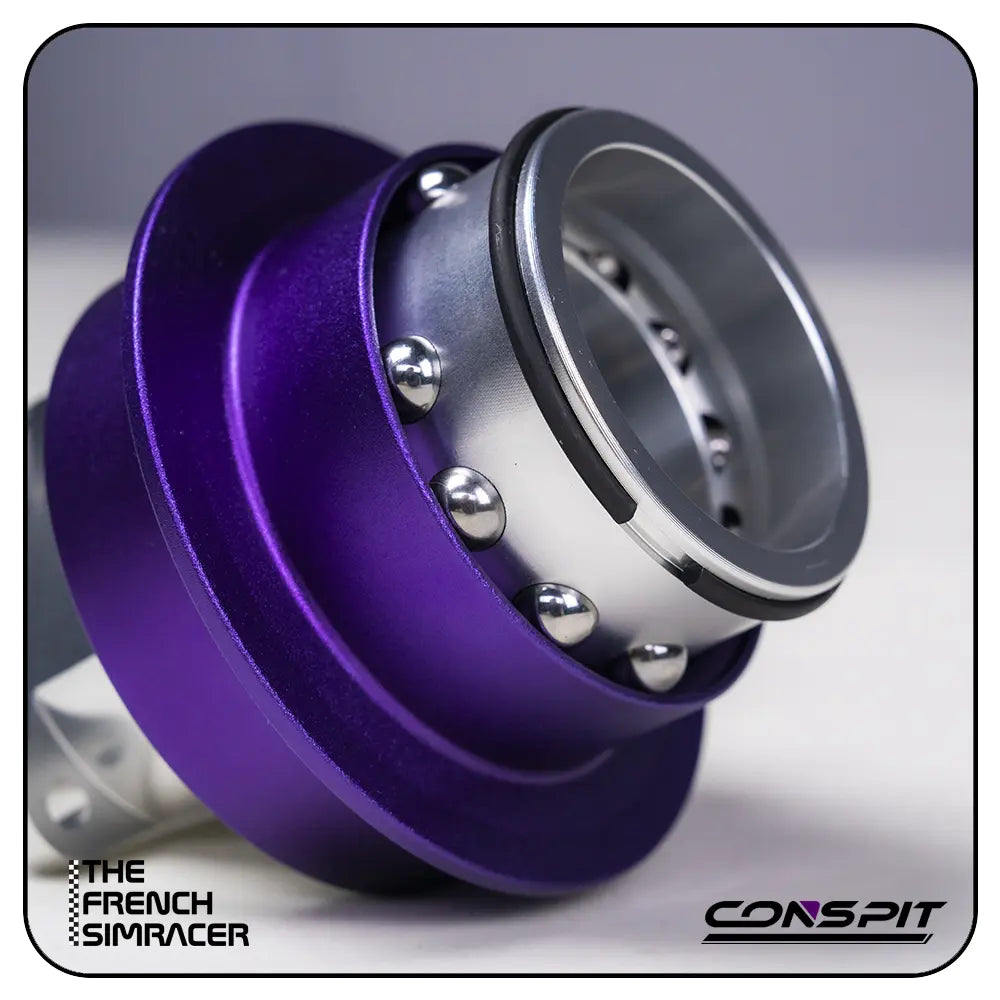

The Conspit CDR is the wheel-side half of Conspit's NRG-style quick release, used on the Ares Apex 8 Nm and the CDR versions of the Ares 12 and Ares 20 Platinum. Push the wheel on and it locks automatically; pull the ring to release it. The wheel's signal passes through pogo pins with no cable, and the 50 mm bolt pattern with three Ø5 mm holes takes Conspit wheels or, with the 50–70 mm spacer, third-party wheels.

Key features

• Automatic locking when the wheel is pushed on
• Pull-ring release
• Zero play under load

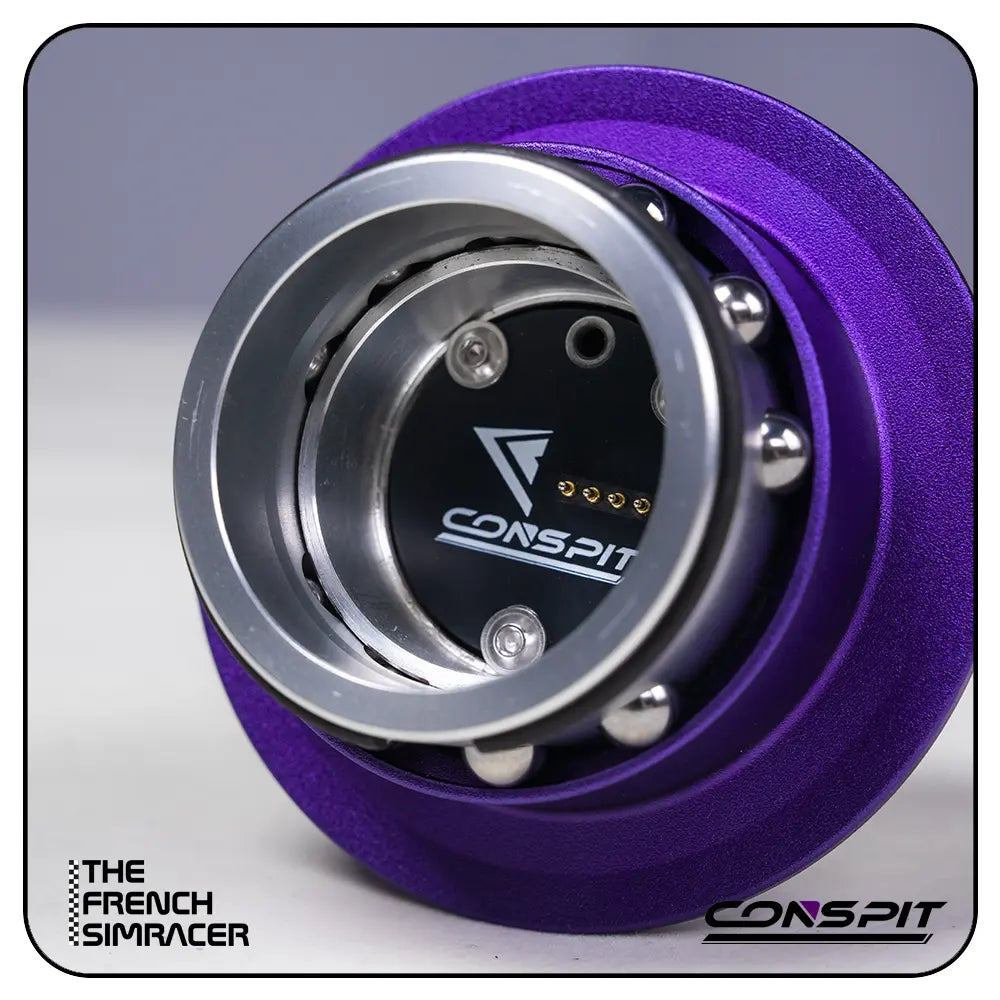

• Signal through pogo pins, resistant to interference
• 50 mm PCD, 3 × Ø5 mm holes
• Light alloy construction

Technical specifications

• Type: quick release, wheel side, CDR system
• Dimensions: 81 × 83 × 83 mm
• Weight: 0.315 kg
• Material: light alloy
• Mounting: PCD 50 mm, 3 × Ø5 mm
• Signal: pogo pins

In the box

• Conspit CDR quick release, wheel side
• Mounting kit

Important notes

This is the wheel side only. The base side is built into CDR bases, and is sold separately as the Conspit CDR base side for other Ares bases. Not compatible with CDP bases.

Compatibility

• Conspit Ares Apex 8 Nm CDR
• Conspit Ares 12 and Ares 20 Platinum, CDR versions
• Ares bases fitted with the Conspit CDR base side
• PC Windows only. Not compatible with Xbox or PlayStation.

Which model to choose

• Conspit CDP: claw and ball quick release built into the Ares 12 and Ares 20 Platinum CDP bases. Signal through spring contacts.
• Conspit CDR: NRG-style quick release with automatic locking and pull-ring release, 50 mm PCD, pogo pin signal. Wheel side and base side sold separately.
• Conspit Quick-Con Adapter: 70 mm PCD quick release with its own USB cable, to fit a Conspit wheel on another brand's base.

FAQ

Which bases work with the Conspit CDR quick release?

The Conspit CDR fits the Ares Apex 8 Nm CDR, the CDR versions of the Ares 12 and Ares 20 Platinum, and any Ares base fitted with the Conspit CDR base side.

Can I use a third-party wheel with the Conspit CDR?

Yes. The Conspit CDR has a 50 mm bolt pattern, and the 50–70 mm spacer takes wheels with a 70 mm pattern. A third-party wheel needs its own USB connection, for example through the Conspit USB-A adapter spacer.

How do I release the wheel?

Pull the ring on the Conspit CDR and the wheel comes off. Pushing it back on locks it automatically.

Who handles warranty and after-sales service?

The French Simracer handles after-sales service for the Conspit CDR quick release, as for every brand it sells, with a contact based in France. You never deal with the manufacturer directly. The product carries the 2-year legal warranty, or the manufacturer warranty if longer.
