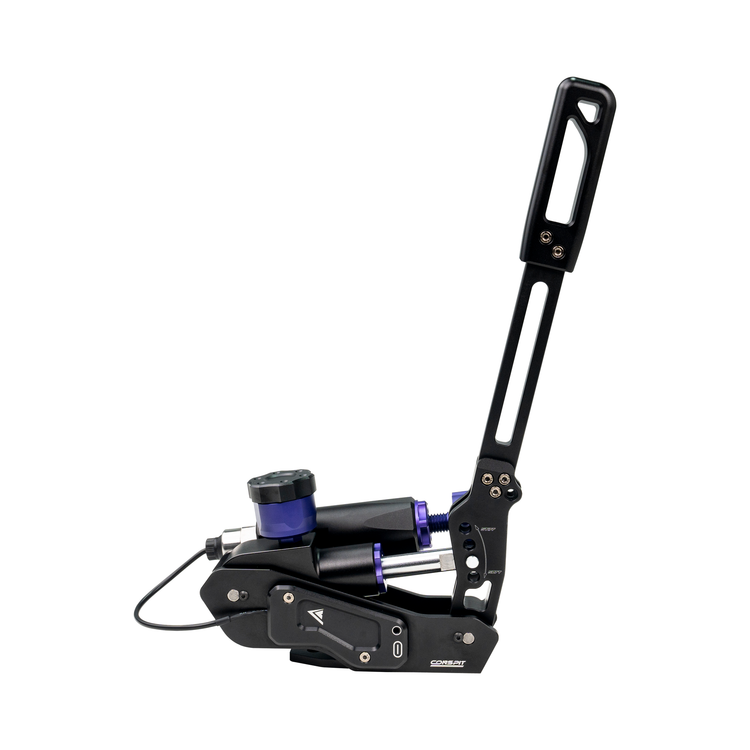

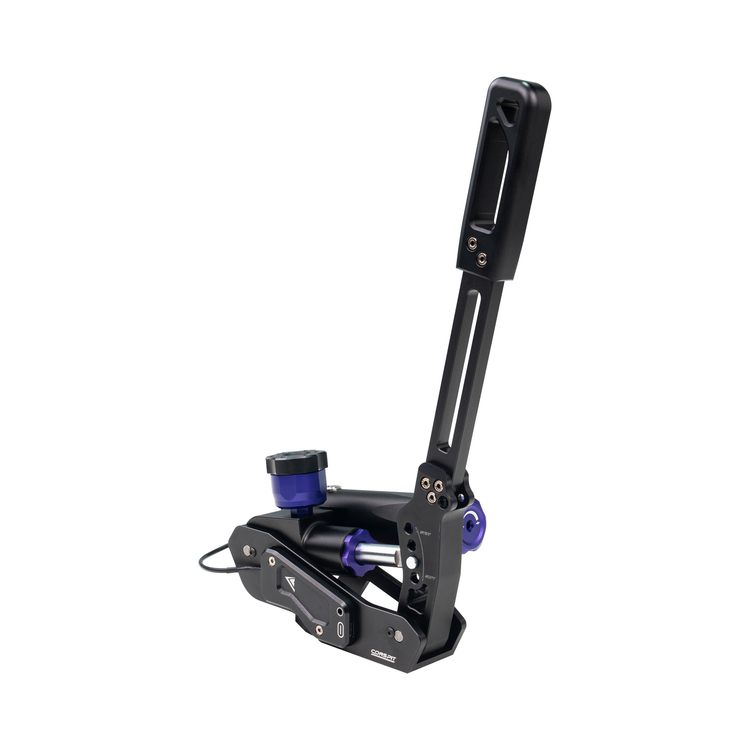

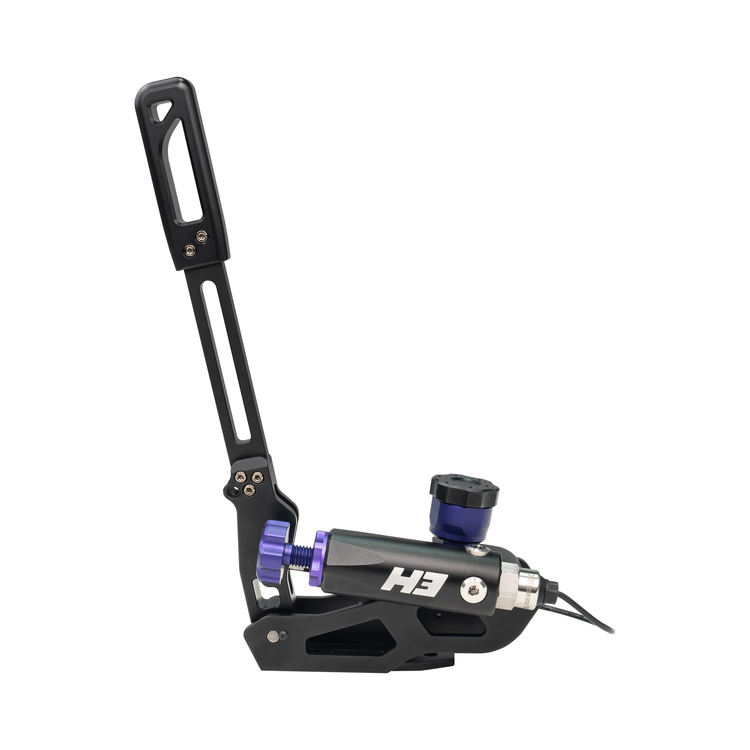

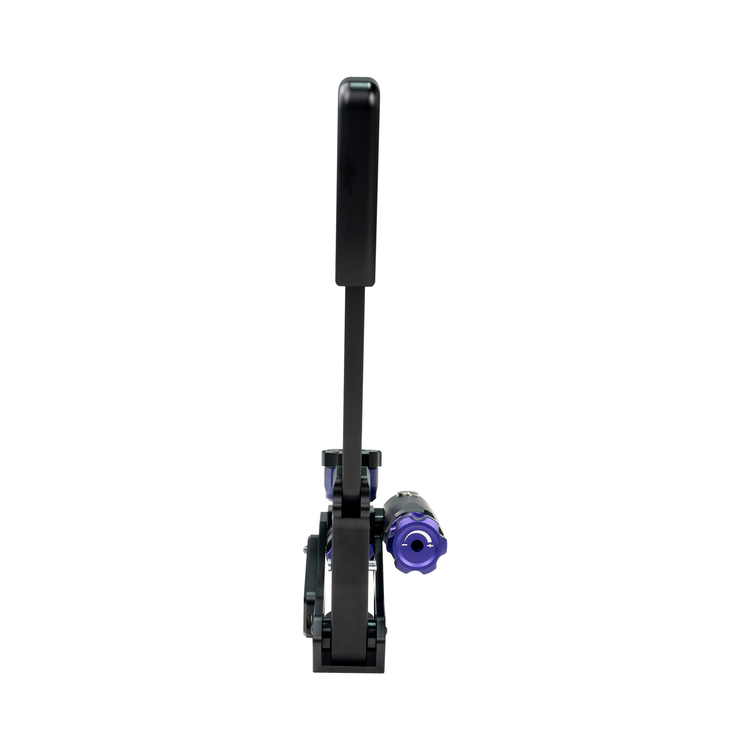

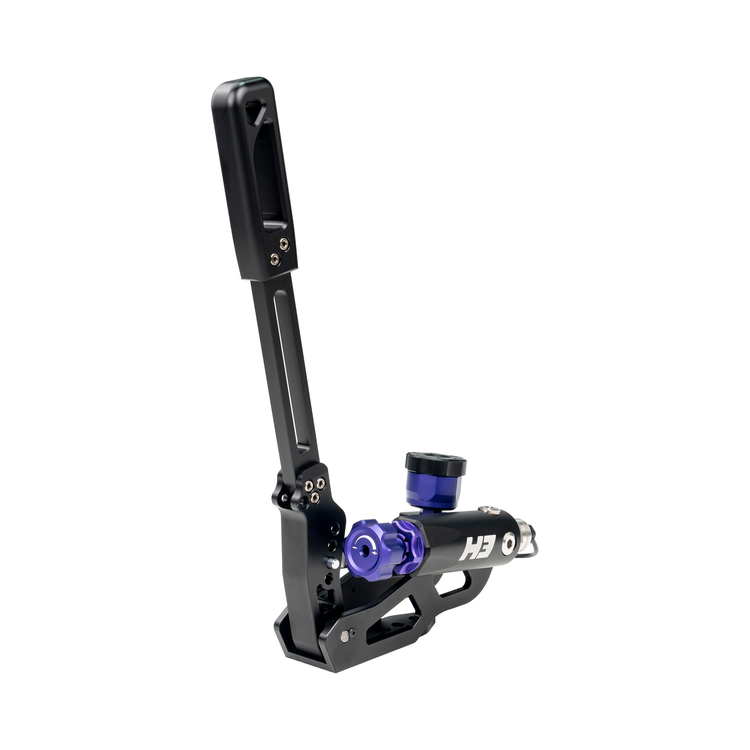

Conspit H3 Hydraulic Handbrake

Conspit H3

The Conspit H3 is a hydraulic handbrake designed for drift and rally. It uses Conspit's patented hydraulic system, built around a master cylinder with no external oil lines, with an upgraded internal oil circuit for smoother damping, an extended piston and a precision-machined cylinder for better sealing, and a maintenance-free oil reservoir. A 5 MPa hydraulic sensor reads the smallest input, the lever switches between classic horizontal and competitive vertical positions, and four force positions give a 2× range between the softest and the firmest setting.

Key features

• Patented Conspit hydraulic system with master cylinder, no external oil lines
• Upgraded internal oil circuit for smoother damping, maintenance-free oil reservoir
• Extended piston and precision-machined cylinder for better sealing
• 5 MPa hydraulic sensor for precise control of rear-wheel slip
• Dual-mode lever: classic (horizontal) or competitive (vertical)
• 4 force positions set by pin, 2× difference between position 1 and 4
• Hydraulic preload adjustable continuously with the supplied tool
• Sealed deep-groove ball bearings on every pivot, zero mechanical free play
• CNC-machined aluminium alloy, anodised, rounded edges

Technical specifications

• Dimensions (L × W × H): 218 × 81 × 320 mm
• Net weight: 1.04 kg
• Material: aluminium alloy
• Lever modes: classic (horizontal) / competitive (vertical)
• Sensor: 5 MPa hydraulic
• Force adjustment: 4 positions (2× range)
• Mounting: Φ6 mm through holes in the base
• Connection: USB direct, Conspit CAN
• Cables: USB cable, CAN data cable
• Software: Conspit Link 2.0 (calibration, dead zones, curves)
• Platform: PC

In the box

• Conspit H3 handbrake
• USB cable and CAN data cable
• Preload adjustment tool
• Quick guide

Important notes

The H3 is fixed from below through Φ6 mm holes: a side mount or handbrake bracket is needed on most rigs and is not included.

Compatibility

• PC Windows only. Not compatible with Xbox or PlayStation.
• Direct USB, or Conspit CAN via an Ares base
• Rigs with a side mount or handbrake bracket

FAQ

Should I use the H3 in vertical or horizontal position?

Use the vertical (competitive) position of the Conspit H3 for rally and drift cars with a tall hydraulic handbrake, and the horizontal (classic) position to recreate a road-car handbrake. The switch takes a few minutes.

How firm can the H3 be?

The Conspit H3 has 4 force positions set by a pin, with twice the resistance at position 4 compared with position 1, plus a continuously adjustable hydraulic preload.

Does the H3 need oil maintenance?

No. The Conspit H3 uses a sealed, maintenance-free oil reservoir and has no external oil lines.

How do I mount the H3?

The Conspit H3 is fixed from below through Φ6 mm holes, on a side mount or handbrake bracket of your rig.

Which games work with the H3?

The Conspit H3 works with PC rally and drift sims such as EA Sports WRC, Assetto Corsa, Assetto Corsa EVO, BeamNG.drive, Richard Burns Rally and Dirt Rally 2.0, as an analogue axis.

Does the H3 work on PS5 or Xbox?

No. The Conspit H3 works on PC Windows only.

Who handles warranty and after-sales service?

The French Simracer handles after-sales service for the Conspit H3, as for every brand it sells, with a contact based in France. You never deal with the manufacturer directly. The product carries the 2-year legal warranty, or the manufacturer warranty if longer.
