Conspit CSD Lite Simhub Dashboard
- 189,90€
- 189,90€
- Unit price
- per
About VAT
Couldn't load pickup availability
Fast Shipping
Secured Payments
More than 10 Years of Expertise
CONSPIT CSD Lite – 5" SimHub Telemetry Dashboard

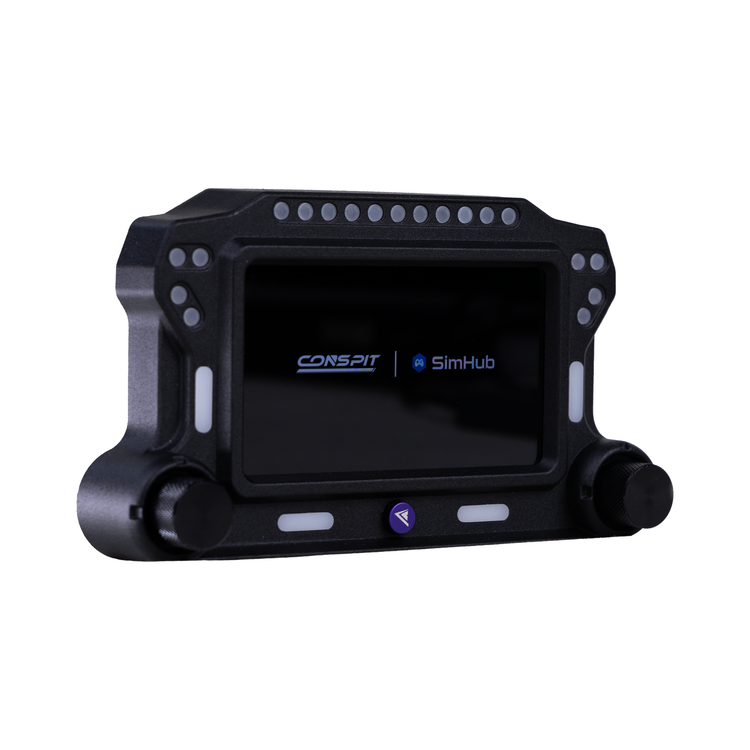

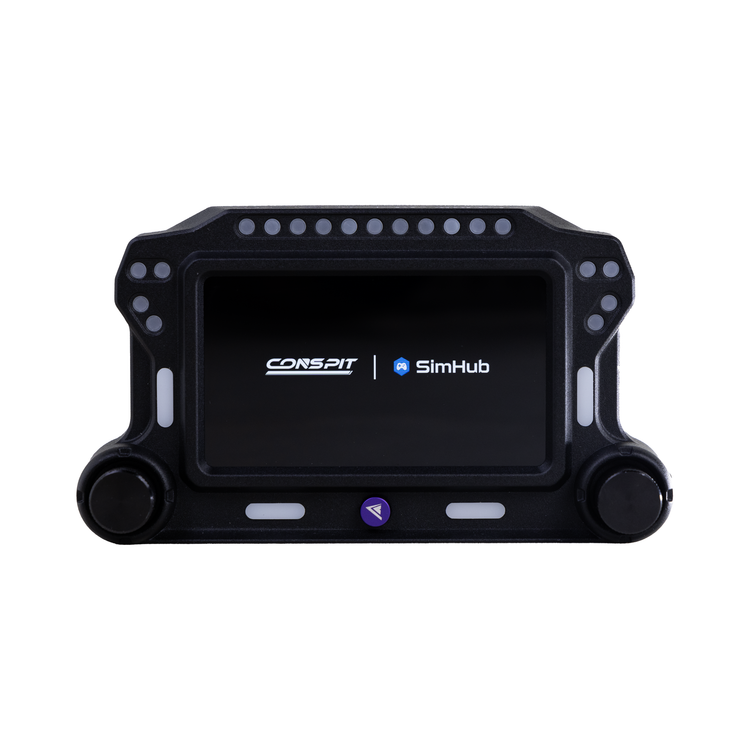

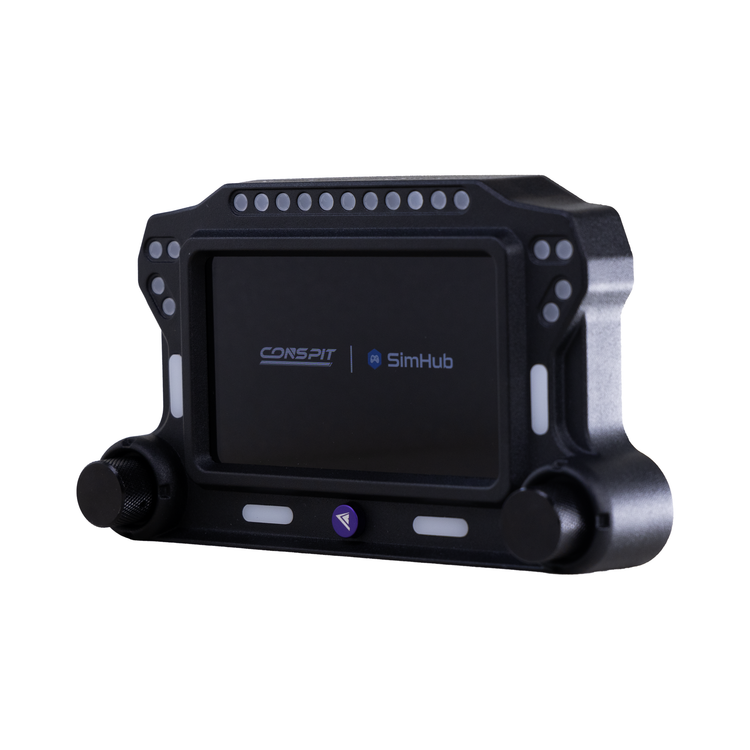

The CONSPIT CSD Lite is a 5" IPS touchscreen sim racing dashboard that brings GT race car instrumentation to your cockpit, on PC only. A 854 × 480 display running at 45 fps and 350 lumens delivers live telemetry through SimHub, while 31 RGB LEDs split across four segmented zones handle RPM lights, flags and custom alerts. Two encoder knobs and a multi-touch screen keep every page one gesture away, and the 6061-T6 aluminium shell mounts on a rig, an aluminium profile or directly on a wheelbase with the right adapter.
Key Features
- 5" IPS touchscreen — 854 × 480 resolution, 45 fps, 350 lumens, adjustable brightness
- 31 RGB LEDs across four segmented zones — RPM lights, flags, vehicle status and custom alerts
- 20+ preloaded LED modes — vehicle status and track conditions ready out of the box, no complex setup
- Full SimHub integration — ready-to-use preset file for dashboard displays, telemetry indicators and control functions
- Exclusive CONSPIT dash pages — downloadable layouts optimised for competitive racing, matched to CONSPIT hardware design
- Two encoder knobs and multi-touch screen — page navigation on the main knob, auxiliary cycling and two-finger zoom on the screen
- Fully customisable controls — every input can be reassigned to suit your setup
- 6061-T6 aluminium shell — sandblasted and anodised finish for durability
- Dual rear data ports — pick the side that suits your cable routing
Technical Specifications
- Product: CONSPIT CSD Lite
- Display: 5" IPS touchscreen, 854 × 480, 45 fps, 350 lumens, adjustable brightness
- Indicators: 31 RGB LEDs in four segmented zones
- Controls: 2 encoder knobs, multi-touch touchscreen with two-finger zoom

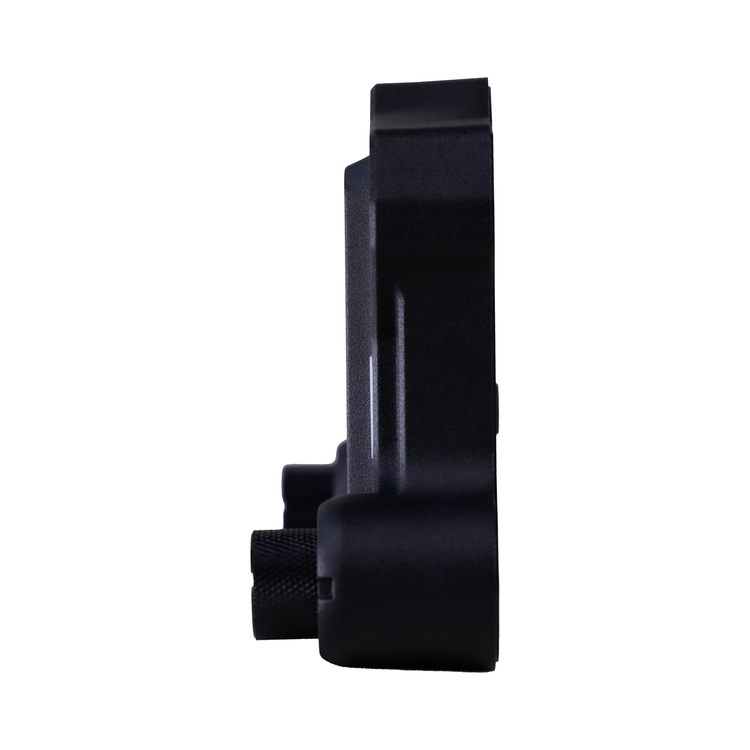

- Dimensions: 191 × 107 × 43 mm
- Main material: 6061-T6 aluminium alloy, sandblasted and anodised
- Mounting: aluminium alloy bracket, one 1/4 inch and two M4 threaded holes on the back
- Connection: USB direct, two data ports at the rear
- Cable: USB Type-C cable
- Software: SimHub
- Platform: PC only
Display and LED Feedback

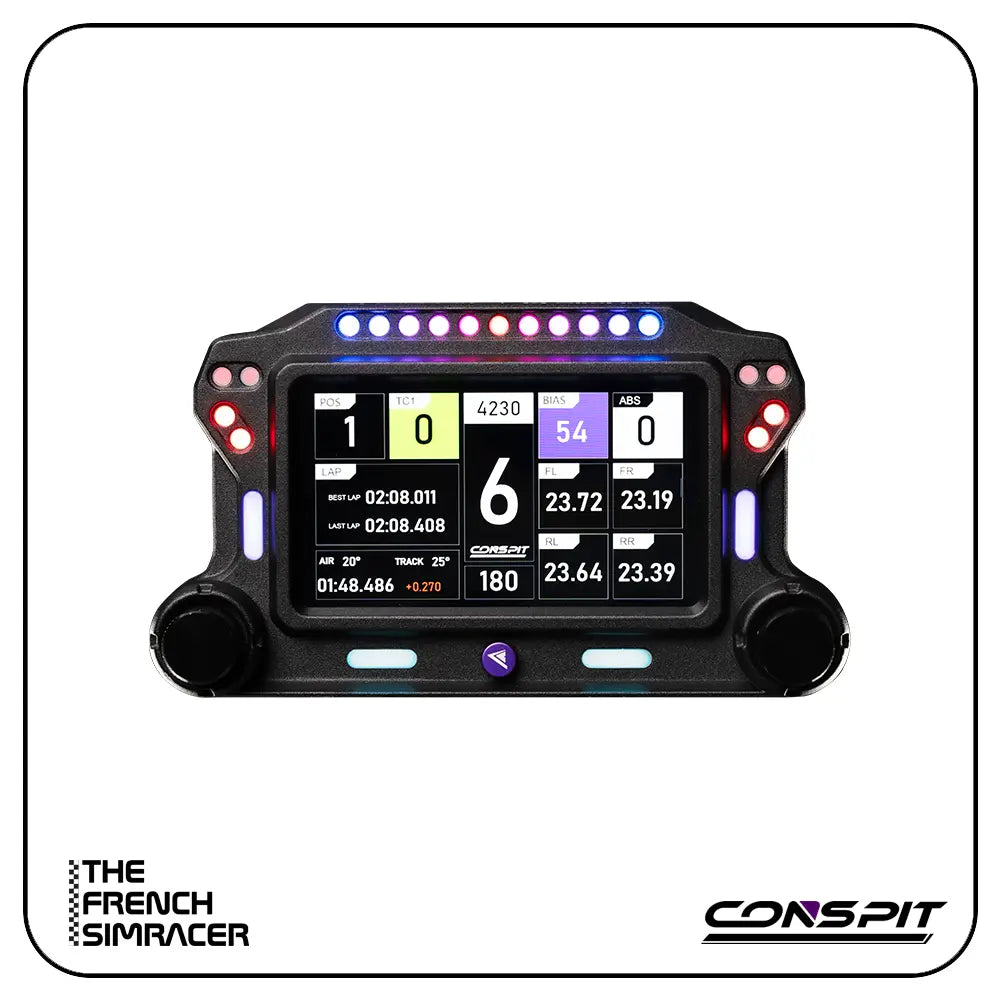

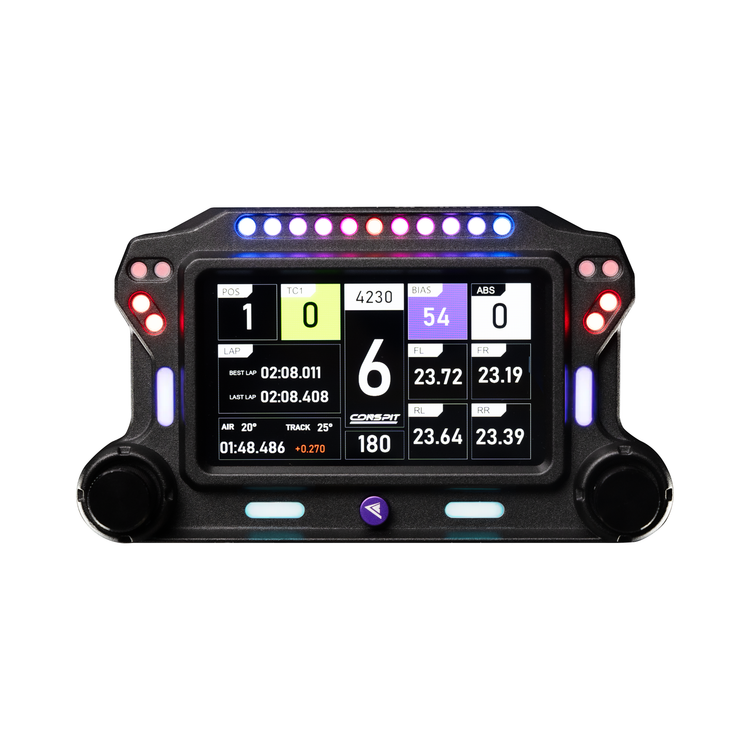

The 5" IPS panel puts gear, RPM, speed, lap timing, delta and session data in a single glance, with a 45 fps refresh that keeps readouts smooth under load. Above the screen, the LED array is split into four segmented indicator zones so RPM lights, flag alerts, radar and vehicle status never compete for the same strip. The preloaded profile ships with more than 20 configured modes, so the dashboard is useful the moment it is plugged in.
SimHub and CONSPIT Dash Pages
CONSPIT works directly with SimHub, and the CSD Lite is fully compatible with its dashboard functionality. A ready-to-use preset SimHub file covers dashboard displays, telemetry indicators and integrated control functions. Beyond the full SimHub library, CONSPIT also publishes exclusive dash pages for download, with data layouts tuned for competitive racing and visual elements matched to the brand's hardware.
Mounting Options

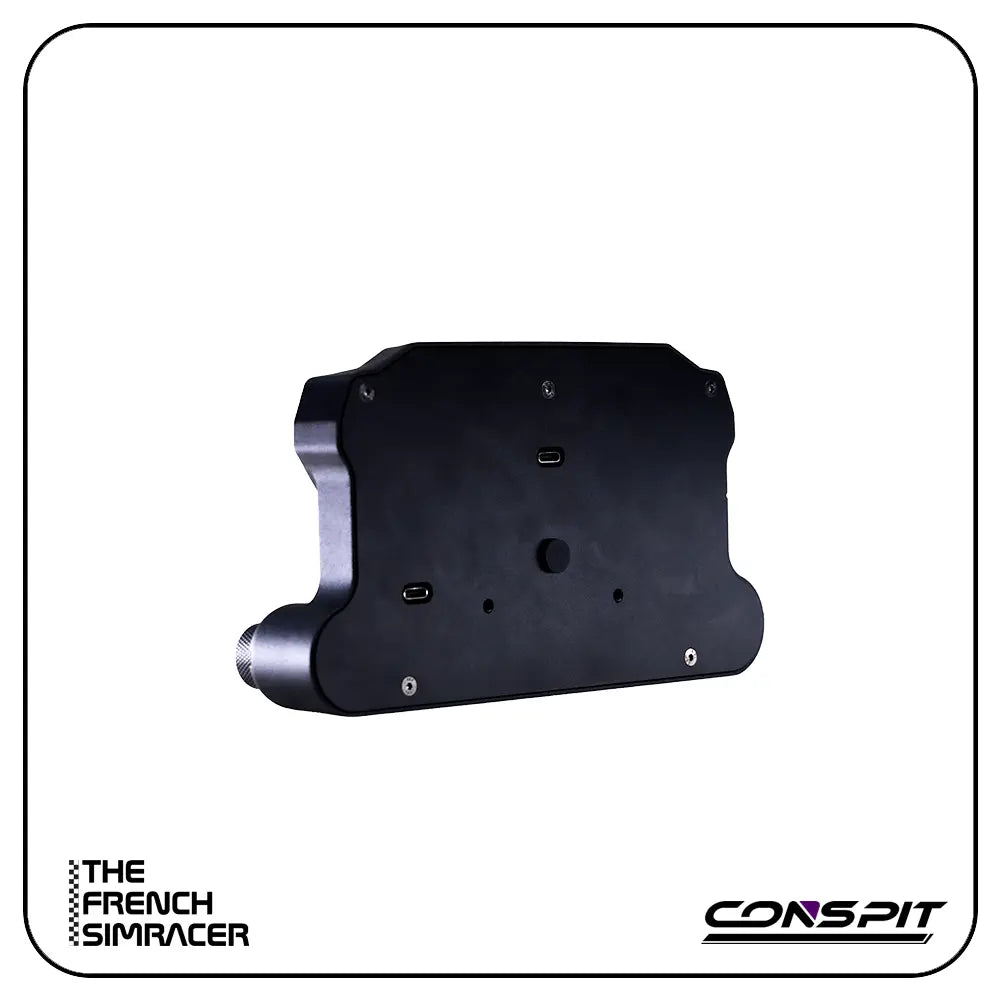

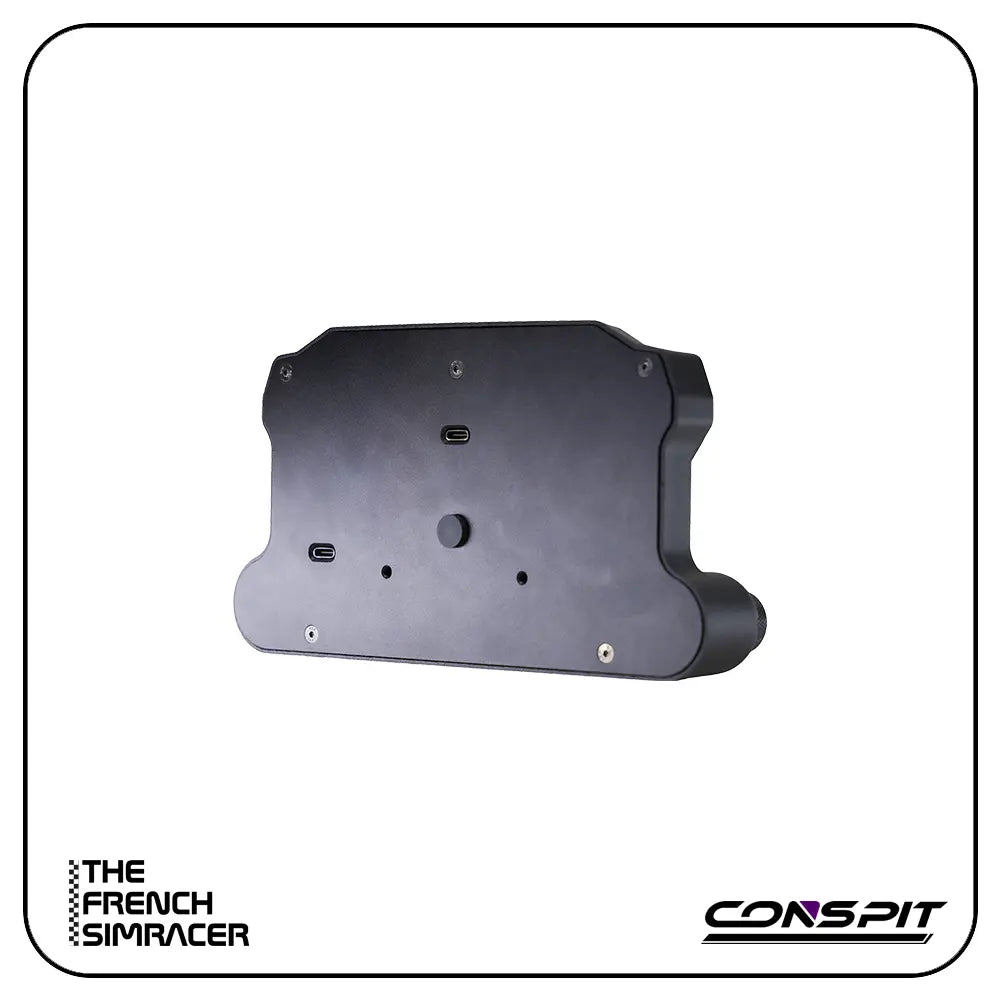

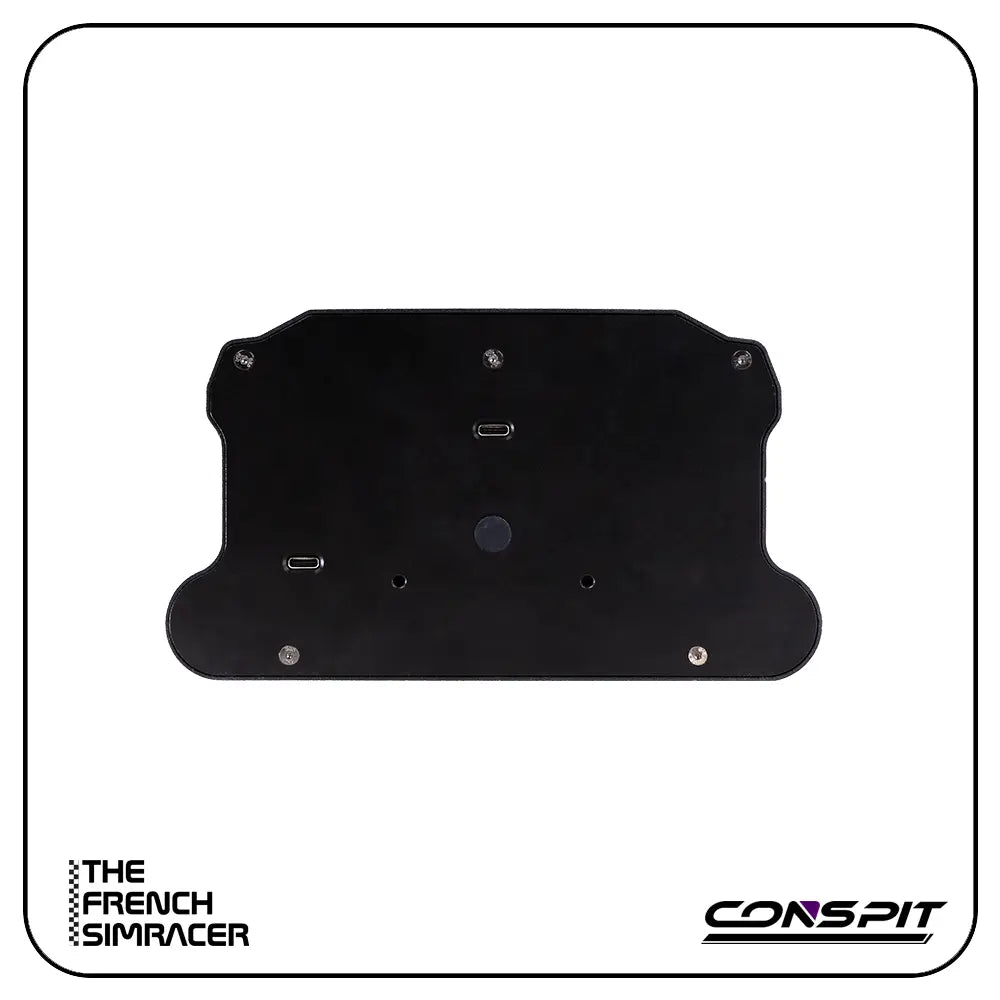

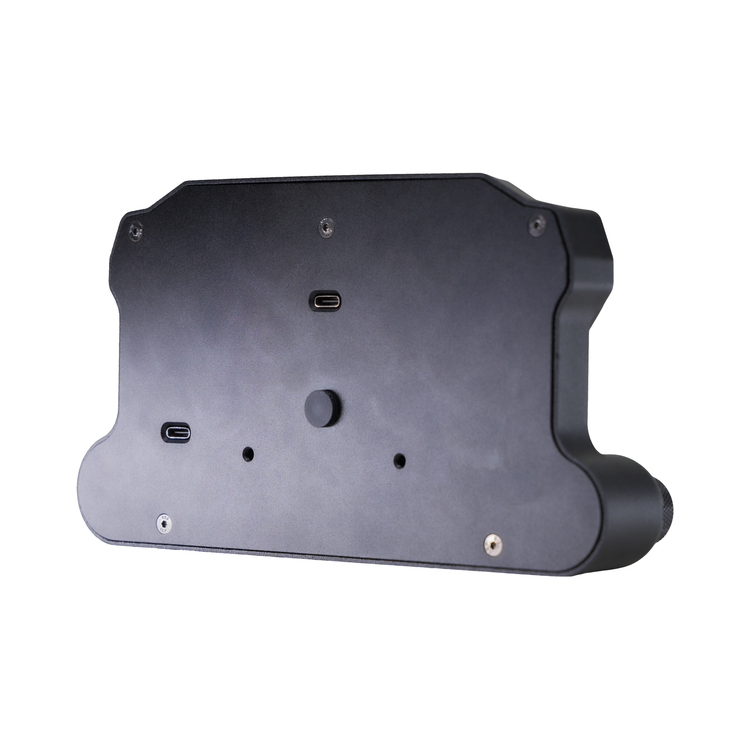

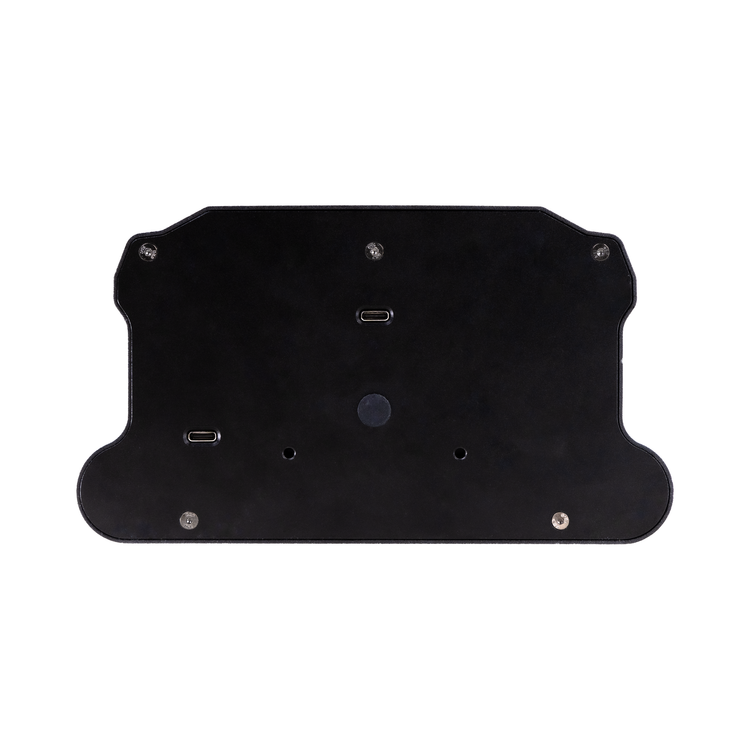

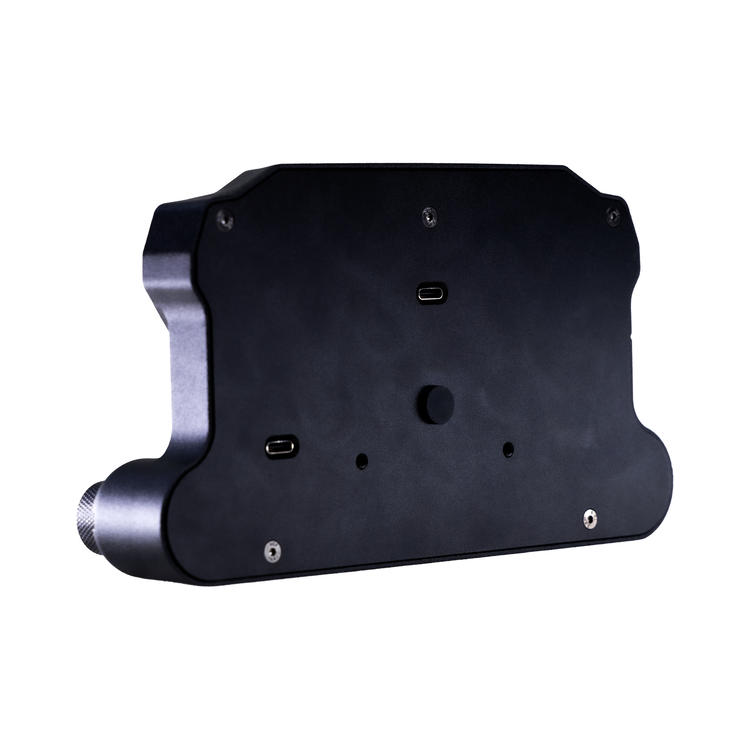

The CSD Lite mounts on the CONSPIT GT-Lite, on aluminium profile rigs, or on third-party sim racing rigs using dedicated adapters. It can also be installed directly on a wheelbase with the matching adapter bracket. The rear panel carries one 1/4 inch and two M4 threaded holes, and the two data ports let you pick whichever side keeps cable routing clean.
FAQ
Does the CSD Lite need SimHub to work?
Yes. Telemetry is driven by SimHub on PC. CONSPIT supplies a ready-to-use preset file, and additional CONSPIT dash pages are available for download.
How is it connected?
By USB direct to the PC with the supplied USB Type-C cable. Two data ports on the rear let you choose the connection side that suits your mounting.
Where can it be mounted?
On the CONSPIT GT-Lite, on aluminium profile rigs and on third-party rigs with dedicated adapters. It can also be fitted directly on a wheelbase using an adapter bracket. The back panel has one 1/4 inch and two M4 threaded holes.
What do the two knobs do?
The main knob handles dashboard page navigation, while the touchscreen cycles auxiliary pages and supports two-finger zoom. All controls are fully customisable.
Downloads
- Drivers, firmware & manuals — The French Simracer download center
- SimHub — official SimHub website
