Conspit CPP Lite Hydraulic Pedals (3 pedals)

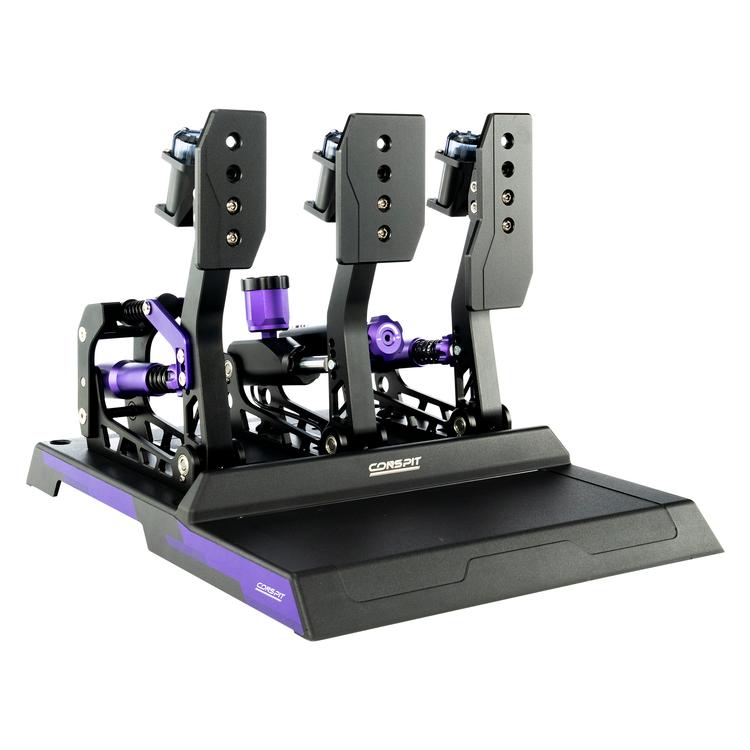

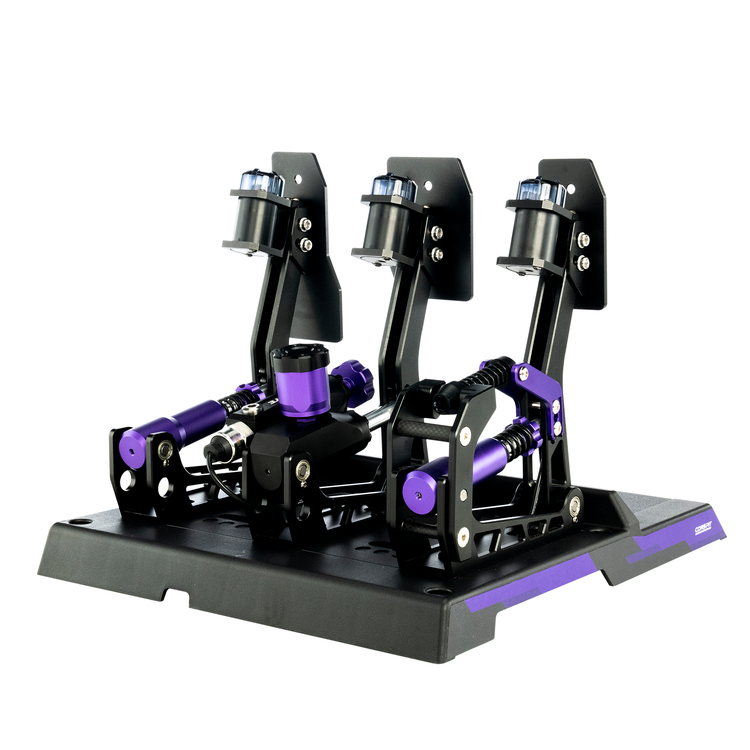

Conspit CPP Lite – 3 pedals

The Conspit CPP Lite is a hydraulic pedal set (throttle, brake and clutch) built in CNC-machined T6 aluminium. Its brake uses Conspit's generation 1.5 hydraulic system, with a redesigned internal chamber for better damping, a coated cylinder and an optimised piston, and an automotive-grade 10 MPa pressure sensor rated up to 100 bar (about 800 N). The throttle uses a contactless Hall sensor, and every pedal carries an M-DVF vibration motor for ABS, traction loss or wheel slip cues. The clutch uses a Hall sensor and a non-linear mechanism that reproduces the force curve of a real clutch. Everything is set up in Conspit Link 2.0 or SimHub, on PC.

Key features

• Generation 1.5 hydraulic brake: redesigned chamber, coated cylinder, optimised piston
• Automotive-grade 10 MPa pressure sensor, up to 100 bar of brake pressure
• Brake hardness set by 4 lever positions, plus adjustable hydraulic preload
• Contactless Hall sensor on the throttle and the clutch
• Throttle force set by 4 pin positions, travel adjustable by knob
• M-DVF vibration motor on every pedal, configurable in Conspit Link 2.0 and SimHub
• CNC-machined T6 aluminium pedals, anodised finish
• Custom curves, brake input limit and launch control in Conspit Link 2.0

Technical specifications

• Pedals: 3 (throttle, brake and clutch)
• Brake: generation 1.5 hydraulic, 10 MPa sensor
• Max brake pressure: 100 bar (about 800 N)
• Throttle and clutch: Hall sensor
• Vibration: M-DVF on every pedal
• Dimensions: 327 × 388 × 282 mm
• Material: T6 aluminium alloy
• Connection: USB direct or Conspit CAN (via Ares base)
• Software: Conspit Link 2.0, SimHub
• Platform: PC

In the box

• CPP Lite pedals (throttle, brake and clutch)
• Baseplate
• Spare elastomers
• Cables
• Tools, including the hydraulic preload tool

Important notes

The supplied baseplate is in plastic; check its hole pattern against your rig with the template available from Conspit. The pedals can also be bolted directly to a rig's pedal plate.

Compatibility

• PC Windows only. Not compatible with Xbox or PlayStation.
• Aluminium profile rigs and cockpits with a pedal plate
• Conspit Ares bases via Conspit CAN, or direct USB

Which model to choose

• Conspit CPP Lite: hydraulic brake (generation 1.5), 10 MPa sensor, 100 bar max, Hall throttle and clutch, M-DVF vibration on every pedal. 2 or 3 pedals.
• Conspit CPP Apex: dual-chamber hydraulic brake, 10 MPa sensor, two-stage feel, enclosed Hall throttle. 2 pedals, clutch and M-DVF optional.
• Conspit CPP EVO V2: 2nd-generation dual-stage hydraulic brake, 20 MPa sensor (about 200 kg), chrome-plated steel piston, PTFE bearings, M-DVF included. 2 or 3 pedals.

FAQ

How much brake force does the CPP Lite handle?

The Conspit CPP Lite brake is rated up to 100 bar of hydraulic pressure, about 800 N. Its hardness is set by 4 lever positions and an adjustable hydraulic preload. The CPP EVO V2 goes further with a 20 MPa sensor.

Is vibration included with the CPP Lite?

Yes. Every pedal of the Conspit CPP Lite has an M-DVF vibration motor, configurable in Conspit Link 2.0 and SimHub to feel ABS, traction loss or wheel slip.

How does the CPP Lite clutch feel?

The Conspit CPP Lite clutch uses a non-linear mechanism that reproduces the force curve and travel of a real clutch, read by a contactless Hall sensor.

Should I choose the CPP Lite or the CPP EVO V2?

The Conspit CPP Lite offers a hydraulic brake up to 100 bar with vibration on every pedal. The CPP EVO V2 adds a dual-stage brake with a 20 MPa sensor, a chrome-plated steel piston and 4 adjustment levels per pedal, for drivers who brake very hard.

Which games work with the CPP Lite?

The Conspit CPP Lite works with PC sims including iRacing, Assetto Corsa Competizione, Assetto Corsa EVO, Le Mans Ultimate, rFactor 2, Automobilista 2, F1 and EA Sports WRC.

Does the CPP Lite work on PS5 or Xbox?

No. The Conspit CPP Lite works on PC Windows only.

Who handles warranty and after-sales service?

The French Simracer handles after-sales service for the Conspit CPP Lite, as for every brand it sells, with a contact based in France. You never deal with the manufacturer directly. The product carries the 2-year legal warranty, or the manufacturer warranty if longer.
