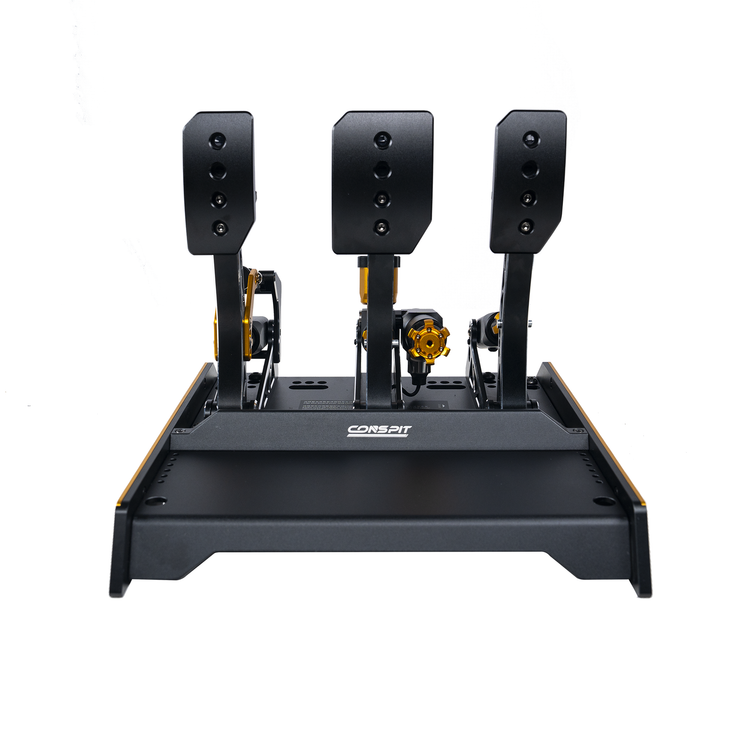

Conspit CPP EVO V2 3 pedals hydraulic sim racing pedal set

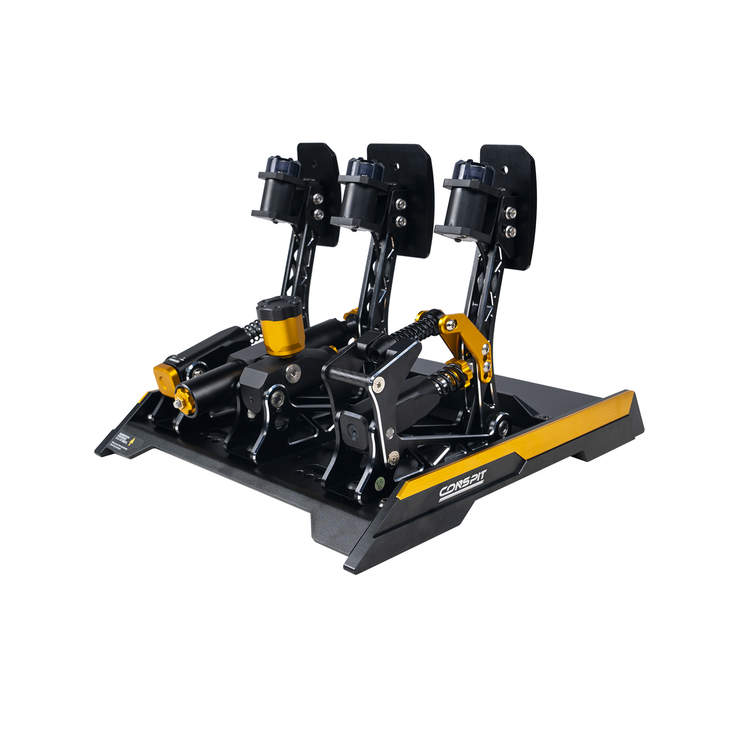

Conspit CPP EVO V2 3 pedals hydraulic sim racing pedal set, photo 2

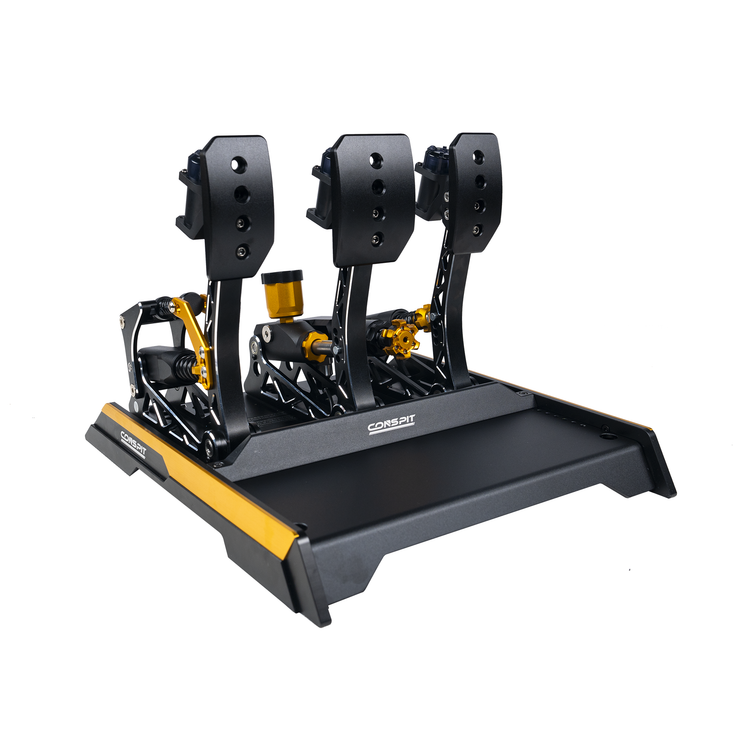

Conspit CPP EVO V2 3 pedals hydraulic sim racing pedal set, photo 3

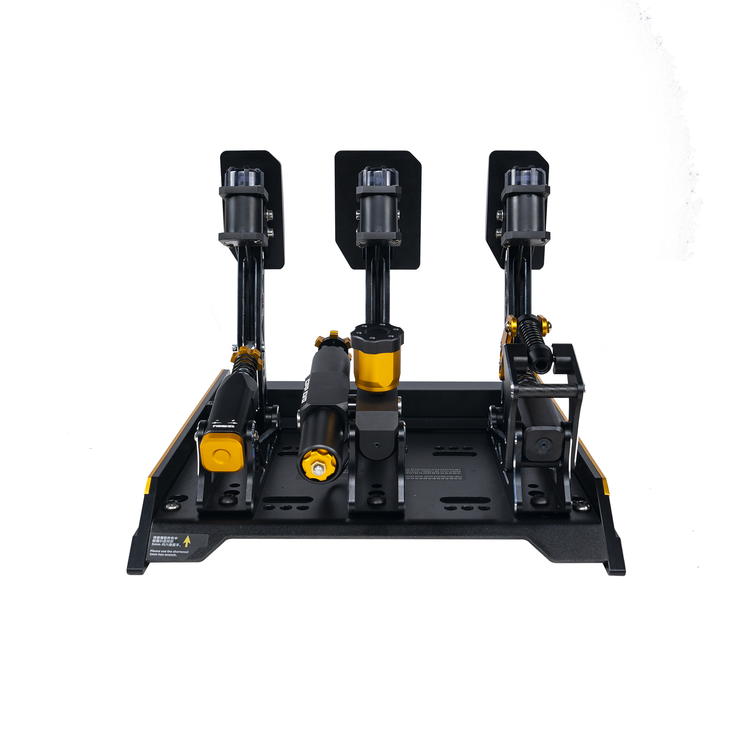

Conspit CPP EVO V2 3 pedals hydraulic sim racing pedal set, photo 4

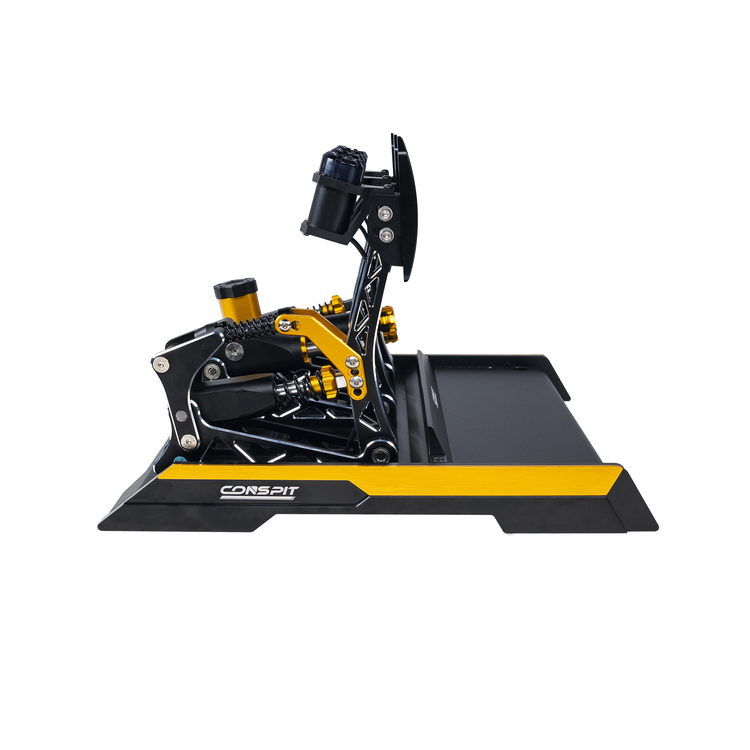

Conspit CPP EVO V2 3 pedals hydraulic sim racing pedal set, photo 5

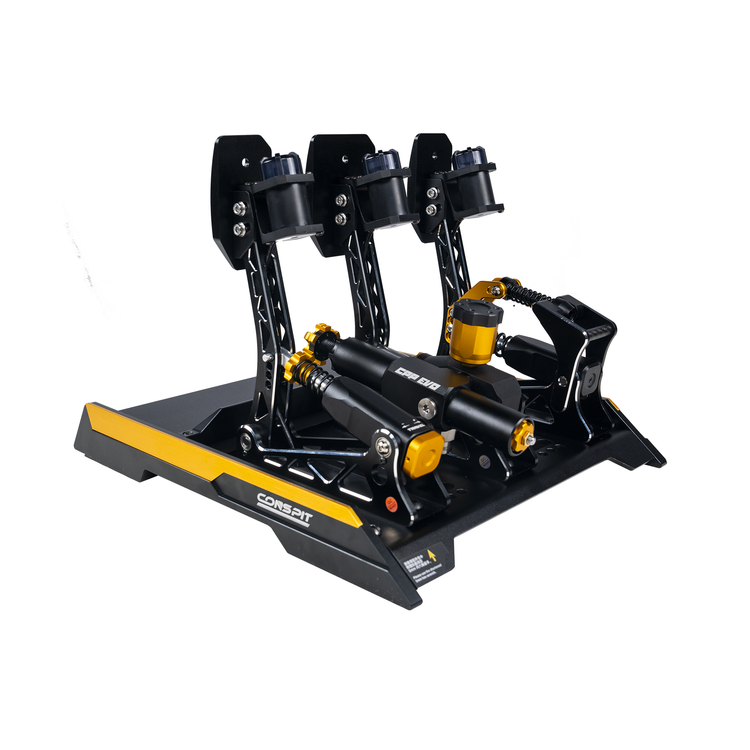

Conspit CPP EVO V2 3 pedals hydraulic sim racing pedal set, photo 6

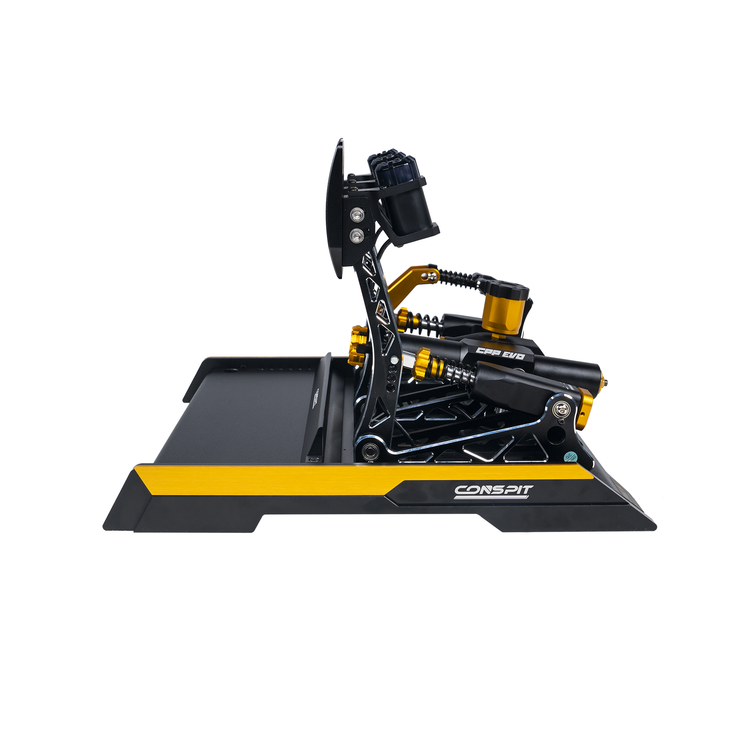

Conspit CPP EVO V2 3 pedals hydraulic sim racing pedal set, photo 7

Conspit CPP EVO V2 Hydraulic Pedals (3 pedals)

Vendor: Conspit
SKU: CP312
Barcode: 6977068961182
Availability: In stock
Product type: Simracing > Pédaliers > Hydrauliques
Regular price
789,90€
Regular price
899,90€
Sale price
789,90€
Save 110,00€

About VAT

Subtotal: 789,90€

Ships within 1–2 business days

Secured Payments

More than 10 Years of Expertise

Conspit CPP EVO V2 – 3 pedals



The Conspit CPP EVO V2 is Conspit's top hydraulic pedal set, here in its 3-pedal version (throttle, brake and clutch). Its 2nd-generation dual-stage brake combines springs and elastomers with independent preload on each stage, read by a 20 MPa hydraulic sensor (about 200 kg). The V2 update brings a chrome-plated steel piston instead of aluminium and PTFE bearings for a smoother travel. Every pedal offers 4 levels of quick force adjustment, and the M-DVF vibration module is included as standard. It is machined from 6061-T6 aluminium and connects over USB or through a Conspit Ares base.

Key features

  • 2nd-generation dual-stage hydraulic brake, independent preload for each stage
  • 20 MPa hydraulic sensor (about 200 kg)
  • V2: chrome-plated steel piston for smoother travel and less wear
  • PTFE bearings on throttle and brake
  • 4-level quick force adjustment on every pedal
  • Throttle with decoupled travel and preload adjustment
  • Clutch with adjustable bite point and preload
  • M-DVF vibration included, SimHub ShakeIt and iRacing
  • CNC-machined 6061-T6 aluminium, sandblasted and anodised
  • Adjustable pedal spacing, angle, plate height and heel rest

Technical specifications

  • Pedals: 3 (throttle, brake and clutch)
  • Brake: 2nd-gen dual-stage hydraulic, chrome-plated steel piston
  • Sensor: 20 MPa hydraulic (about 200 kg)
  • Force adjustment: 4 levels per pedal
  • Vibration: M-DVF included
  • Material: CNC 6061-T6 aluminium
  • Connection: USB direct or Conspit CAN (Ares base)
  • Software: Conspit Link 2.0, SimHub
  • Platform: PC

In the box

  • CPP EVO V2 pedals (throttle, brake and clutch)
  • M-DVF vibration modules
  • Mounting hardware
  • Connection cables
  • User manual and quick guide

Important notes

The pedals are fixed from below on an aluminium profile rig or a cockpit pedal plate.

Compatibility

  • PC Windows only. Not compatible with Xbox or PlayStation.
  • Aluminium profile rigs and cockpits with a pedal plate
  • Conspit Ares bases via Conspit CAN, or direct USB

Which model to choose

  • Conspit CPP Lite: hydraulic brake (generation 1.5), 10 MPa sensor, 100 bar max, Hall throttle and clutch, M-DVF vibration on every pedal. 2 or 3 pedals.
  • Conspit CPP Apex: dual-chamber hydraulic brake, 10 MPa sensor, two-stage feel, enclosed Hall throttle. 2 pedals, clutch and M-DVF optional.
  • Conspit CPP EVO V2: 2nd-generation dual-stage hydraulic brake, 20 MPa sensor (about 200 kg), chrome-plated steel piston, PTFE bearings, M-DVF included. 2 or 3 pedals.

FAQ

What changes between the CPP EVO and the CPP EVO V2?

The Conspit CPP EVO V2 replaces the aluminium brake piston with a chrome-plated steel piston, adds PTFE bearings and a refined spring and elastomer system, and includes the M-DVF vibration module as standard.

Is the clutch adjustable?

Yes. The clutch of the Conspit CPP EVO V2 has 4 force levels and an adjustable bite point and preload.

Is vibration included with the CPP EVO V2?

Yes. The Conspit CPP EVO V2 ships with the M-DVF vibration module, configurable in SimHub and supported in iRacing.

Should I choose the CPP EVO V2 or the CPP Lite?

The Conspit CPP EVO V2 reads up to 20 MPa (about 200 kg) with a dual-stage brake and 4 adjustment levels per pedal. The CPP Lite is rated to 100 bar, for drivers who do not need that much brake force.

Does the CPP EVO V2 work on PS5 or Xbox?

No. The Conspit CPP EVO V2 works on PC Windows only.

Who handles warranty and after-sales service?

The French Simracer handles after-sales service for the Conspit CPP EVO V2, as for every brand it sells, with a contact based in France. You never deal with the manufacturer directly. The product carries the 2-year legal warranty, or the manufacturer warranty if longer.
