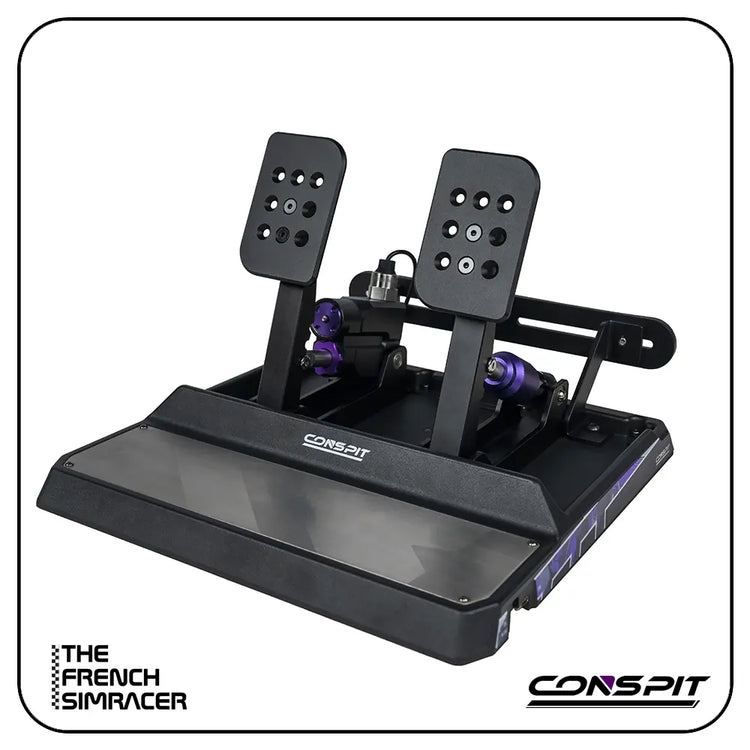

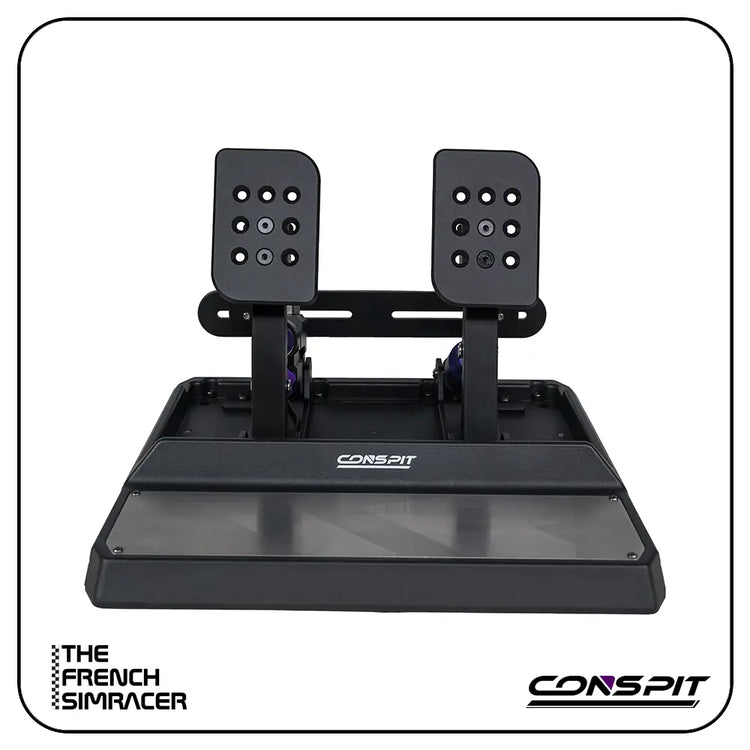

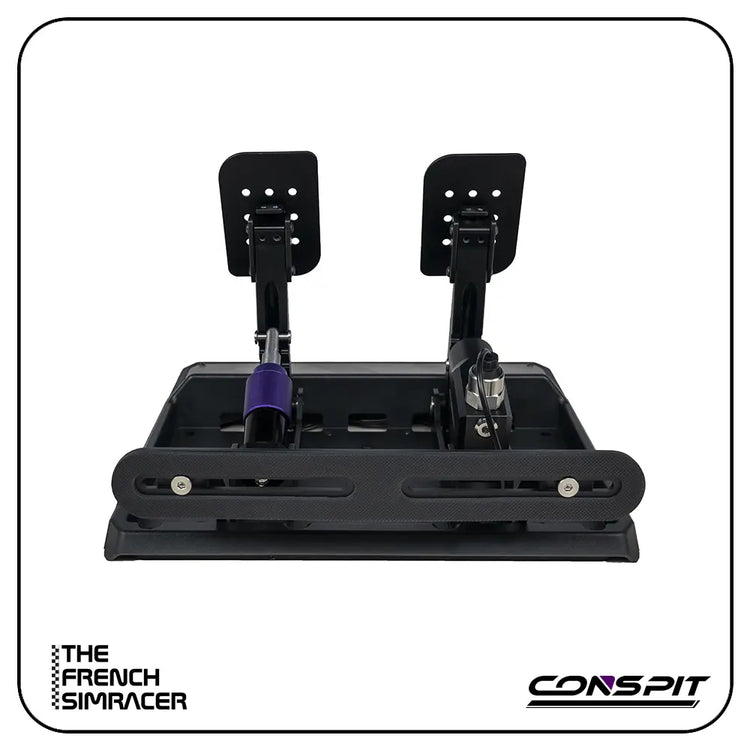

Conspit CPP Apex Hydraulic Pedals (2 pedals)

Conspit CPP Apex

The Conspit CPP Apex is a 2-pedal hydraulic set (throttle and brake). Its brake uses a one-piece die-cast aluminium dual-chamber cylinder with a 10 MPa pressure sensor and a two-stage feel: a spring for the first part of the travel, then a customisable elastomer that builds pressure like a real brake. The throttle uses a Hall sensor in an enclosed housing. The pedals are CNC-machined with bearing-supported pivots, on a 5 mm steel chassis with a stainless heel rest and a damped sandwich baseplate. It connects over USB or to a Conspit Ares base, and a clutch pedal and M-DVF vibration modules are available as options.

Key features

• One-piece die-cast aluminium dual-chamber brake cylinder
• 10 MPa hydraulic pressure sensor
• Two-stage brake feel: spring, then customisable elastomer
• Hall-effect throttle in an enclosed housing
• CNC-machined pedals with bearing-supported pivots
• 5 mm steel chassis, stainless heel rest, damped sandwich baseplate
• Three-stage quick adjustment, swappable springs and elastomers
• USB direct or connection through a Conspit Ares base

Technical specifications

• Pedals: 2 (throttle, brake)
• Brake: dual-chamber hydraulic, 10 MPa sensor
• Throttle: Hall sensor
• Chassis: 5 mm steel, CNC aluminium pedals
• Adjustment: 3 quick positions, springs and elastomers
• Connection: USB direct, or Conspit Ares base rear port
• Software: Conspit Link 2.0, SimHub
• Platform: PC

In the box

• CPP Apex pedals (throttle and brake)
• Wall-mount bracket with non-slip pads
• USB cable
• User manual

Important notes

The clutch pedal and the M-DVF vibration modules are sold separately. M-DVF vibration works over direct USB only, not when the pedals are connected through an Ares base.

Compatibility

• PC Windows only. Not compatible with Xbox or PlayStation.
• Aluminium profile rigs and cockpits with a pedal plate
• Conspit Ares bases (rear port) or direct USB

Which model to choose

• Conspit CPP Lite: hydraulic brake (generation 1.5), 10 MPa sensor, 100 bar max, Hall throttle and clutch, M-DVF vibration on every pedal. 2 or 3 pedals.
• Conspit CPP Apex: dual-chamber hydraulic brake, 10 MPa sensor, two-stage feel, enclosed Hall throttle. 2 pedals, clutch and M-DVF optional.
• Conspit CPP EVO V2: 2nd-generation dual-stage hydraulic brake, 20 MPa sensor (about 200 kg), chrome-plated steel piston, PTFE bearings, M-DVF included. 2 or 3 pedals.

FAQ

Can I add a clutch to the CPP Apex?

Yes. The Conspit CPP Apex Clutch Pedal mounts on the existing CPP Apex baseplate and turns it into a 3-pedal set.

Can the CPP Apex connect through my Ares base?

Yes. The Conspit CPP Apex plugs into the rear port of a Conspit Ares base, which avoids a USB cable to the PC. M-DVF vibration then is not available; it needs a direct USB connection.

Is vibration included with the CPP Apex?

No. The Conspit M-DVF Vibration Feedback Kit is sold separately and is configured in SimHub.

Should I choose the CPP Apex or the CPP Lite?

The Conspit CPP Apex has a dual-chamber brake with a two-stage feel on a steel chassis, at a lower price. The CPP Lite adds a 100 bar brake rating and M-DVF vibration on every pedal as standard.

Does the CPP Apex work on PS5 or Xbox?

No. The Conspit CPP Apex works on PC Windows only.

Who handles warranty and after-sales service?

The French Simracer handles after-sales service for the Conspit CPP Apex, as for every brand it sells, with a contact based in France. You never deal with the manufacturer directly. The product carries the 2-year legal warranty, or the manufacturer warranty if longer.
