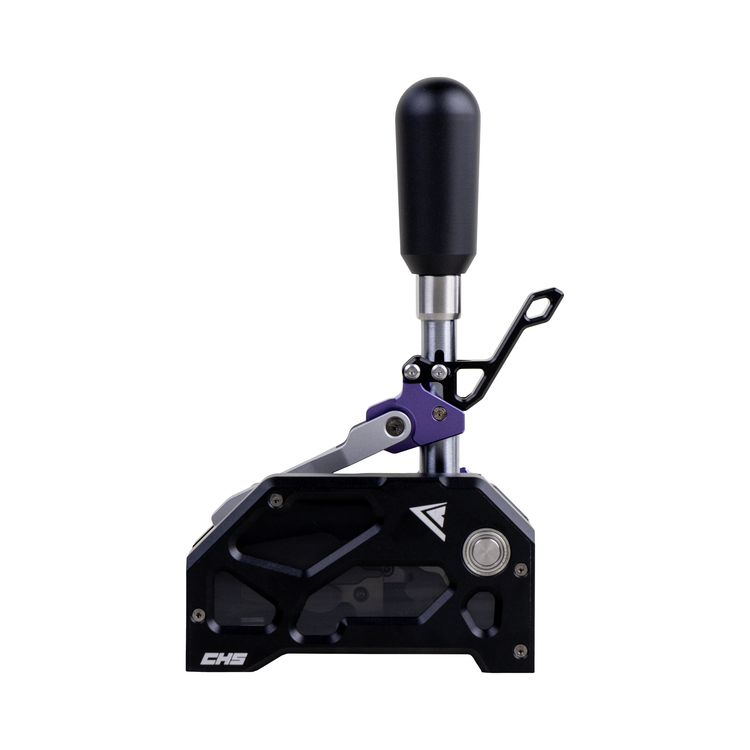

CONSPIT CHS Shifter SQ+H

CONSPIT CHS Shifter

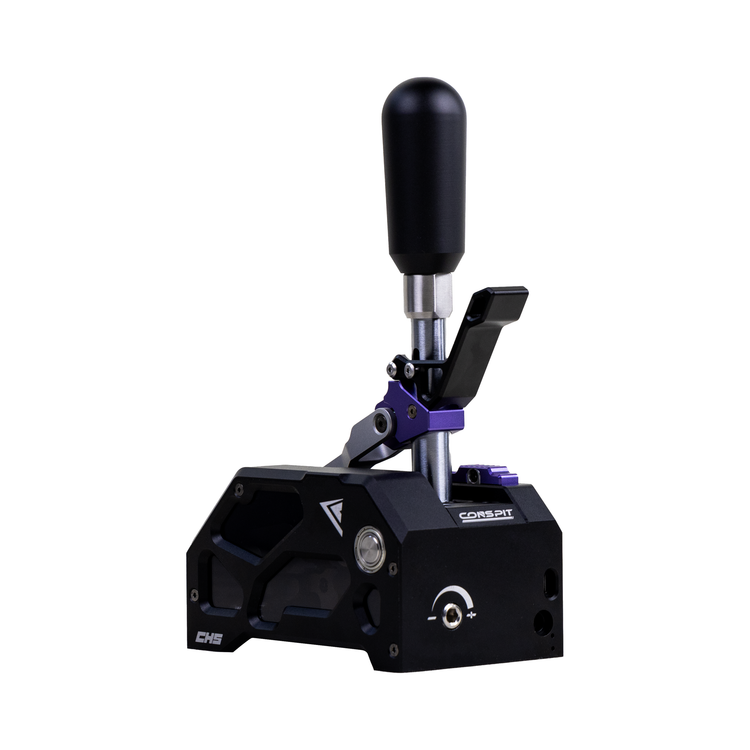

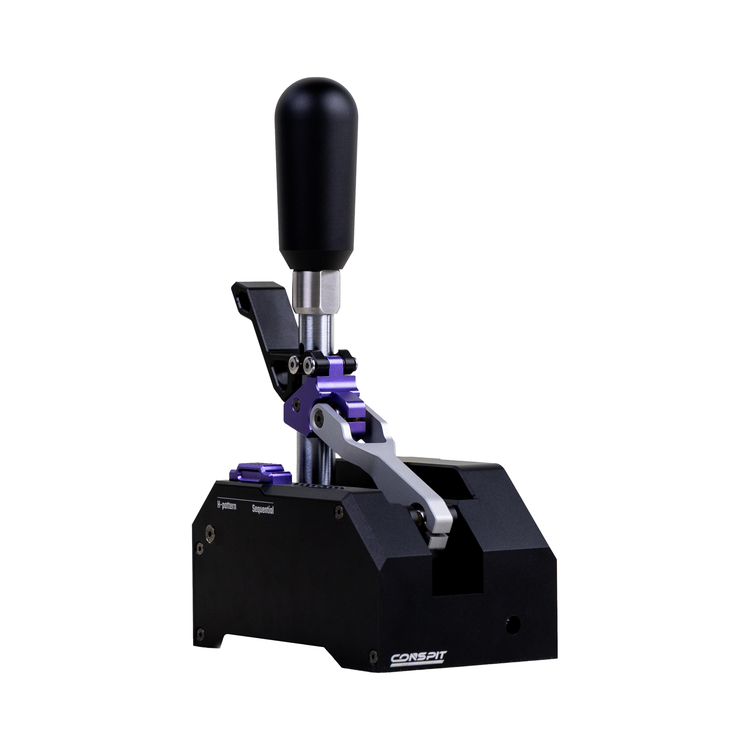

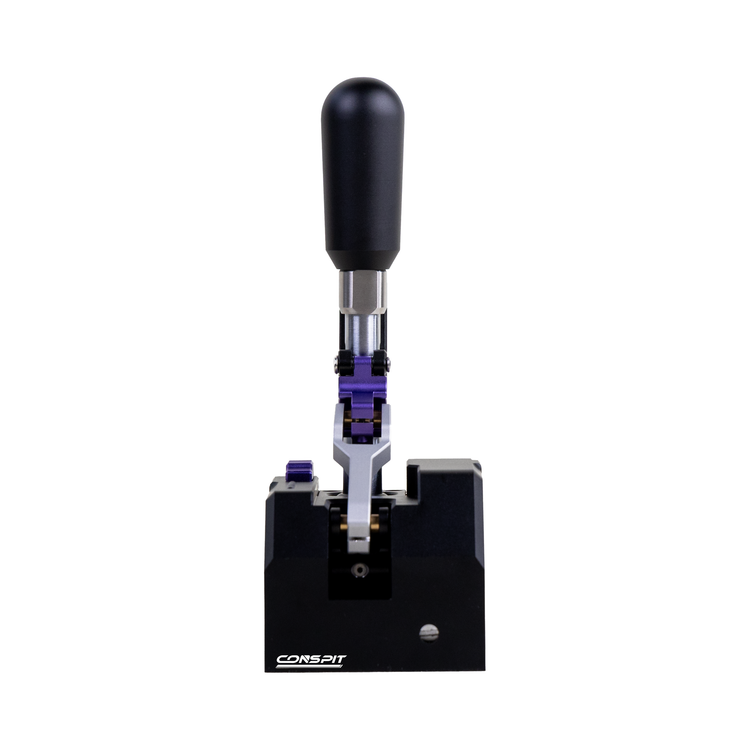

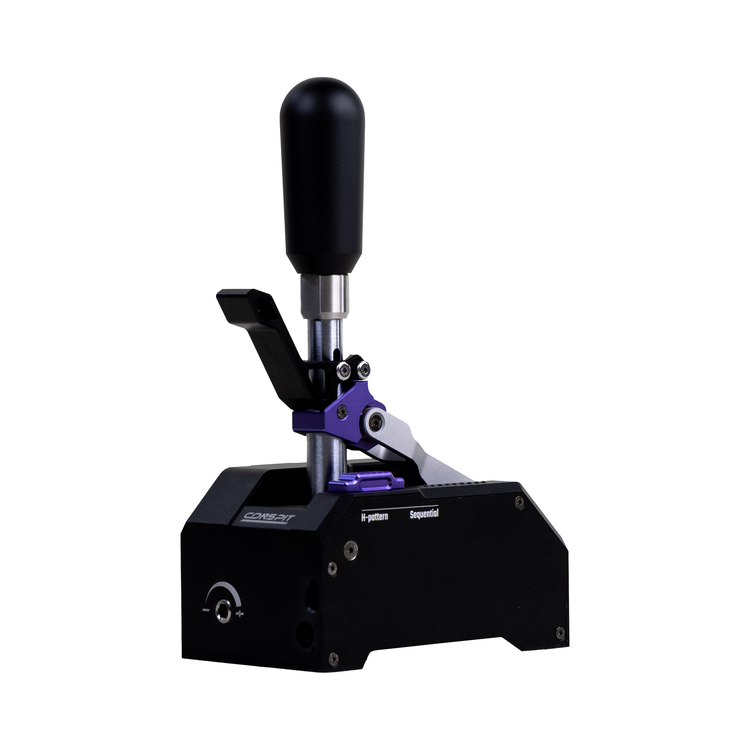

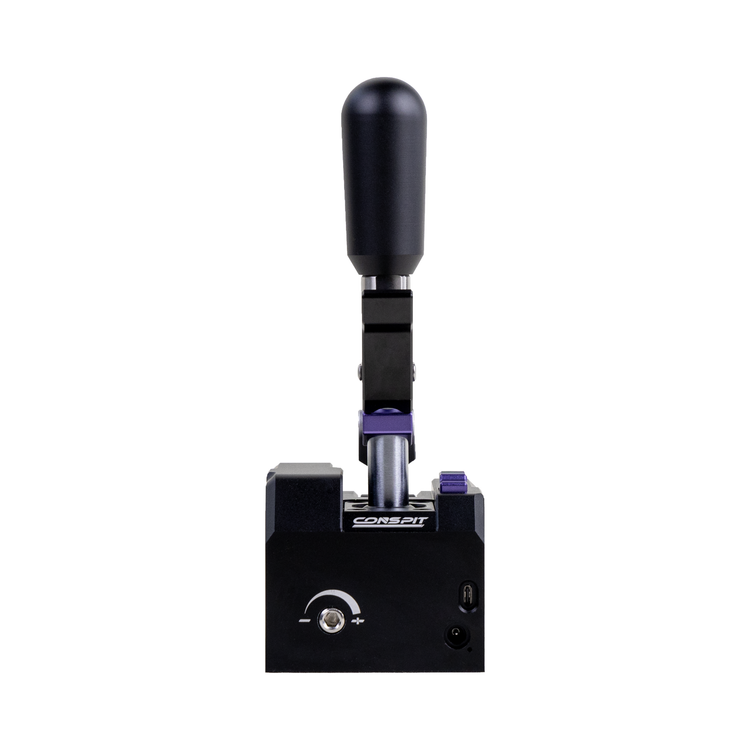

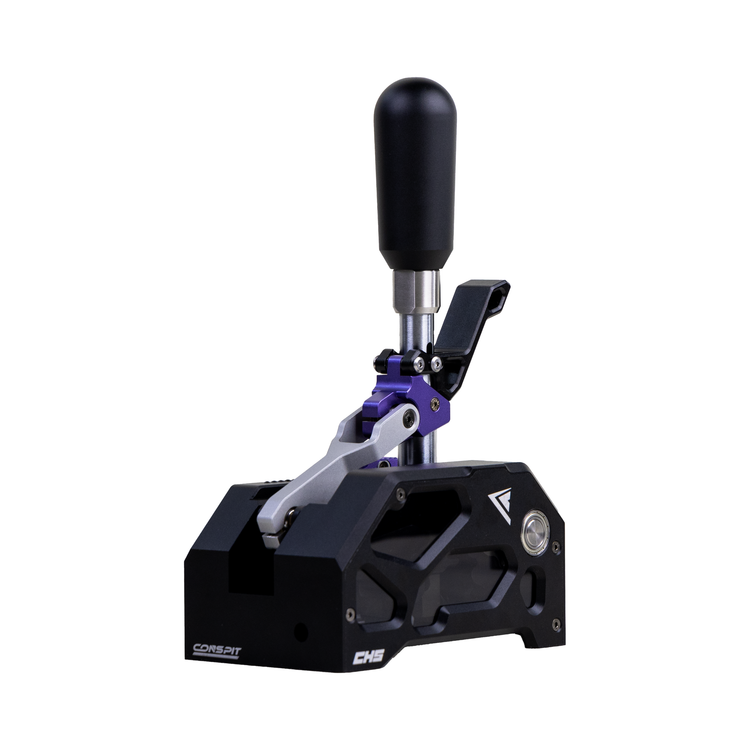

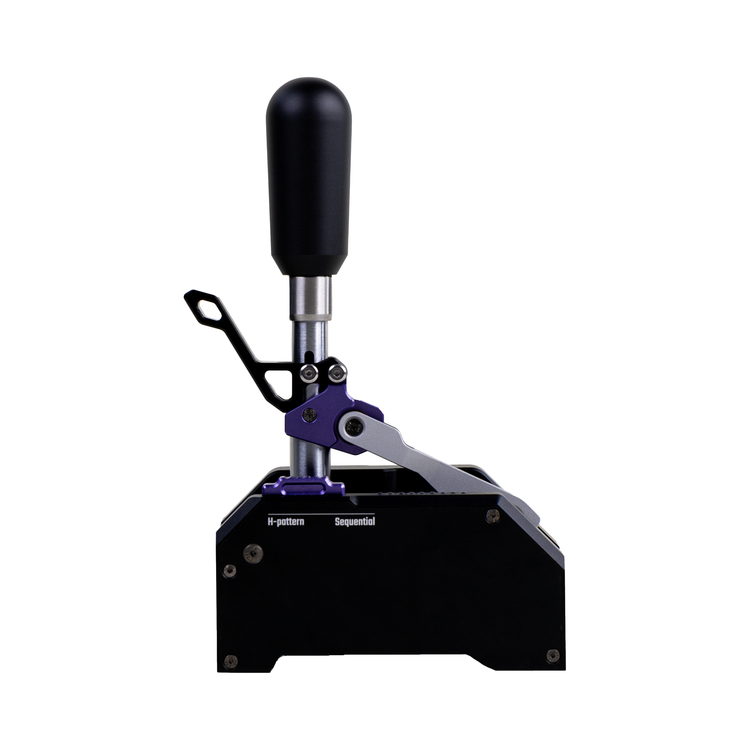

The CONSPIT CHS is a compact, full-metal sim racing shifter with dual-mode switching between H-pattern and sequential, built around an in-house developed internal mechanism focused on a crisp, engaging mechanical shift feel. Measuring just 150 x 95 mm, it offers 7 gears plus reverse in H-pattern mode via a lock-release lever, adjustable shift force, integrated LED lighting with SimHub compatibility, and ships with a shift lever extension rod as standard.

Main Features

• Full metal construction: rigid all-metal structure for excellent durability and long-term resistance to deformation.
• In-house developed internal mechanism: the core mechanical structure is independently developed for stable, reliable performance.
• Engaging mechanical shift feel: crisp, direct shifts designed to recreate the feedback of a real mechanical transmission.
• H-pattern & sequential dual mode: a dedicated mode switch toggles instantly between H-pattern (7 gears + reverse) and sequential (+/-) operation.
• Lock-release lever: pull up to engage reverse or 7th gear in H-pattern mode, preventing accidental mis-shifts.
• Adjustable shift force: fine-tune the shifting resistance with the included 6.0 hex wrench via the dedicated adjustment bolt.

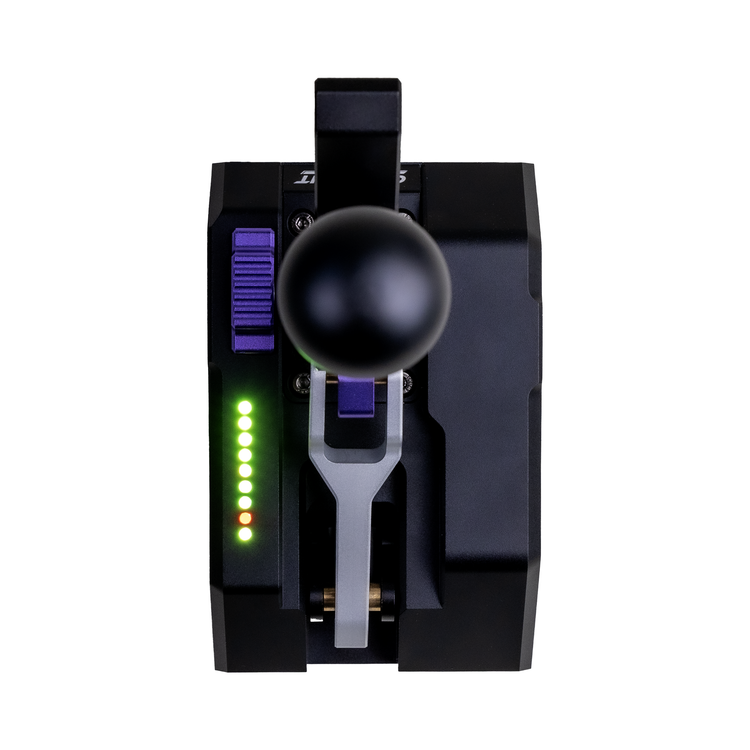

• LED integration with SimHub compatibility: integrated indicator lights support lighting effects and SimHub synchronization.
• Compact footprint (150 x 95 mm): saves space and allows flexible mounting and placement.
• Extension rod included as standard: raises the shift lever for a more comfortable throw and less fatigue over long sessions.

Technical Specifications

• Construction: full metal
• Modes: H-pattern (7 gears + reverse) and sequential (+/-), switchable
• Reverse / 7th gear: engaged via lock-release lever
• Shift force: adjustable via bolt (6.0 hex wrench included)
• Lighting: integrated LED indicator lights, SimHub compatible
• Footprint: 150 x 95 mm
• Connection: USB Type-C port (to PC)
• Software: Conspit Link 2.0
• Extension rod: included

What's in the Box

• CHS Shifter
• Shift lever extension rod (1x)
• Rig adapter brackets (2x)
• M6x16mm hex bolts (4x)
• M5x10mm countersunk hex bolts (4x)
• M5x12mm flange hex bolts (4x)
• M6 flange nuts (4x)
• M6 gaskets (4x)
• Hex wrenches 6.0 / 5.0 / 3.0
• Sticker set
• USB cable

Compatibility

PC only. The CHS connects to a Windows PC via its USB Type-C port and is configured through the Conspit Link 2.0 software, available from the CONSPIT website. It mounts directly onto CONSPIT brackets with the supplied M5 bolts, or onto most third-party rigs and side mounts using the two included rig adapter brackets with M6 hardware. Mounting hole pattern: 134 x 64 mm (M5).

Setup Notes

• Installation: around 5-10 minutes, with all hardware and tools included.
• Mode switching: toggle the mode switch forward for H-pattern, backward for sequential — no software change required.
• Extension rod: unscrew the shift lever, thread on the extension rod, then refit the lever.

FAQ

Can the CHS switch between H-pattern and sequential modes?

Yes. A mode switch on the top of the unit toggles instantly between H-pattern and sequential. In H-pattern mode you get 7 gears plus reverse; in sequential mode the lever operates as +/- shifts.

How do I engage reverse gear?

Pull up the lock-release lever while shifting to engage reverse or 7th gear in H-pattern mode. This prevents accidental engagement during fast shifting.

Is the shift force adjustable?

Yes. A shift force adjustment bolt on the side of the unit lets you increase or decrease resistance using the included 6.0 hex wrench.

Does the CHS work with SimHub?

Yes. The integrated LED lighting supports SimHub synchronization for interactive lighting effects, and the unit is configured through the Conspit Link 2.0 software.

How do I mount the CHS on my rig?

The CHS mounts directly onto CONSPIT brackets with four M5 bolts, or onto most other rigs and side mounts using the two included rig adapter brackets with the supplied M6 hardware. Its compact 150 x 95 mm footprint keeps placement flexible.
