Conspit Build Your Own Bundle – Ares CDR

Conspit Build Your Own Bundle – Ares CDR

The Conspit Build Your Own Bundle – Ares CDR lets you put together a complete Conspit setup in three choices: an Ares Direct Drive base (8, 12 or 20 Nm), a steering wheel from the Conspit range with the CDR quick release, and, if you want, CPP hydraulic pedals (Lite or EVO V2, 2 or 3 pedals). Everything comes from the same ecosystem: one software, Conspit Link 2.0, and pedals that can connect through the base. The bundle price is lower than buying each product separately.

Key features

• 3 choices, 105 combinations: base, wheel, pedals (or no pedals)
• CDR quick release: NRG-style, automatic locking, wireless signal through pogo pins
• One ecosystem: base, wheel and pedals set up in Conspit Link 2.0, SimHub supported
• Pedals through the base: CPP pedals can connect to the Ares base over Conspit CAN
• Bundle price lower than the products bought separately

Technical specifications

Ares Direct Drive wheelbases

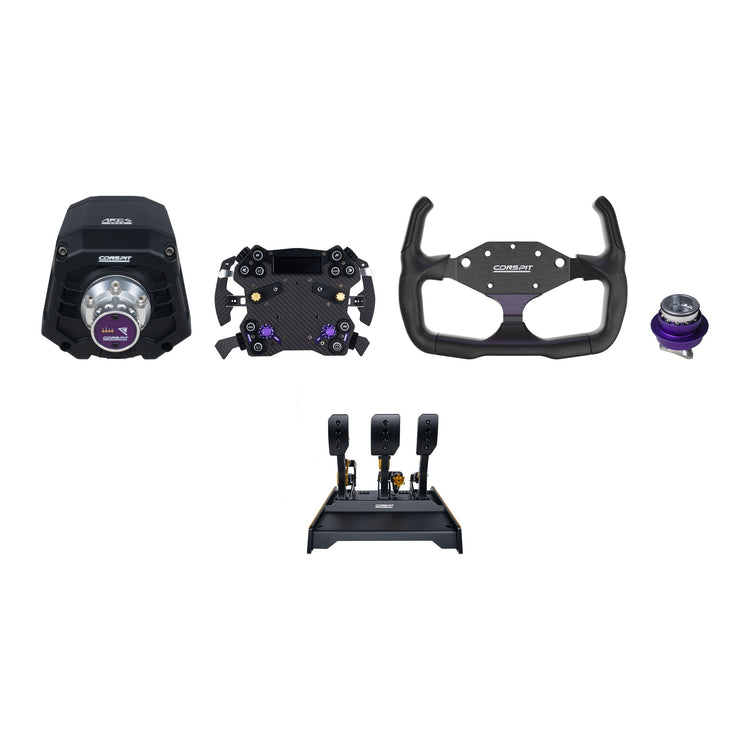

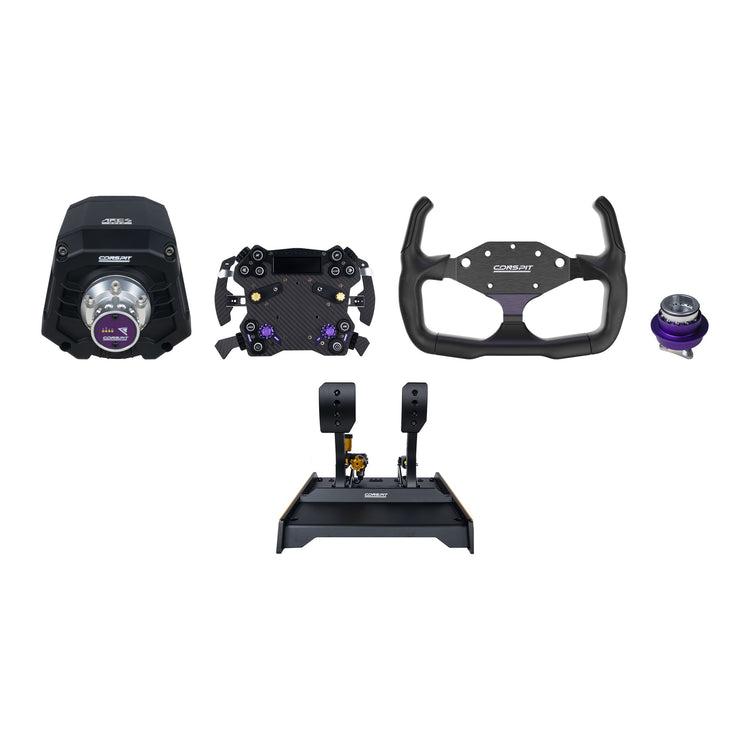

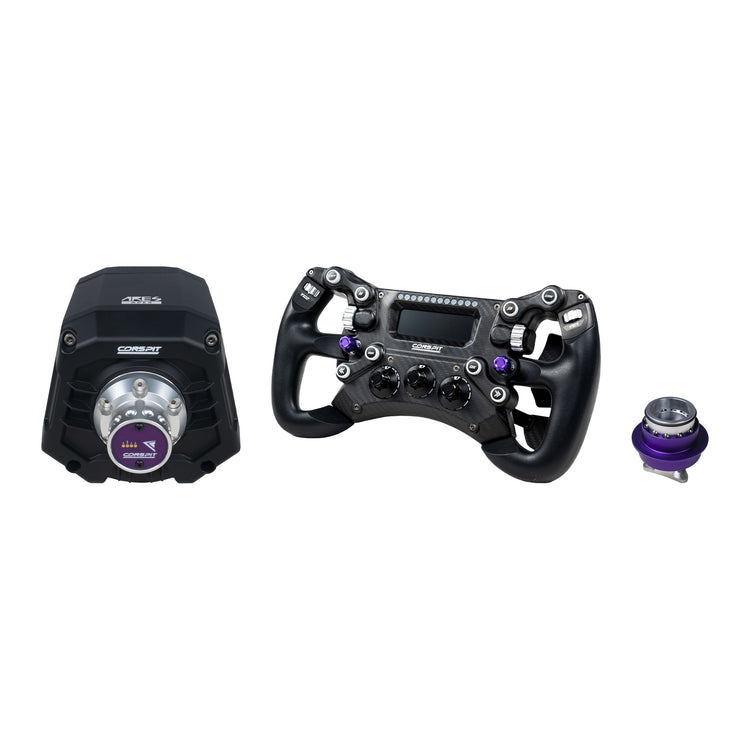

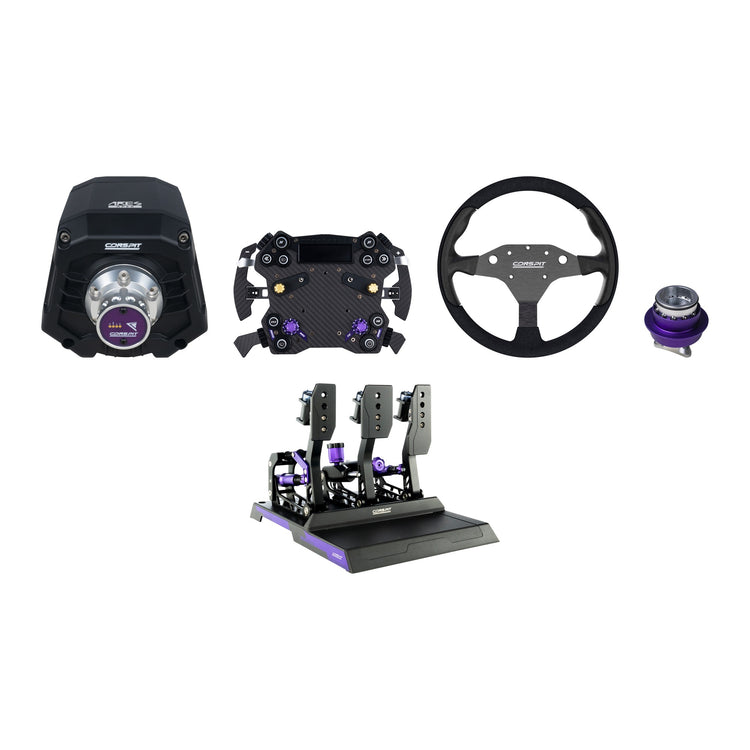

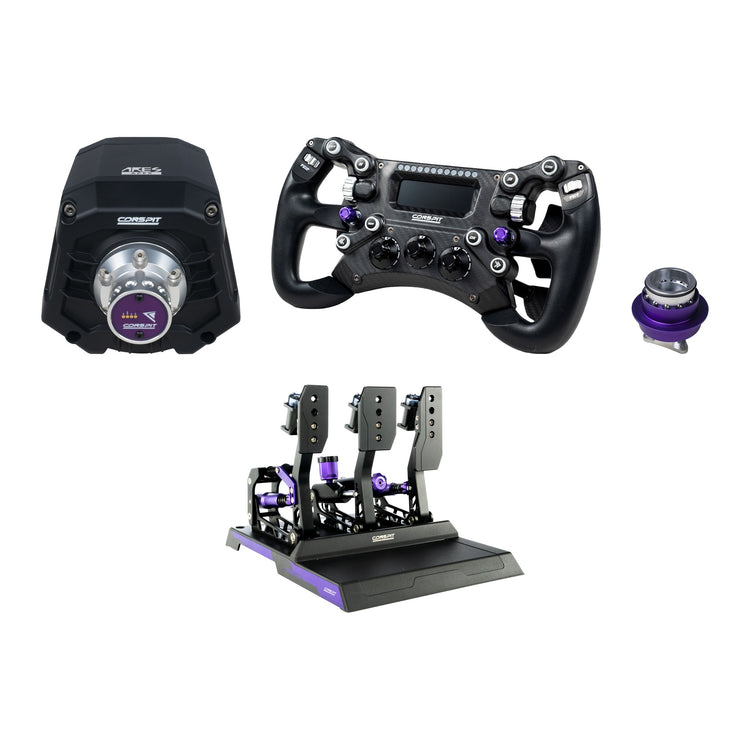

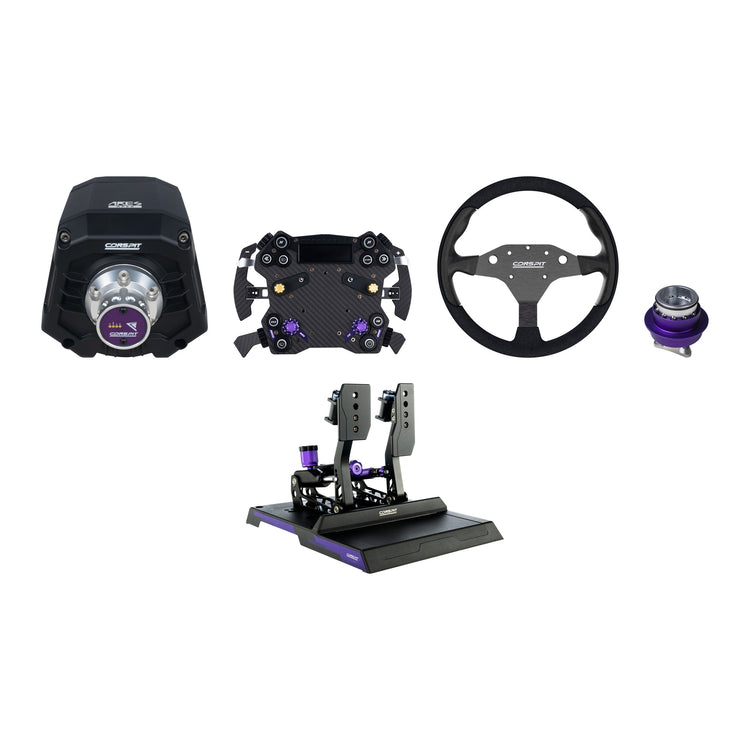

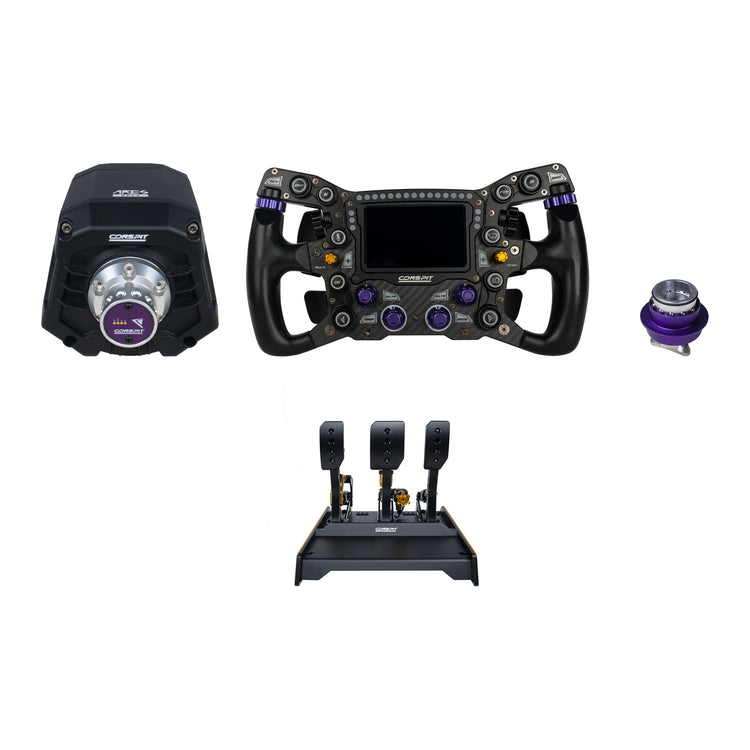

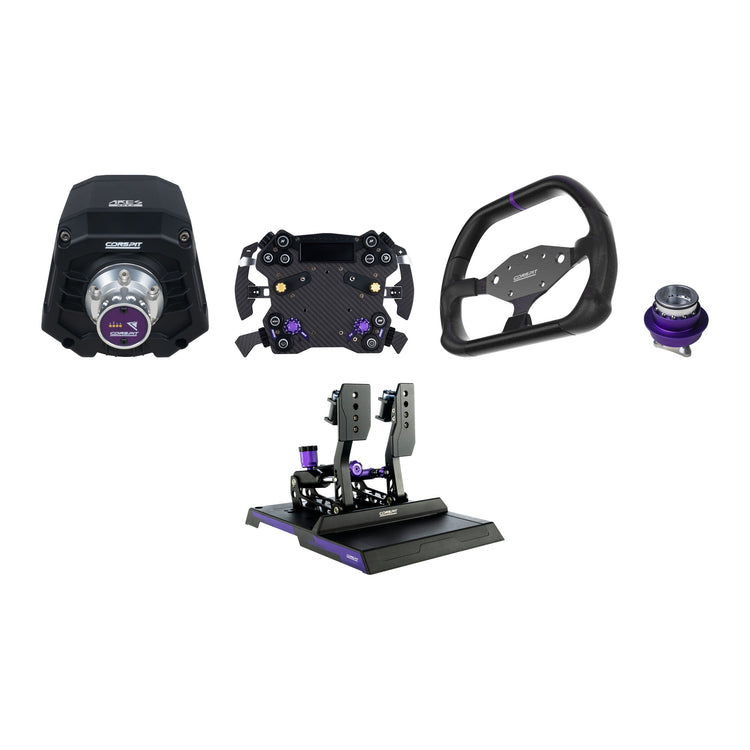

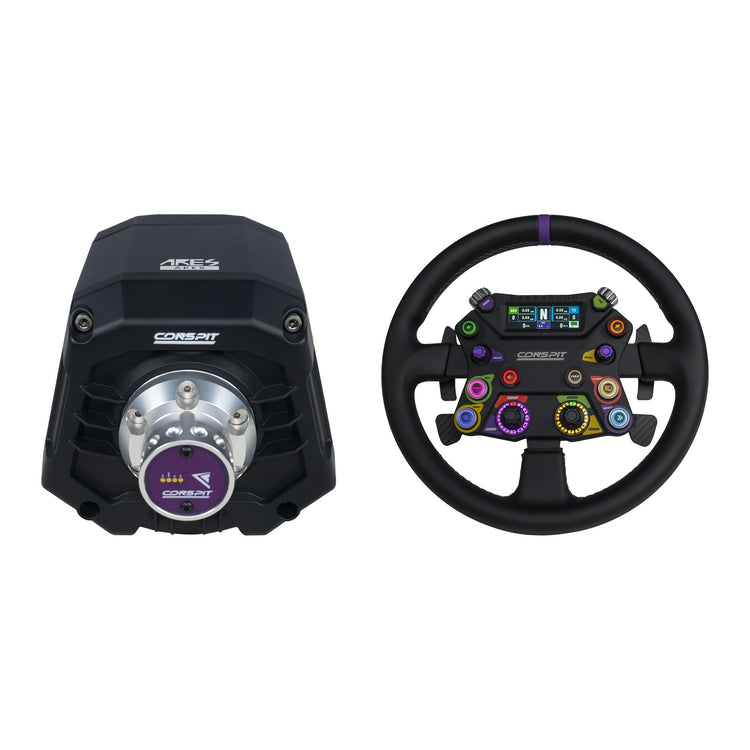

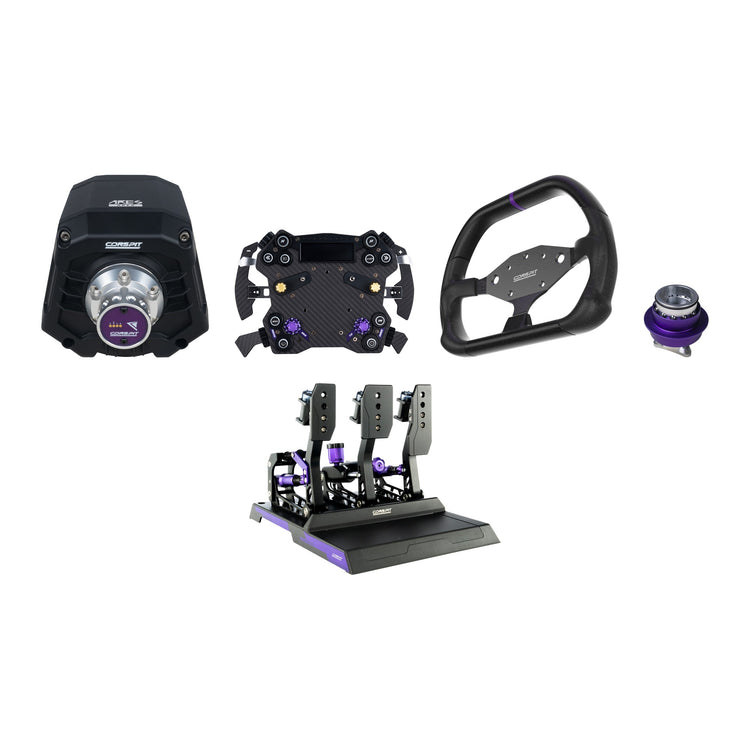

• Ares Apex 8 Nm: skew-pole direct drive motor, 21-bit magnetic encoder, compact 134 × 150 × 196 mm, 5.9 kg; for a first direct drive base or a desk setup

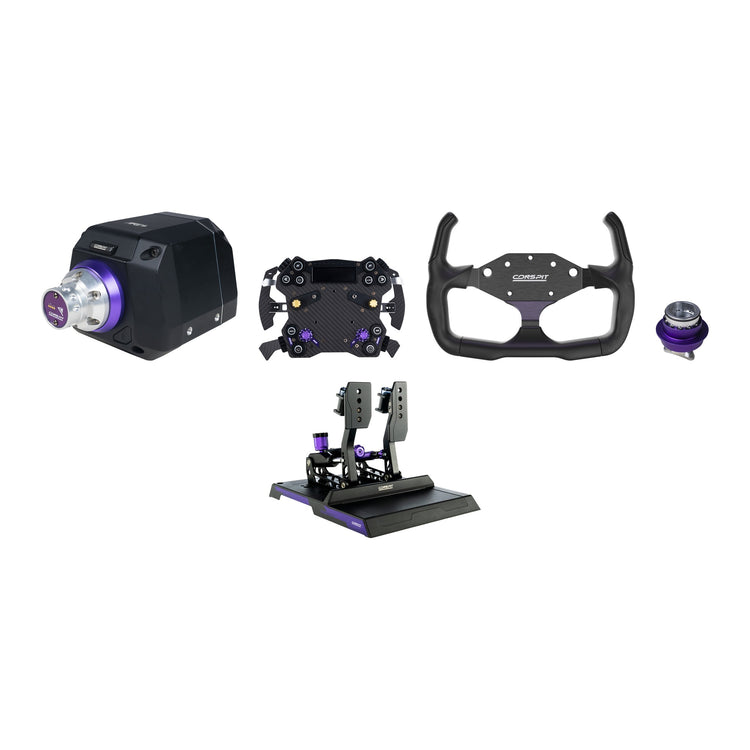

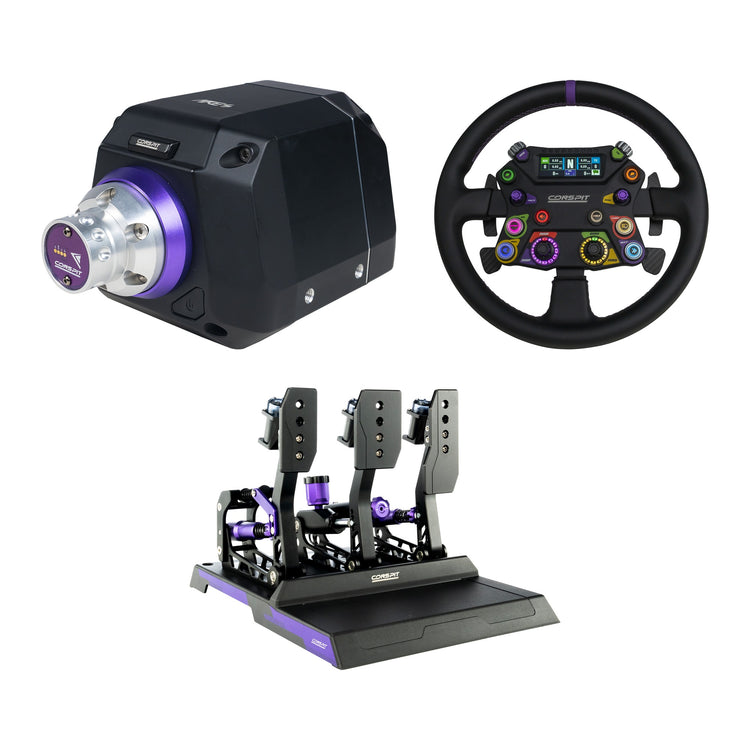

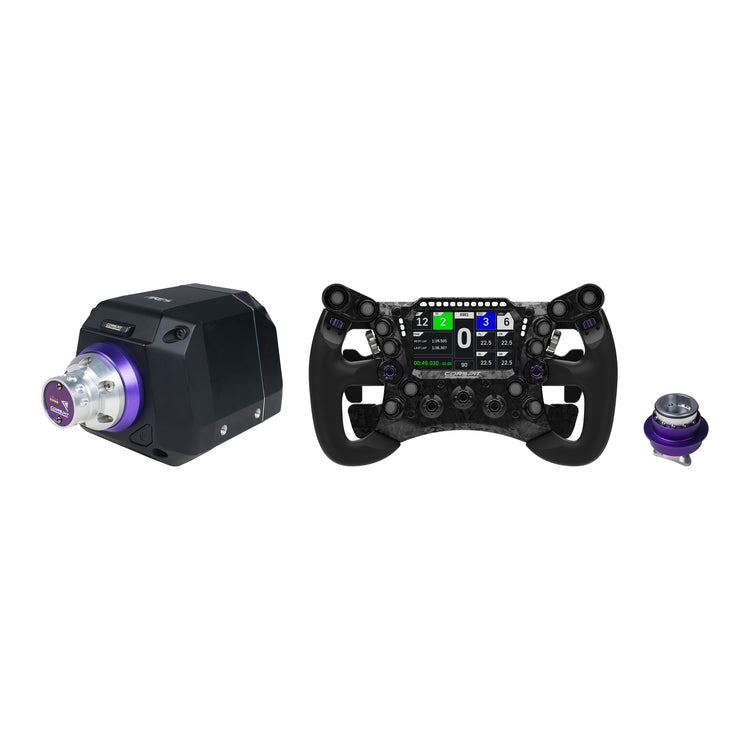

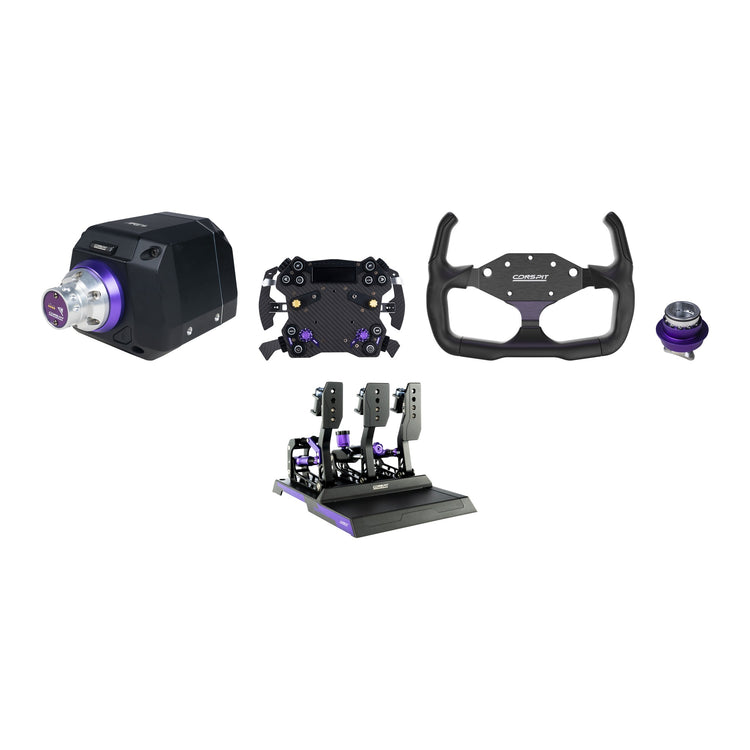

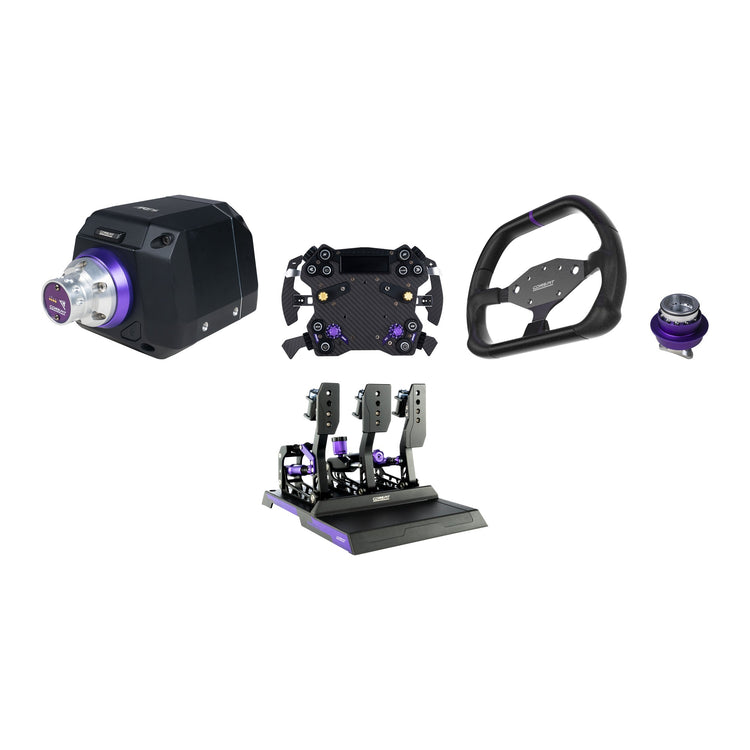

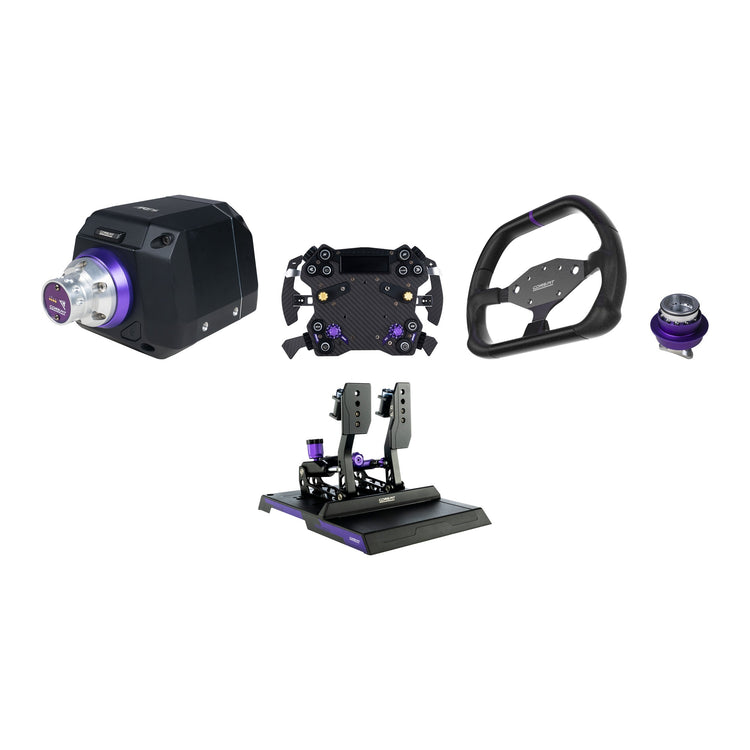

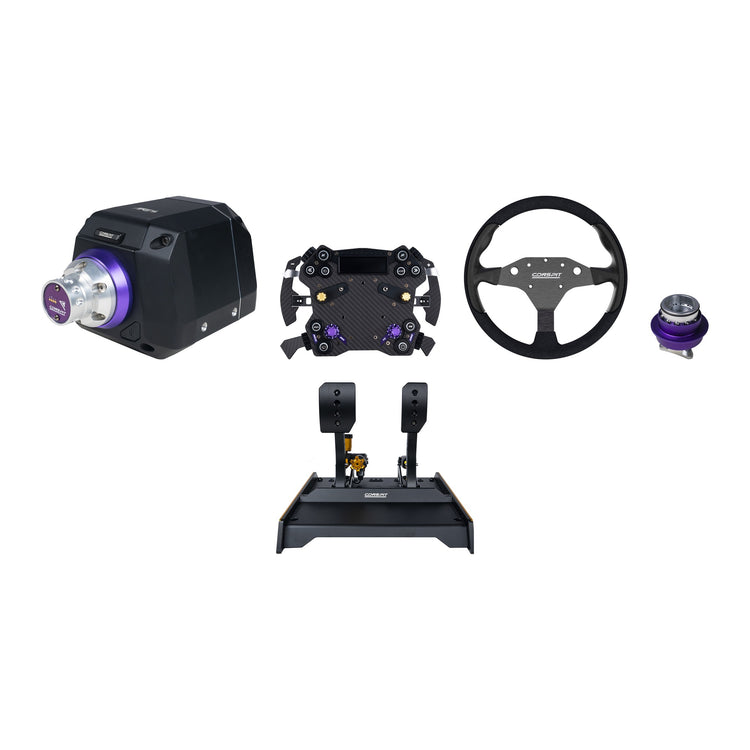

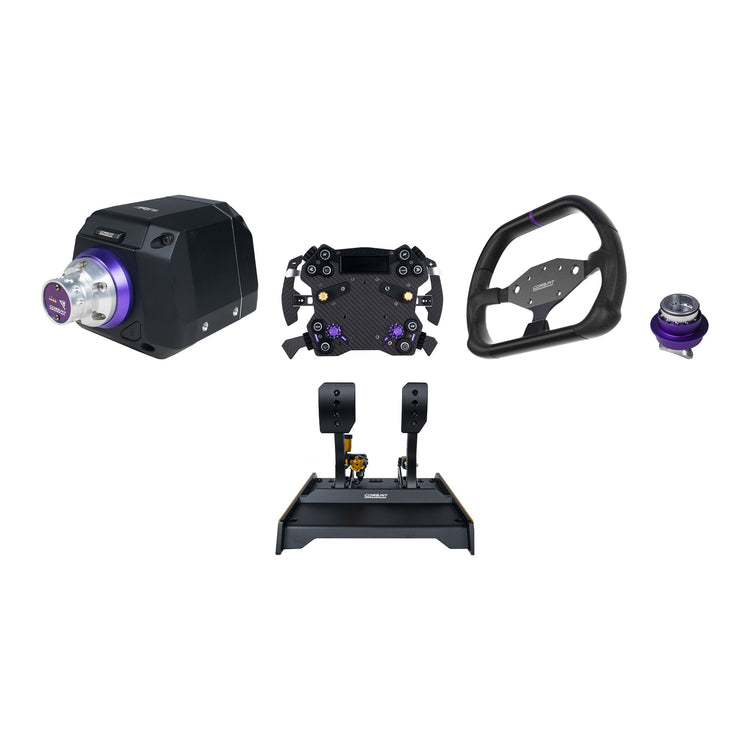

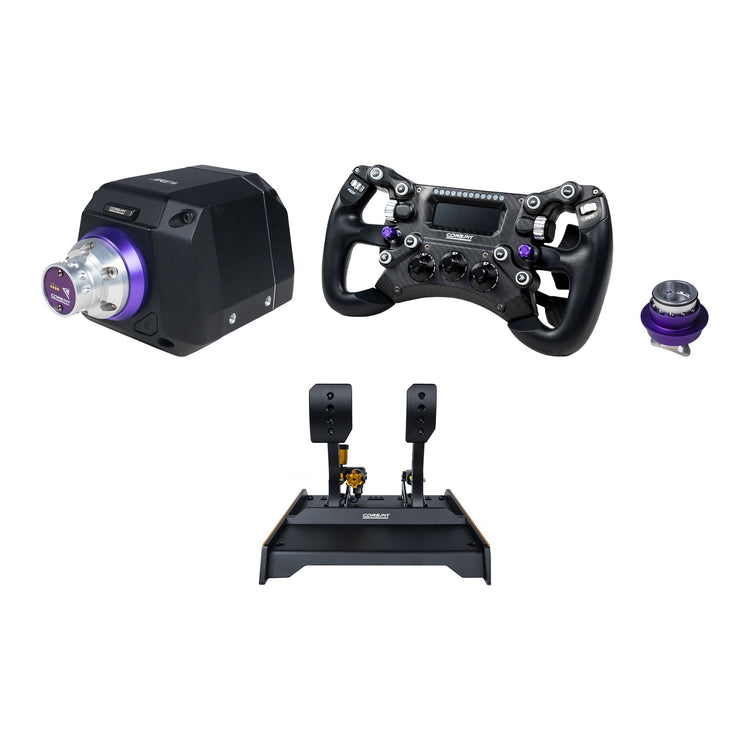

• Ares 12 Nm (CDR): 12 Nm, 23-bit optical encoder, 134 × 150 × 270 mm, 7.3 kg; the balance between power and precision

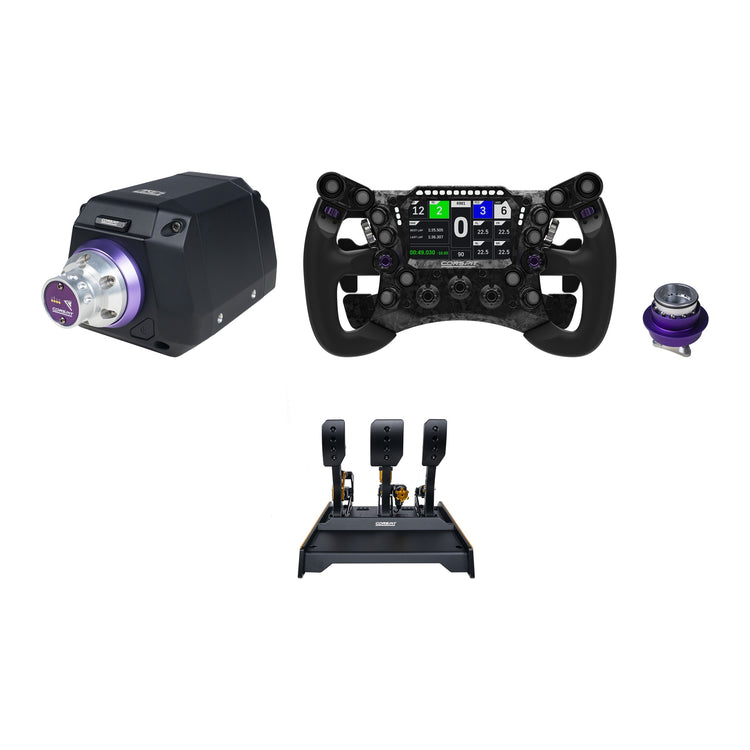

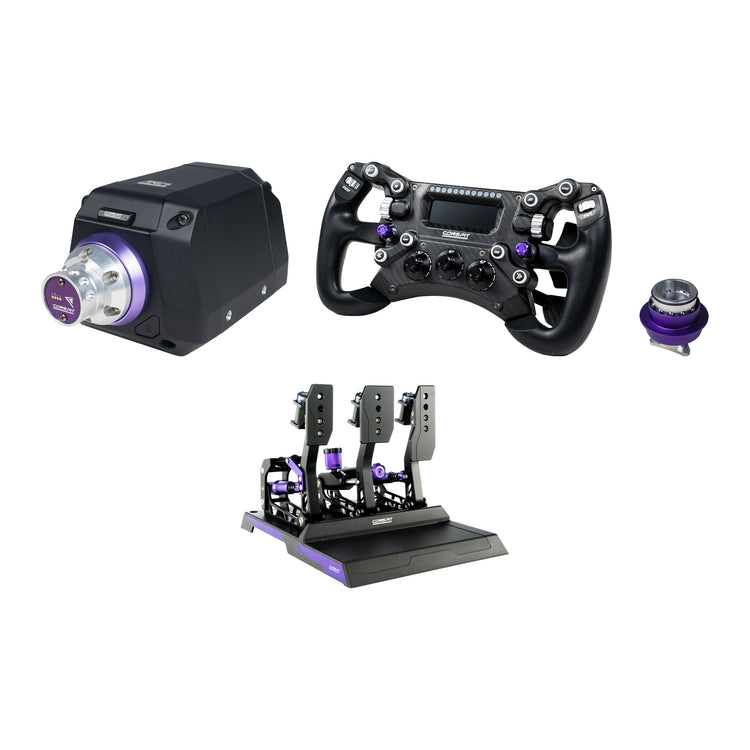

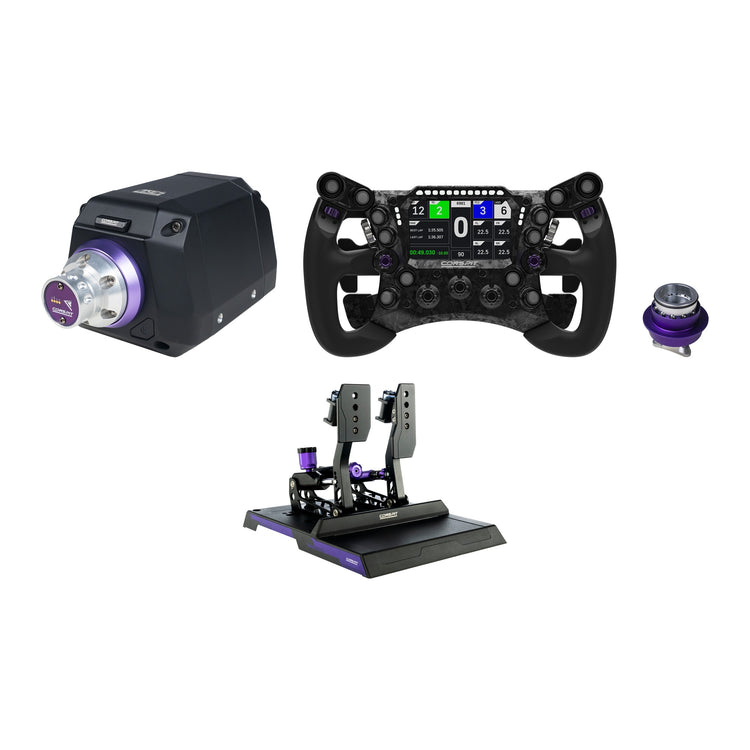

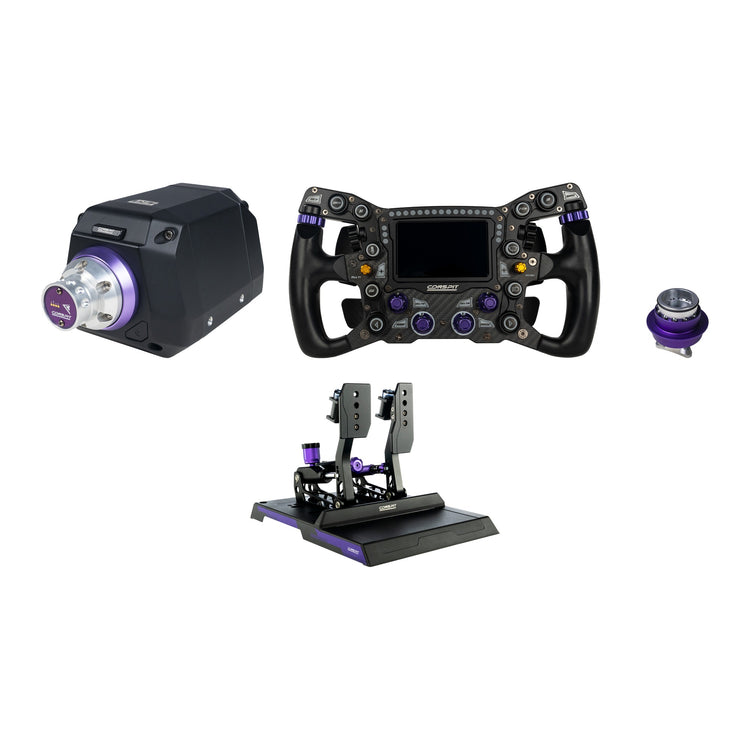

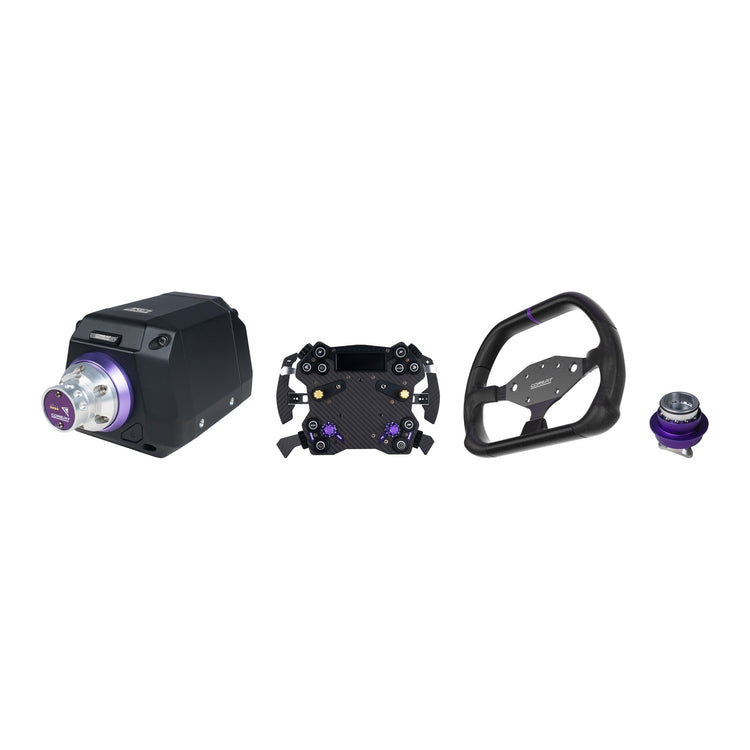

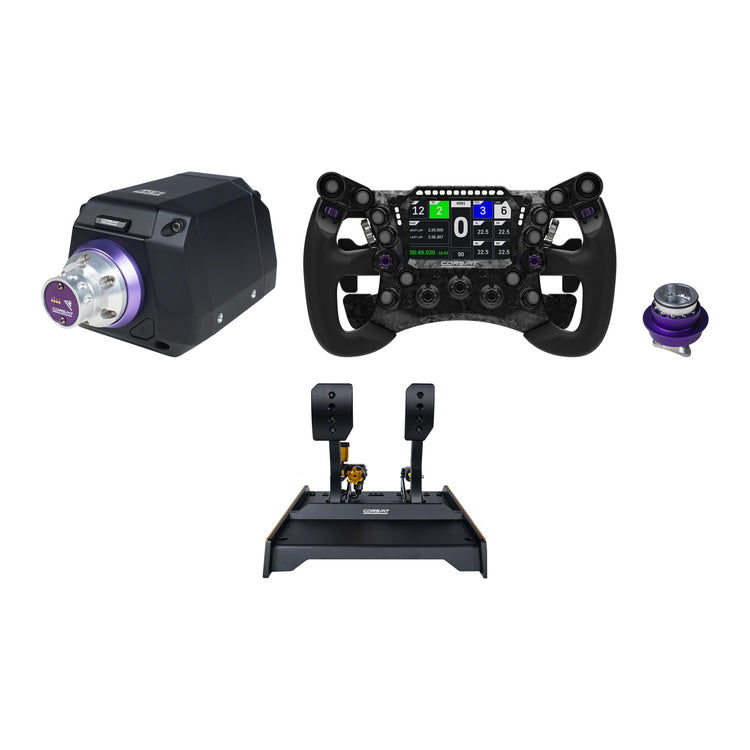

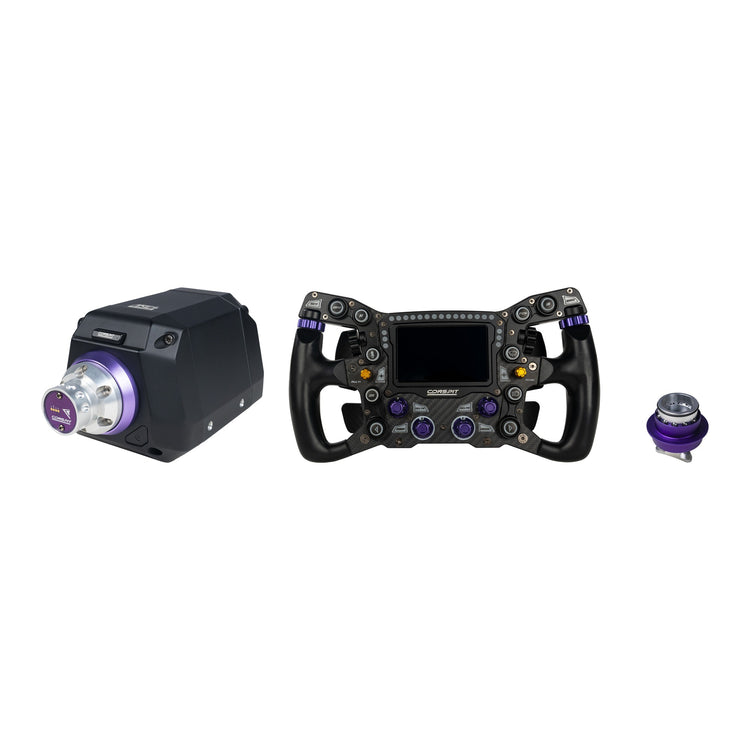

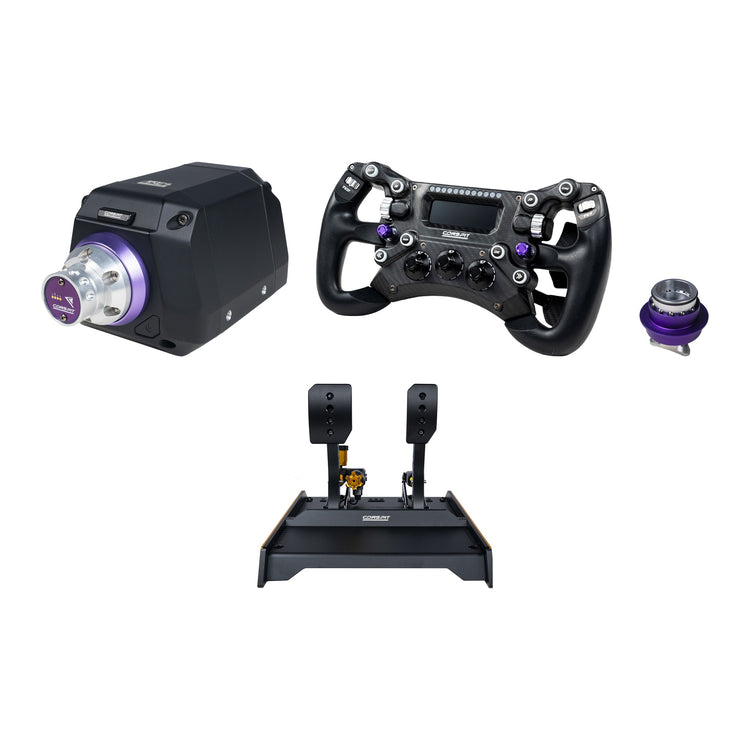

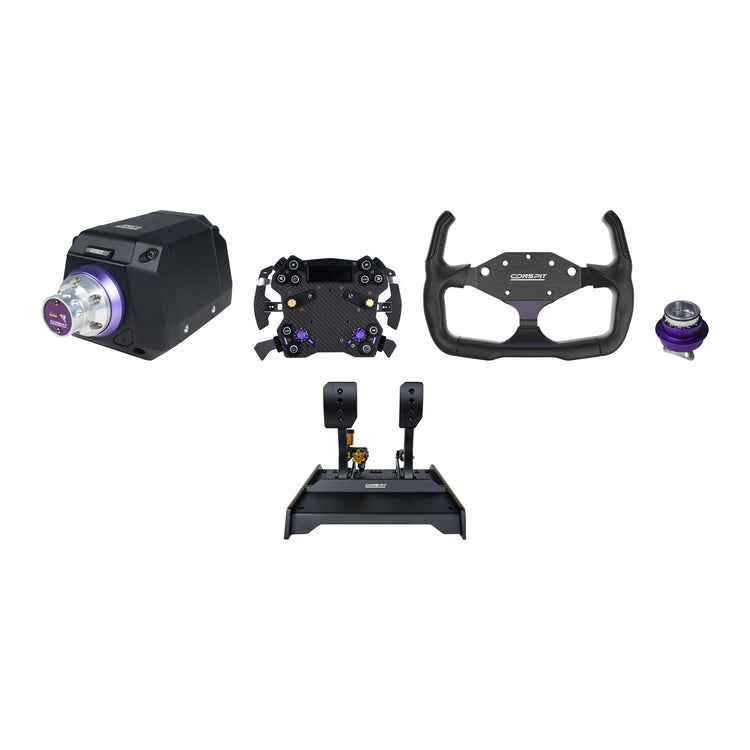

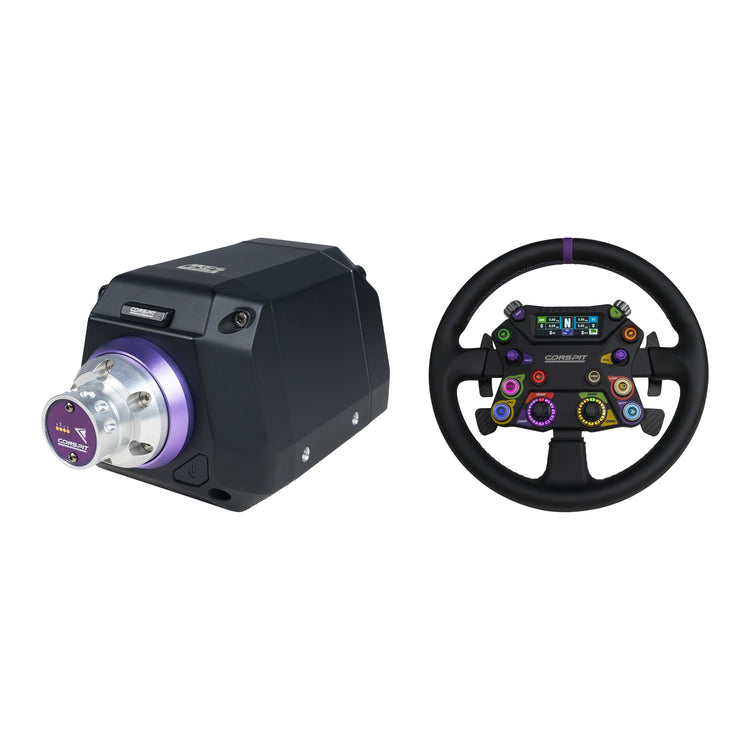

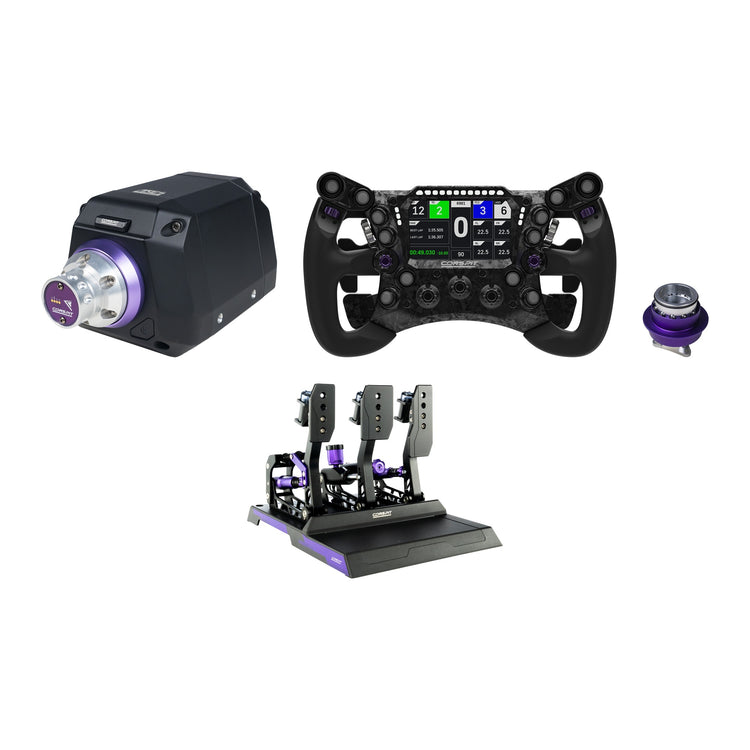

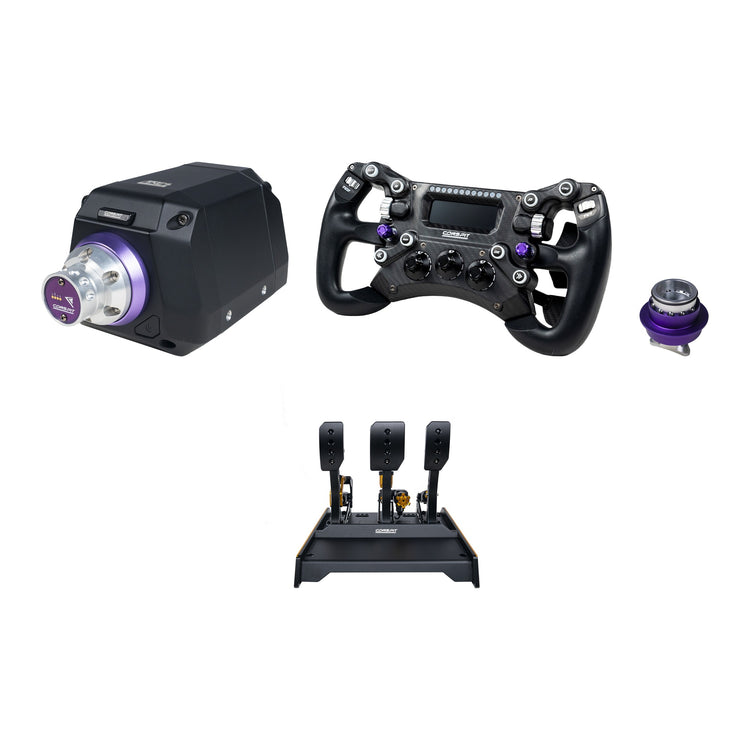

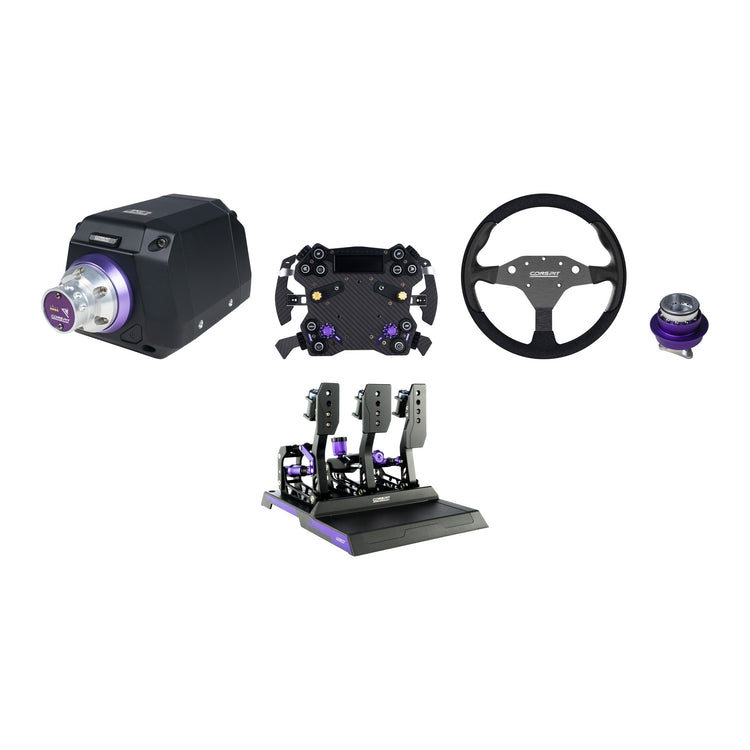

• Ares Platinum 20 Nm (CDR): 20 Nm, 23-bit optical encoder, 134 × 150 × 270 mm, 7.9 kg; the flagship for demanding drivers

Steering wheels (with CDR quick release)

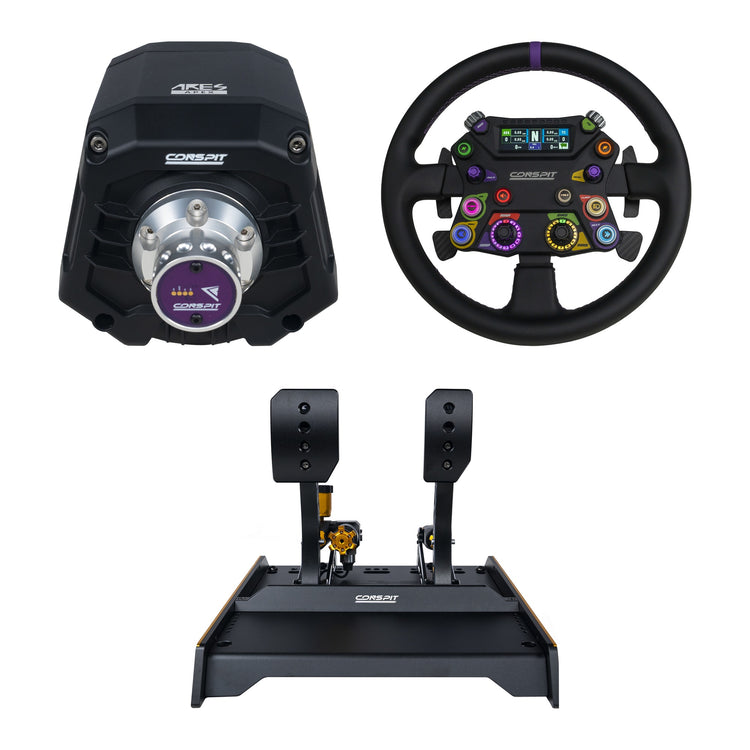

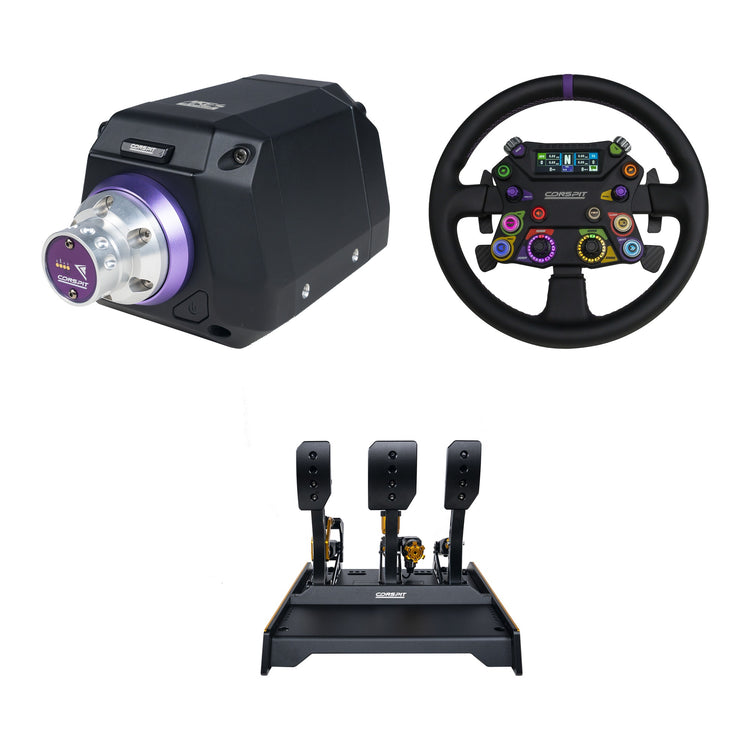

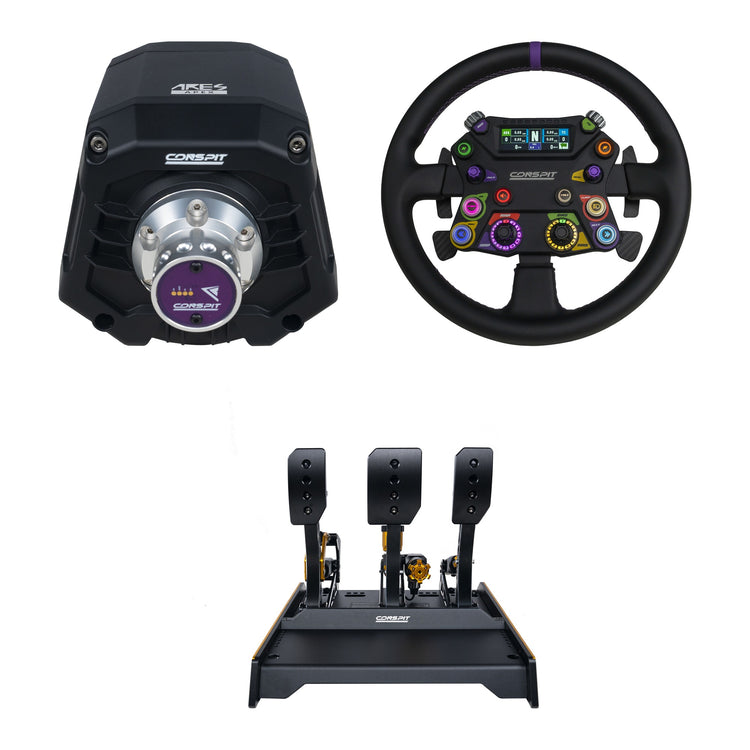

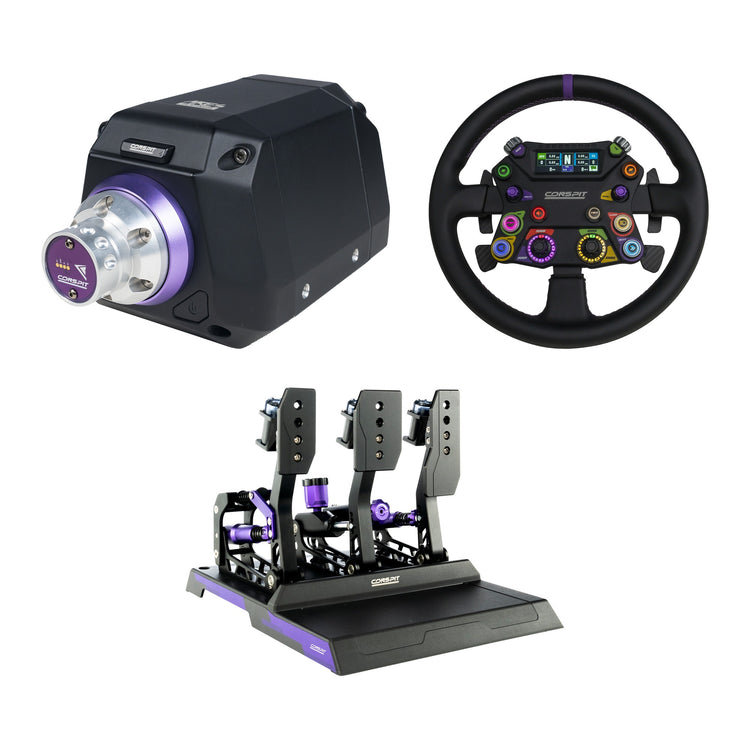

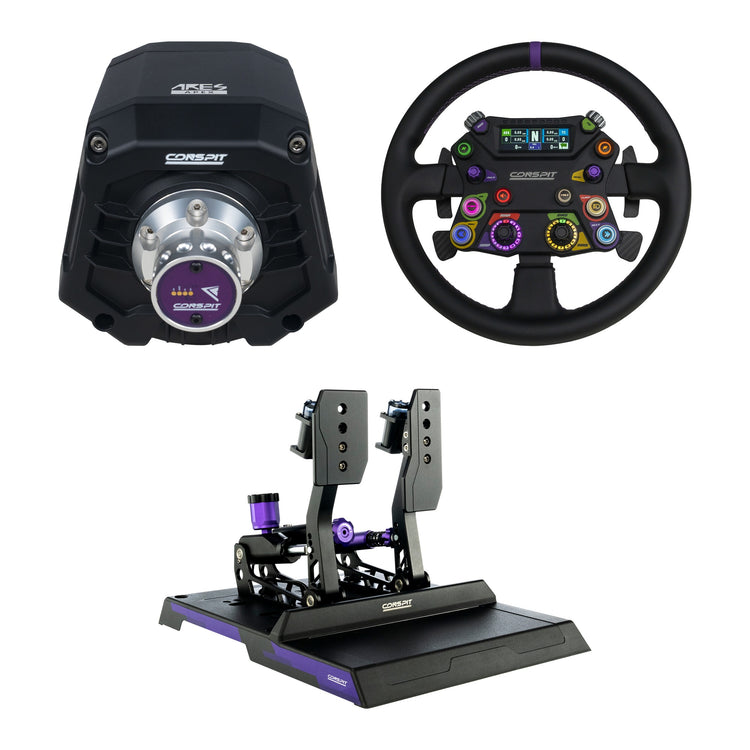

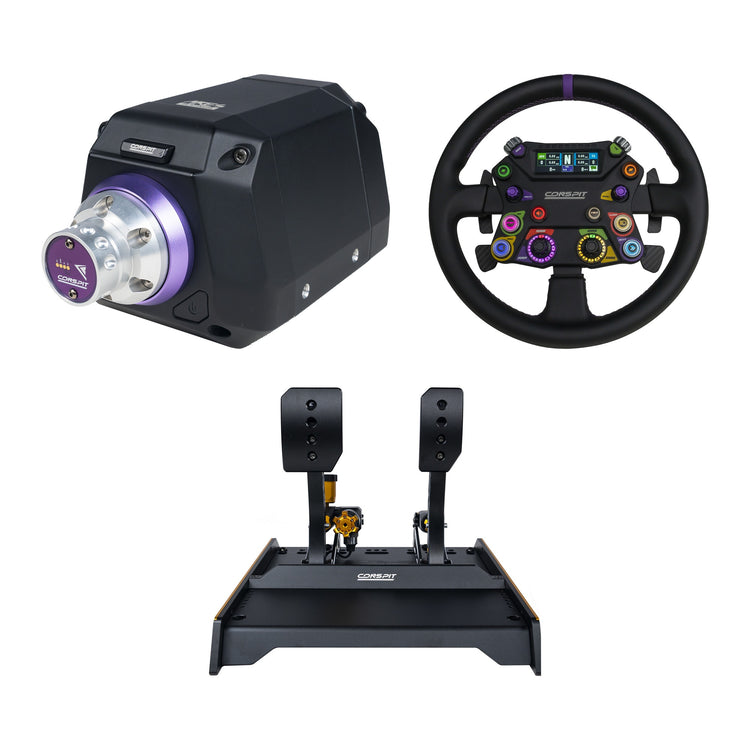

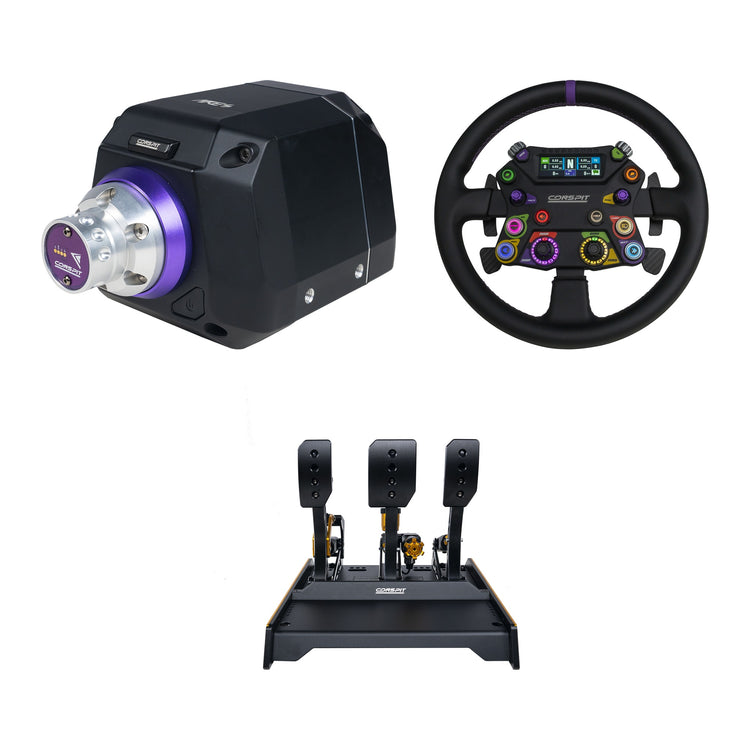

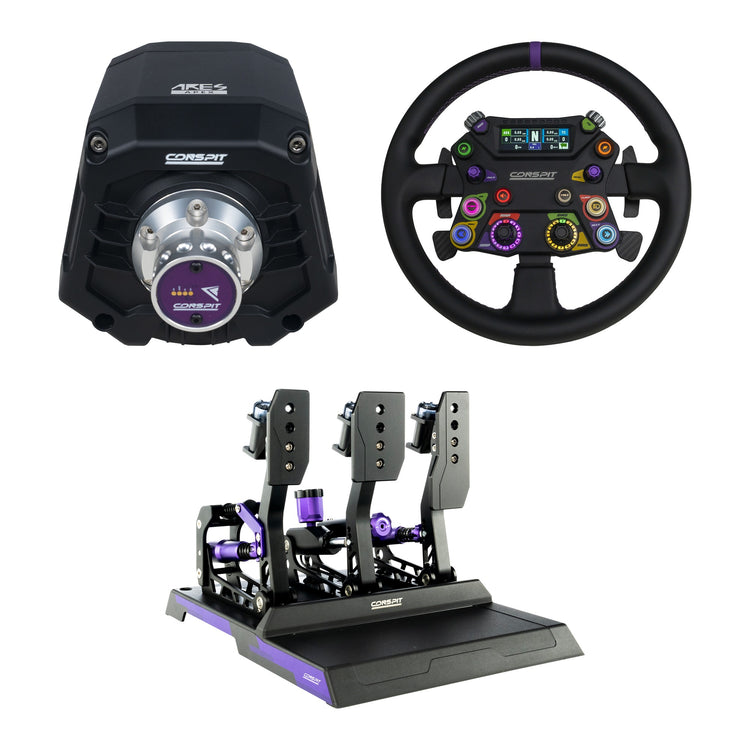

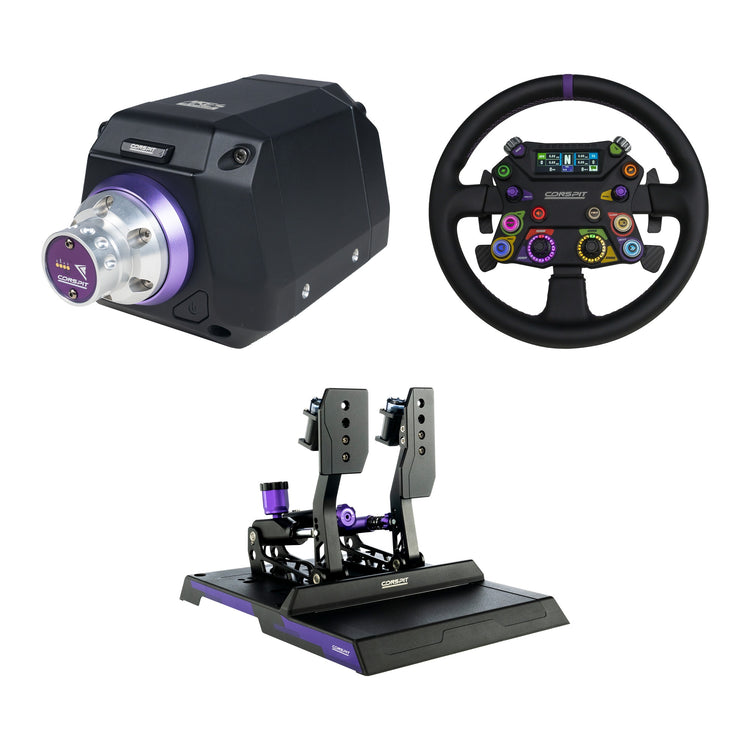

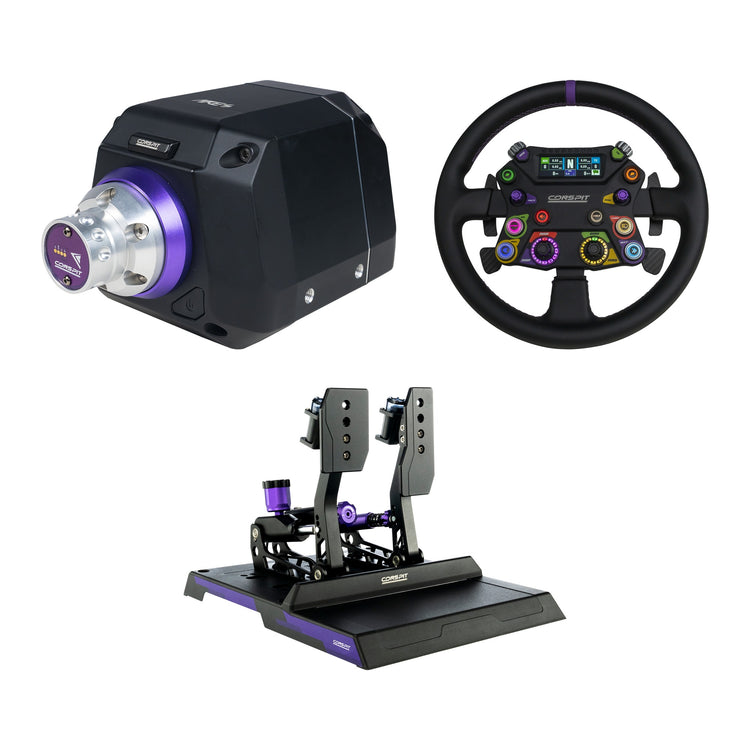

• 310 Apex: 310 mm round GT wheel, 2.99" screen, 41 RGB LEDs, 8 RGB buttons, 2 encoders, 2 joysticks, 2 rotaries, Hall shifters and dual clutch paddles, 1520 g, interchangeable rim

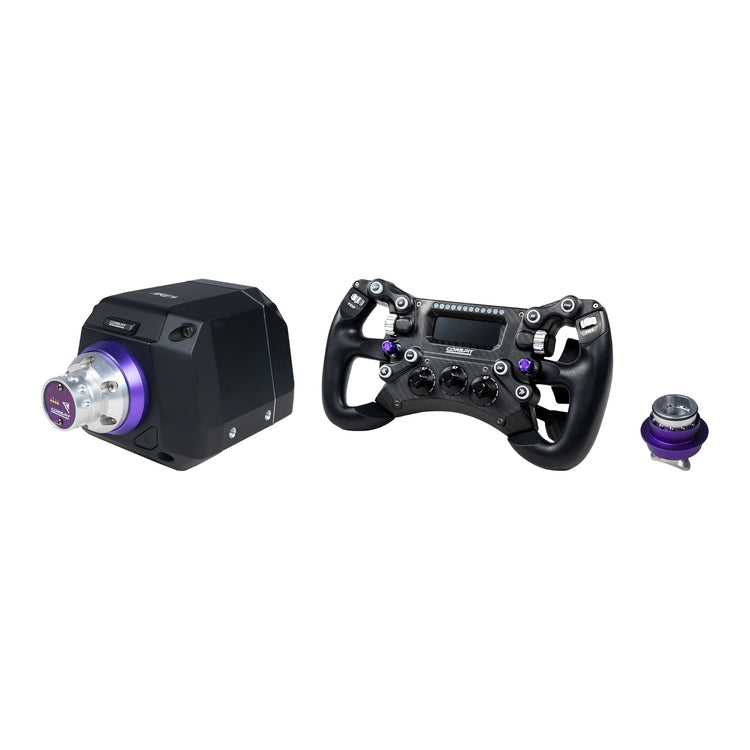

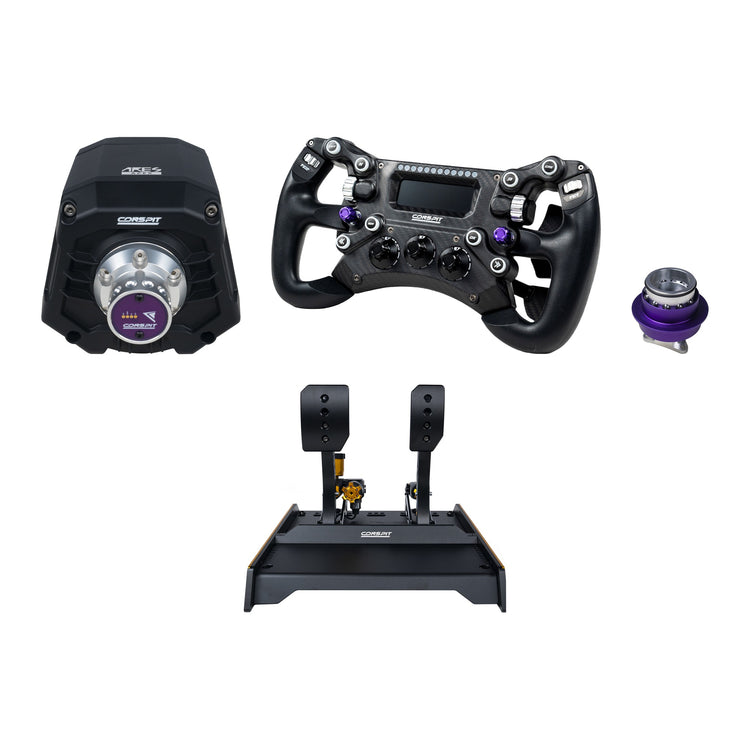

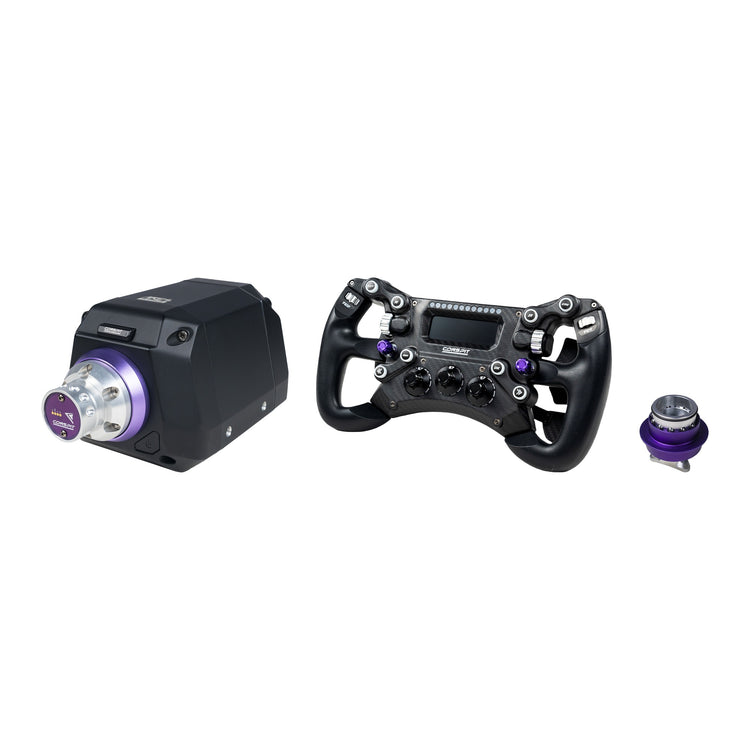

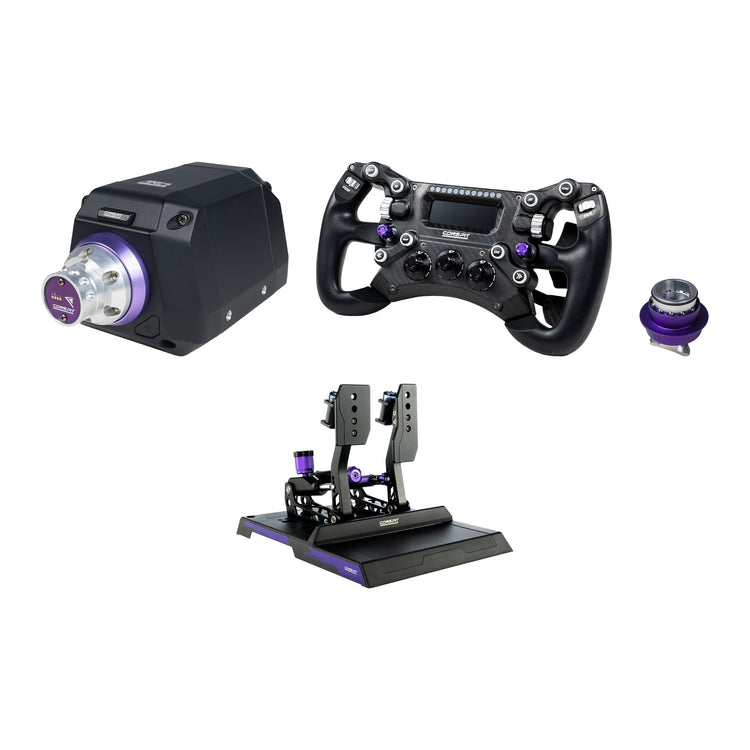

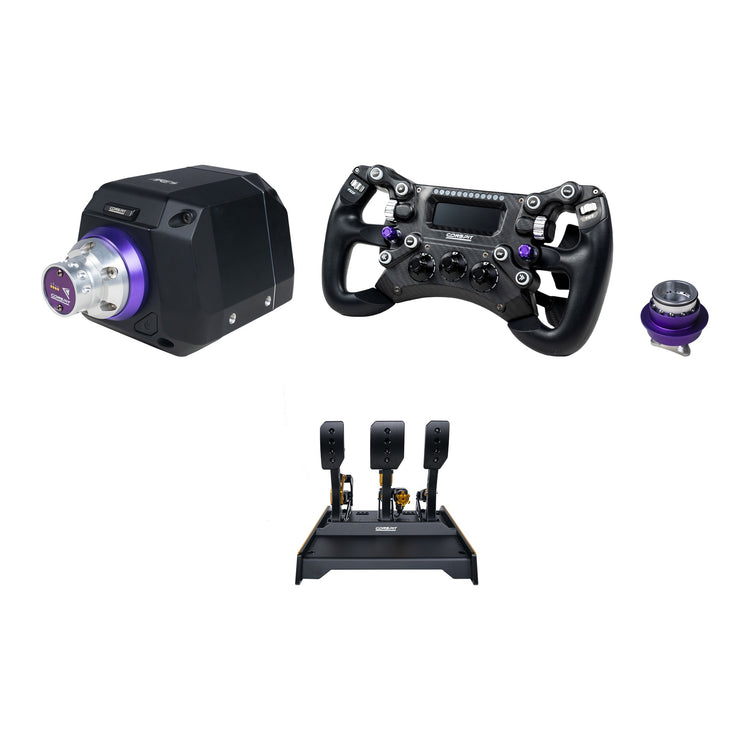

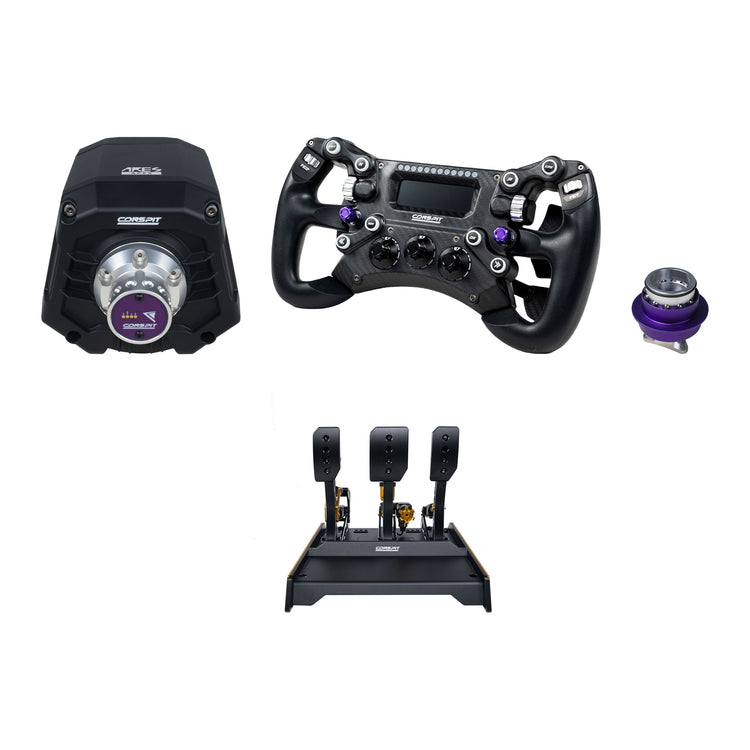

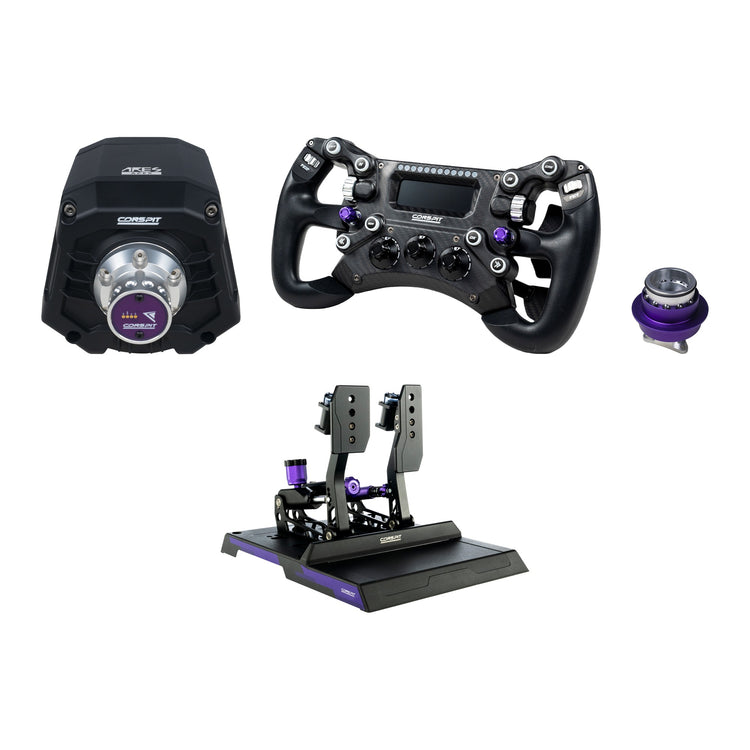

• 300 GT: 300 mm GT and endurance wheel, T-300 carbon front panel, 2.99" screen, 56 RGB LEDs, up to 110 inputs, Hall shifters with 3 force settings, dual Hall clutch, 1150 g

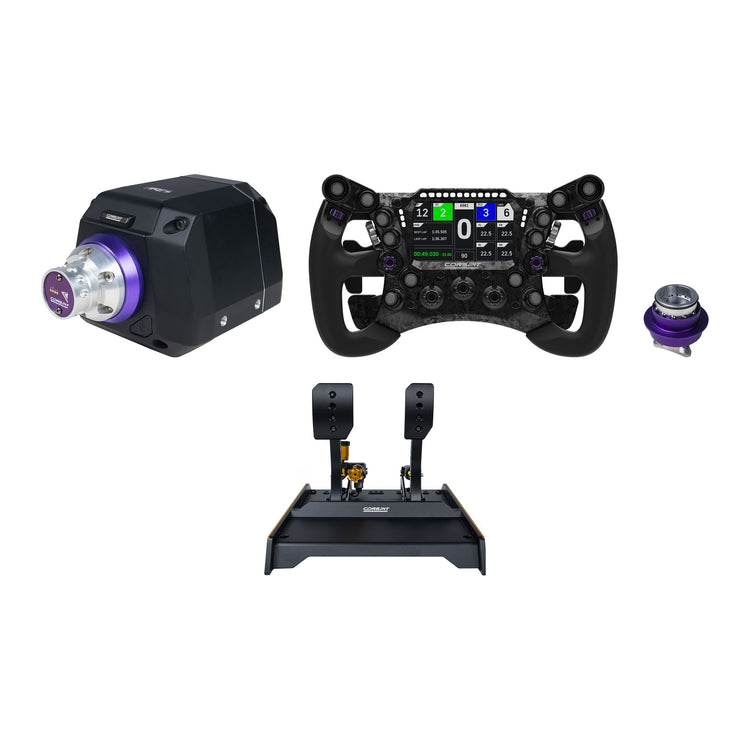

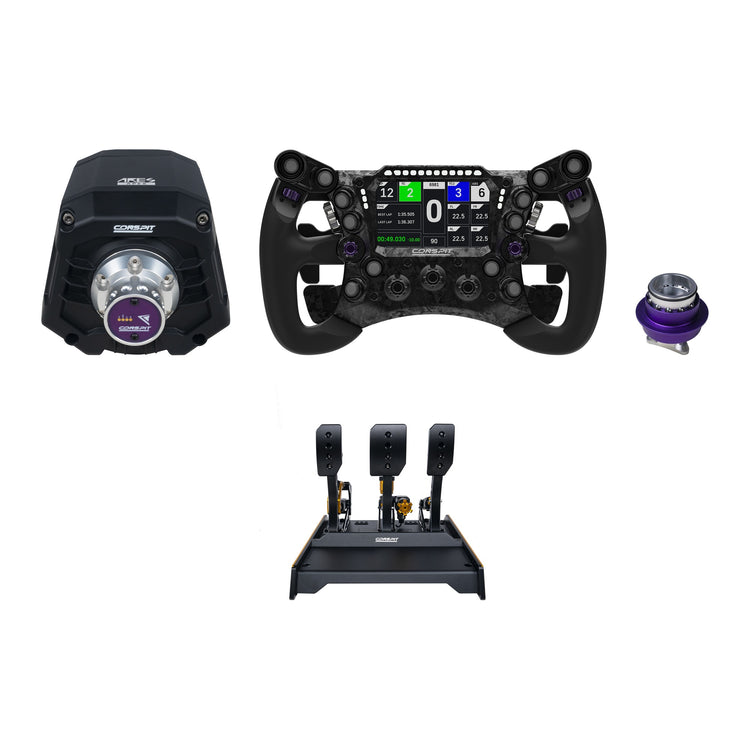

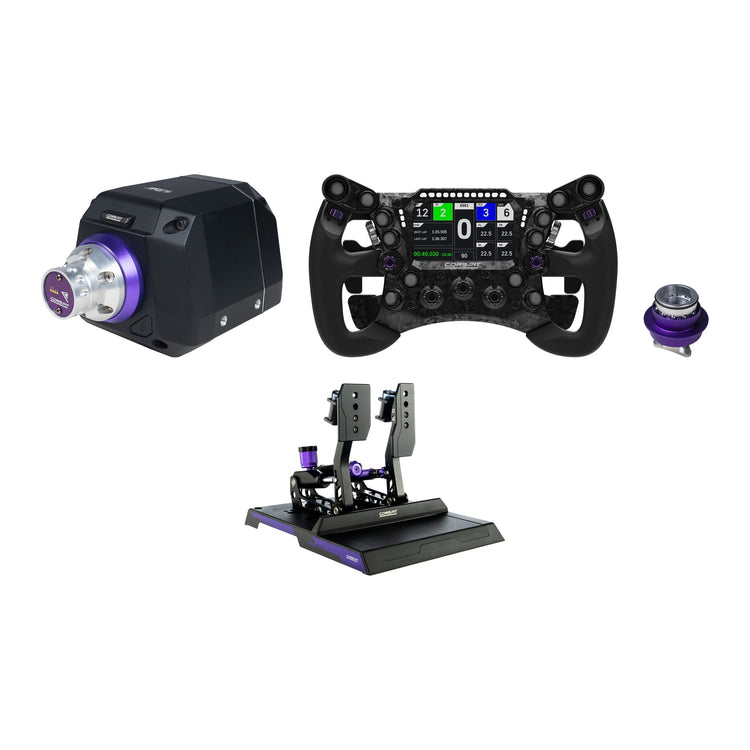

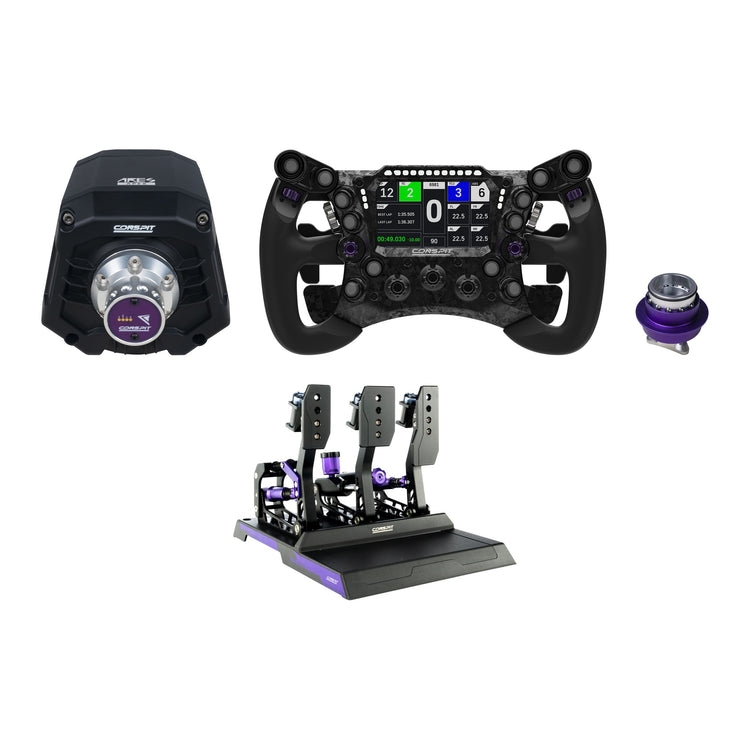

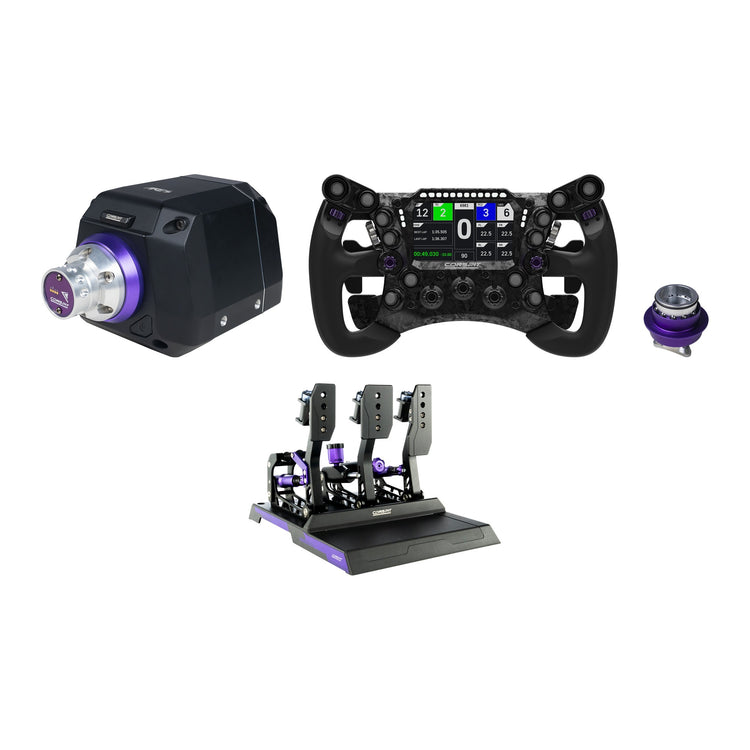

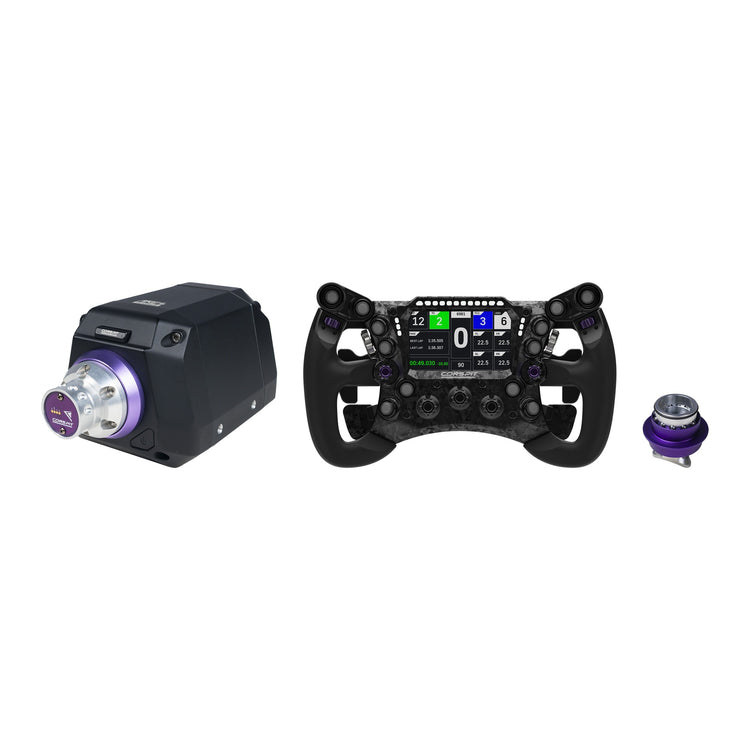

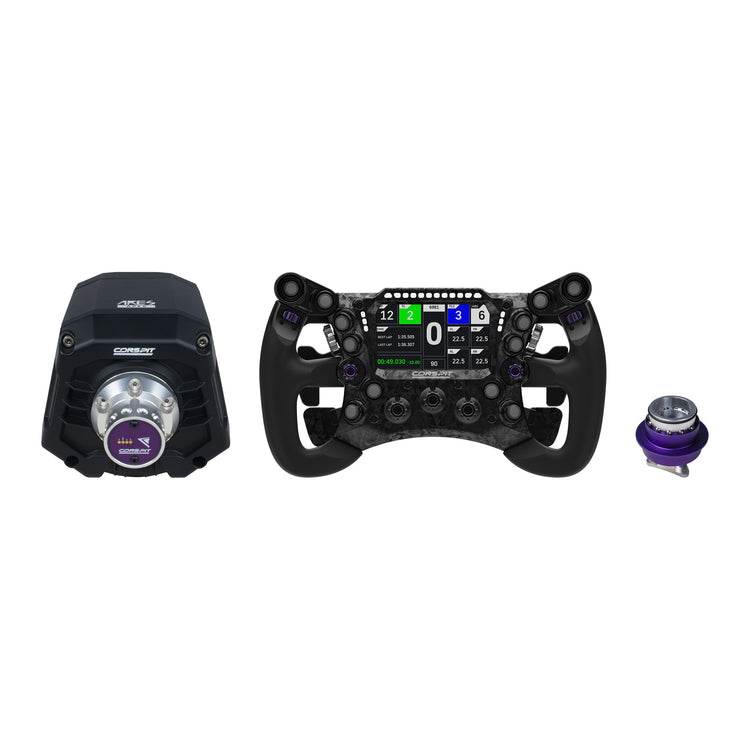

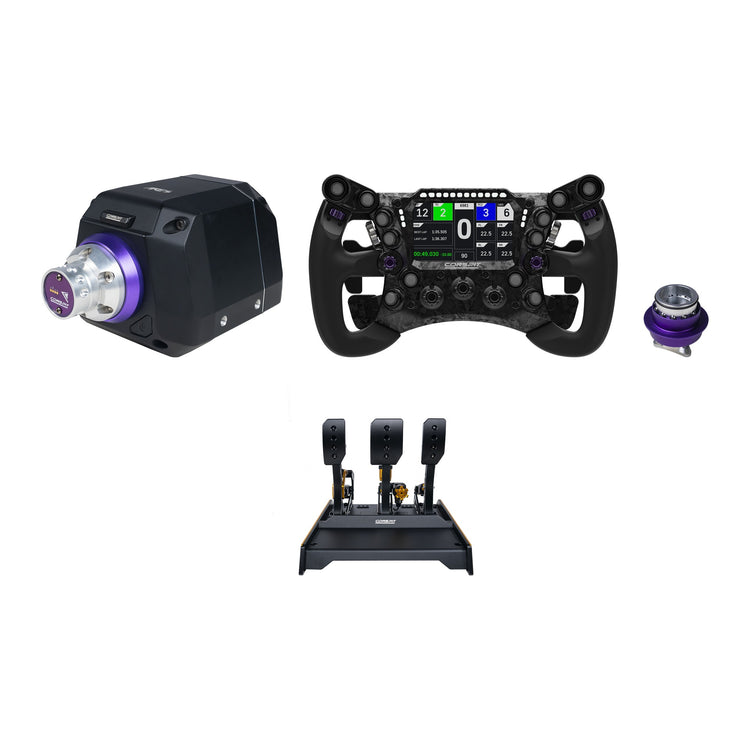

• 290GP: Formula wheel, 4.3" 854 × 480 screen, 12 RGB buttons, 4 encoders, 3 rotaries, 2 joysticks, MagFlip magnetic shifters, dual clutch, 1400 g

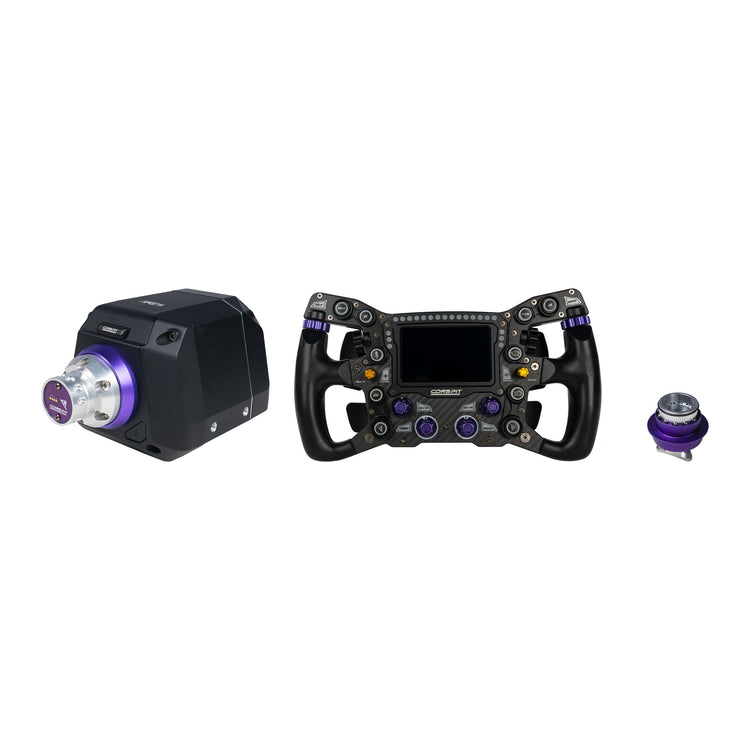

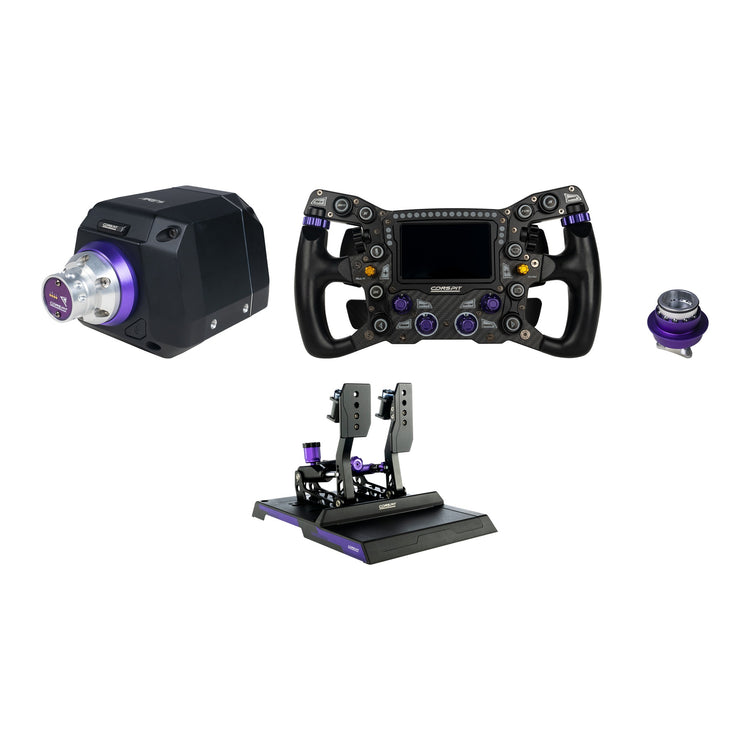

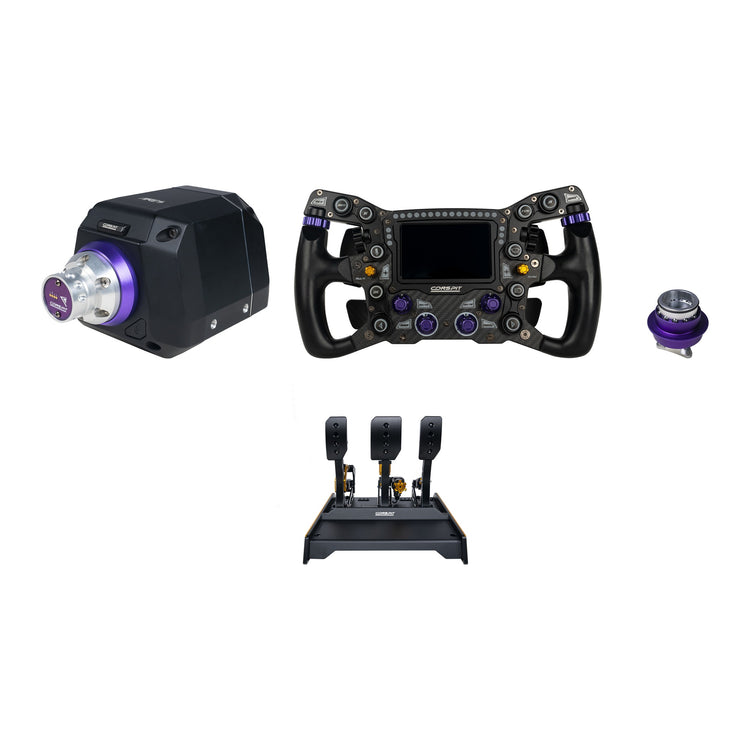

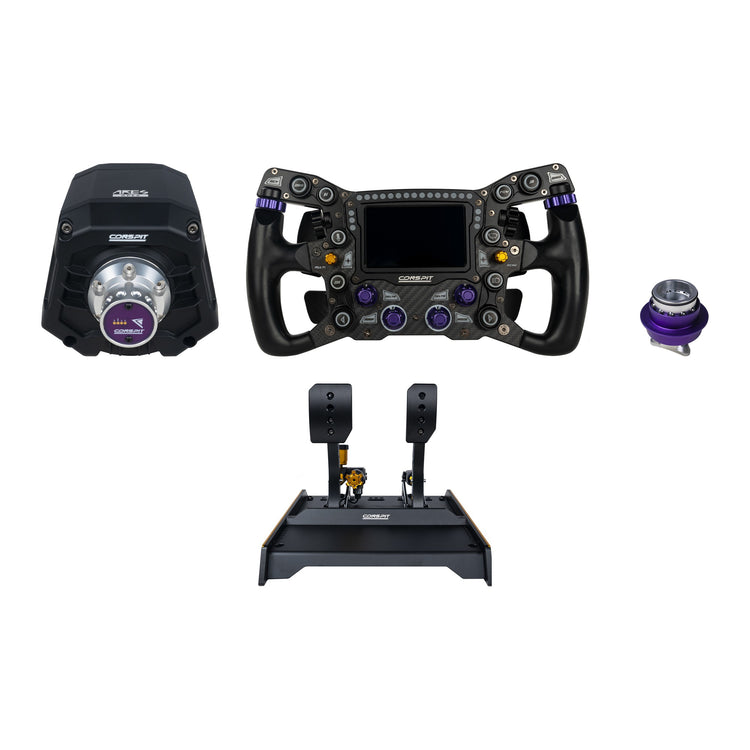

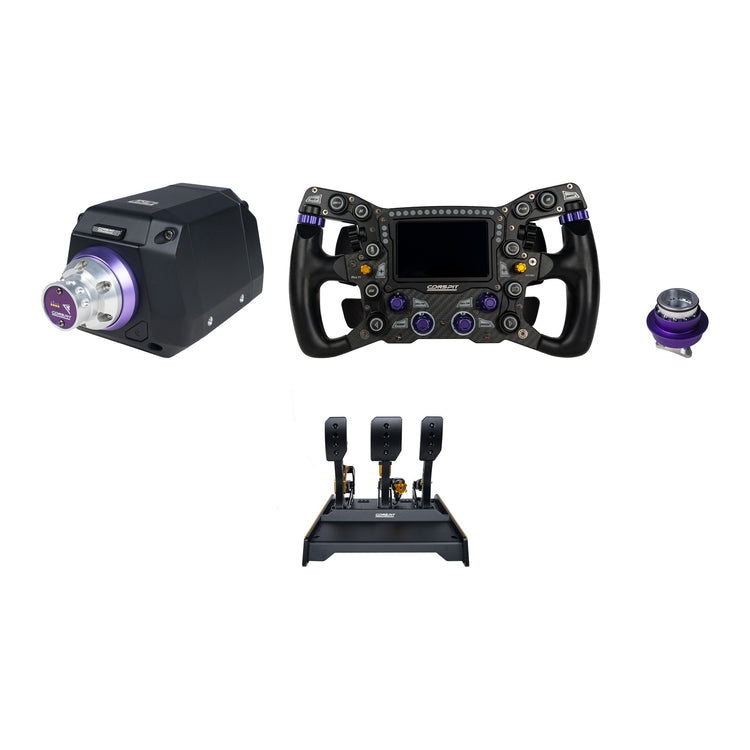

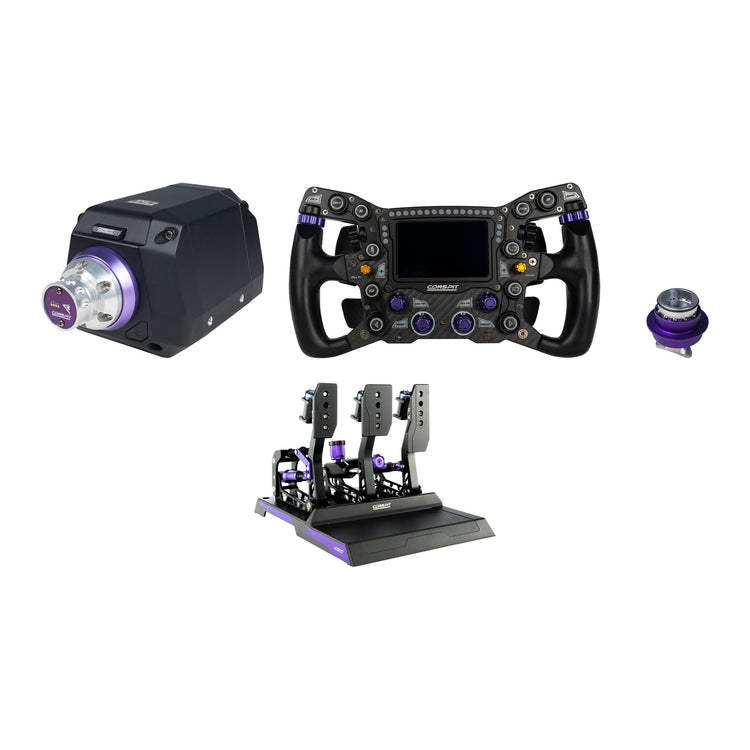

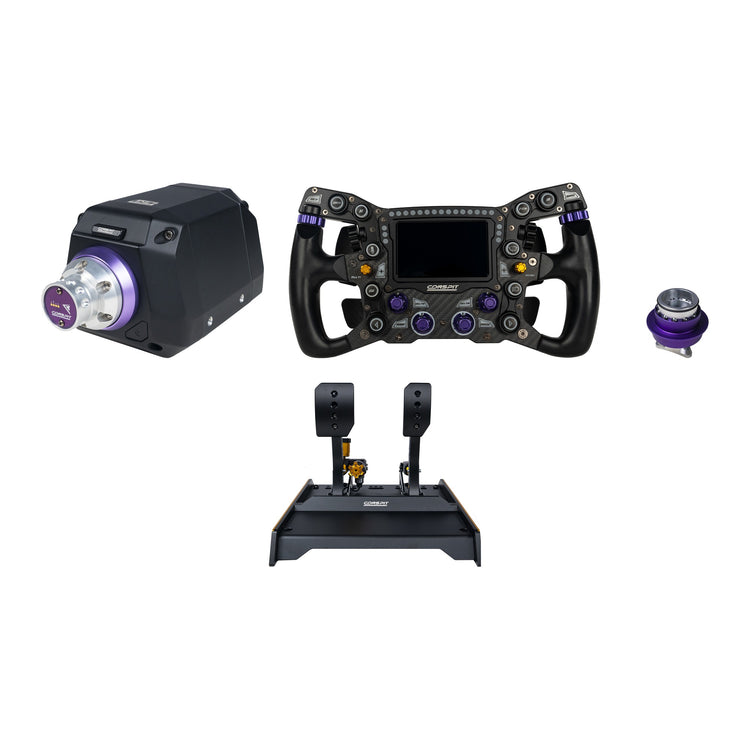

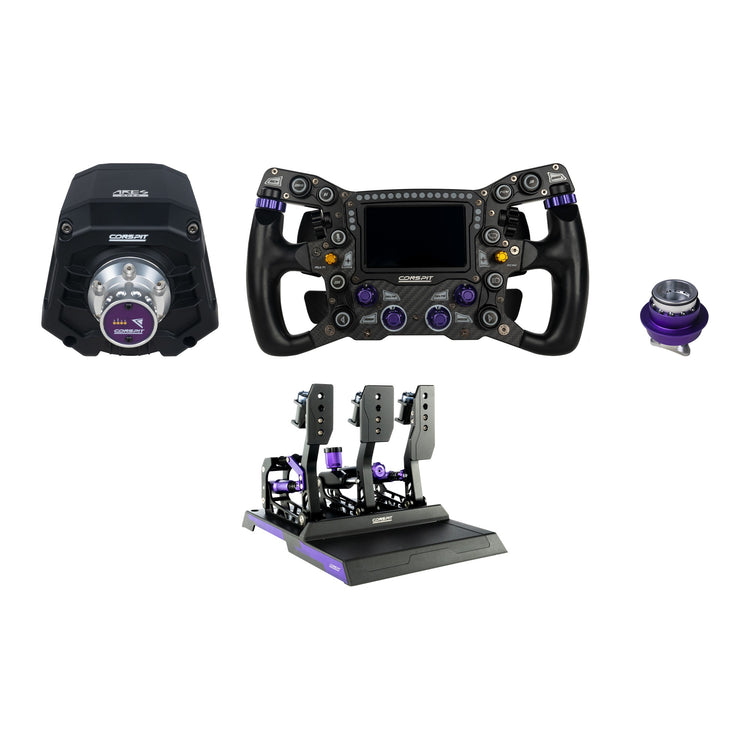

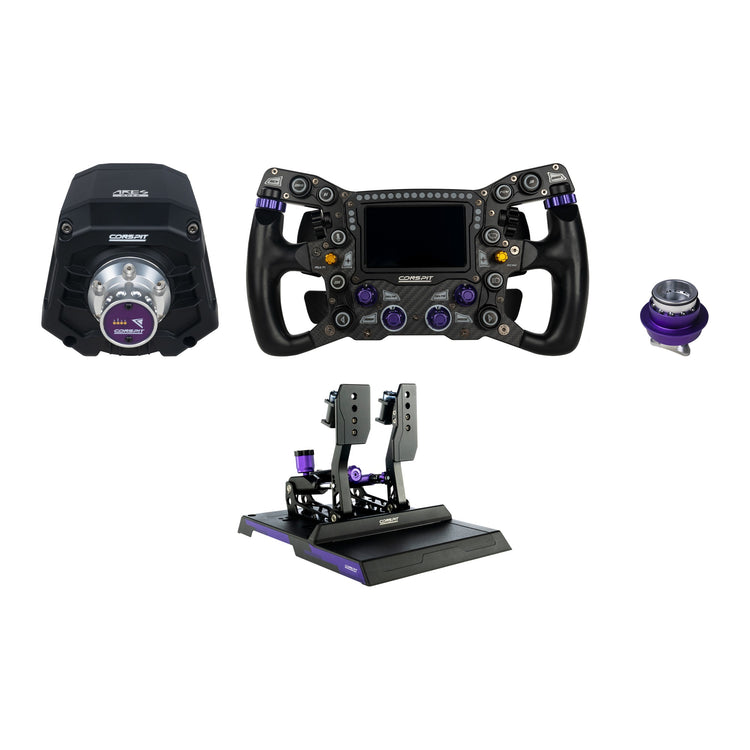

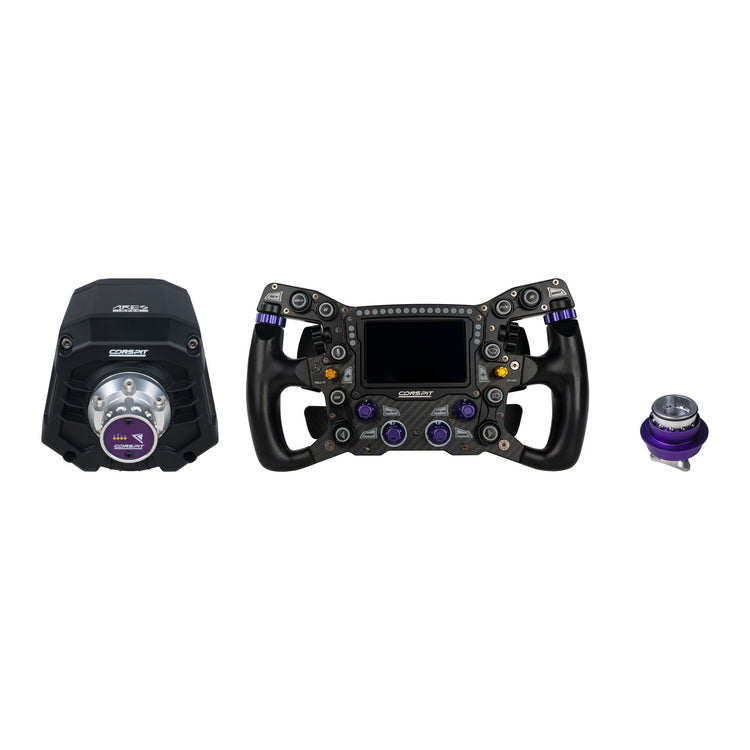

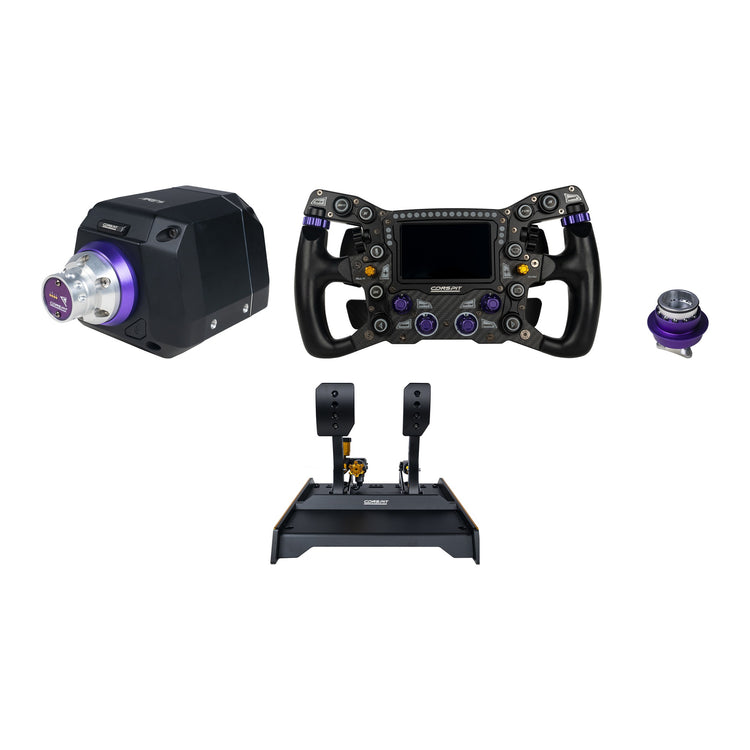

• MAX01: Formula wheel, 4" 800 × 480 touchscreen, 10 RGB buttons, 4 encoders, 4 rotaries, 2 joysticks, 29 RGB LEDs, silent Hall shifters, 2 analogue clutch paddles, 1400 g

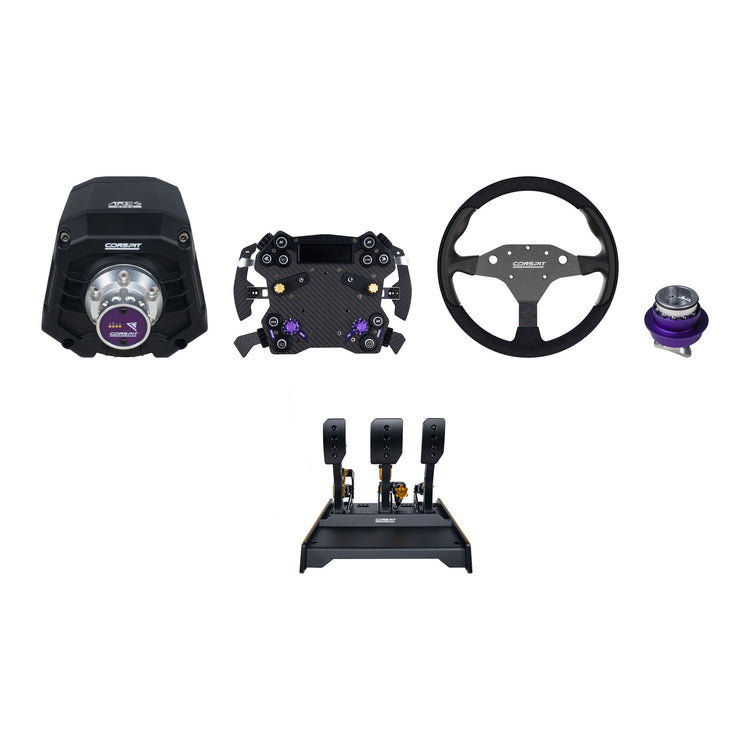

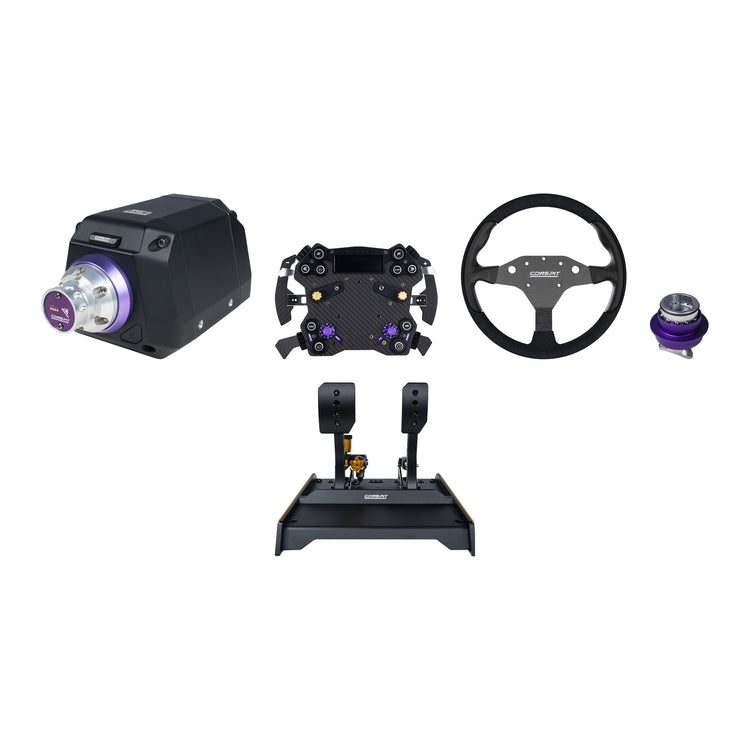

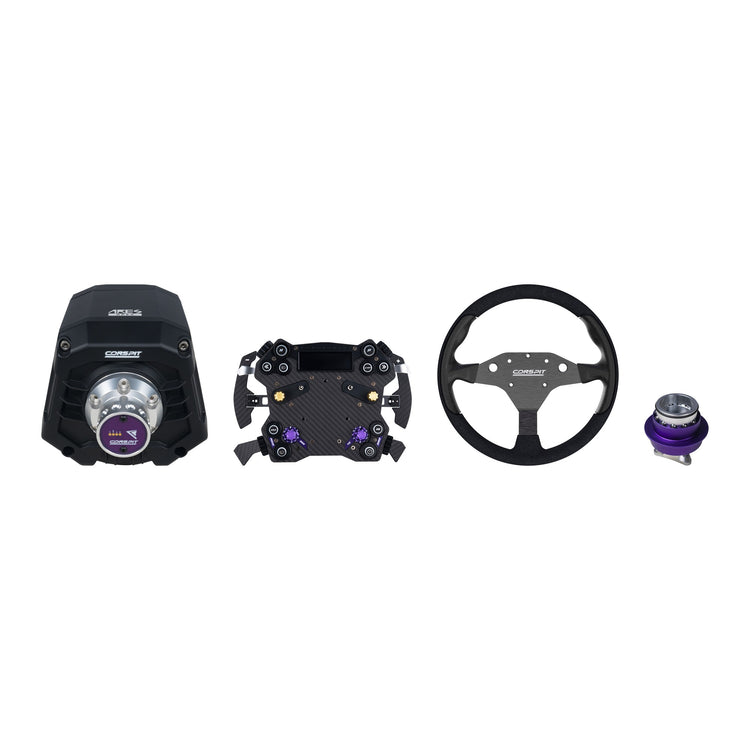

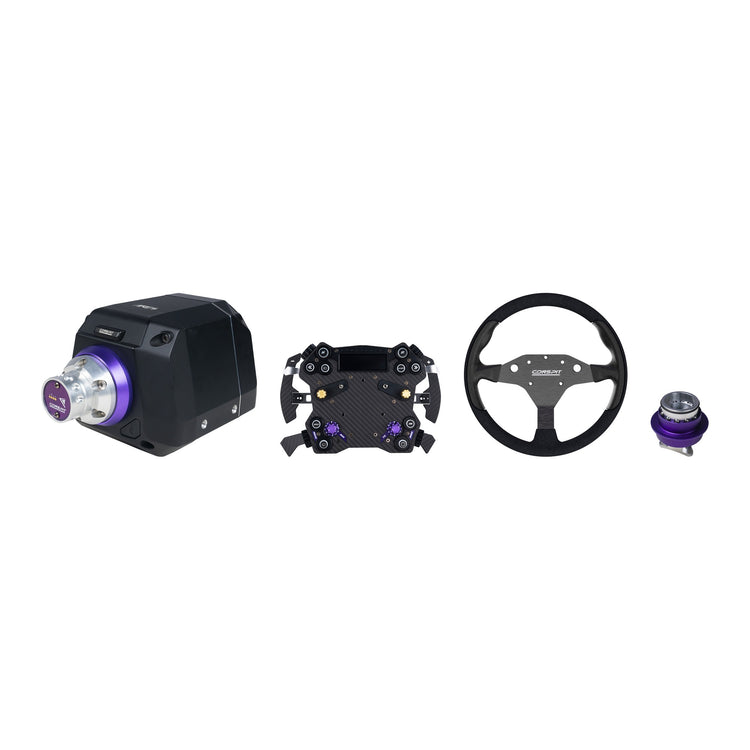

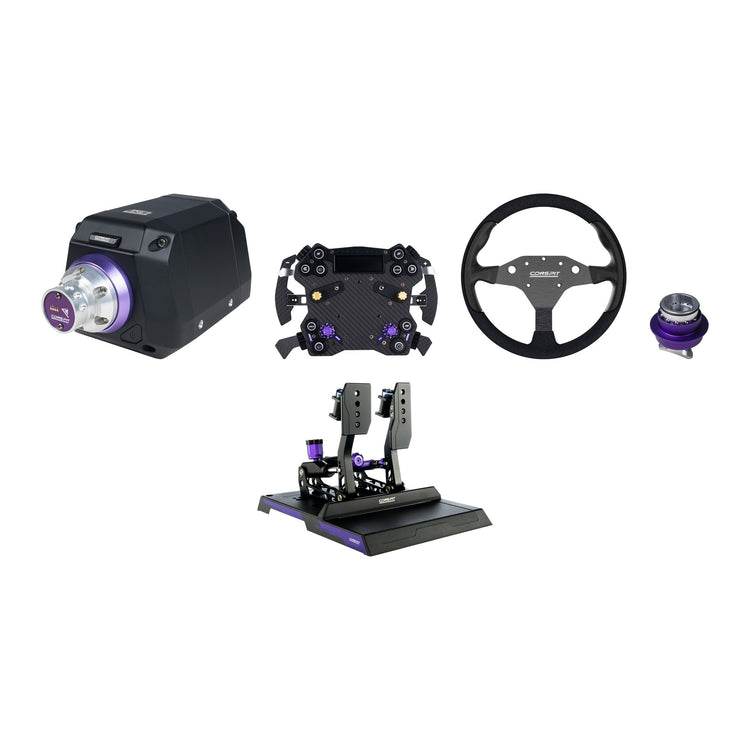

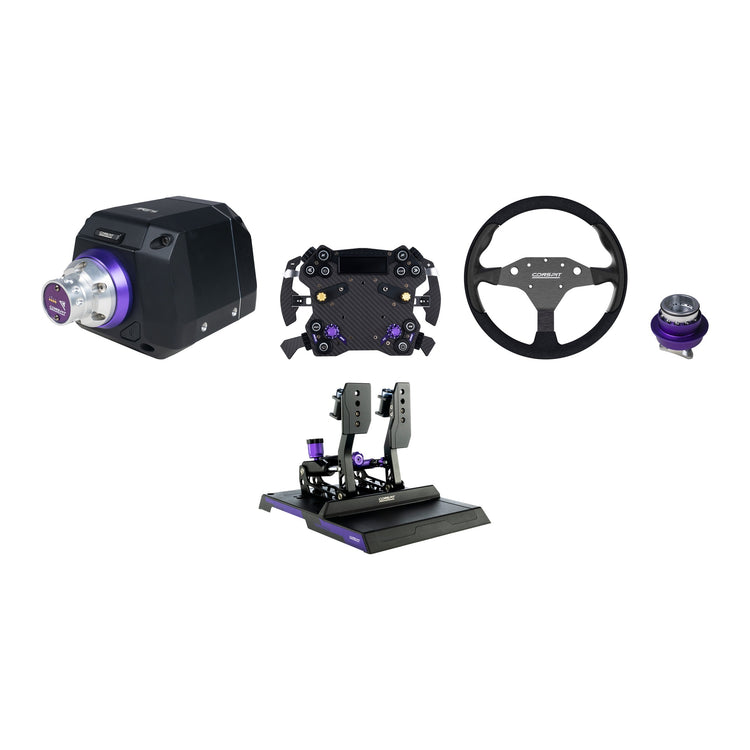

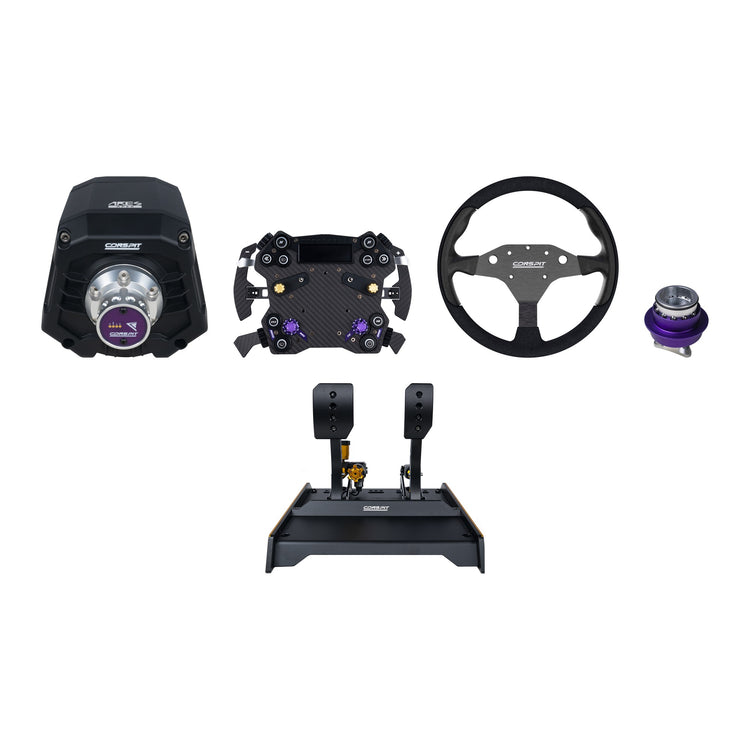

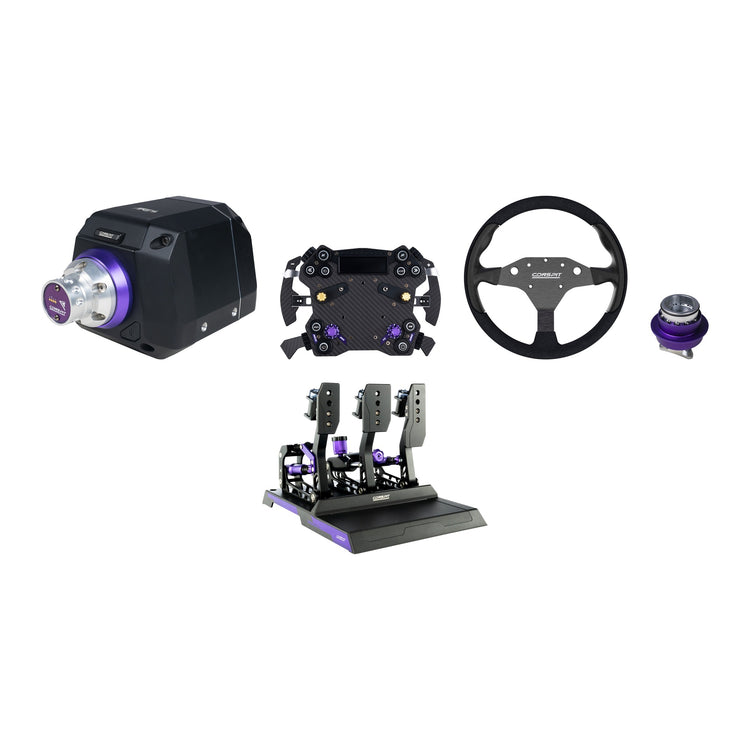

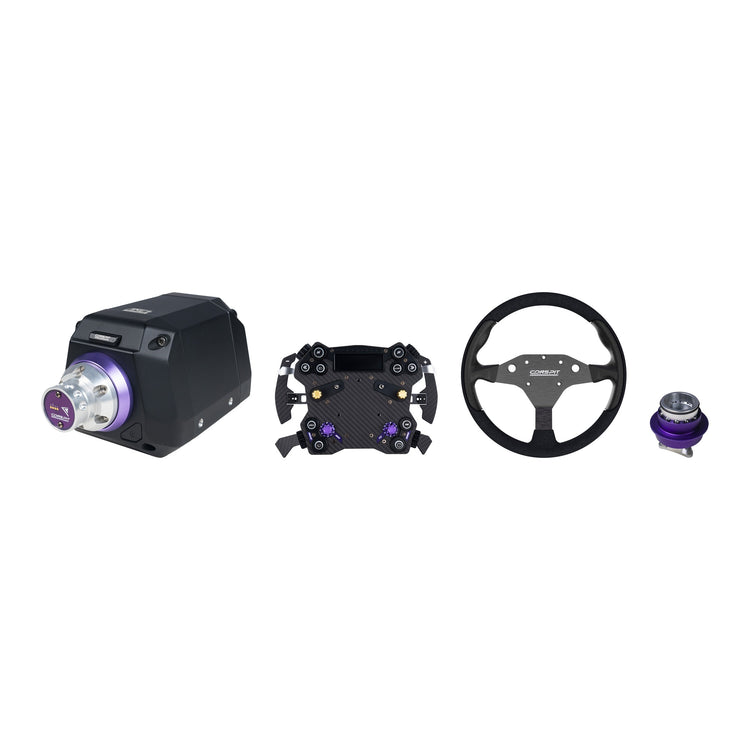

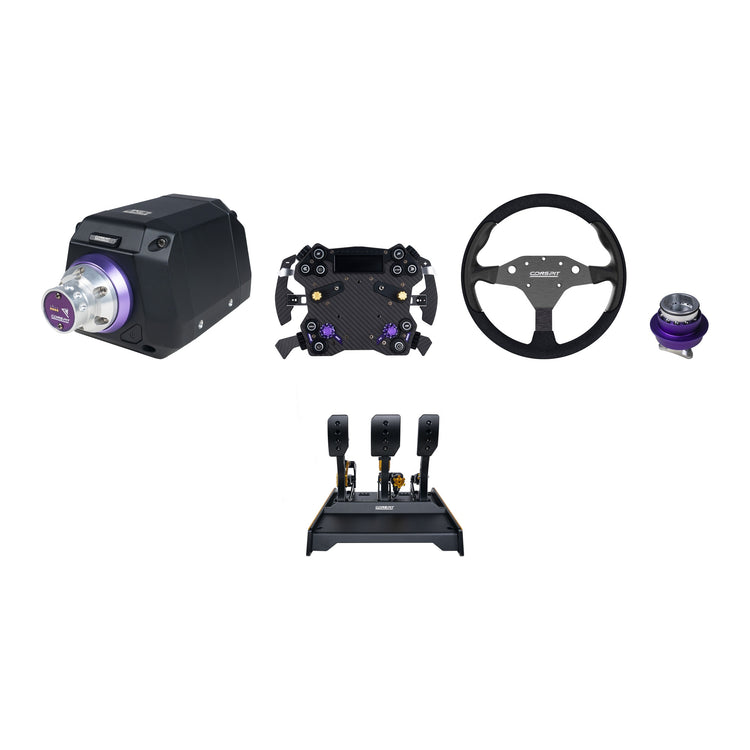

• H.AO Hub + RX320: carbon fibre hub with 2.99" screen, 10 RGB buttons, 6 encoders, magnetic pogo modules, Swift-Triggers, with the 320 mm round RX320 rim (rally, drift)

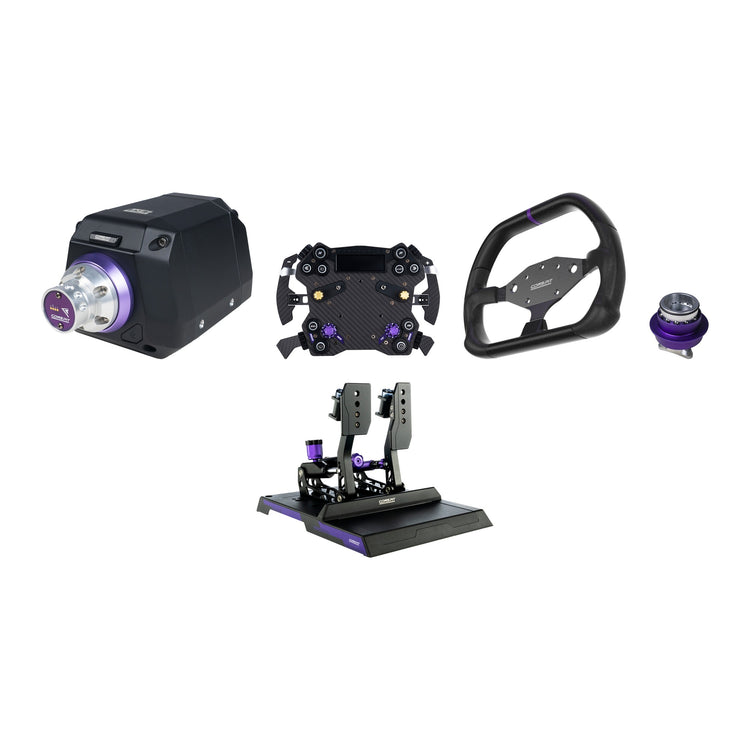

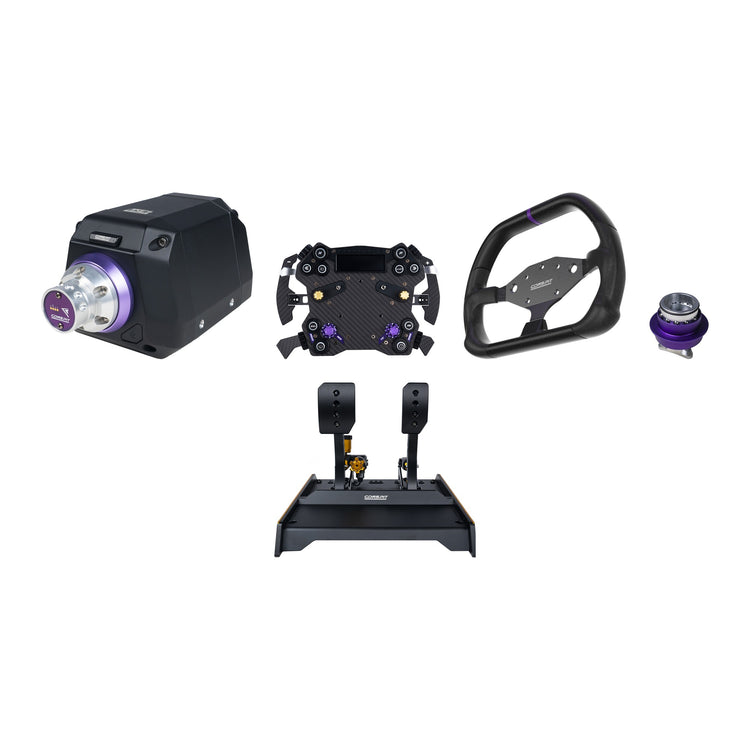

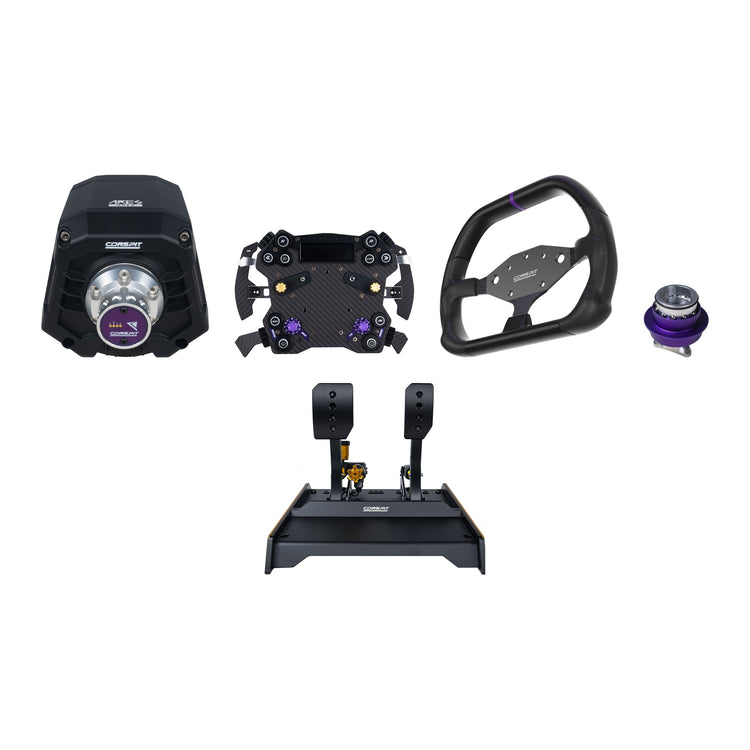

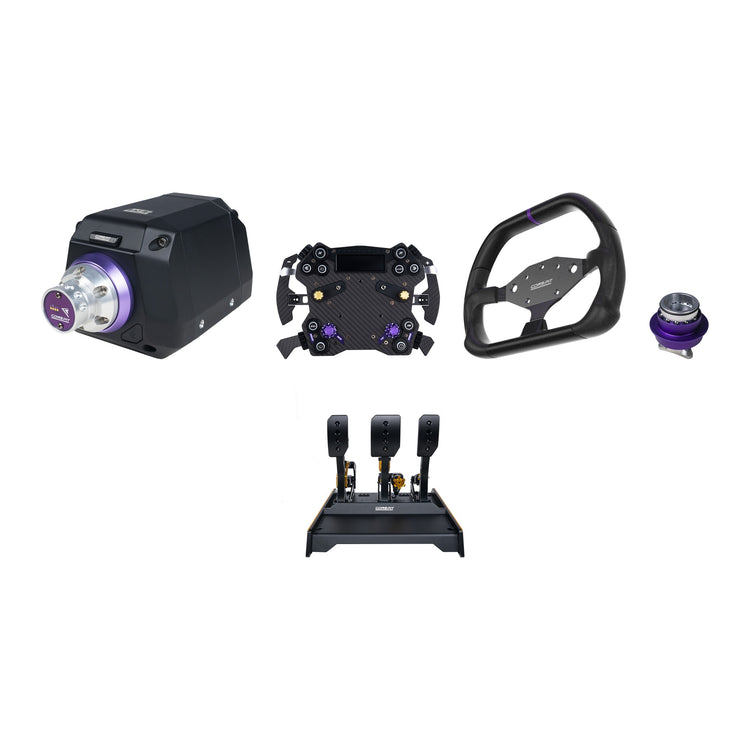

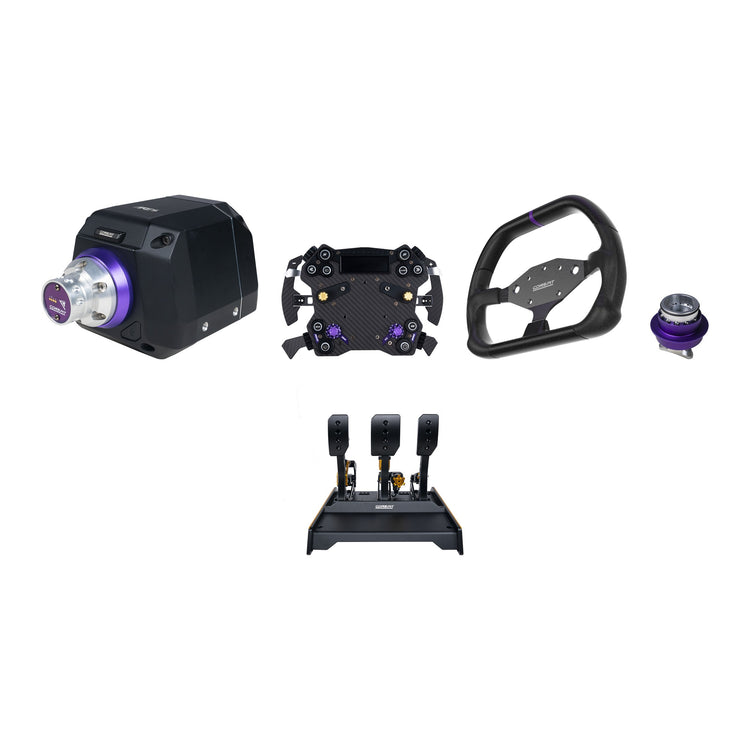

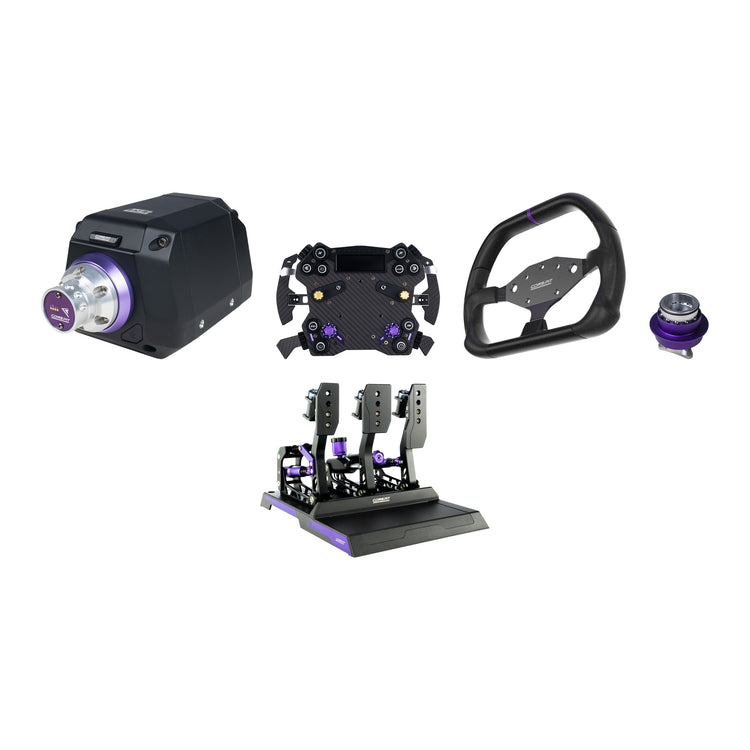

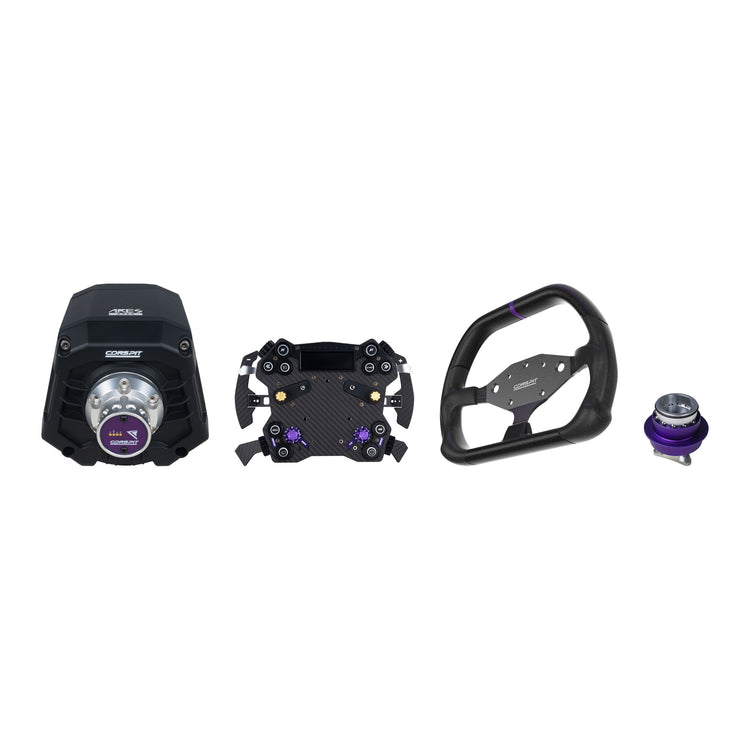

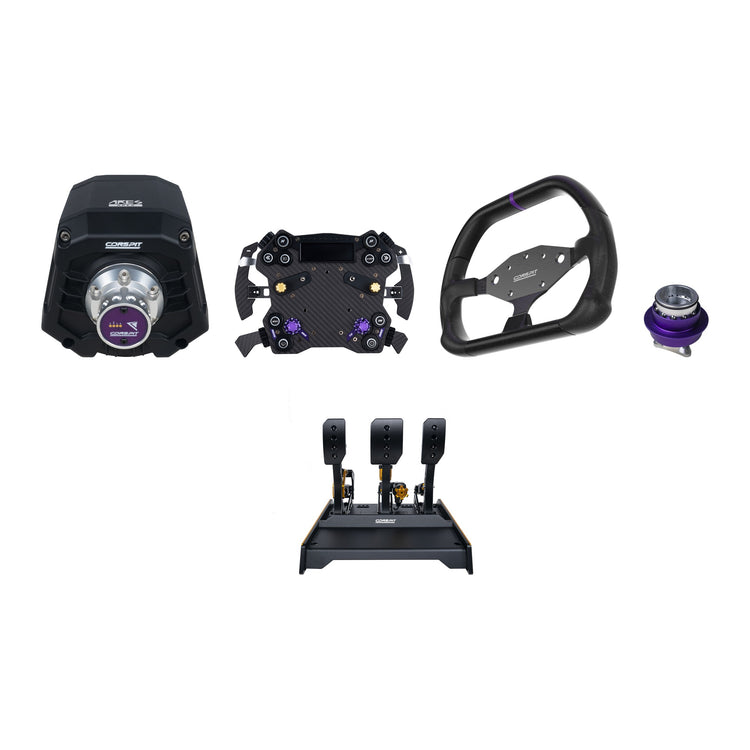

• H.AO Hub + DX320: the same hub with the 320 mm D-shaped DX320 rim (versatile GT)

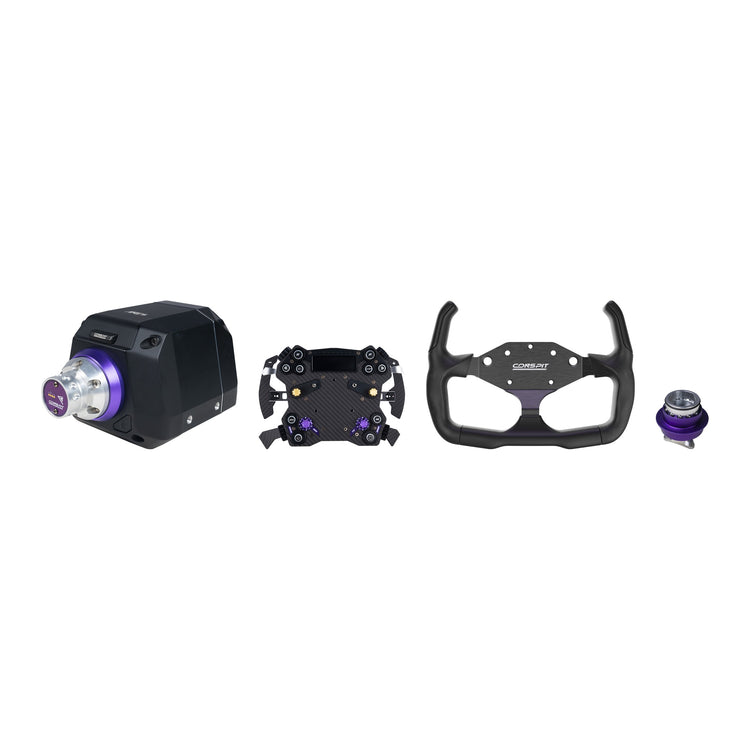

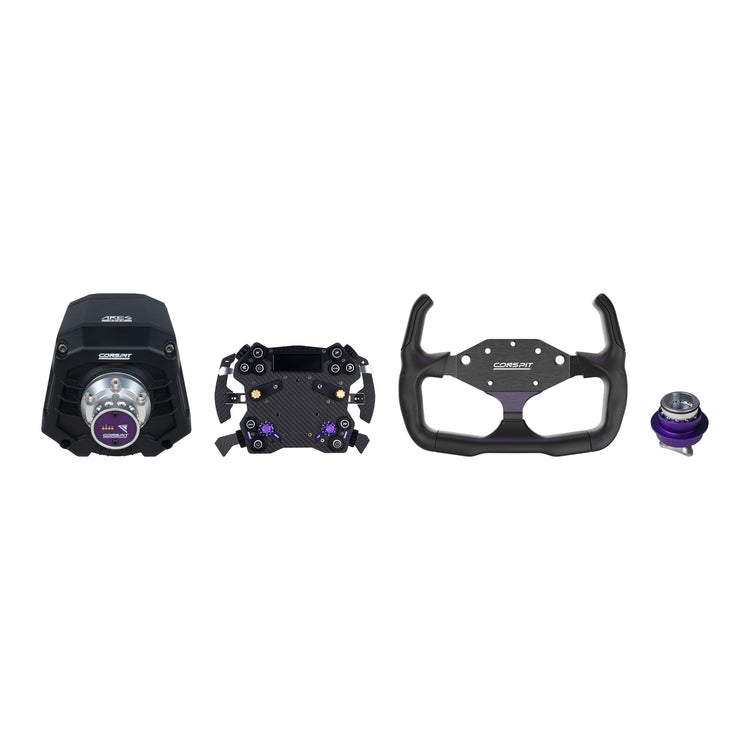

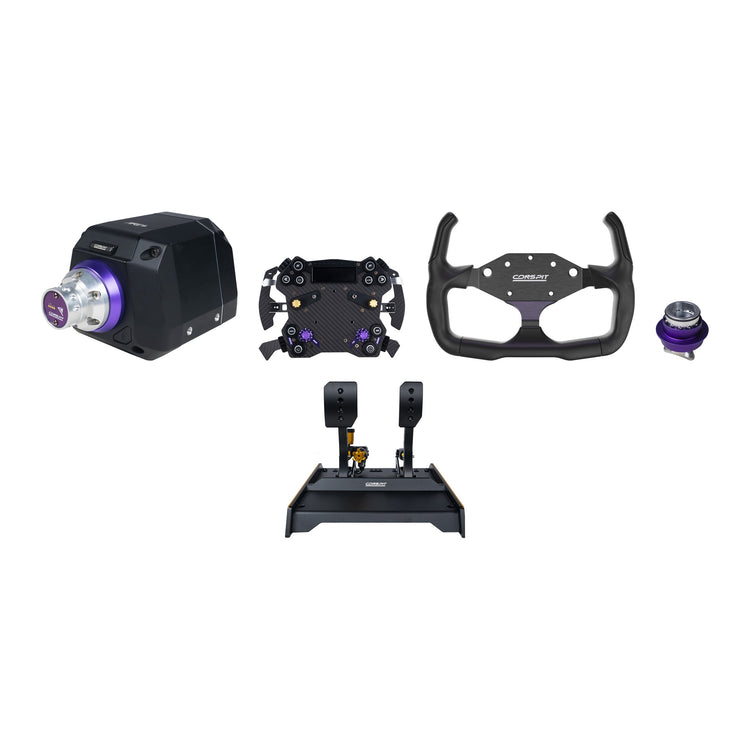

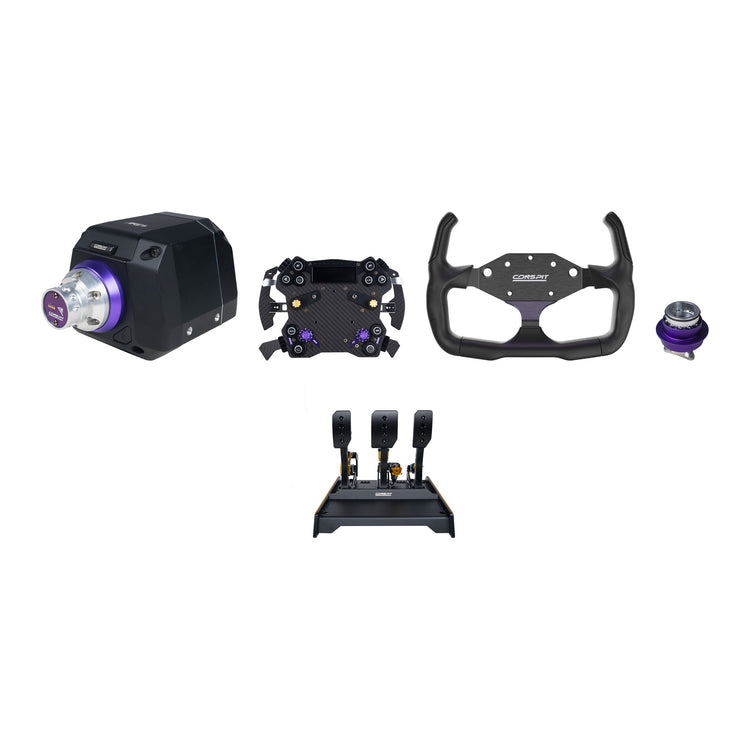

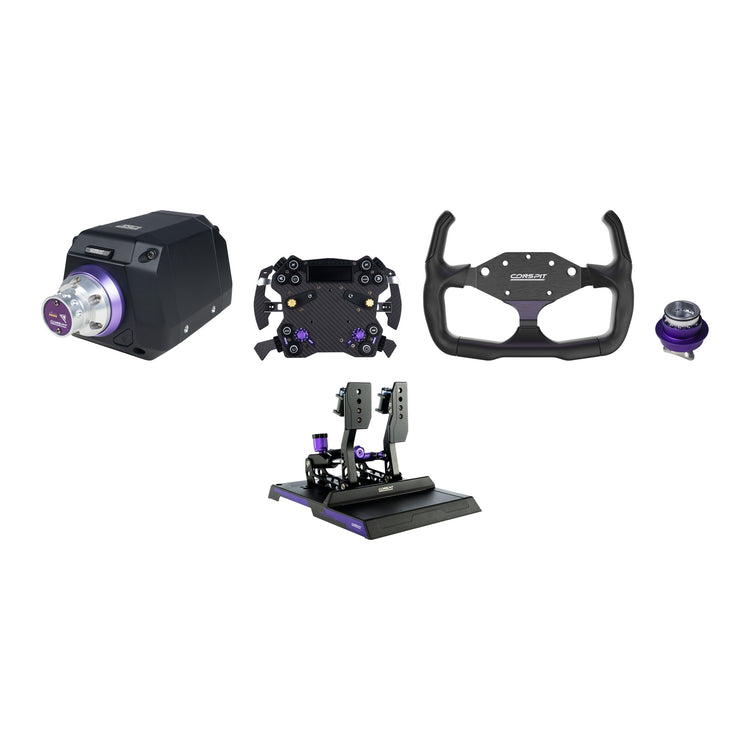

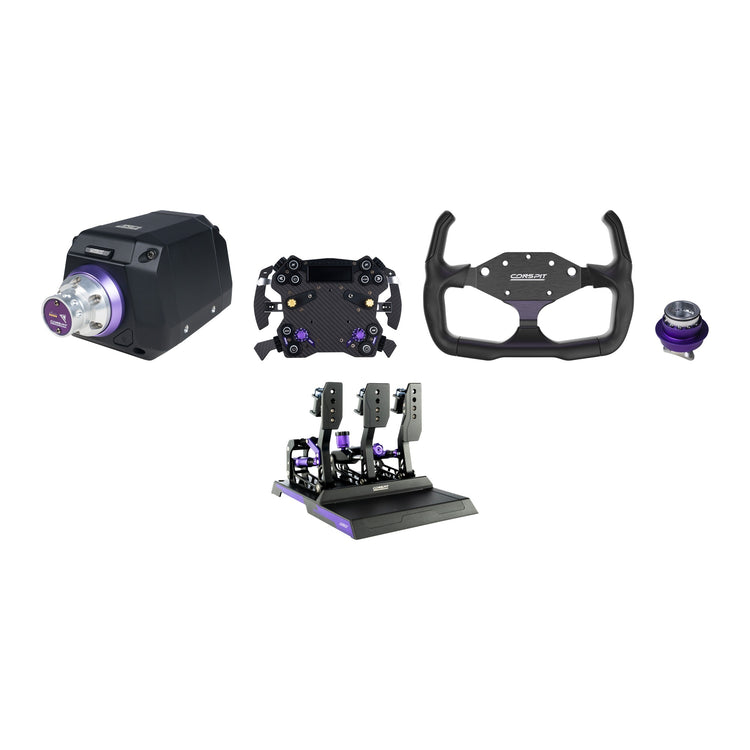

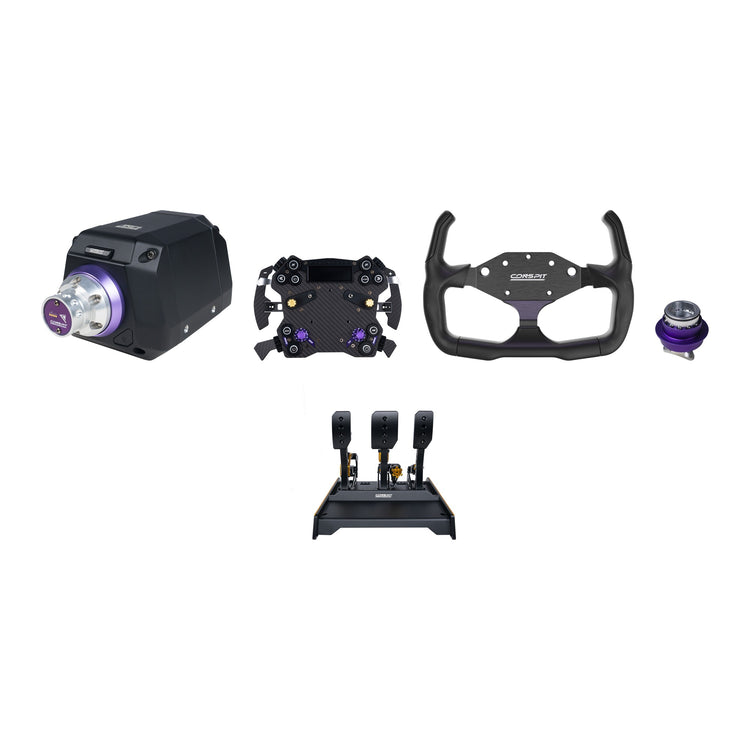

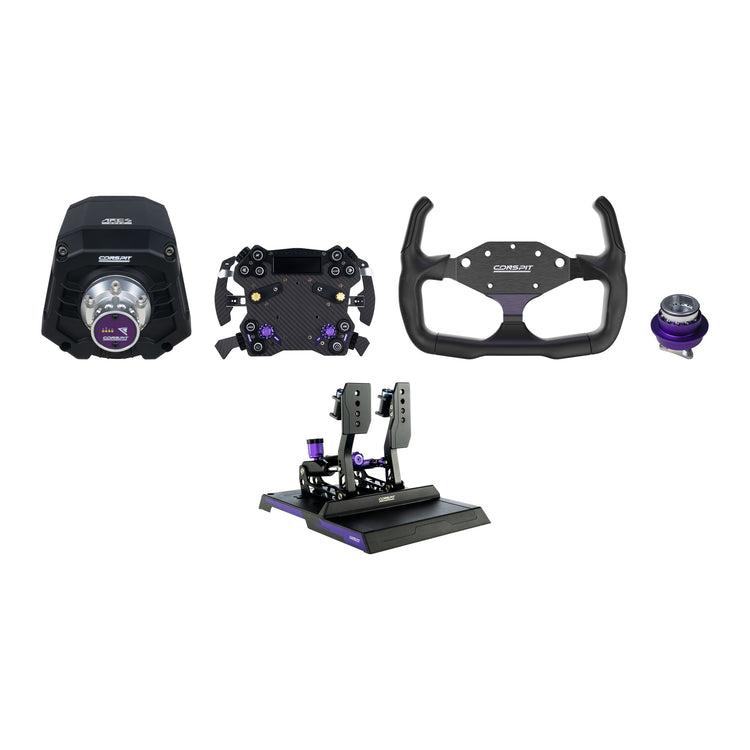

• H.AO Hub + CX295: the same hub with the 295 mm D-shaped CX295 rim (compact, quick steering)

Pedals

• No Pedals: base and wheel only
• CPP Lite Hydraulic 2 Pedals: throttle and brake, generation 1.5 hydraulic brake, 10 MPa sensor up to 100 bar (about 800 N), Hall throttle, M-DVF vibration on every pedal, T6 aluminium
• CPP Lite Hydraulic 3 Pedals: adds the Hall clutch with non-linear mechanism
• CPP EVO V2 Hydraulic 2 Pedals: throttle and brake, 2nd-gen dual-stage hydraulic brake, 20 MPa sensor (about 200 kg), chrome-plated steel piston, 4 force levels per pedal, M-DVF included, 6061-T6 aluminium
• CPP EVO V2 Hydraulic 3 Pedals: adds the EVO clutch

System

• Quick release: Conspit CDR, NRG style, automatic locking, signal through pogo pins, PCD 50 mm (50–70 mm spacer supplied for 70 mm wheels)
• Software: Conspit Link 2.0, SimHub
• Connection: USB to the PC; CPP pedals via USB or Conspit CAN through the Ares base
• Platform: PC (Windows)

In the box

• The selected Ares base with its original accessories
• The selected steering wheel with the CDR quick release (wheel side)
• The Conspit 50–70 mm spacer for the 70 mm wheels (300 GT, MAX01, H.AO Hub)
• The selected CPP pedals, if chosen
• Each product is shipped in its original Conspit packaging

Important notes

• The bundle is sold as a set: the price only applies to the full combination chosen.
• Plan a rigid cockpit or support for the base and pedals; the Ares Apex can also be used with the Conspit desk mount (sold separately).
• An Ares base with CDR quick release only accepts wheels fitted with the CDR quick release (wheel side).

Compatibility

• Platform: PC (Windows)
• Software: Conspit Link 2.0, SimHub
• Optional accessories: CES E-Stop, CSD Nano dashboard, Ares profile bracket or front mount, Ares 15 cm extension rod, H3 hydraulic handbrake

Which model to choose

• Ares Apex 8 Nm: first direct drive or desk setup, best value
• Ares 12 Nm: the all-rounder for GT, rally and Formula
• Ares Platinum 20 Nm: maximum torque and detail for experienced drivers
• GT and endurance: 300 GT, 310 Apex or H.AO Hub + DX320
• Formula: 290GP or MAX01
• Rally and drift: H.AO Hub + RX320
• Pedals: CPP Lite for a first hydraulic set, CPP EVO V2 for a 200 kg dual-stage brake; choose 3 pedals for H-pattern driving

FAQ

How does the Conspit bundle work?

You choose an Ares base, a steering wheel and, if you want, CPP pedals. The Conspit Build Your Own Bundle – Ares CDR price is lower than the products bought separately.

Is the CDR quick release included?

Yes. Each wheel in the Conspit Build Your Own Bundle – Ares CDR comes with the CDR quick release (wheel side), matching the CDR quick release of the Ares base. The 300 GT, MAX01 and H.AO Hub also come with the Conspit 50–70 mm spacer.

Can I connect the pedals through the base?

Yes. The CPP pedals can connect to the Ares base over Conspit CAN, or directly to the PC over USB.

Does the Conspit bundle work on a console?

No. The Conspit Ares bases, wheels and CPP pedals are designed for PC (Windows), with Conspit Link 2.0 and SimHub.

Who handles warranty and after-sales service?

The French Simracer handles after-sales service for the Conspit Build Your Own Bundle – Ares CDR, as for every brand it sells, with a contact based in France. You never deal with the manufacturer directly. The product carries the 2-year legal warranty, or the manufacturer warranty if longer.
