Conspit Ares 20 Platinum Direct Drive Wheelbase (CDR) + CSD Nano

Conspit Ares 20 Platinum CDR + CSD Nano

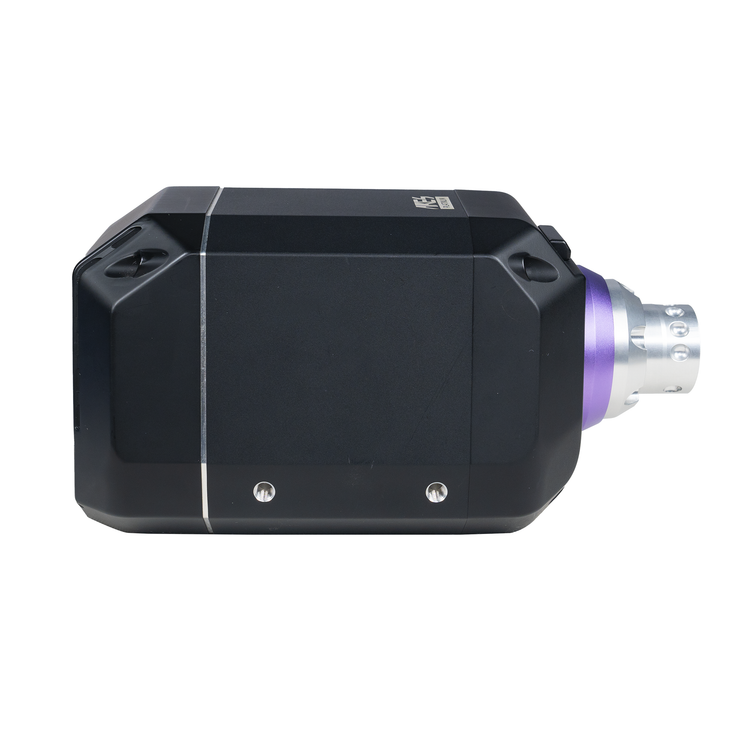

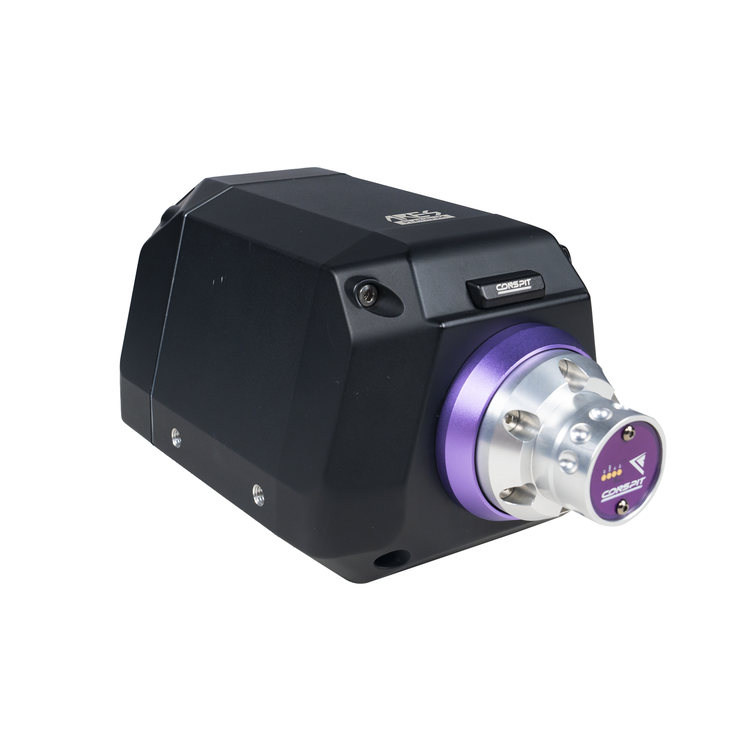

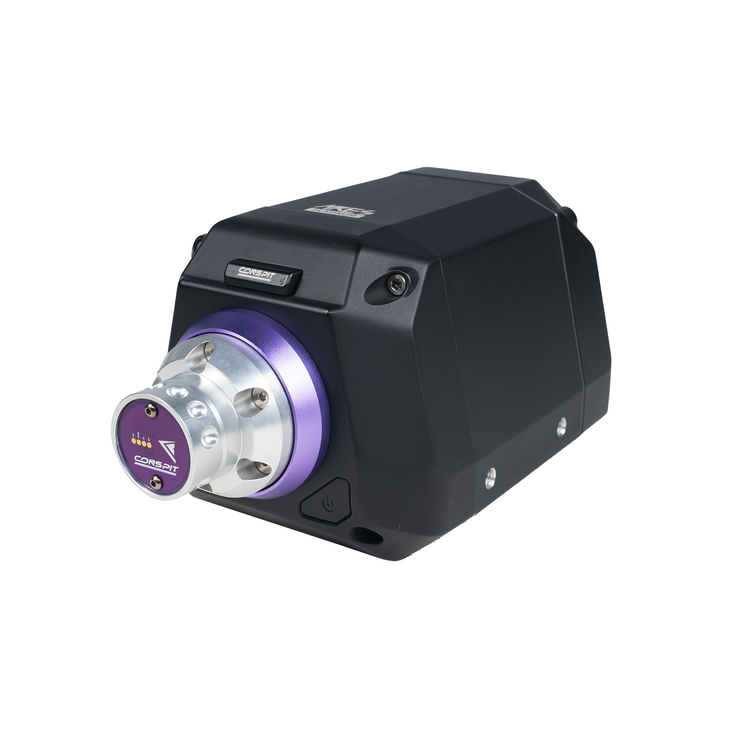

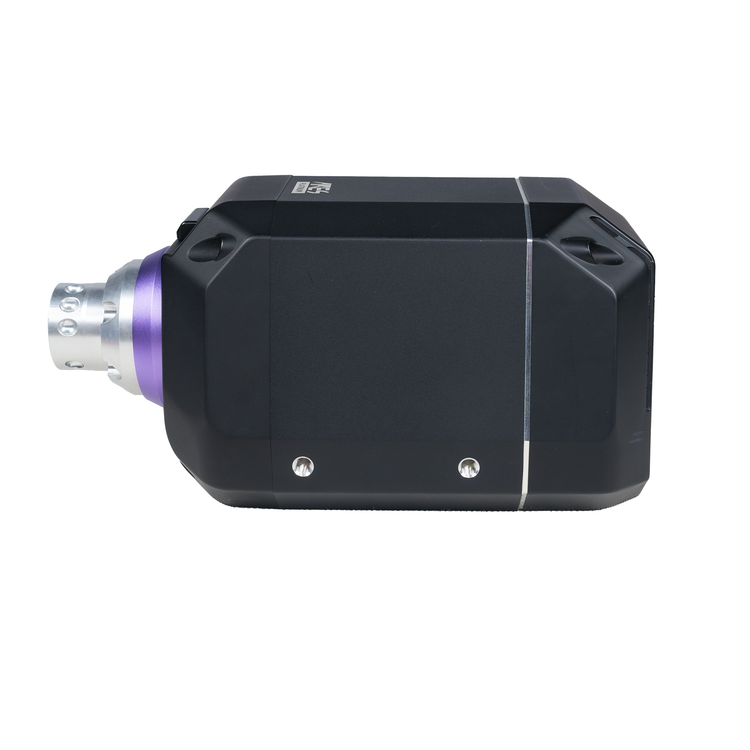

The Conspit Ares 20 Platinum is the most powerful base in the Ares series: 20 Nm through a skew-pole direct drive motor and a 23-bit optical encoder, with a torque slew rate up to 9.5 Nm/ms, in a 7.9 kg aluminium housing. Its CDR quick release gives a rigid, wear-free wheel connection, and this version ships with the CSD Nano telemetry display included, clipped magnetically onto the front of the base. Setup through Conspit Link 2.0, on PC Windows.

Key features

• 20 Nm direct drive with skew-pole motor developed for sim racing, cogging torque under 2.3%
• 23-bit optical encoder, angular resolution below 0.01°
• Torque slew rate up to 9.5 Nm/ms for fine high-frequency detail
• CDR quick release for fast, rigid wheel changes
• CSD Nano telemetry display included, clipped magnetically on the front of the base
• Conspit Link 2.0, with SimHub support
• Aluminium housing, bottom and side mounting

Technical specifications

• Torque: 20 Nm
• Motor: skew-pole direct drive
• Encoder: 23-bit optical
• Torque slew rate: up to 9.5 Nm/ms

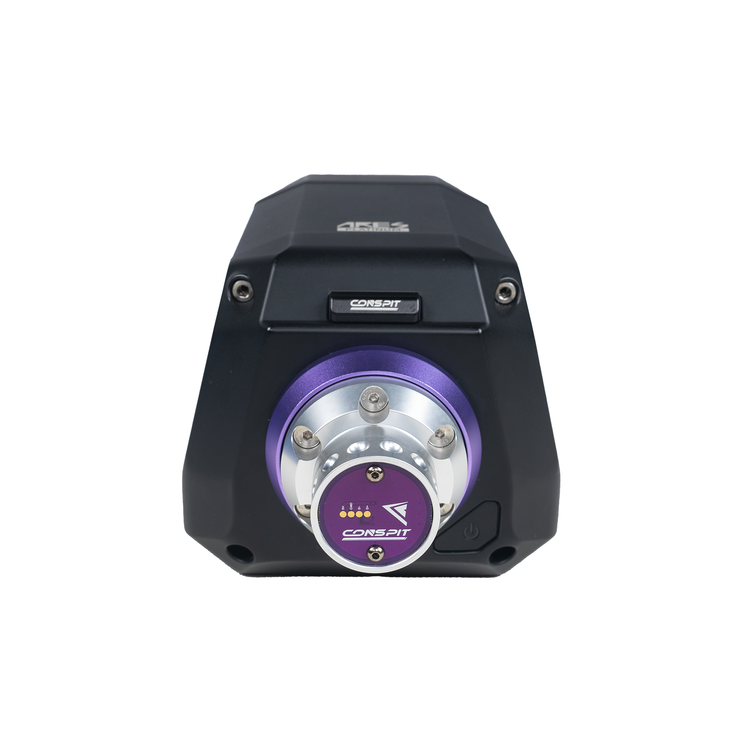

• Quick release: Conspit CDR
• Dimensions: 134 × 150 × 270 mm
• Weight: 7.9 kg
• Mounting: 4 × M6 (bottom), 4 × M8 (sides)

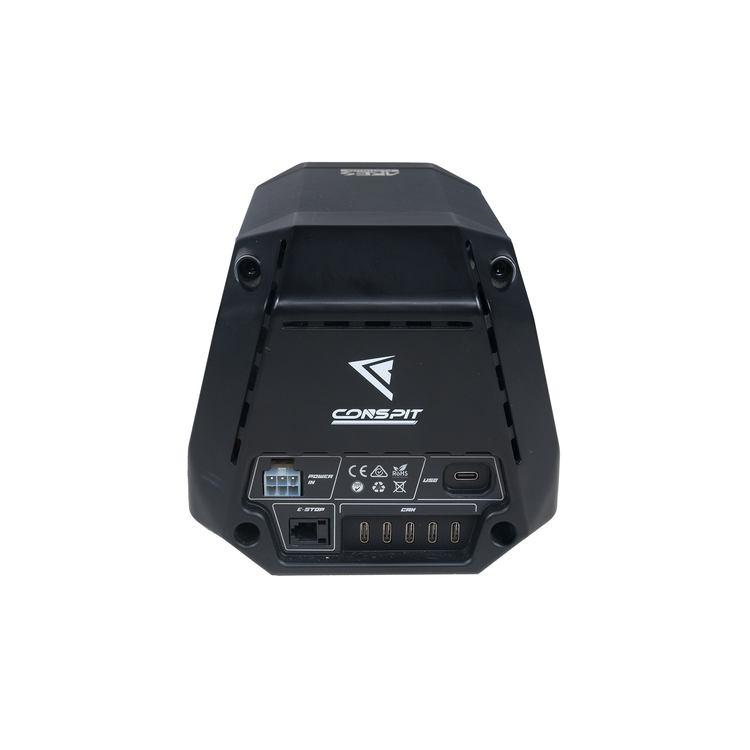

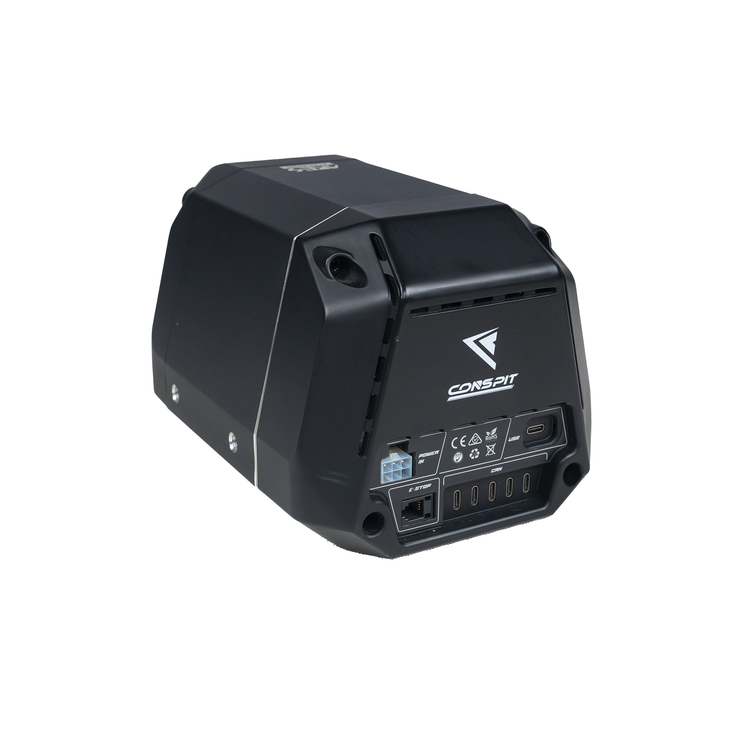

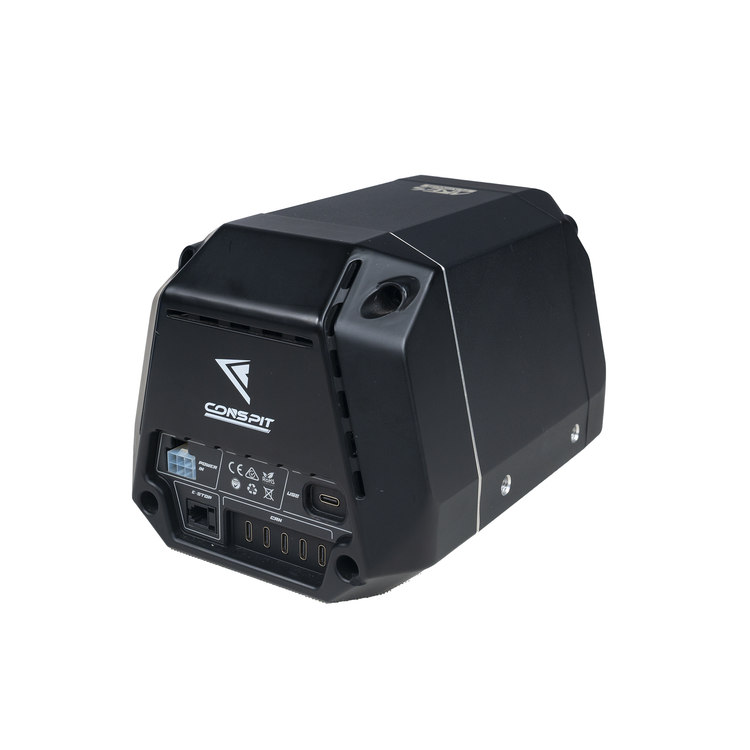

• Connection: USB 3.0, direct
• E-Stop: CES E-Stop, optional
• Software: Conspit Link 2.0

CSD Nano telemetry display, included

• 2.99-inch LCD, 800 × 268, software-adjustable brightness
• Magnetic pogo-pin mount on the front of the base: mounting and data in one step, no exposed cable
• Native Conspit Link 2.0 layouts: gear, RPM, speed, lap times, delta, tyre data
• SimHub dashboards, and a media mode for logos or animations
• Dimensions: 92 × 27 × 13 mm

In the box

• Conspit Ares 20 Platinum wheelbase (CDR base side integrated)
• CSD Nano telemetry display
• Power supply and USB 3.0 cable
• Hex keys and M6/M8 mounting screws with washers
• User manual

Important notes

No steering wheel and no CES E-Stop included. The CDR wheel side comes with the Conspit 310 Apex CDR; other Conspit wheels need the Conspit CDR Quick Release.

Compatibility

• PC Windows only. Not compatible with Xbox or PlayStation.
• Conspit wheels via CDR quick release; third-party wheels via adapter
• Conspit pedals, dashboards and accessories

Which model to choose

• Ares Apex 8 Nm (CDR): the most compact base (196 mm), 21-bit magnetic encoder. Desk or first direct drive.
• Ares 12 Nm (CDR) + CSD Nano: 23-bit optical encoder, 9.5 Nm/ms, CDR quick release, CSD Nano display included.
• Ares 12 Nm (CDP): same 12 Nm base with the ball-lock CDP quick release, for wheels already fitted with CDP.
• Ares 20 Platinum (CDR) + CSD Nano: same technology, 20 Nm of torque reserve.

FAQ

Who needs 20 Nm?

Drivers who want maximum torque reserve: powerful cars, high caster, heavy wheels or strong force feedback settings. The Conspit Ares 20 Platinum uses the same 23-bit encoder and skew-pole motor technology as the Ares 12; the difference is the torque.

Is the CSD Nano display really included?

Yes. This version of the Conspit Ares 20 Platinum ships with the CSD Nano telemetry display, normally sold separately, clipped magnetically on the front of the base with no cable.

Is a steering wheel included?

No. The Conspit Ares 20 Platinum is sold without a wheel. The CDR wheel side comes with the Conspit 310 Apex CDR; other Conspit wheels need the Conspit CDR Quick Release.

Is an emergency stop available?

Yes. The Conspit CES E-Stop is available as an option. It is a sensible addition on a 20 Nm base such as the Ares 20 Platinum, especially in a shared or family setup.

How does the Ares 20 Platinum compare with other 20 Nm class bases?

The Conspit Ares 20 Platinum competes with high-torque direct drive bases around 20 Nm. Its distinguishing points are a 23-bit optical encoder, a torque slew rate up to 9.5 Nm/ms, the CDR quick release and the CSD Nano display included. It is PC only.

Which games work with the Ares 20 Platinum?

The Conspit Ares 20 Platinum works with PC sims that support force feedback wheels, including iRacing, Assetto Corsa Competizione, Assetto Corsa EVO, Le Mans Ultimate, rFactor 2, Automobilista 2, F1 and EA Sports WRC.

Does the Ares 20 Platinum work on PS5 or Xbox?

No. The Conspit Ares 20 Platinum works on PC Windows only.

Who handles warranty and after-sales service?

The French Simracer handles after-sales service for the Conspit Ares 20 Platinum, as for every brand it sells, with a contact based in France. You never deal with the manufacturer directly. The product carries the 2-year legal warranty, or the manufacturer warranty if longer.
