BDH H1 H-Pattern Shifter

SKU: H1-BLACK
Availability: In stock
Product type: Simracing > Shifters & freins à main > Shifters H
Regular price
769,90€
Regular price
Sale price
769,90€

About VAT

Subtotal: 769,90€

Ships within 1–2 business days

Secured Payments

More than 10 Years of Expertise

BDH H1

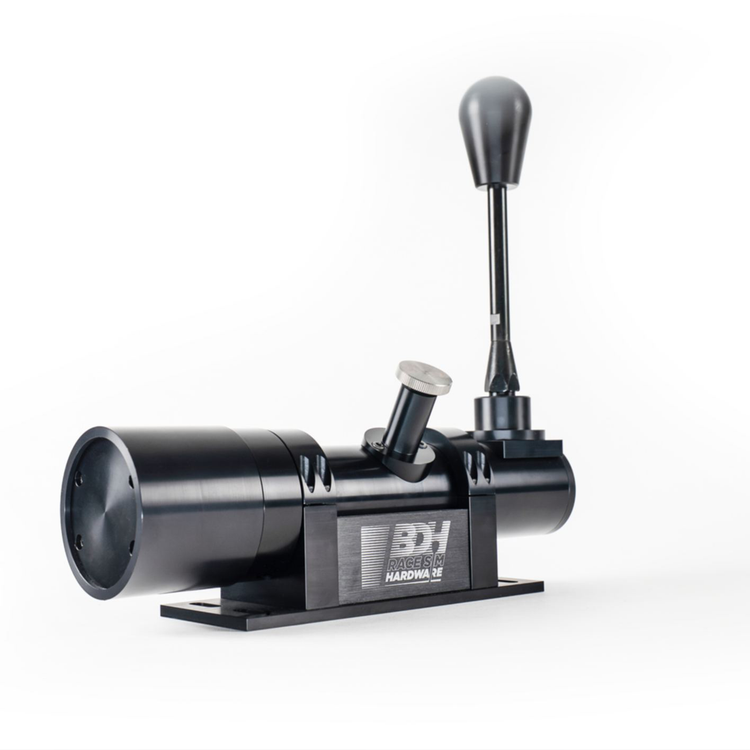

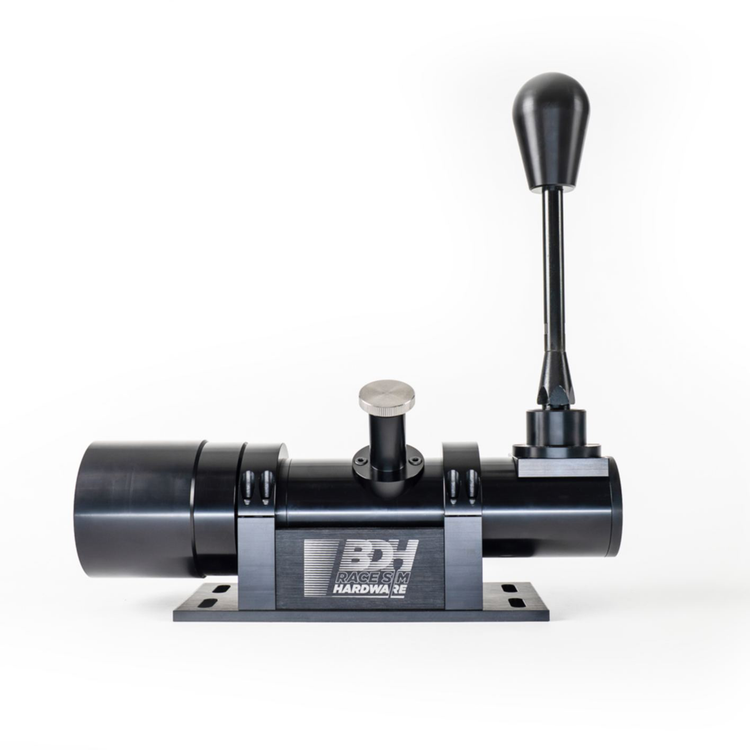

The BDH H1 is a dedicated mechanical H-pattern shifter, the upgraded version of BDH's original H-pattern shifter, inspired by the shifting mechanism of the Ford Escort MkII rally car. It weighs 3.5 kg, uses contactless Hall sensors, connects in USB-C and is covered by a lifetime warranty.

Key features

  • Dedicated H-pattern mechanism, classic BDH layout

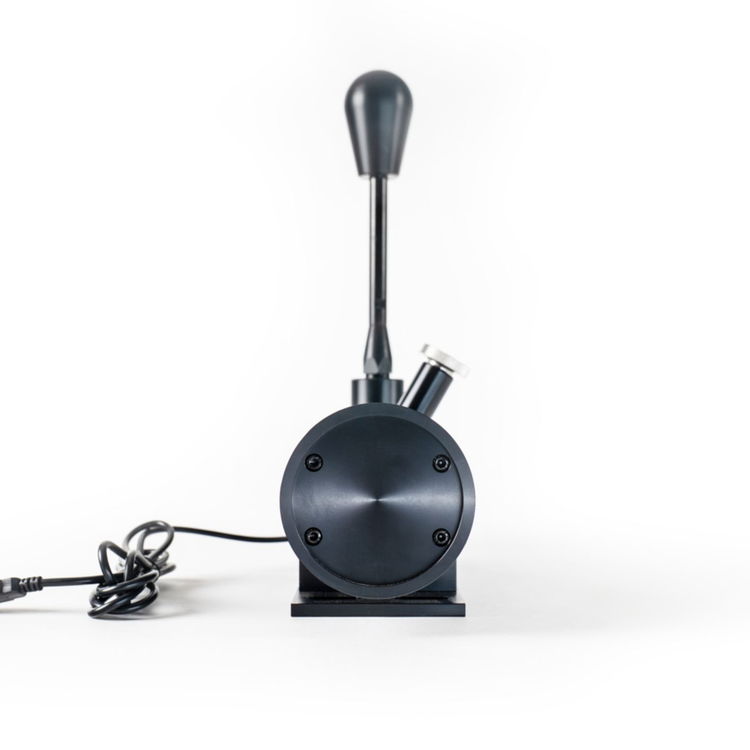

  • 8 gear gates with fully customisable layout

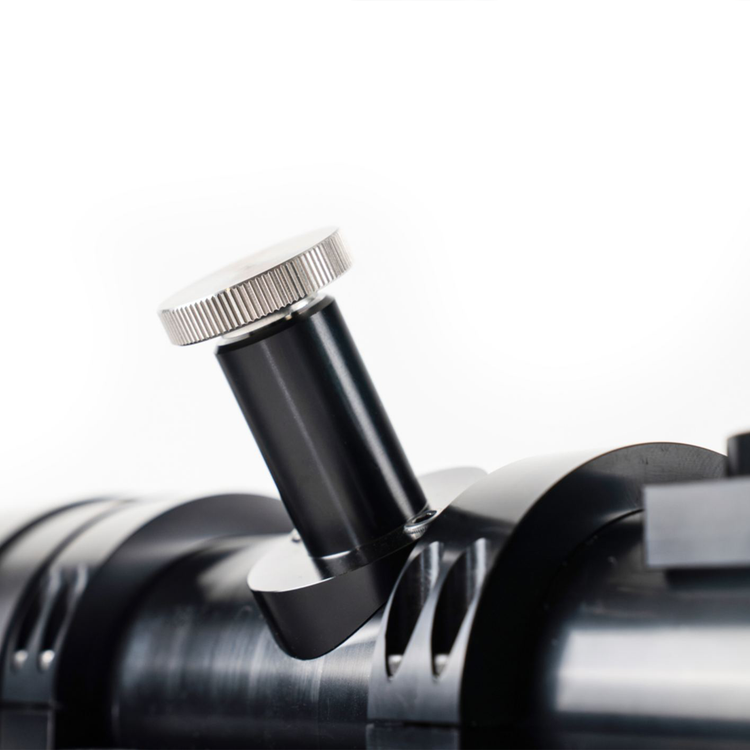

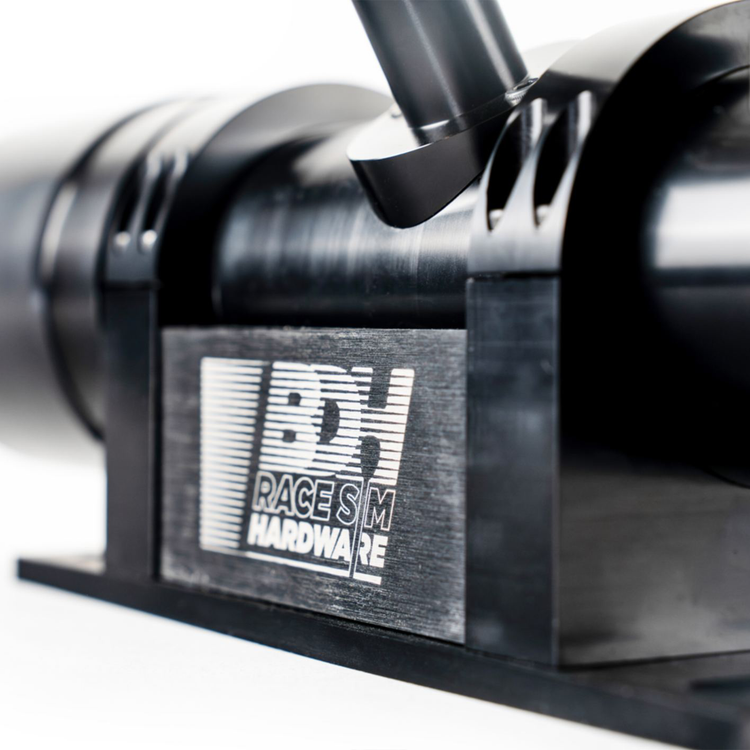

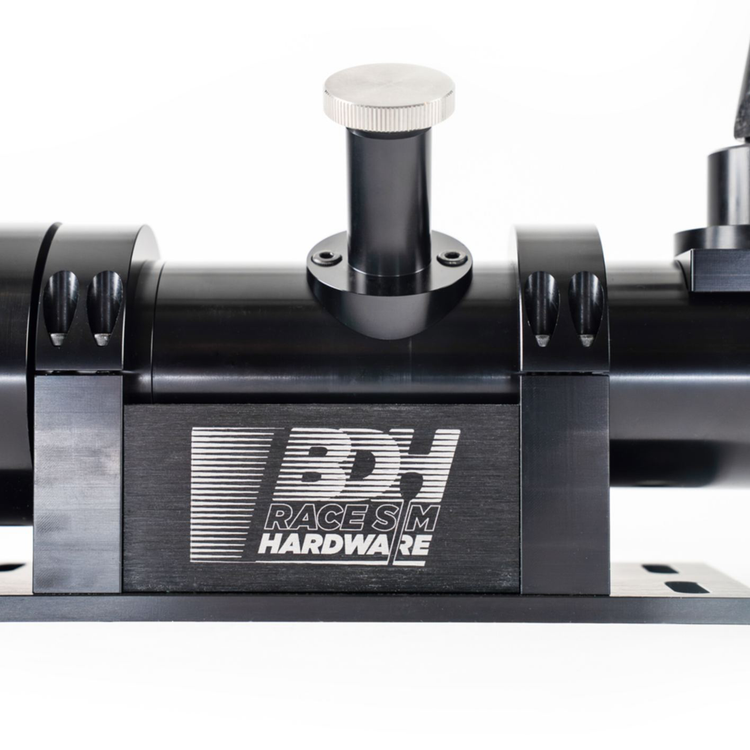

  • Adjustable detent gauge with dual-locking preset and centralising CAM mechanism
  • All-steel gear teeth and stainless steel gate pegs

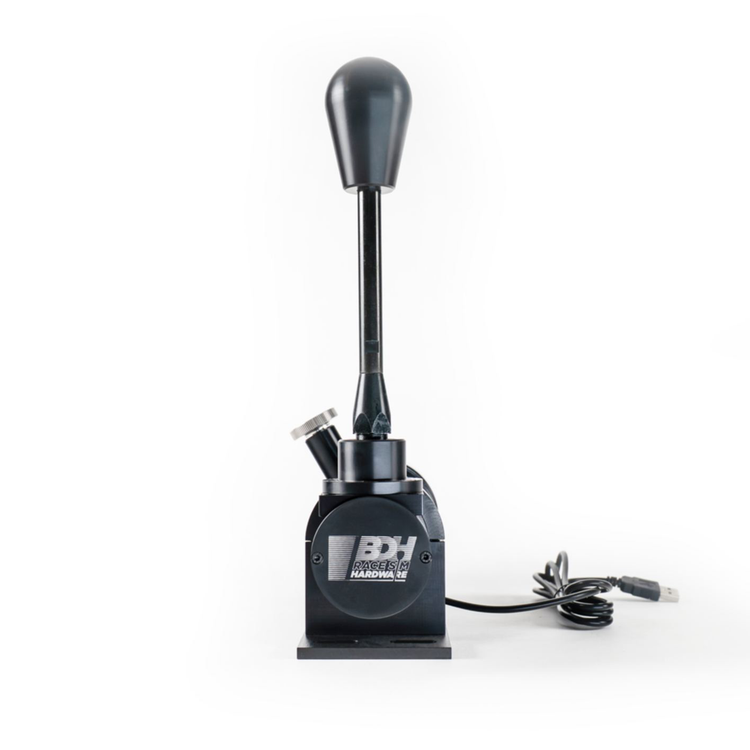

  • Contactless Hall sensors as standard
  • USB-C plug and play, custom BDH firmware, no external power supply
  • 360° mounting, M8 × 1.25 points with T-nut compatibility

Technical specifications

  • Dimensions: 300 × 300 × 80 mm
  • Weight: 3.5 kg
  • Mode: dedicated H-pattern
  • Connection: USB-C, 2 m cable
  • Power: USB, 5 V DC

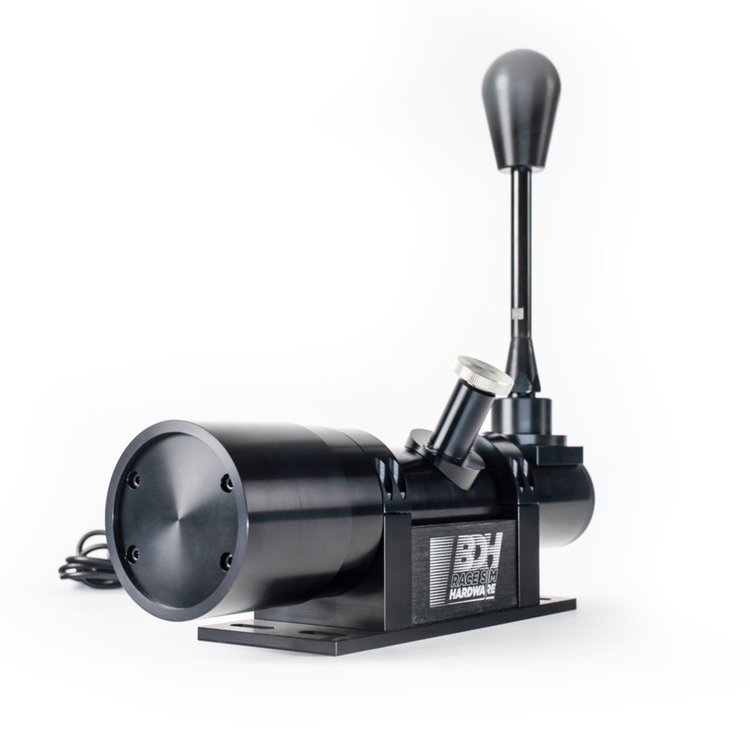

  • Chassis: HE260 aerospace-grade aluminium, black oxide treated
  • Components: alloy steel mechanism, high-tensile steel, self-lubricating bronze bushings, die square-section springs
  • Bearings: PTFE-lined spherical bearings, radiused 303 stainless steel gate pegs

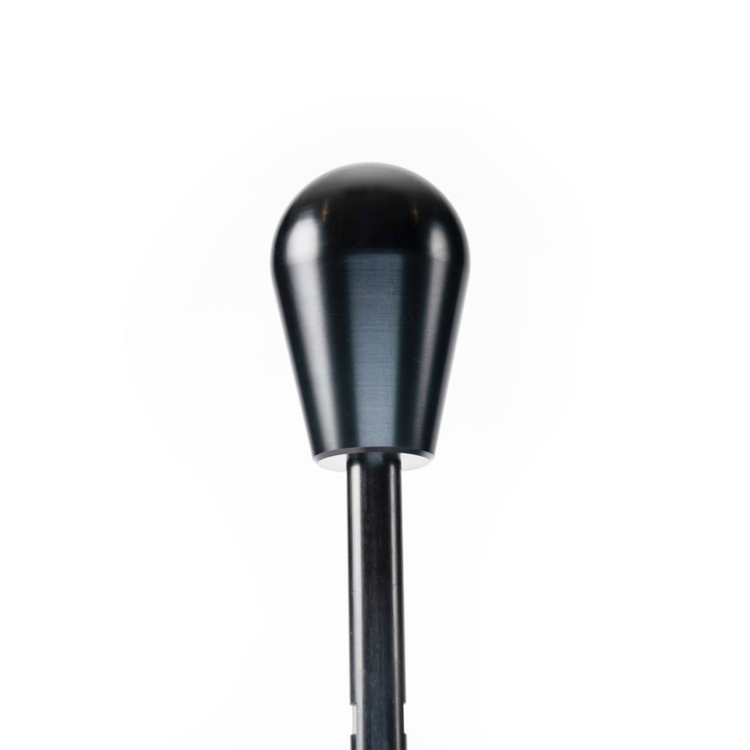

  • Knob thread: M10 × 1.5, multiple height settings
  • Warranty: lifetime, against manufacturing defects

In the box

  • BDH H1 shifter
  • USB-C cable (2 m)

Compatibility

PC only, plug and play with all major sim racing titles.

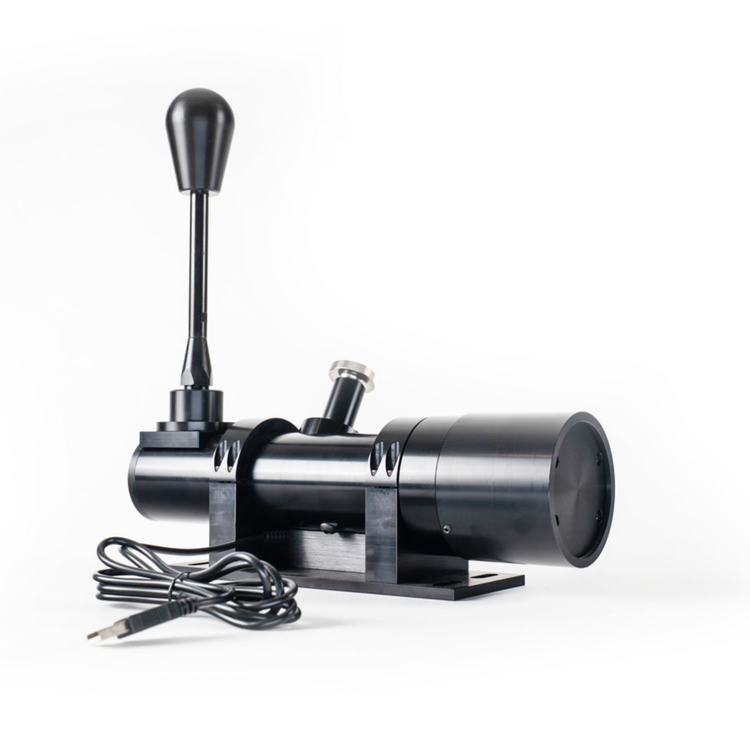

  • Top, side or reverse mounting on aluminium profile rigs via BDH's integrated clamp system, without extra brackets.
  • Optional sandwich adapter plate available
  • Third-party gear knobs with M10 × 1.5 thread
  • Optional H1 Gear Gate Lockout Kit to create 4, 5 or 6-speed gates (H1 2025 spec and later)

Which model to choose

  • H1: dedicated H-pattern, classic mechanical feel with solid detents
  • H2SQ: dual-mode H-pattern and sprint-style sequential, smoother refined feel
  • S1: dedicated rally-focused sequential, longer shaft, high-impact feel
  • Active: servo-driven force feedback via SimHub telemetry

FAQ

Can the BDH H1 be limited to a 4, 5 or 6-speed gearbox?

Yes, with the optional BDH H1 Gear Gate Lockout Kit, which physically blocks unused gear positions.

Can I fit another gear knob on the BDH H1?

Yes. The BDH H1 shaft uses a standard M10 × 1.5 thread.

How is the BDH H1 mounted?

The BDH H1 mounts on top, on the side or upside down on aluminium profile rigs with BDH's integrated clamp system, without extra brackets.

Does the BDH H1 work on PS5 or Xbox?

No. The BDH H1 connects by USB and works on PC only, plug and play with the main sim racing titles.

Who handles warranty and after-sales service?

The French Simracer handles after-sales service for the BDH H1, as for every brand it sells, with a contact based in France. You never deal with the manufacturer directly. The product carries the 2-year legal warranty, or the manufacturer warranty if longer. BDH also offers a lifetime warranty against manufacturing defects.
