Ascher Racing 4" / 5" Dashboard

Vendor: Ascher-Racing
SKU: 76080028
Barcode: 4251778309253
Availability: In stock
Product type: Simracing > Accessoires volant & base > Dashboards & affichage
Dashboard size: 4" Dashboard
Regular price
369,90€
Regular price
Sale price
369,90€

About VAT

Subtotal: 369,90€

Ships within 1–2 business days

Secured Payments

More than 10 Years of Expertise

Ascher Racing 4" / 5" Dashboard

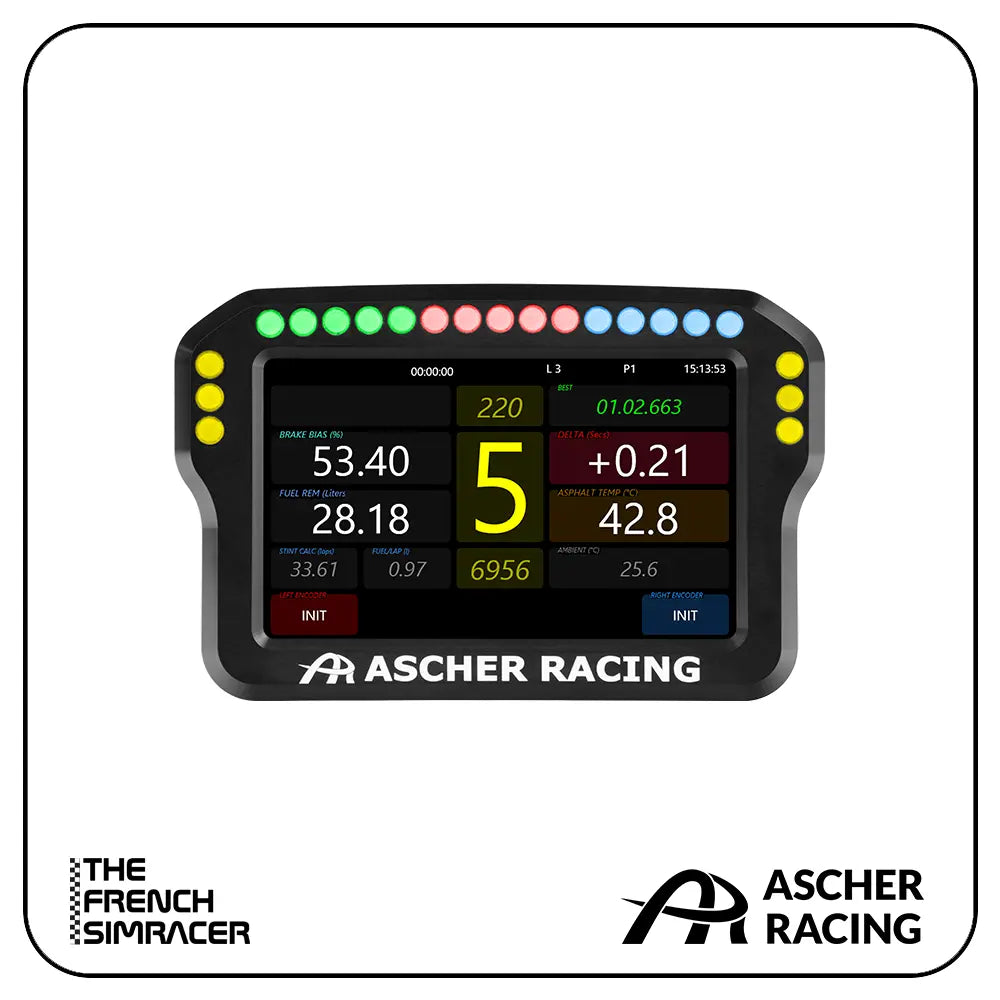

The Ascher Racing 4" / 5" Dashboard is a sim racing display in a CNC-machined anodised aluminium housing only 18 mm thick, with a 16-bit colour resistive touchscreen rated at 350 lumens that can be used with racing gloves. It is framed by 21 RGB LEDs in individual bores to prevent light bleed, with official SimHub integration and carbon mounting brackets included.

Key features

  • 4" or 5" display: 800 × 480 or 854 × 480 pixels, 16-bit colours, 350 lumens
  • Resistive touchscreen, usable with racing gloves
  • 21 RGB LEDs (16 million colours): 15 horizontal and 3 vertical on each side, each in its own bore
  • Official SimHub integration with the Ascher Racing SimHub plugin, dash design and LED profile
  • CNC-machined anodised aluminium housing, 18 mm thick
  • Angled USB-C cable for power and data, and on/off switch on the back
  • Carbon mounting brackets included for common wheelbases

Technical specifications

  • 4" version: display 86 × 53 mm, 800 × 480 px
  • 5" version: display 109.6 × 61.6 mm, 854 × 480 px
  • Colours: 16-bit, 350 lm
  • Touch: resistive
  • LEDs: 21 RGB (15 + 3 + 3)
  • Housing: anodised aluminium, 18 mm thick
  • Connection: USB-C (angled cable included)

In the box

  • Ascher Racing Dashboard (4" or 5")
  • Carbon mounting brackets
  • Angled USB-C cable

Compatibility

PC only.

  • Wheelbases (brackets): Simucube 1 / 2 / 3, Fanatec, VRS DirectForce Pro, MiGE and Lenze motors, Simagic, Asetek
  • Software: SimHub

Which model to choose

  • 4" Dashboard: the most compact, 800 × 480
  • 5" Dashboard: larger display, 854 × 480
  • 8" Dashboard: 7.85" widescreen, 26 LEDs, ¼" mount

FAQ

Can the Ascher Racing dashboard touchscreen be used with gloves?

Yes. The resistive touchscreen of the Ascher Racing 4" / 5" Dashboard works with racing gloves.

Which wheelbases can the Ascher Racing dashboard be mounted on?

The included carbon brackets of the Ascher Racing 4" / 5" Dashboard fit Simucube 1, 2 and 3, Fanatec, VRS DirectForce Pro, MiGE and Lenze motors, Simagic and Asetek wheelbases.

Which software configures the Ascher Racing dashboard?

The Ascher Racing 4" / 5" Dashboard is configured in SimHub, with the Ascher Racing plugin, dash design and LED profile, or any community dashboard.

Who handles warranty and after-sales service?

The French Simracer handles after-sales service for the Ascher Racing 4" / 5" Dashboard, as for every brand it sells, with a contact based in France. You never deal with the manufacturer directly. The product carries the 2-year legal warranty, or the manufacturer warranty if longer.
