Aluminium Profile Harness Mounting Kit

Aluminium Profile Harness Mounting Kit

The Aluminium Profile Harness Mounting Kit is designed to create harness attachment points on a compatible aluminium-profile chassis. The confirmed kit composition includes four M8 eye bolts, six M8 T-nuts, two M8 bolts and six flat washers.

Complete 18-Piece Hardware Kit

• 4 M8 eye bolts with closed attachment rings
• 6 M8 T-nuts for compatible aluminium profiles or rails
• 2 M8 bolts
• 6 flat washers
• Total: 18 pieces

M8 Eye-Bolt Attachment Points

The silver eye bolts feature closed metal rings and a visible M8 marking on the eye-bolt heads shown in the supplied image. They are intended to provide attachment points for compatible harness straps or mounting hardware after correct installation on the chassis.

• Closed metal eye-ring design
• External threaded shank
• M8 marking visible on the eye bolts shown
• Silver metallic finish

M8 T-Nuts for Aluminium Profiles

The kit includes 6 M8 T-nuts for use with a compatible aluminium extrusion or rail. T-nuts allow the mounting points to be positioned along the profile before the fasteners are tightened. The exact T-nut dimensions and profile standard are not identifiable from the supplied image.

• 6 M8 T-nuts
• Threaded mounting points for compatible profile slots
• Adjustable positioning along a compatible aluminium extrusion
• Profile slot size and T-nut dimensions must be checked before installation

Bolts and Flat Washers

The confirmed composition includes 2 M8 bolts and 6 flat washers. The washers help distribute contact under the relevant fasteners. The supplied image shows black wide-head bolts and silver flat washers, but it does not confirm the bolt length, exact head specification or strength class.

• 2 M8 bolts
• 6 flat washers
• Black bolt finish and silver washer finish visible in the image
• Bolt length, head specification and strength class are not confirmed

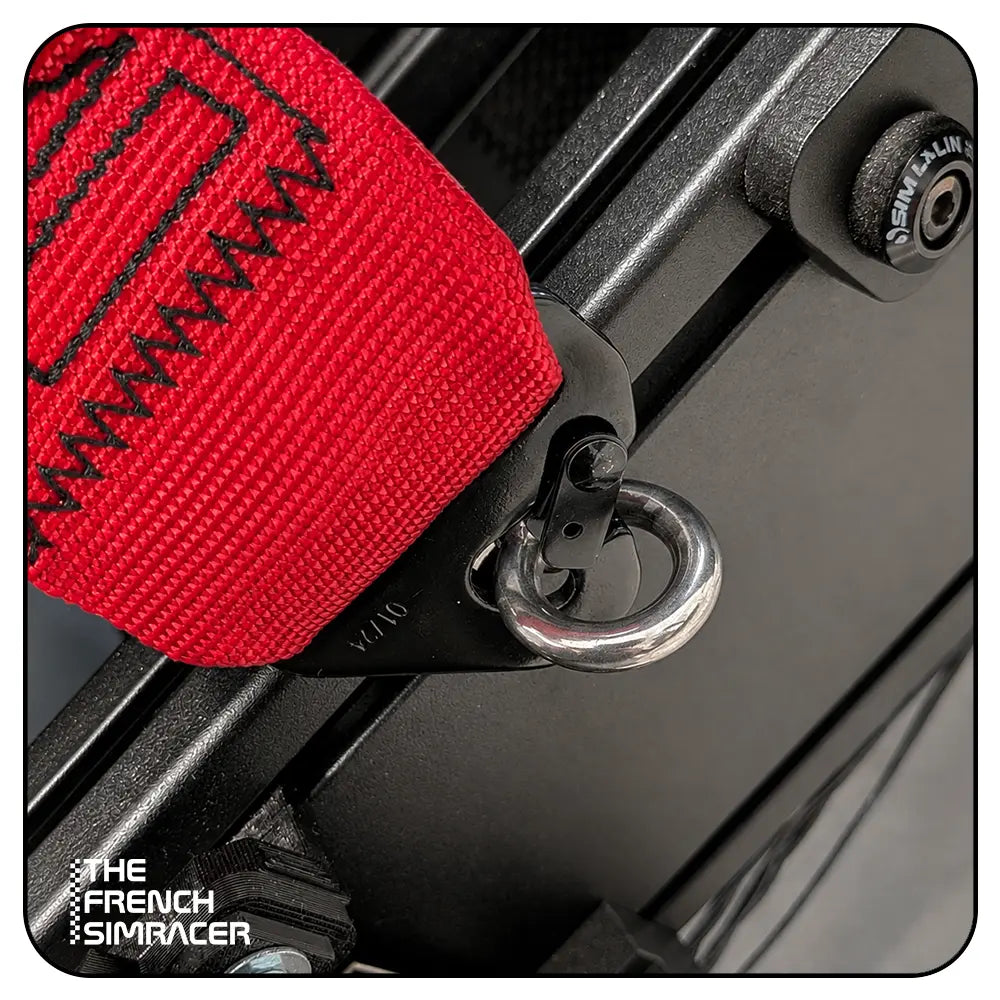

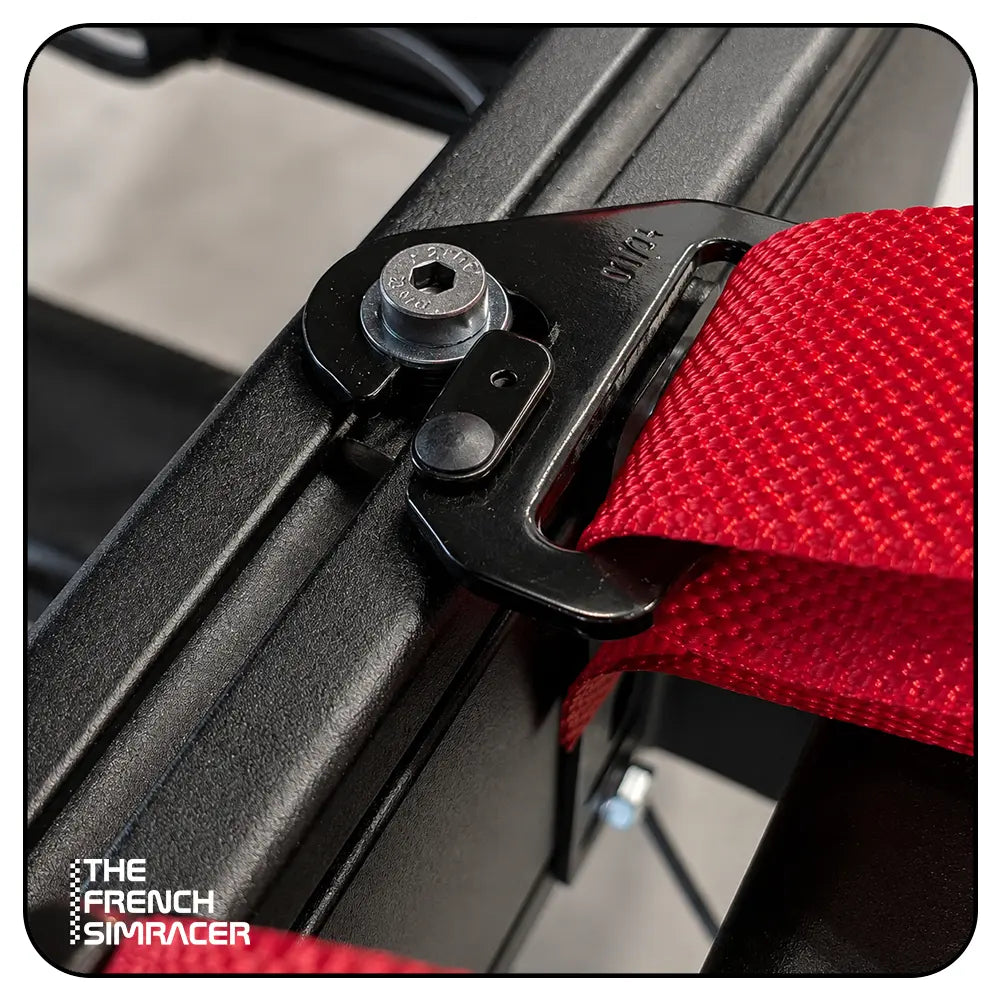

Installation Concept

Insert the compatible M8 T-nuts into the aluminium profile slot, position them at the required harness mounting locations, align the eye bolts and washers with the fixing points, then tighten the M8 bolts and hardware according to the chassis manufacturer's instructions.

Orient the eye bolts so that the harness attachment remains aligned with the intended direction of pull. Verify that all components are fully engaged in the profile before use.

Compatibility and Safety Information

• Intended for a compatible aluminium-profile chassis or rail
• Uses M8 eye bolts, M8 T-nuts and M8 bolts according to the confirmed composition
• Compatible profile type, slot size, thread pitch and T-nut dimensions are not confirmed
• Compatibility with a particular cockpit brand or harness system is not confirmed

This hardware kit must not be treated as a certified motorsport safety anchor without confirmation from the chassis and harness manufacturers. The supplied image does not state a load rating, safety standard, material grade, torque value or certification. Verify the complete mounting system before using a harness.

Frequently Asked Questions

What is included in the harness mounting kit?

The confirmed kit contains 4 M8 eye bolts, 6 M8 T-nuts, 2 M8 bolts and 6 flat washers.

How many pieces are included?

The confirmed kit contains 18 pieces in total.

Is the kit compatible with every aluminium profile?

No. Compatibility with every profile cannot be confirmed. Check the profile slot size, T-nut dimensions, thread pitch and fastener compatibility before installation.

Does the kit have a certified harness load rating?

No load rating, certification or safety standard is provided in the supplied image. Confirm these points with the chassis and harness manufacturers before using the kit as a harness anchor.
